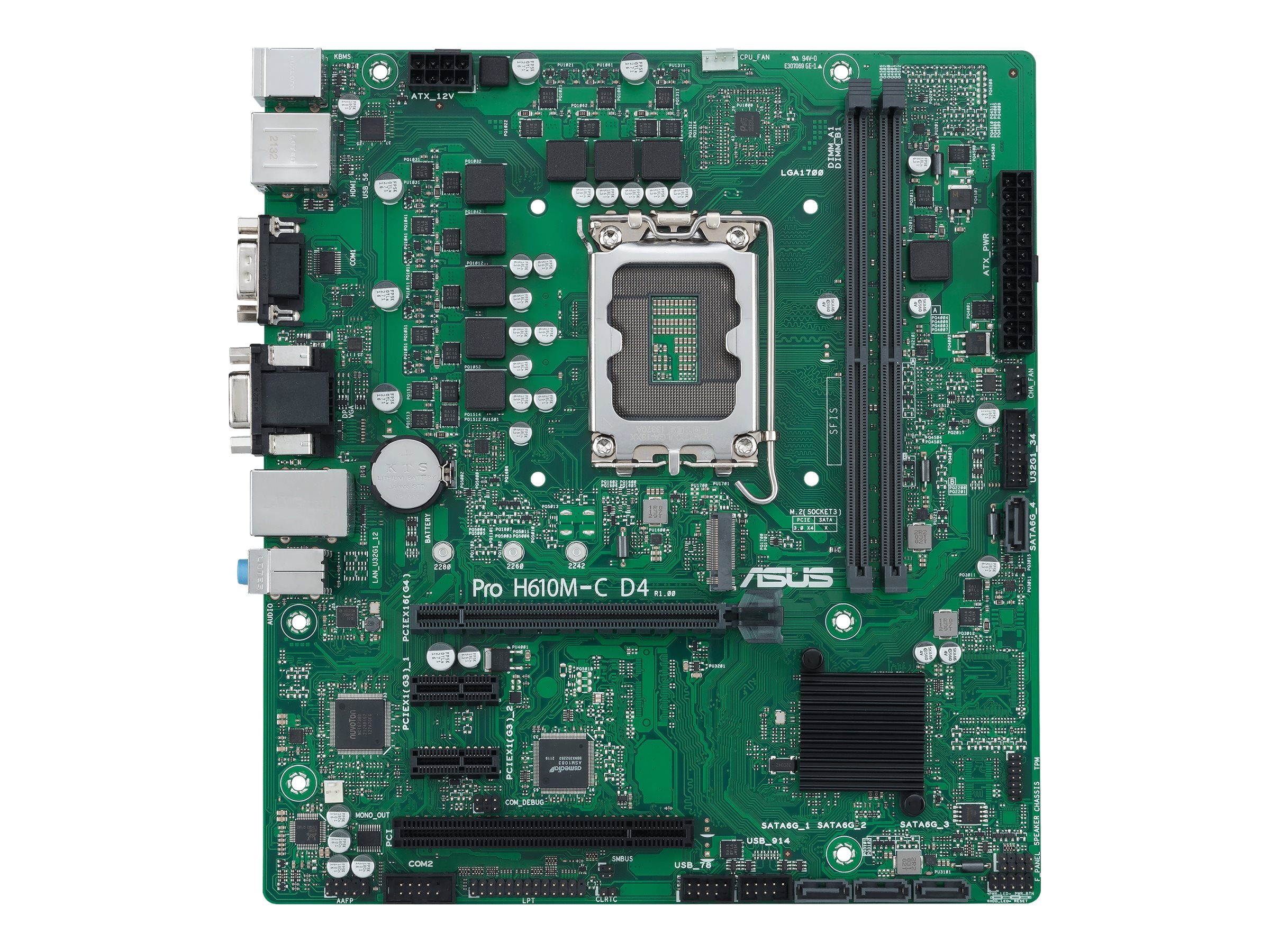

ASUS PRO H610M-C D4-CSM Micro-ATX LGA1700 Intel H610

ASUS PRO H610M-C D4-CSM - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

Product no: 1000410124
Model: 90MB1A30-M0EAYC
EAN: 4711081699132
Brand:
ASUSTeK COMPUTER
Weight: 0.92 kg

Specifications

Produktbeskrivelse
ASUS PRO H610M-C D4-CSM - bundkort - micro ATX - LGA1700 sokkel - H610
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H610
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
Intel H610
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty
1
Processor Socket
LGA1700 Socket
Product Type
Motherboard - micro ATX
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size
64 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC
Technology
DDR4
Audio
Compliant Standards
High Definition Audio
Type
HD Audio (8-channel)
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 | 1 x PCI
Interfaces
1 x HDMI | 1 x VGA | 2 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard | 1 x DisplayPort | 1 x PS/2 mouse | 1 x LAN (Gigabit Ethernet) | 1 x serial
Internal Interfaces
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header | 1 x parallel - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA | PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features
UEFI BIOS
BIOS Type
AMI
Hardware Features
Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, AS
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included
2 x Serial ATA cable
Compliant Standards
DisplayPort 1.4
Depth
22 cm
Included Accessories
1 x M.2 screw, IO shield, ACC Express Activation Key Card
Software Included
ASUS Control Center Express
Width
24.4 cm
