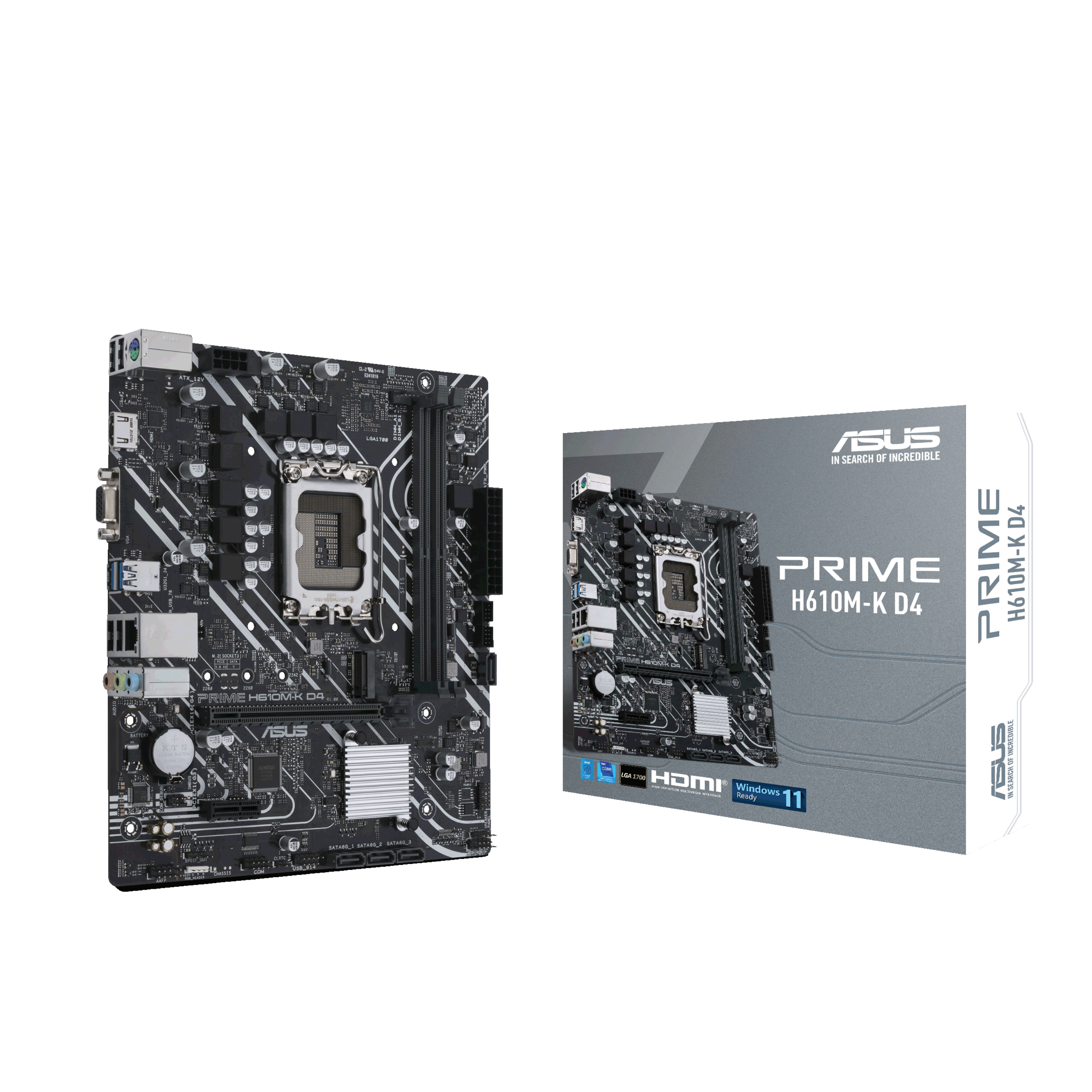

ASUS PRIME H610M-K D4 Micro-ATX LGA1700 Intel H610
ASUS PRIME H610M-K D4 - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1000248491
Model 90MB1A10-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081565499
Weight 0.88 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Intel |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 2 |
| Maksimal intern hukommelse | 64 GB |
| Understøttede lagerdrev brugerflader | M.2, SATA |
| USB 2.0-stik | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 0 |
| Antal SATA III-stik | 4 |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 0 |
| Wi-Fi | Ingen |
| Komponent til | PC |
| Motherboard form faktor | micro ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel H610 |
| Lyd-output kanaler | 7.1 kanaler |
| BIOS-type | UEFI AMI |
| General | |
|---|---|
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 |
| Interfaces | 1 x HDMI | 1 x VGA | 1 x LAN (Gigabit Ethernet) | 2 x USB 3.2 Gen 2 | 1 x PS/2 keyboard / mouse | 4 x USB 2.0 | 1 x PS/2 keyboard / mouse | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASU |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 20.3 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Software Included | Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial) |
| Width | 23.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
