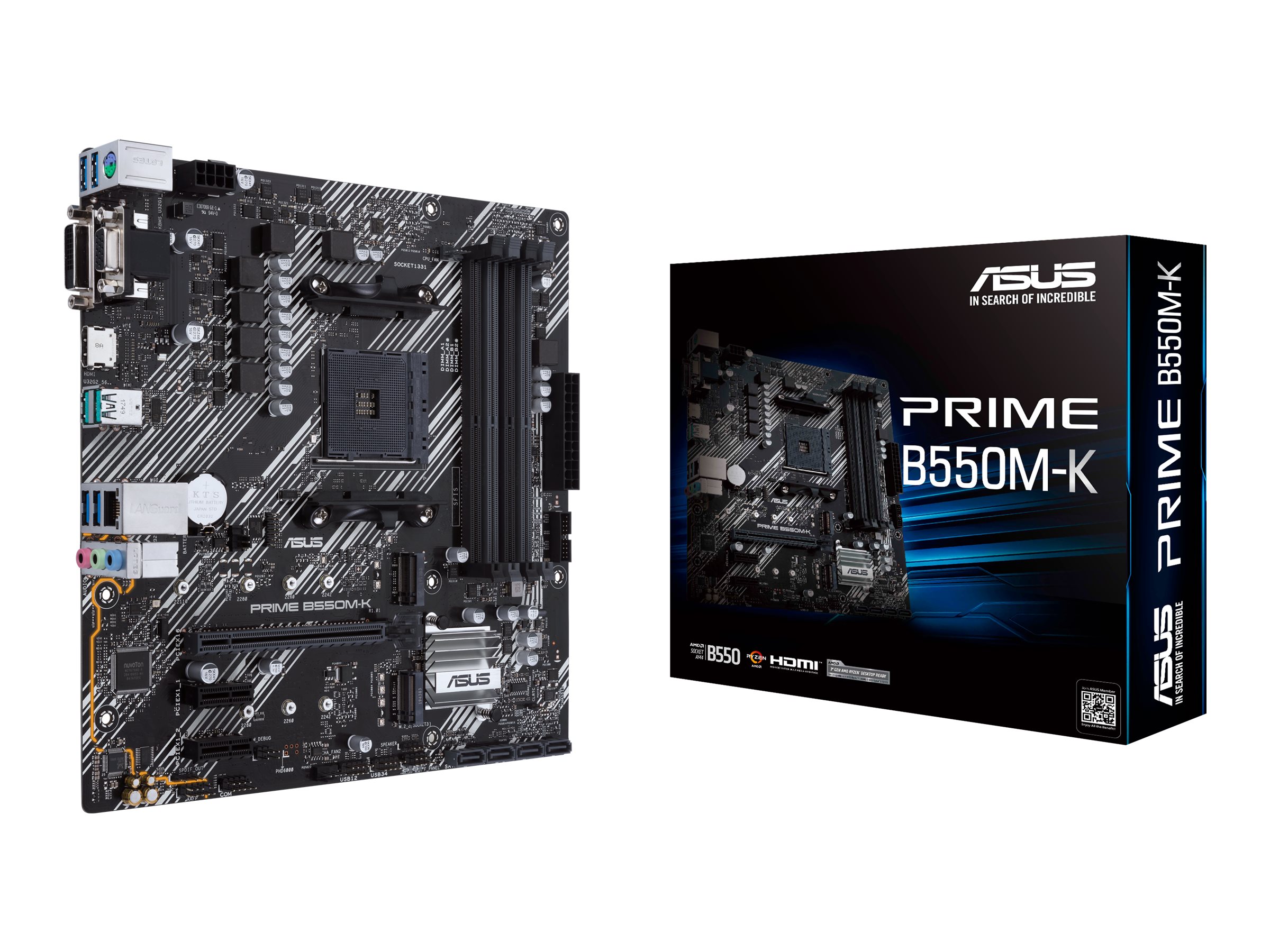

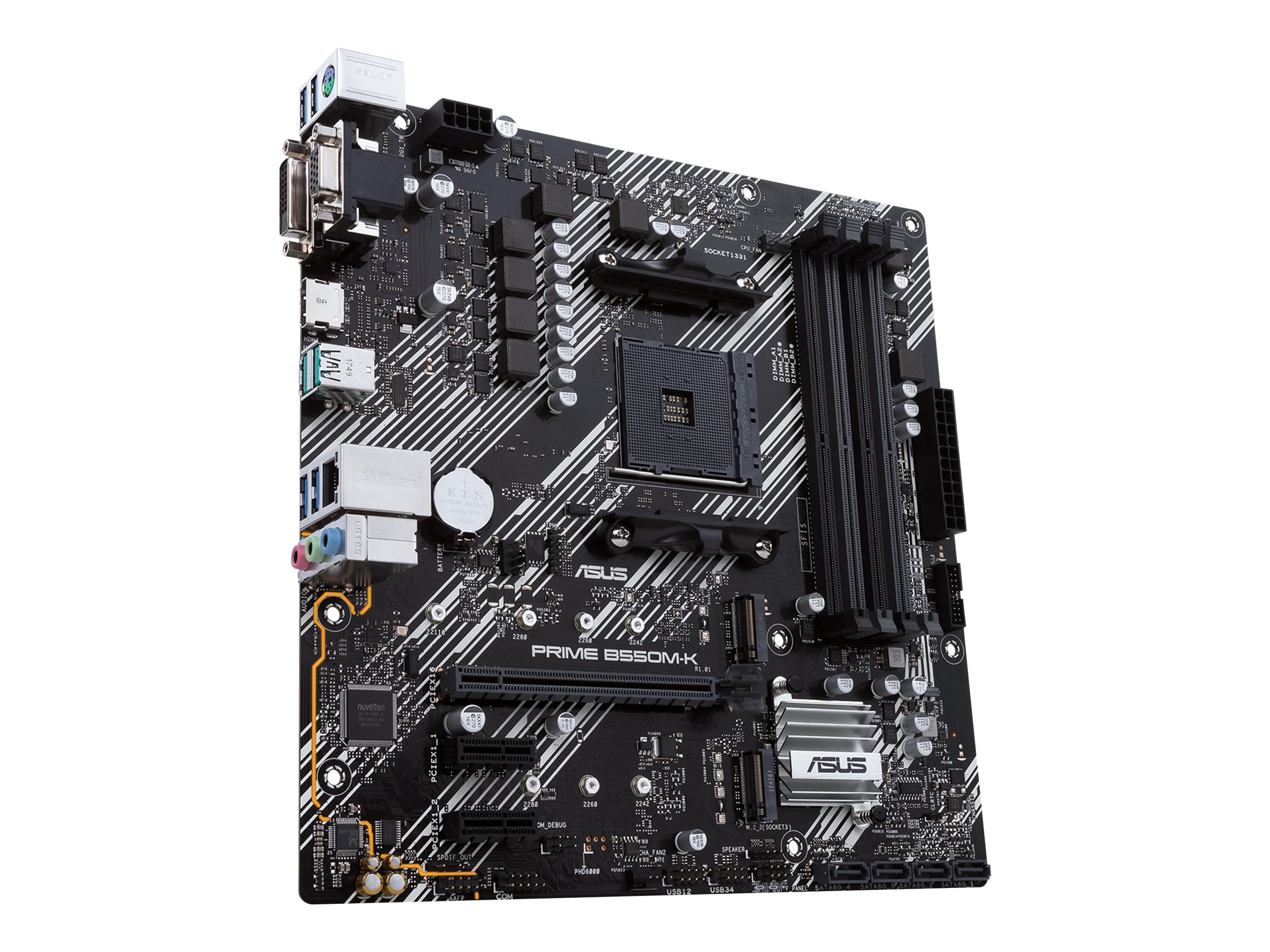

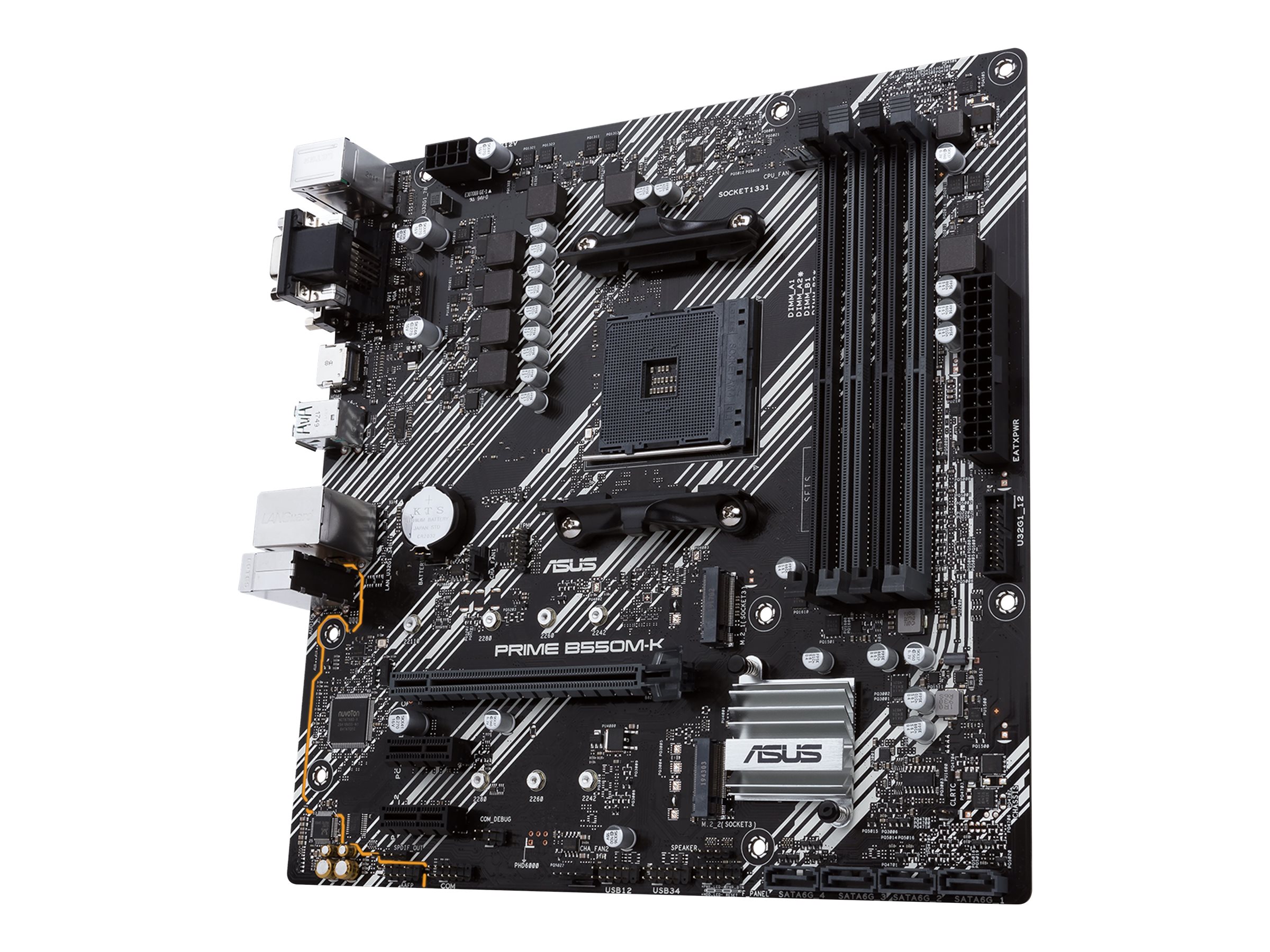

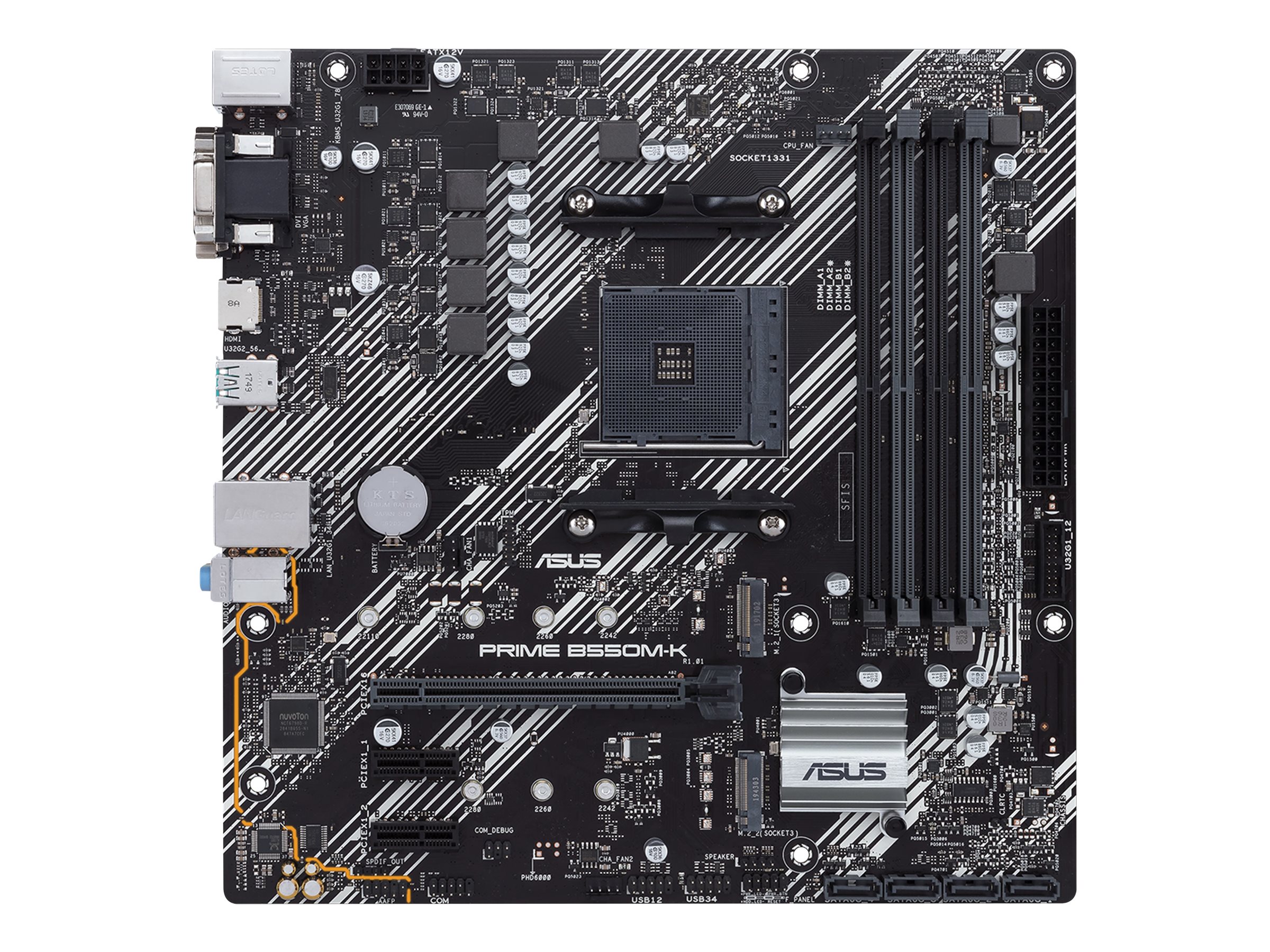

ASUS PRIME B550M-K Micro-ATX AM4 AMD B550
ASUS PRIME B550M-K - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 996052361
Model 90MB14V0-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4718017758284
Weight 0.97 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS PRIME B550M-K - bundkort - micro ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM åbninger - DDR4, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| General | |
|---|---|
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 |

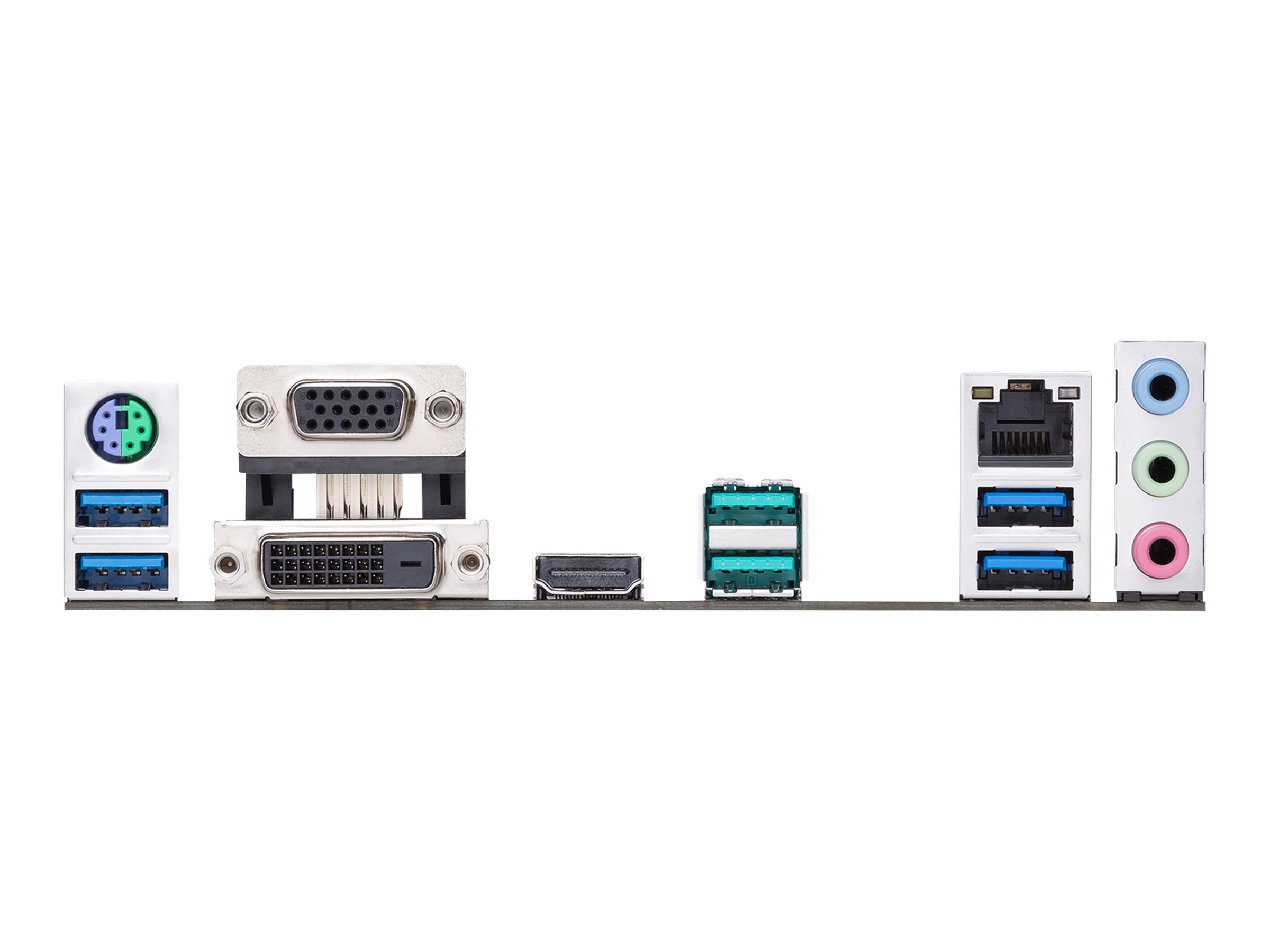

| Interfaces | 1 x VGA | 1 x DVI-D | 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS F |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Miscellaneous | |

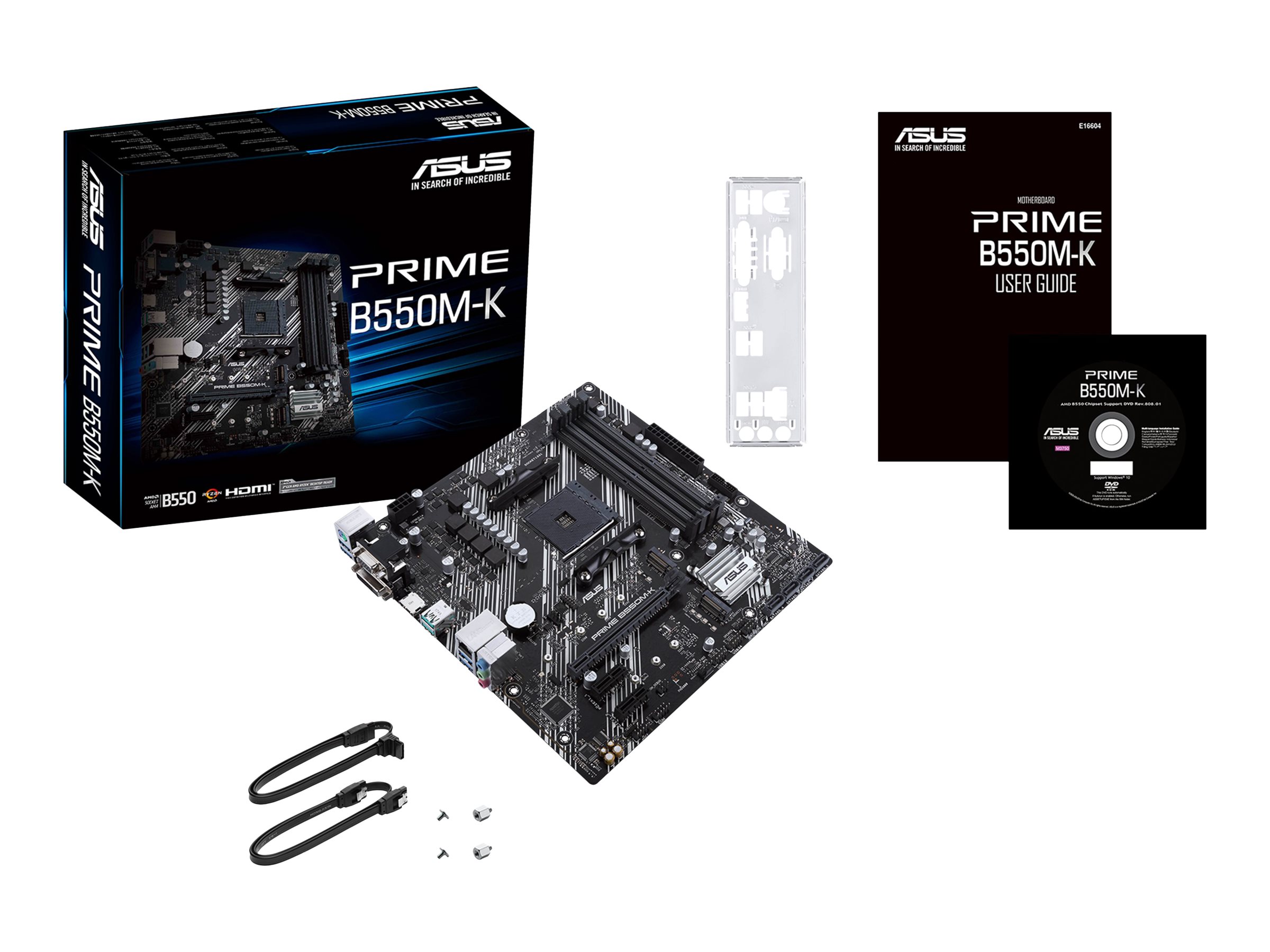

| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | I/O back cover, 1 x M.2 anchor |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
| Width | 24.4 cm |
