Produktbeskrivelse
|
ASUS PRIME B550M-A - bundkort - micro ATX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR4, ECC, ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 2 x M.2
|
|
USB / FireWire porte
|
2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
Gigabit Ethernet
|
We are continuously resolving any minor issues that may arise. Thank you for your patience.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
ASUS PRIME B550M-A Micro-ATX AM4 AMD B550
ASUS PRIME B550M-A - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
996052337
Model:
90MB14I0-M0EAY0
EAN:
4718017755528
Brand:
Vægt:
0.98 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B550
|
|
Compatible Processors
|
Ryzen (supports 3rd Generation Ryzen)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM4
|
|
Product Type
|
Motherboard - micro ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
ECC
|
|
Technology
|
DDR4
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC887
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Controller
|
Realtek RTL8111H
|
|
Network Interfaces
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1
|
|
Interfaces
|

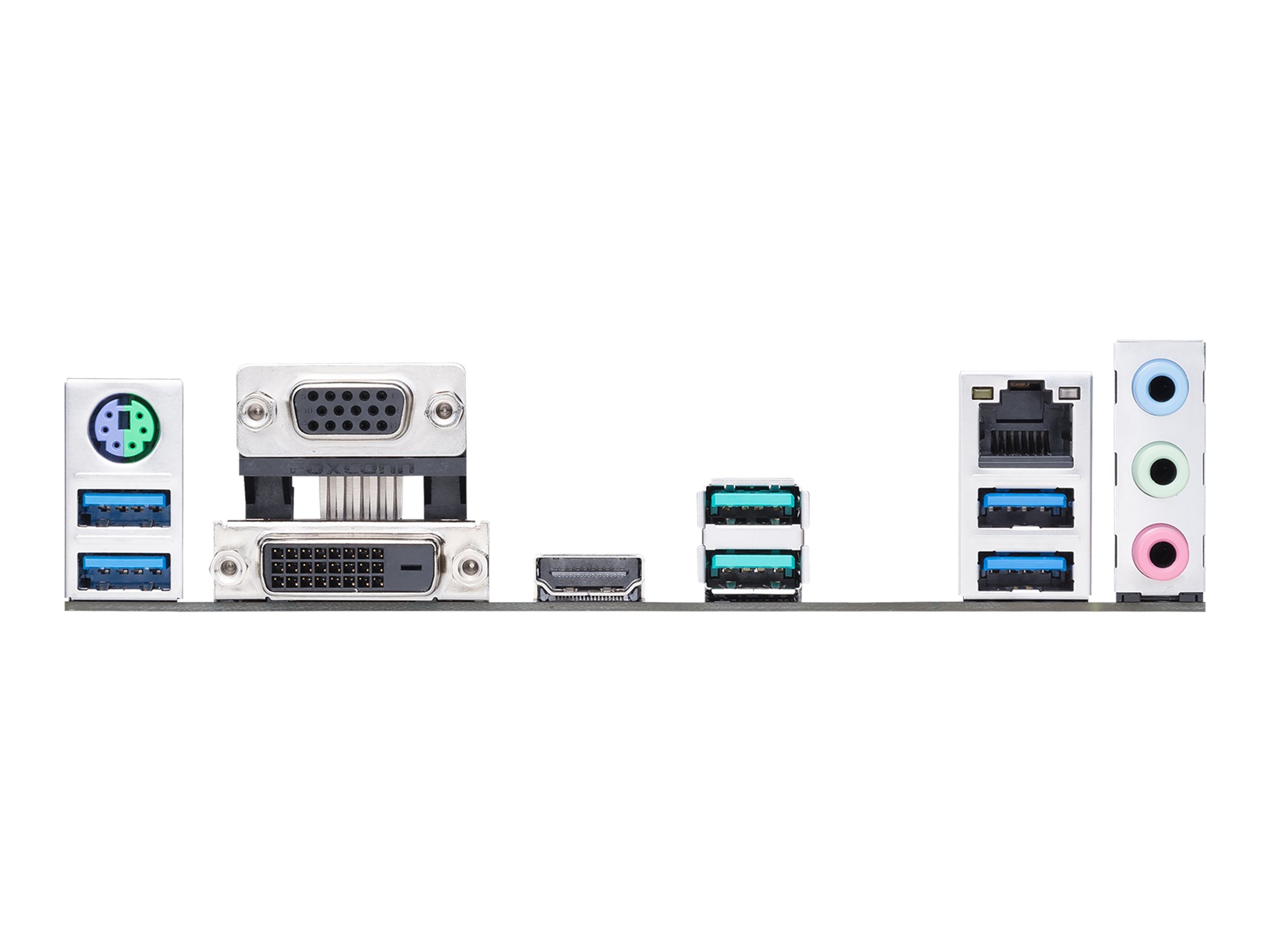

1 x VGA | 1 x DVI-D | 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x HDMI
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
UEFI BIOS, ASUS EZ Flash 3
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS F
|
|
Sleep / Wake Up
|
Wake on LAN (WOL)
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Depth
|
24.4 cm
|
|
Included Accessories
|
1 x M.2 screw, I/O back cover
|
|
Software Included
|
Drivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
|
|
Width
|
24.4 cm
|
