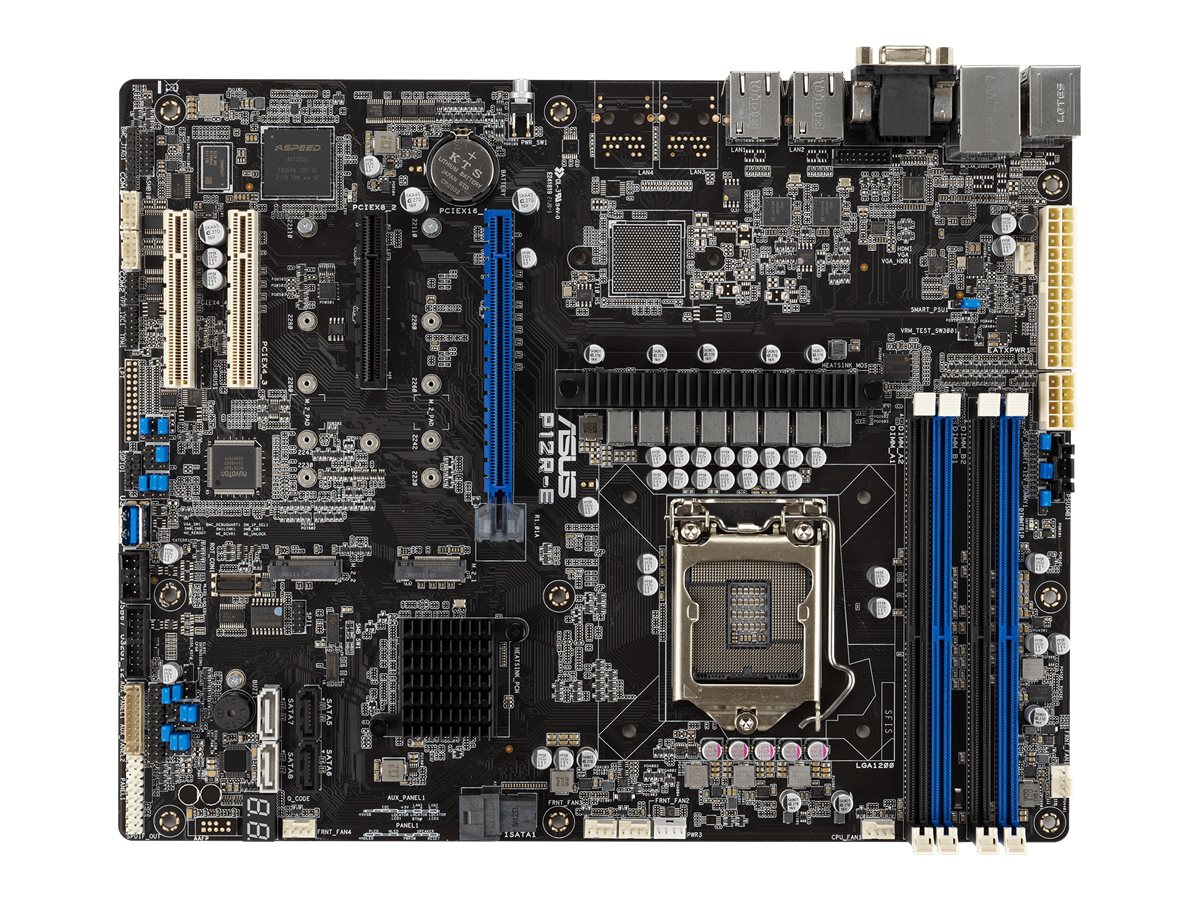

ASUS P12R-E ATX LGA1200 Intel C256

ASUS P12R-E - Bundkort - ATX - LGA1200 sokkel - C256 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x 10 Gigabit LAN - onboard grafik

Varenummer: 1000207396
Model: 90SB0A90-M0UAY0
EAN: 4711081420217
Brand:
ASUSTeK COMPUTER
Vægt: 1.47 kg

Specifications

Produktbeskrivelse
ASUS P12R-E - bundkort - ATX - LGA1200 sokkel - C256
Produkttype
Bundkort - ATX
Chipsættype
Intel C256
Processor-socket
1 x LGA1200 sokkel
Kompatible processorer
Pentium, Xeon E
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4 ikke bufferet
Lagringsporte
1 x Mini-SAS HD, 4 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser)
Grafik
ASPEED AST2600
Dedikeret videohukommelse
64 MB
LAN
2 x 10 Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
Intel C256
Compatible Processors
Pentium, Xeon E
Max Processors Qty
1
Processor Socket
LGA1200 Socket
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
2666 MHz, 2933 MHz, 3200 MHz
Features
Dual channel memory architecture
Max Size
128 GB
Registered or Buffered
Unbuffered
Technology
DDR4
Graphics
Dedicated Video Memory
64 MB
Graphics Controller
ASPEED AST2600
LAN
Network Controller
2 x Intel I210AT
Network Interfaces
2 x 10 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) | 1 x PCIe 4.0 x8 | 2 x PCIe 3.0 x8 (x4 mode)
Interfaces

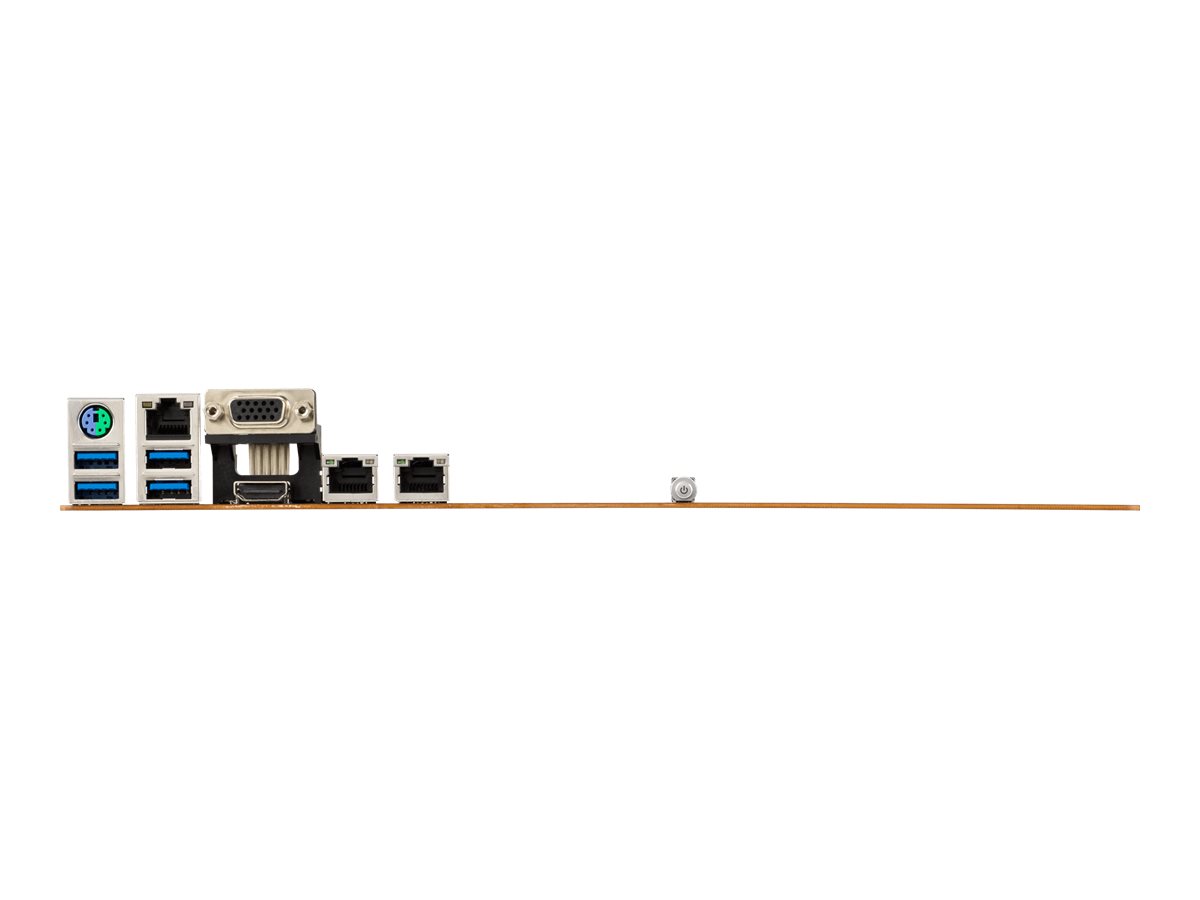

2 x LAN (Gigabit Ethernet) | 1 x management | 1 x HDMI | 1 x VGA | 1 x PS/2 keyboard / mouse | 2 x USB 3.2 Gen 1 | 2 x USB 3.1 Gen 2
Internal Interfaces
1 x serial - header | 2 x USB 3.2 Gen 1 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices | SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Miscellaneous
Depth
24.4 cm
Included Accessories
I/O back cover
Weight
760 g
Width
30.5 cm
Dimensions & Weight (Shipping)
Shipping Weight
1.3 kg
