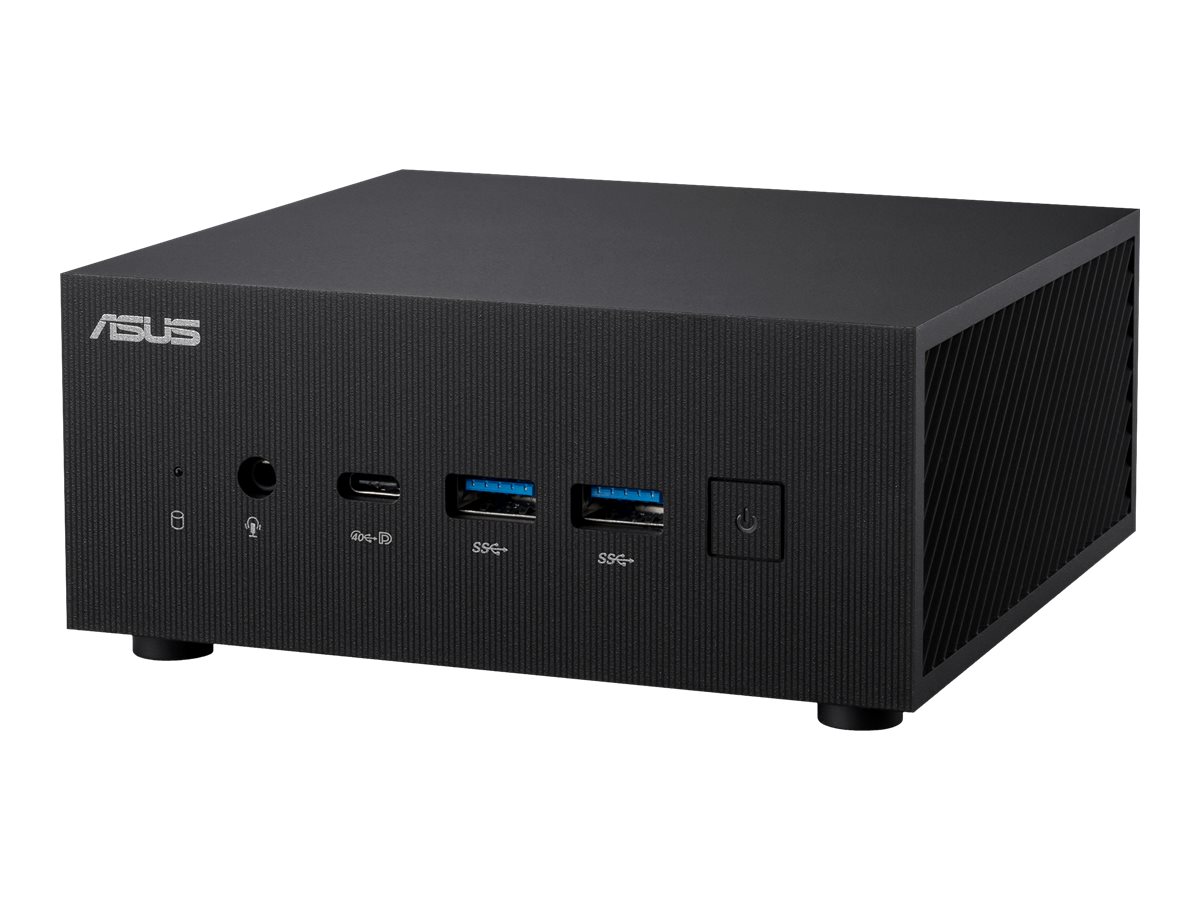

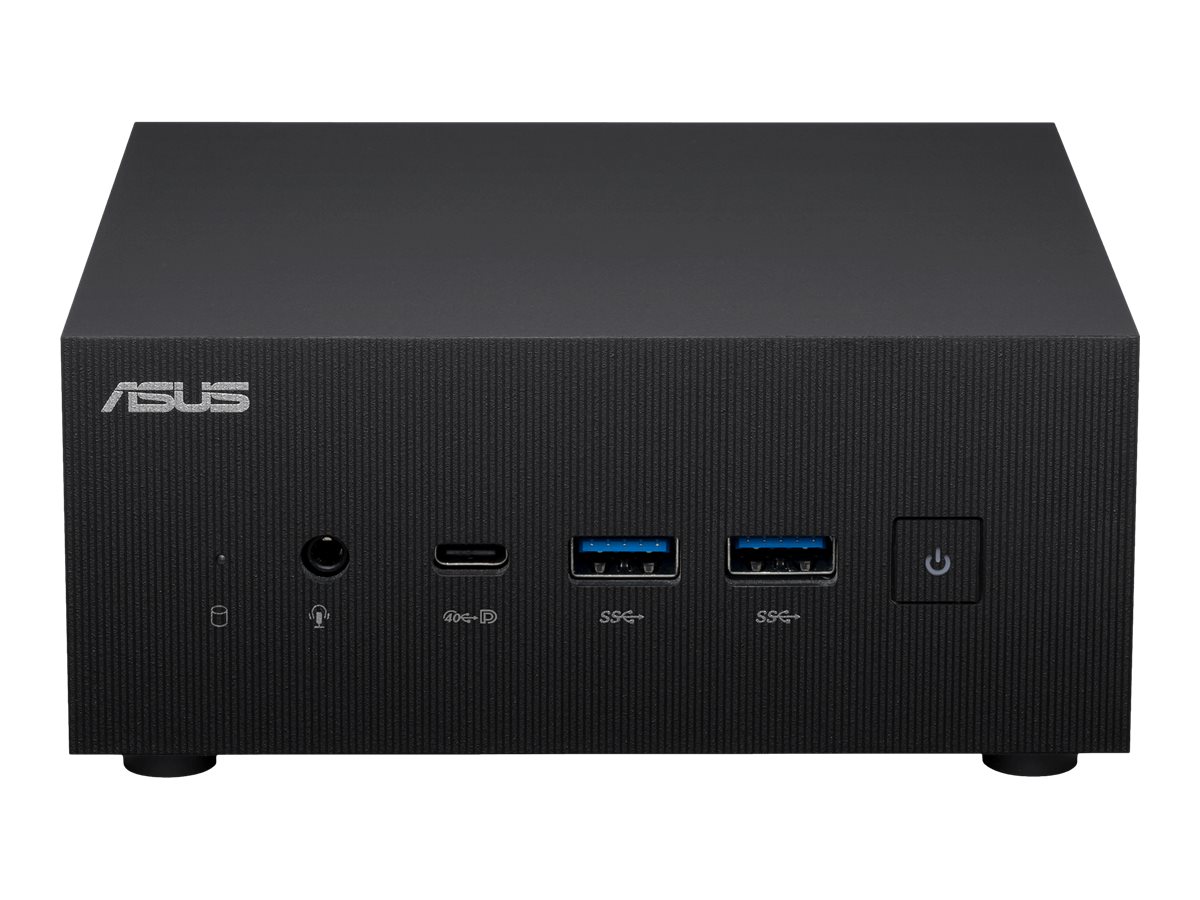

ASUS ExpertCenter PN53 BBR575HD Mini PC Ryzen 5 7535H 0GB 0GB AMD Radeon 660M No-OS

ASUS ExpertCenter PN53 BBR575HD - Barebone - mini PC 1 x Ryzen 5 7535H / op til 4.55 GHz - RAM 0 GB - Radeon 660M - Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) - sort

Product no: 1001125785
Model: 90MR00S2-M001E0
EAN: 4711387113059
Brand:
ASUSTeK COMPUTER
Weight: 1.72 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ASUS ExpertCenter PN53 BBR575HD - mini PC Ryzen 5 7535H 3.3 GHz - 0 GB - ingen HDD
Type
PC barebone - mini PC
Processor
1 x AMD Ryzen 5 7535H / 3.3 GHz (op til 4.55 GHz, (6-core)
Cachehukommelse
16 MB L3
Cache pr. processor
16 MB
RAM
0 GB DDR5 SDRAM
Controller for lagring
SATA (SATA 6Gb/s)
Harddisk
Ingen HDD
Optisk lagring
Intet optisk drev
Grafik controller
AMD Radeon 660M
Netværk
1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Bluetooth 5.2, Wi-Fi 6E
Med OS
Intet operativt system
Farve
Sort
Dimensioner (B x D x H)
12 cm x 13 cm x 5.8 cm
Vægt
900 g
Miljømæssige standarder
EPEAT Silver
Specifications

Full specifications

General
Color
Black
Product Form Factor
Mini PC
Type
PC barebone
Processor / Chipset
Clock Speed
3.3 GHz
CPU
AMD Ryzen 5 7535H
CPU Qty
1
Max CPU Qty
1
Max Turbo Speed
4.55 GHz
Number of Cores
6-core
Cache Memory
Cache Per Processor
16 MB
Installed Size
L3 cache - 16 MB
RAM
Form Factor
SO-DIMM 262-pin
Installed Size
0 GB
Slots
2 (total) / 2 (empty)
Technology
DDR5 SDRAM
Hard Drive
Type
No HDD
Storage Controller
Controller Interface Type
SATA 6Gb/s
Type
1 x SATA
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
AMD Radeon 660M
Video Interfaces
HDMI, DisplayPort
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Ethernet Controller
Realtek RTL8125B-CG
Ethernet Ports
2.5 Gigabit Ethernet
Features
Dual stream (2x2)
Wireless LAN Supported
Yes
Expansion / Connectivity
Bays
1 internal 2.5"
Interfaces

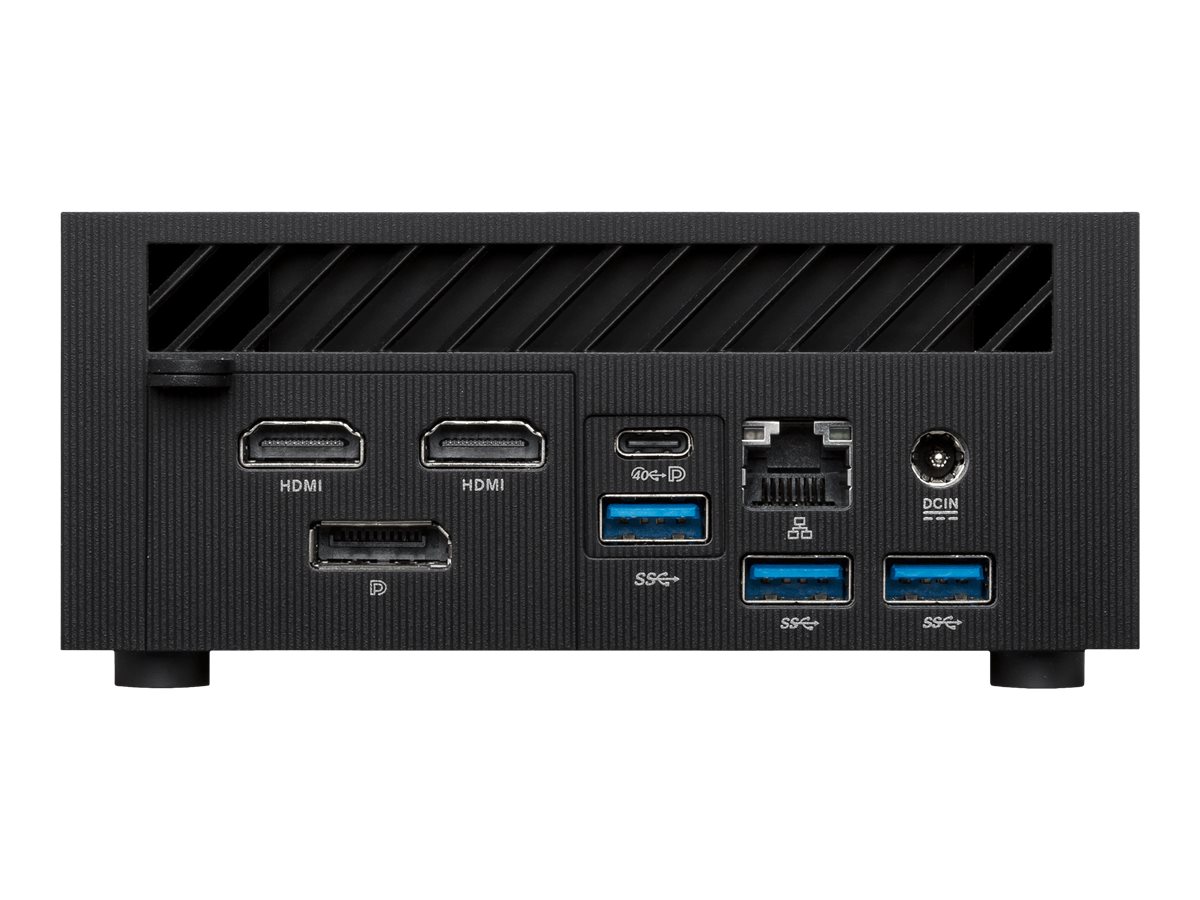

1 x LAN (2.5Gigabit Ethernet) | 2 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front, 1 rear) (Power Delivery) | 5 x USB 3.2 Gen 1 (2 front, 3 rear) | 1 x headphones/microphone (1 front) | 2 x HDMI 2.1
Slots
2 M.2 Card
Miscellaneous
Security Slot Type
Kensington security slot
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Power
Device Type
Power adapter
Power Provided
150 Watt
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Depth
13 cm
Height
5.8 cm
Weight
900 g
Width
12 cm

Media

Support

Se Asus seneste FAQ - løser 90 % af typiske problemer
http://www.asus.com/dk/support/

Teknisk support: 38 32 29 43

RMA

For håndtering og oprettelse af Asus garanti benyt
https://rma.asus-europe.eu/?country=dk

I tilfælde af problemer kan Asus kontaktes på 38 32 29 43

ASUS tilbyder 7 dages DOA, Hent DOA formular her
https://drive.google.com/file/d/1lJ00yTXfFLrQrG6m9PHZ5HS2C55gdpGm/view?usp=sharing

Send til [email protected]


ASUS skal kontaktes direkte for forespørgseler til reklamation.

Vurderes problemet godkendt til en reklamation, resultater dette i et sags nummer der giver adgang til ASUS pickup skema for reparation og ombytninger.
Du udfylder den relaterende produktside formularer (det er vigtigt, at du vælger hvorvidt det er en Notebook, en Eee eller en anden vare).
Formularen afsluttes og kunden modtagere et ASUS RMA nummer og mere information omkring afhentnings processen.
ASUS sender et fragtlabel, til indsendelse af produktet.
