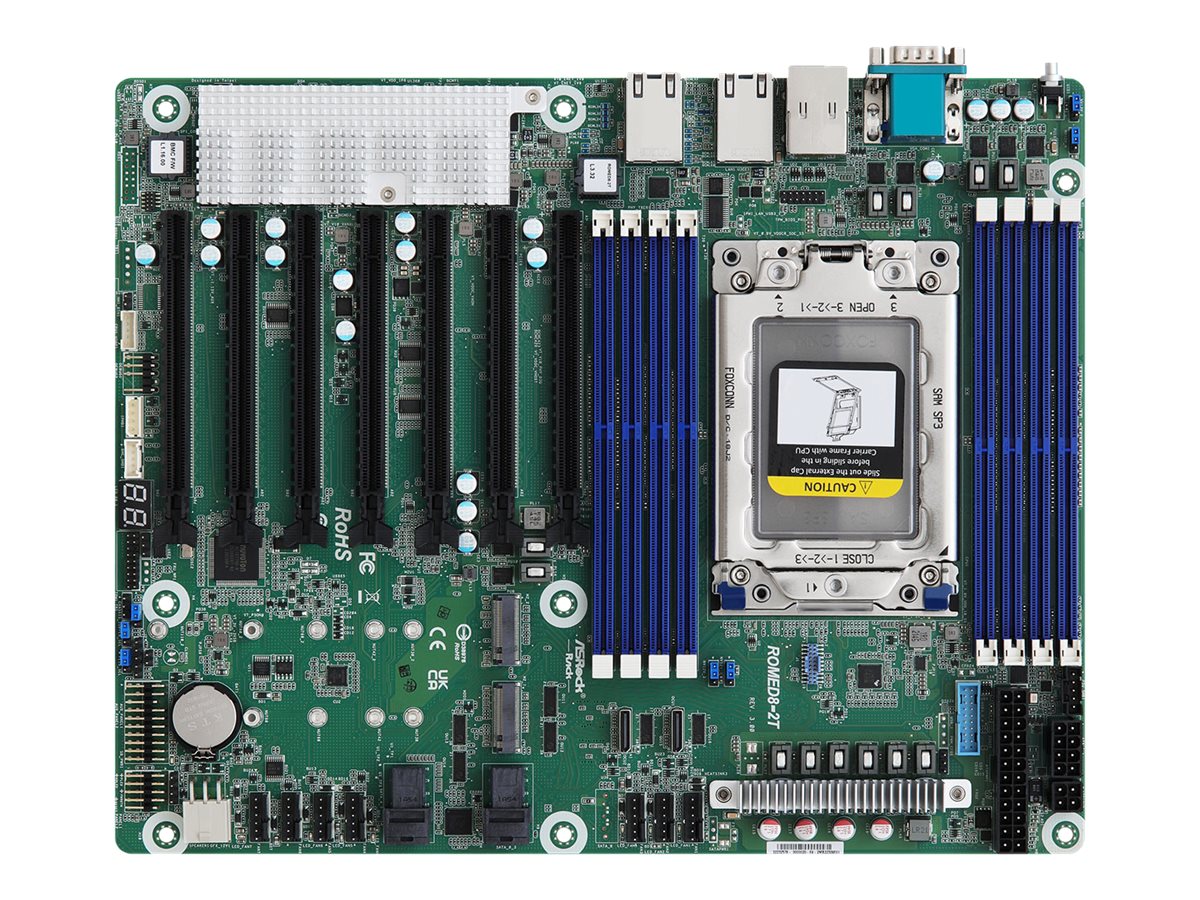

ASRock Rack ROMED8-2T/BCM ATX SP3
ASRock Rack ROMED8-2T/BCM - Bundkort - ATX - Socket SP3 - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard grafik
-
Product no 1000777736
Model ROMED8-2T/BCM
Brand
Go to brand's websiteEAN 4710483940590
Weight 1.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASRock Rack ROMED8-2T/BCM - bundkort - ATX - Socket SP3 |
| Produkttype | Bundkort - ATX |
| Processor-socket | 1 x Socket SP3 |
| Kompatible processorer | EPYC 7002 series, EPYC 7003-serie (Maksimal TDP 225 watt) |
| RAM understøttet | 8 DIMM åbninger registreret, Load-Reduced, Non-Volatile |
| Lagringsporte | 2 x Mini-SAS HD, 2 x OCuLink port, 2 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser) |
| Grafik | ASPEED AST2500 |
| Dedikeret videohukommelse | 512 MB DDR4 SDRAM |
| LAN | 2 x 10 Gigabit Ethernet |
| General | |
|---|---|
| Compatible Processors | EPYC 7002 series, EPYC 7003 series (Maximum TDP 225 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | Socket SP3 |
| Product Type | Motherboard - ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | 8-channel memory architecture |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
| Graphics | |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Broadcom BCM57416 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 8 x DIMM 288-pin (1.2 V) | 7 x PCIe 4.0 x16 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) | 2 x USB 3.2 Gen 1 | 1 x VGA | 1 x serial | 1 x management |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 2 x mini-SAS HD - 8 devices | SATA-600 / PCIe -connectors: 2 x M.2 - 2 devices | PCIe -connectors: 2 x OCuLink |
| Features | |
| BIOS Features | ACPI 2.0 support, IPMI support, SMBIOS 2.8 support |
| BIOS Type | AMI |
| Hardware Features | WatchDog Timer, Dual LAN Teaming, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Width | 30.5 cm |
