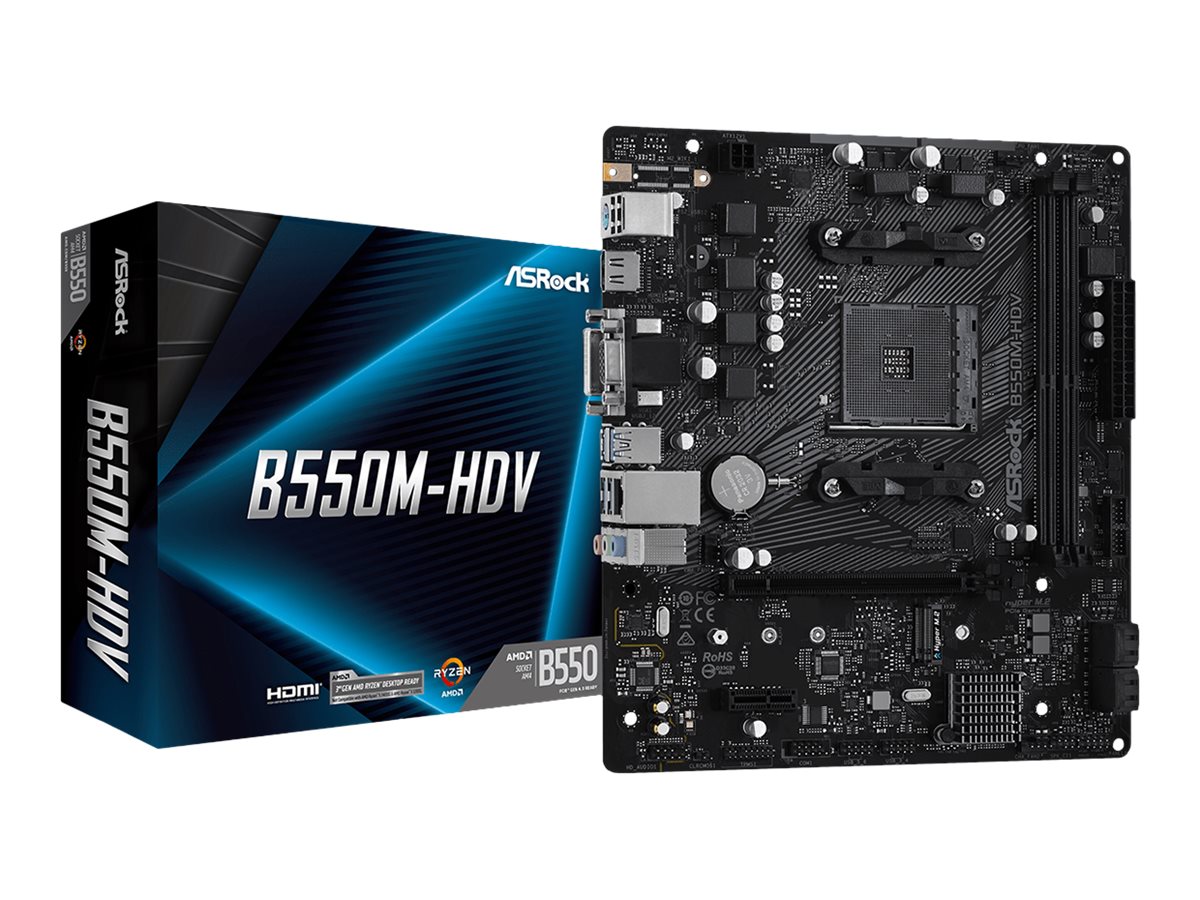

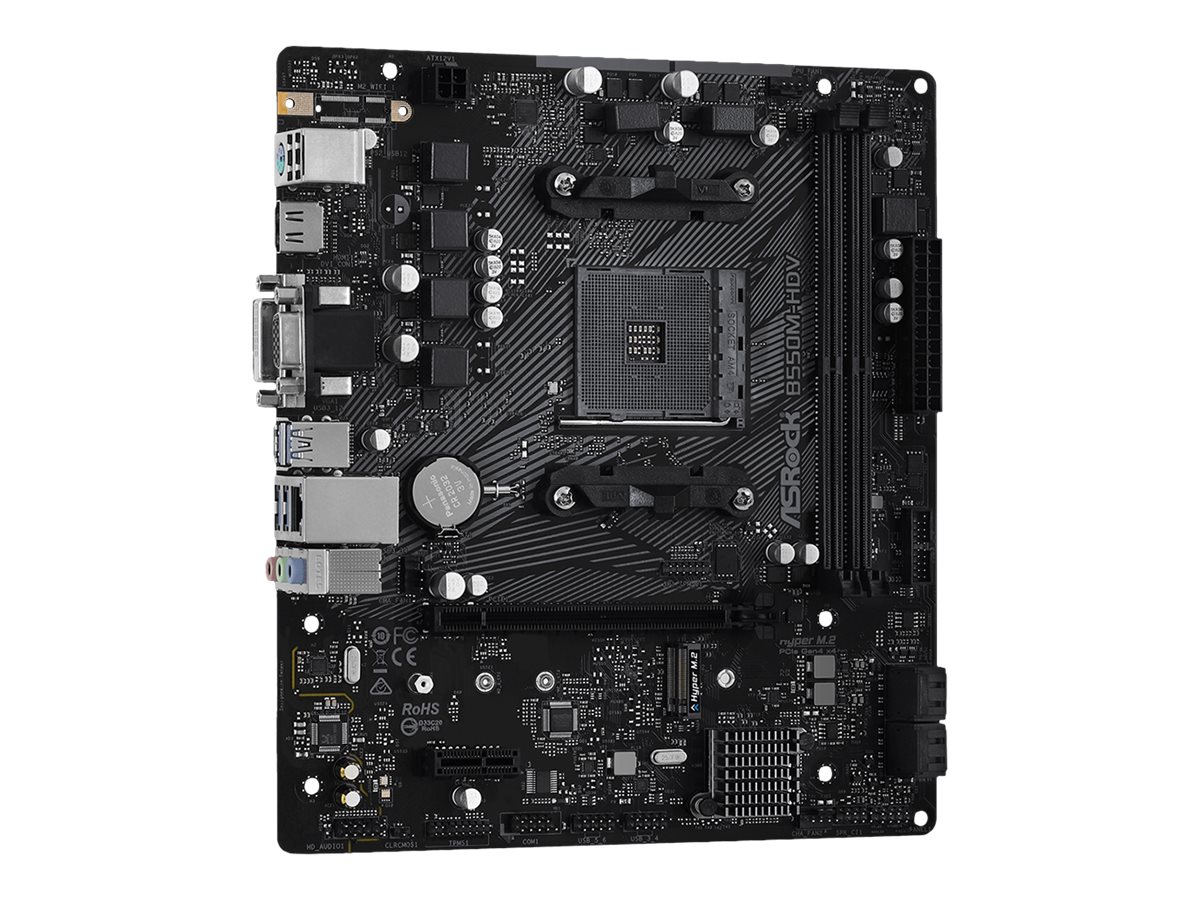

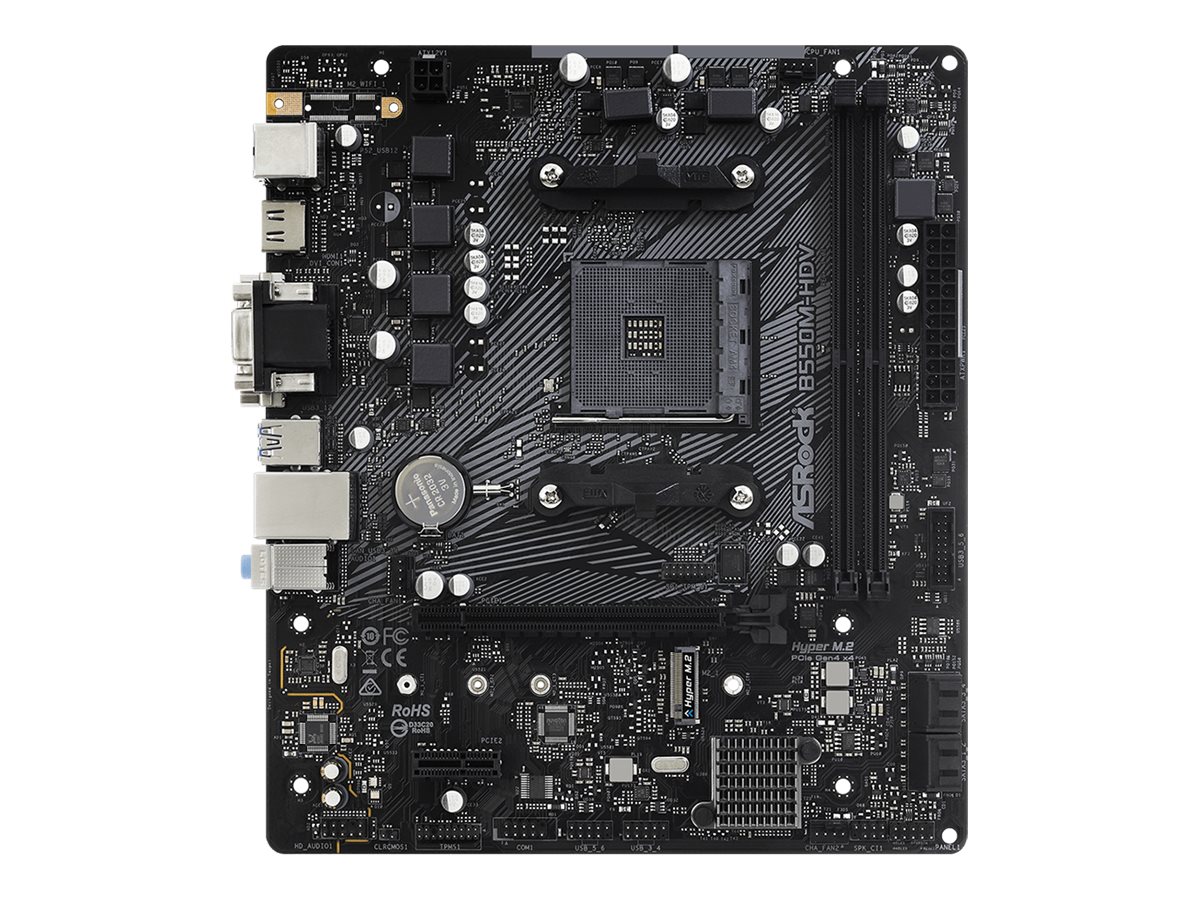

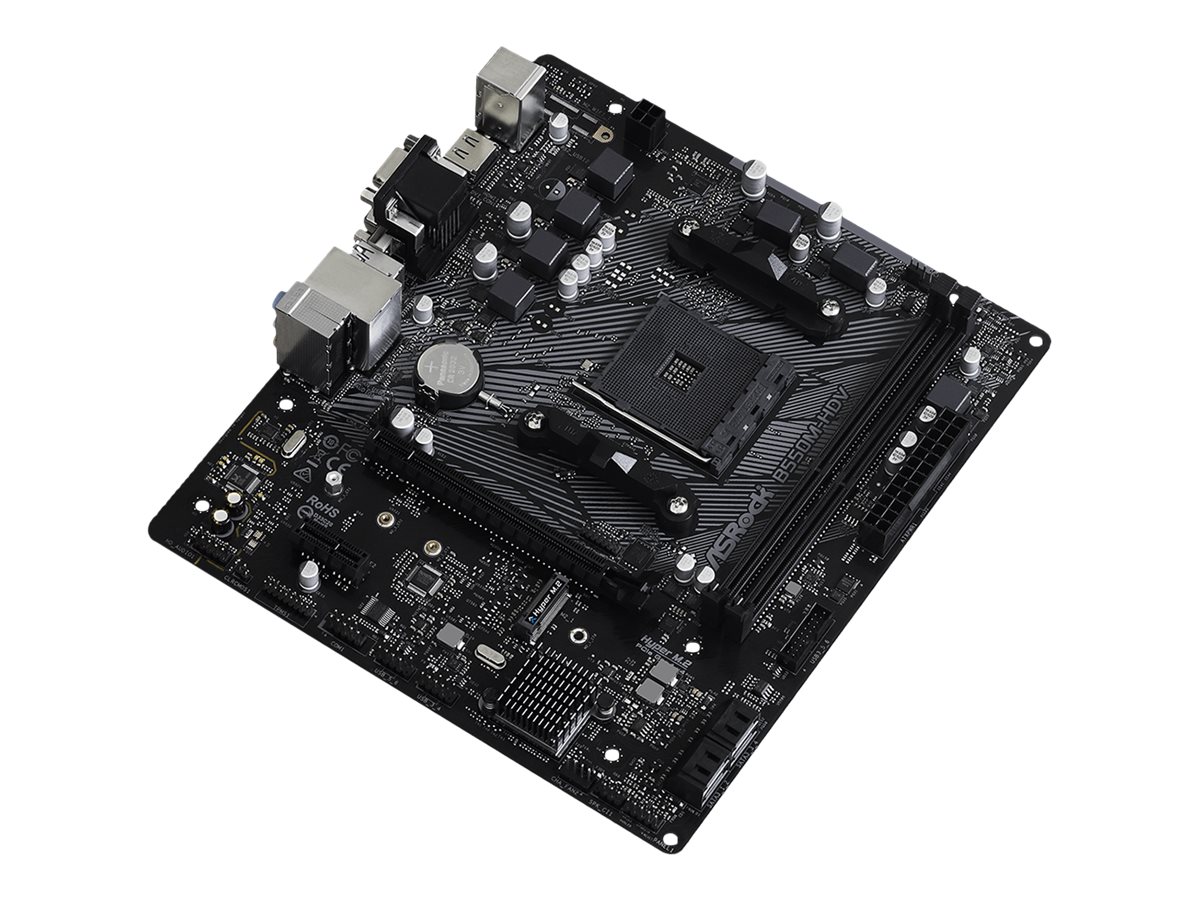

ASRock B550M-HDV Micro-ATX AM4 AMD B550

ASRock B550M-HDV - Bundkort - micro-ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
  • Product no 996021532

    Model 90-MXBDJ0-A0UAYZ

    Brand
    Go to brand's website

    EAN 4710483931635

    Weight 0.83 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASRock B550M-HDV - bundkort - micro-ATX - Socket AM4 - AMD B550
Produkttype Bundkort - micro-ATX
Chipsættype AMD B550
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Max RAM-størrelse 64 GB
RAM understøttet 2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 1 x M.2
USB / FireWire porte 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse 2 GB
Audio HD Audio (8-kanaler)
LAN Gigabit Ethernet
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - micro ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 M
Features Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode
Max Size 64 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Technology DDR4
Graphics
Max Allocated RAM Size 2 GB
Audio
Audio Codec Realtek ALC887
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Controller Realtek RTL8111H
Network Interfaces Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) | 1 x PCIe 3.0 x1

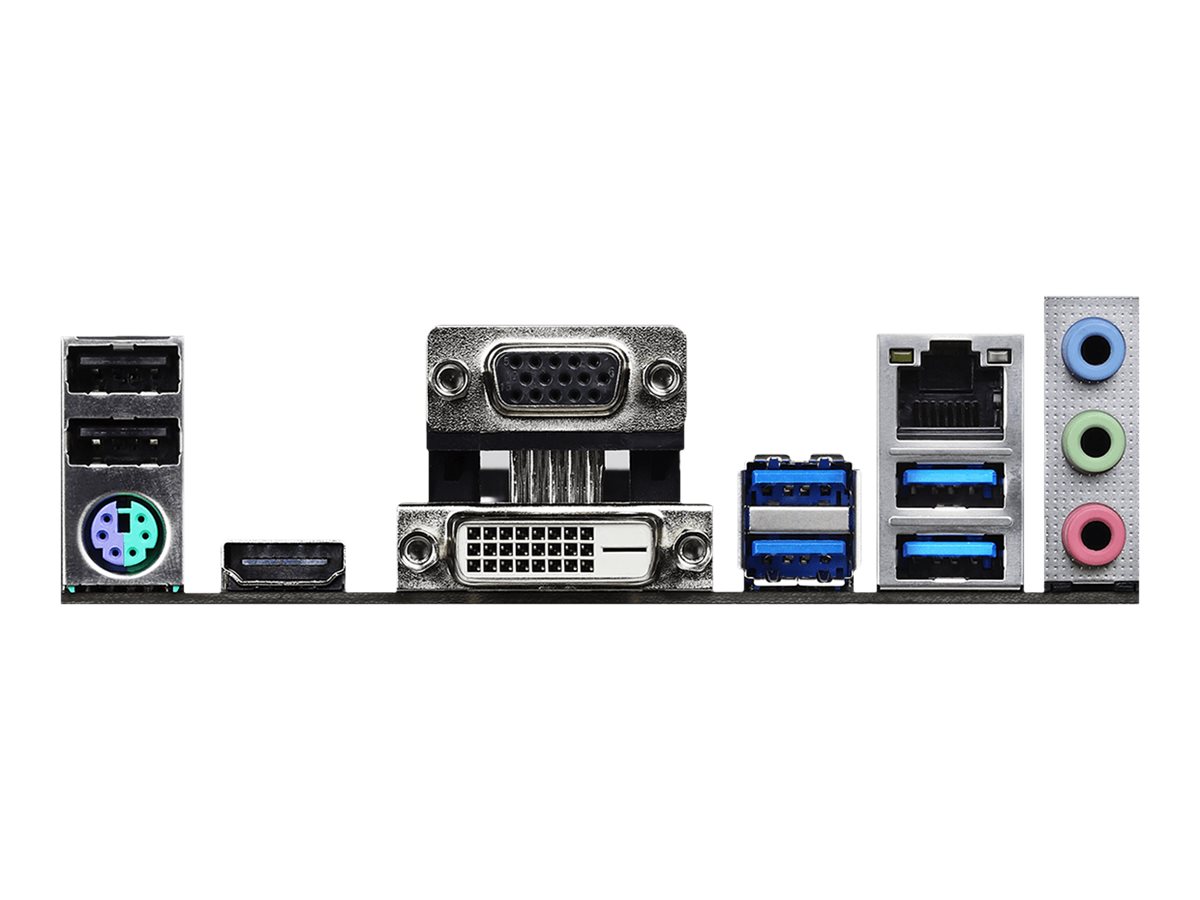

Interfaces 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) | 1 x VGA | 1 x DVI-D | 1 x HDMI | 2 x USB 2.0 | 4 x USB 3.2 Gen 1 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack
Internal Interfaces 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Features
BIOS Features JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
BIOS Type AMI
Hardware Features ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glas
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up Wake on LAN (WOL)
Miscellaneous
Cables Included 2 x Serial ATA cable
Compliant Standards Plug and Play, FCC, EuP Ready, ErP Ready, HDCP 2.3
Depth 20.1 cm
Included Accessories I/O back plate, 1 x M.2 screw
Software Included Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Width 23 cm
