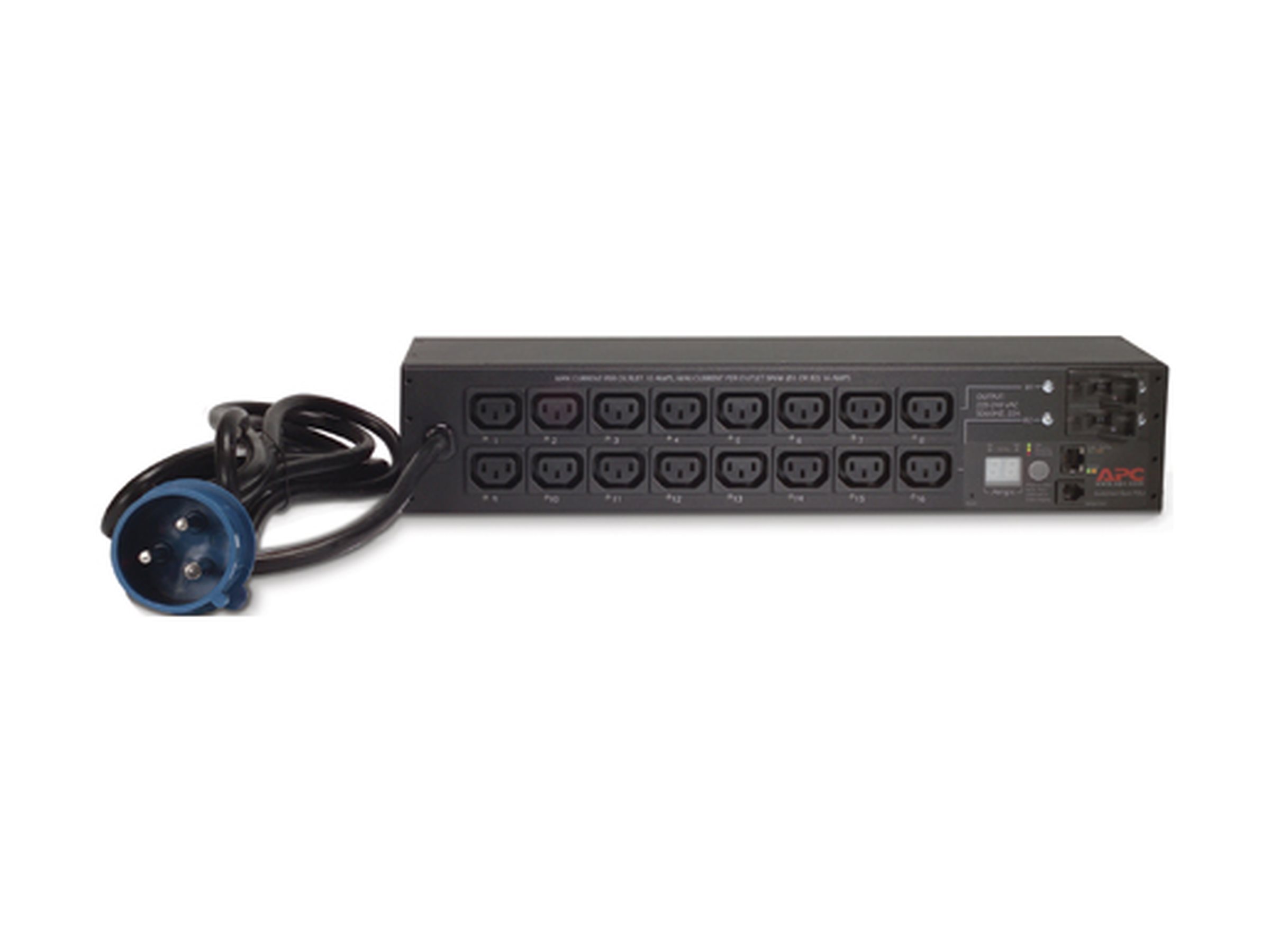

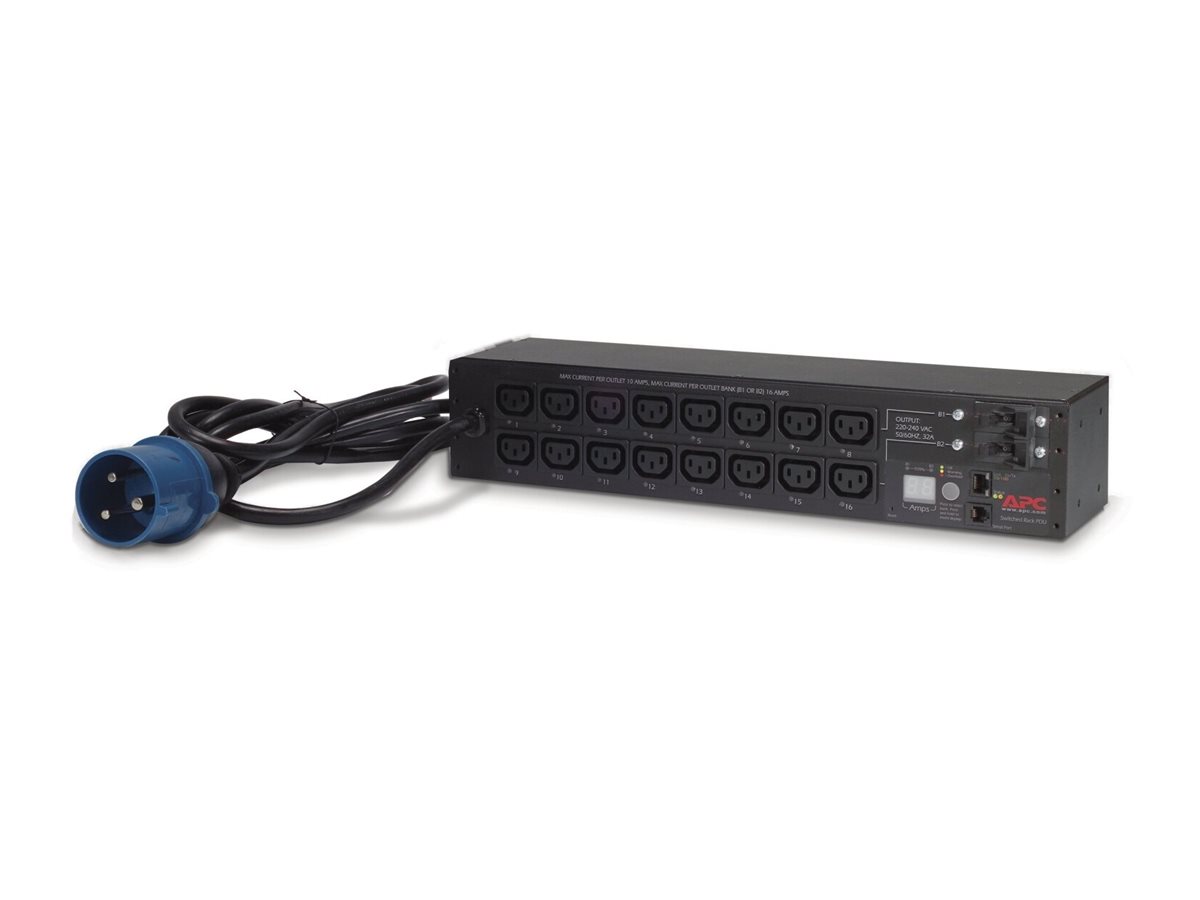

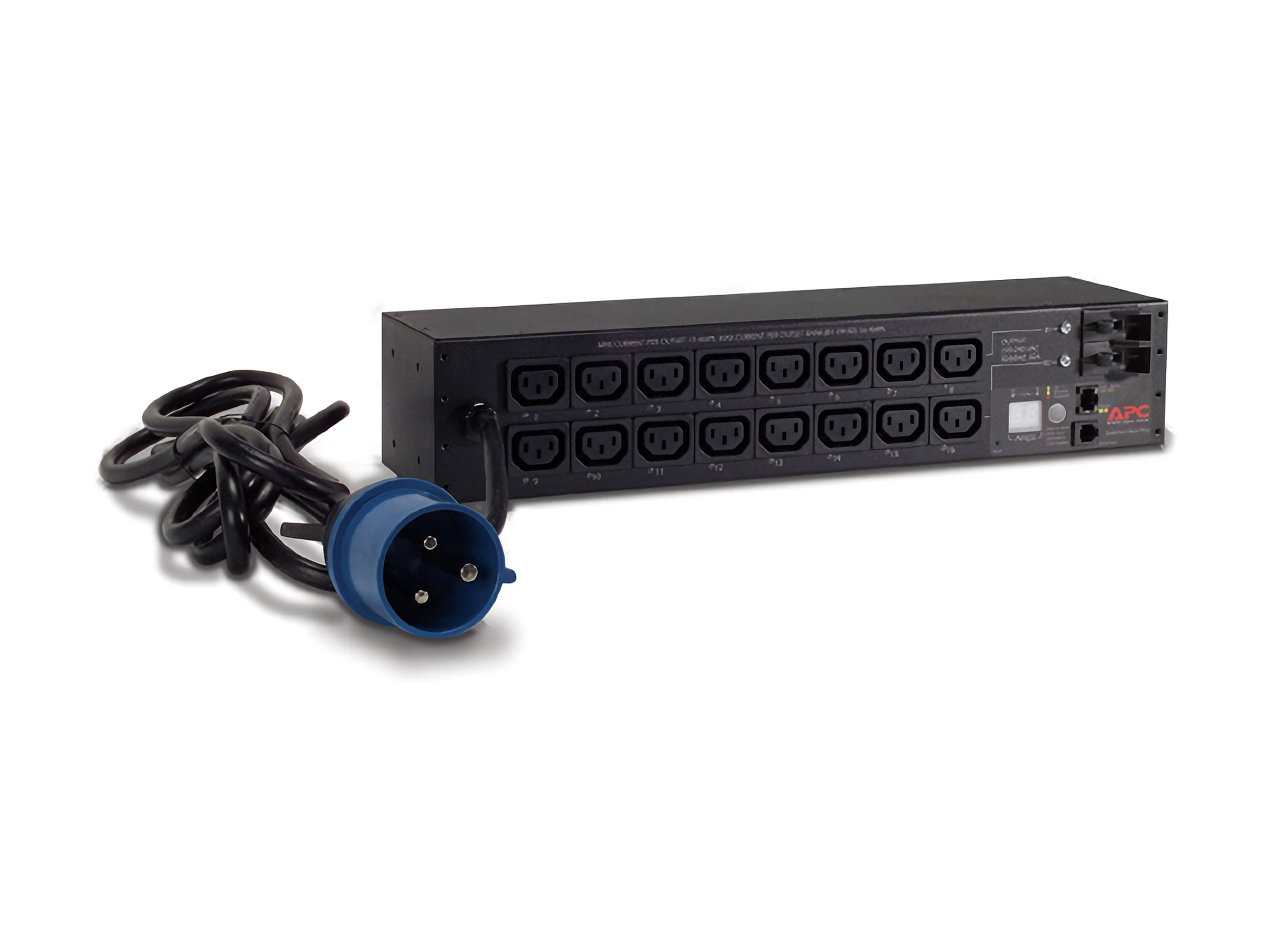

APC Switched Rack PDU AP7922B Strømfordelingsenhed 16-stik 32A 3.66m
APC Switched Rack PDU AP7922B - Strømfordelingsenhed (rackversion) - AC 230 V - Ethernet 10/100 - input: IEC 60309 32A - output-stikforbindelser: 16 (power IEC 60320 C13) - 2U - 3.66 m ledning - for P/N: SCL500RM1U, SCL500RMI1U, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS, SRVSL1KRARK
-
Product no 992102192
Model AP7922B
Brand APC
EAN 0731304331636
Weight 7 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Switched Rack PDU AP7922B - strømfordelingsenhed |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Ledningslængde | 3.66 m |
| Rackstørrelse | 2U |
| Vægt | 4.49 kg |
| Indgangspænding | AC 230 V |
| Input-stik | 1 x strøm IEC 60309 32A |
| Output-stikforbindelser | 16 x power IEC 60320 C13 |
| Netværk | Ethernet 10/100 |
| Protokol til fjernadministration | SNMP, Telnet, HTTP, SSH |
| Dimensioner (B x D x H) | 44.45 cm x 11.43 cm x 8.89 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: SCL400RMJ1U, SCL500RM1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT1000RMXLI-NC, SRT5KRMXLW-TW, SRVSL1KRARK |
| General | |
|---|---|
| Cord Length | 3.66 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Power Device | |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60309 32A |
| Input Voltage | AC 230 V |
| Input Voltage Margin | ± 10% |
| Max Electric Current | 32 A |
| Power Output Connectors Details | 16 x power IEC 60320 C13 |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTP, SSH |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x serial - RJ-11 |
| Miscellaneous | |
| Cables Included | Power cable 3.66 m |
| Compliant Standards | EN55022, VDE, EN55024, CISPR 22, AS/NZS, EAC |
| Features | LED display, current meter, overload protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 11.43 cm |
| Height | 8.89 cm |
| Weight | 4.49 kg |
| Width | 44.45 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6.53 kg |
| Compatibility Information | |
| Designed For | P/N: AP7950B, AR106, AR112, AR2487G, AR3100W, AR3105SP, AR3105W, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR335 |
