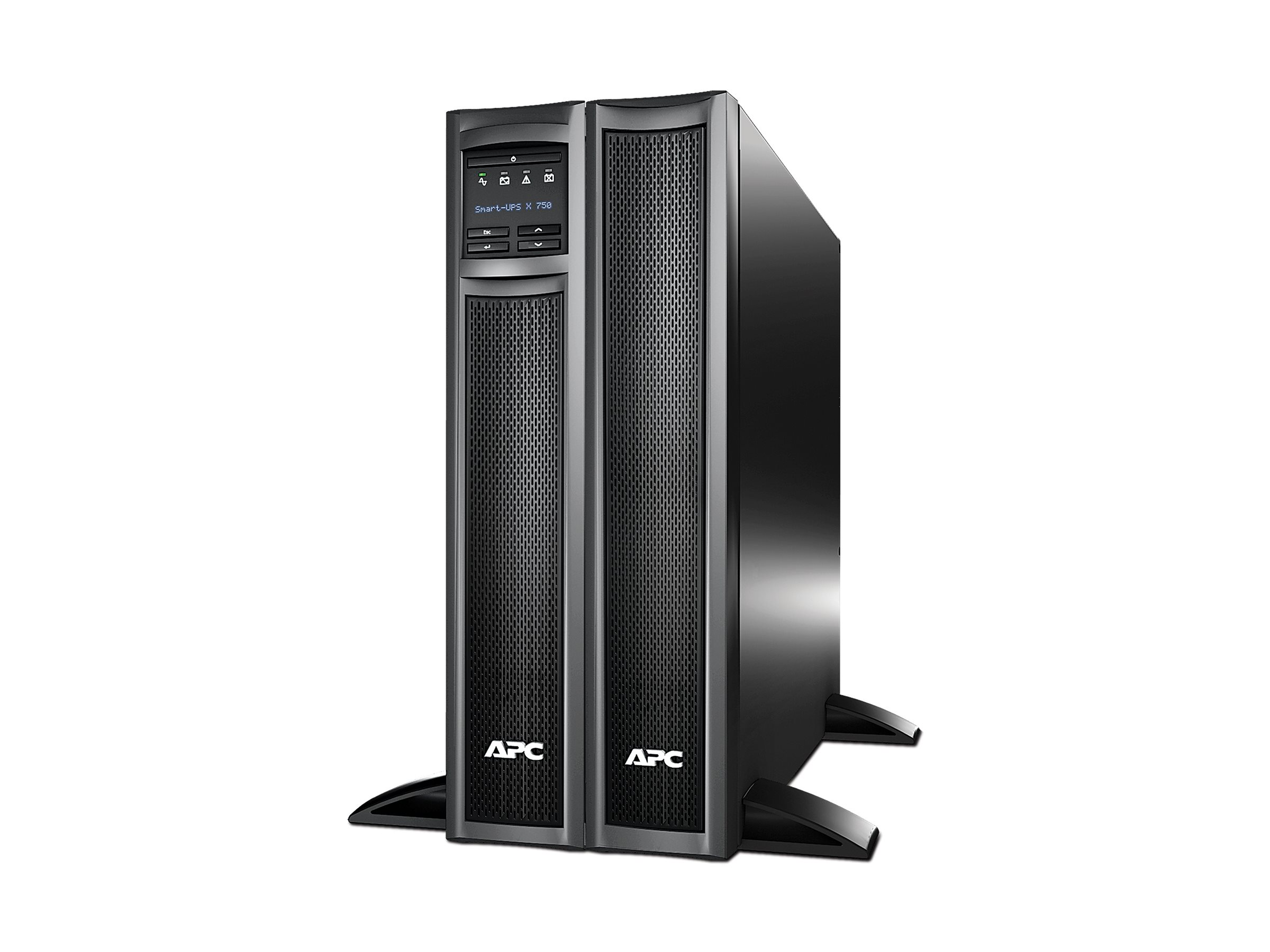

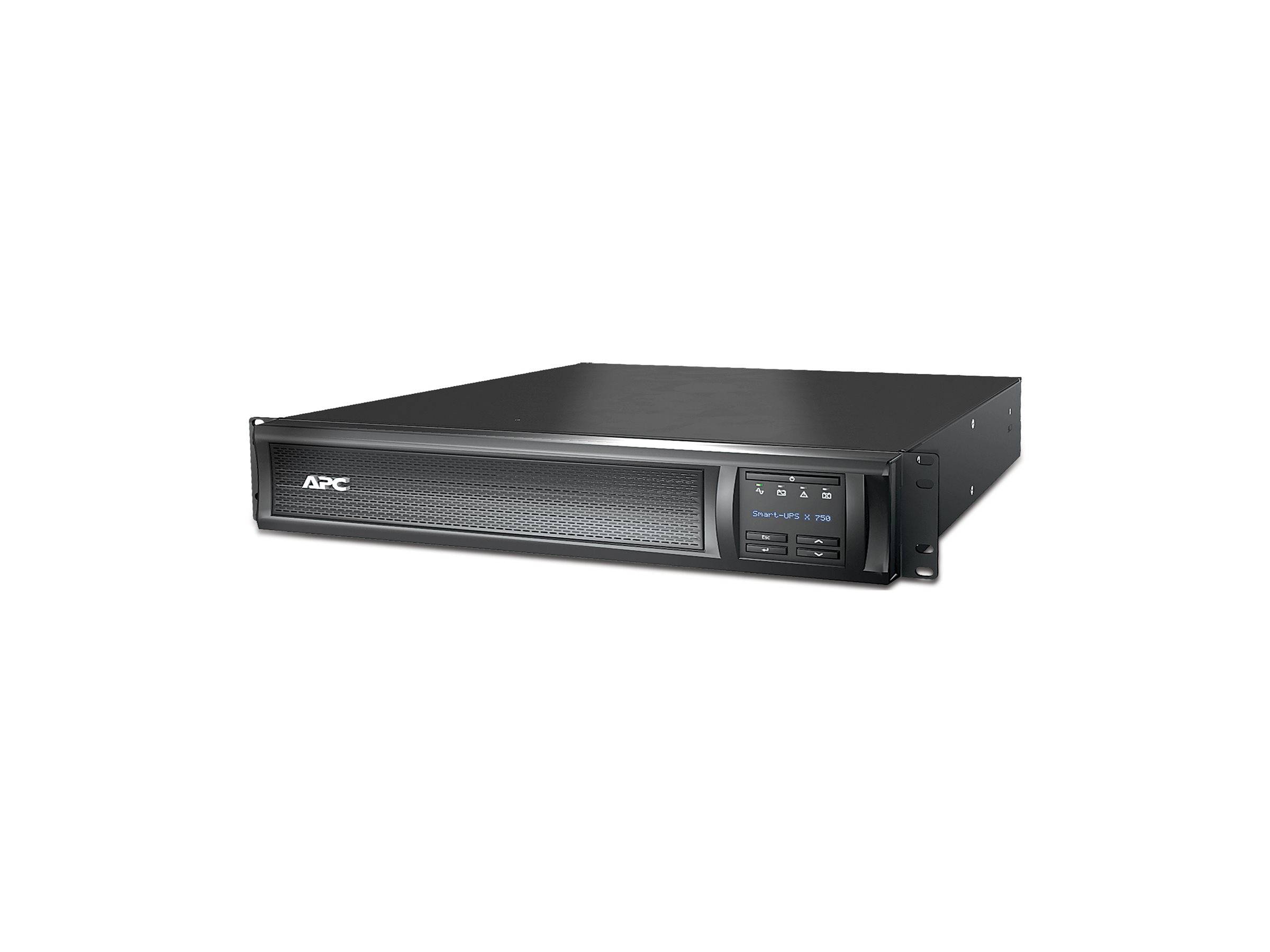

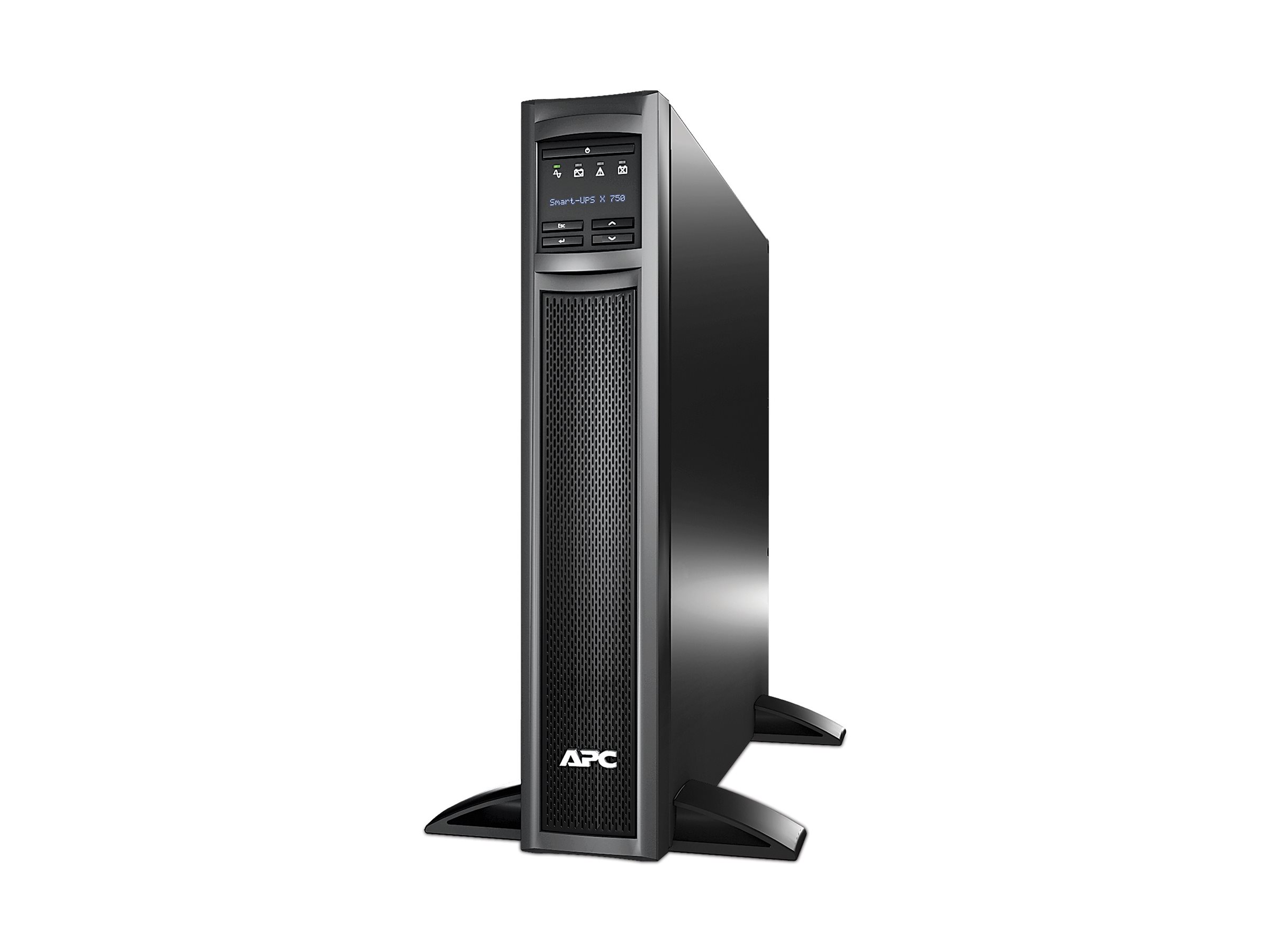

APC Smart-UPS X 750VA Tower/Rack UPS

APC Smart-UPS X 750VA Tower/Rack - UPS (stativ-monterbar / ekstern) - AC 230 V - 600 Watt - 750 VA - RS-232, USB - output-stikforbindelser: 8 - 2U - sort - for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP

  • Product no 993412271

    Model SMX750INC

    Brand APC

    EAN 0731304327745

    Weight 25.86 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse APC Smart-UPS X 750VA Tower/Rack - UPS - 600 Watt - 750 VA
Enhedstype UPS - stativ-monterbar / ekstern
Rackstørrelse 2U
Vægt 23 kg
Indgangspænding AC 230 V
Udgangspænding AC 230 V
Strømkapacitet 600 Watt / 750 VA
Input-stik Strøm IEC 60320 C14
Output-stikforbindelser 8 x power IEC 60320 C13
Batteri Blysyre
Driftstid (op til) 14.2 min ved fuld belastning
Netværk RS-232, USB
Farve Sort
Dimensioner (B x D x H) 43.2 cm x 49.3 cm x 8.9 cm
Producentgaranti 3 års garanti
Designet for P/N: AR106SH6, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A
General
Color Black
Device Type UPS - rack-mountable / external
Height (Rack Units) 2U
Power Device
Frequency Provided 47 - 63 Hz
Frequency Required 50/60 Hz ± 3Hz
Input Connectors Power IEC 60320 C14
Input Voltage AC 230 V
Input Voltage Range AC 160 - 286 V
Output Voltage AC 230 V 47 - 63 Hz
Output Waveform Sinewave
Power Capacity 600 Watt / 750 VA
Power Output Connectors Details 8 x power IEC 60320 C13
Surge Suppression Yes
UPS Technology Line interactive
Battery
Features Maintenance free, leak-proof
Recharge Time 3 hours
Run Time (Up To) 14.2 min at full load | 37 min at half load
Technology Lead acid
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Expansion Slots 1 (total) / 0 (free) x SmartSlot

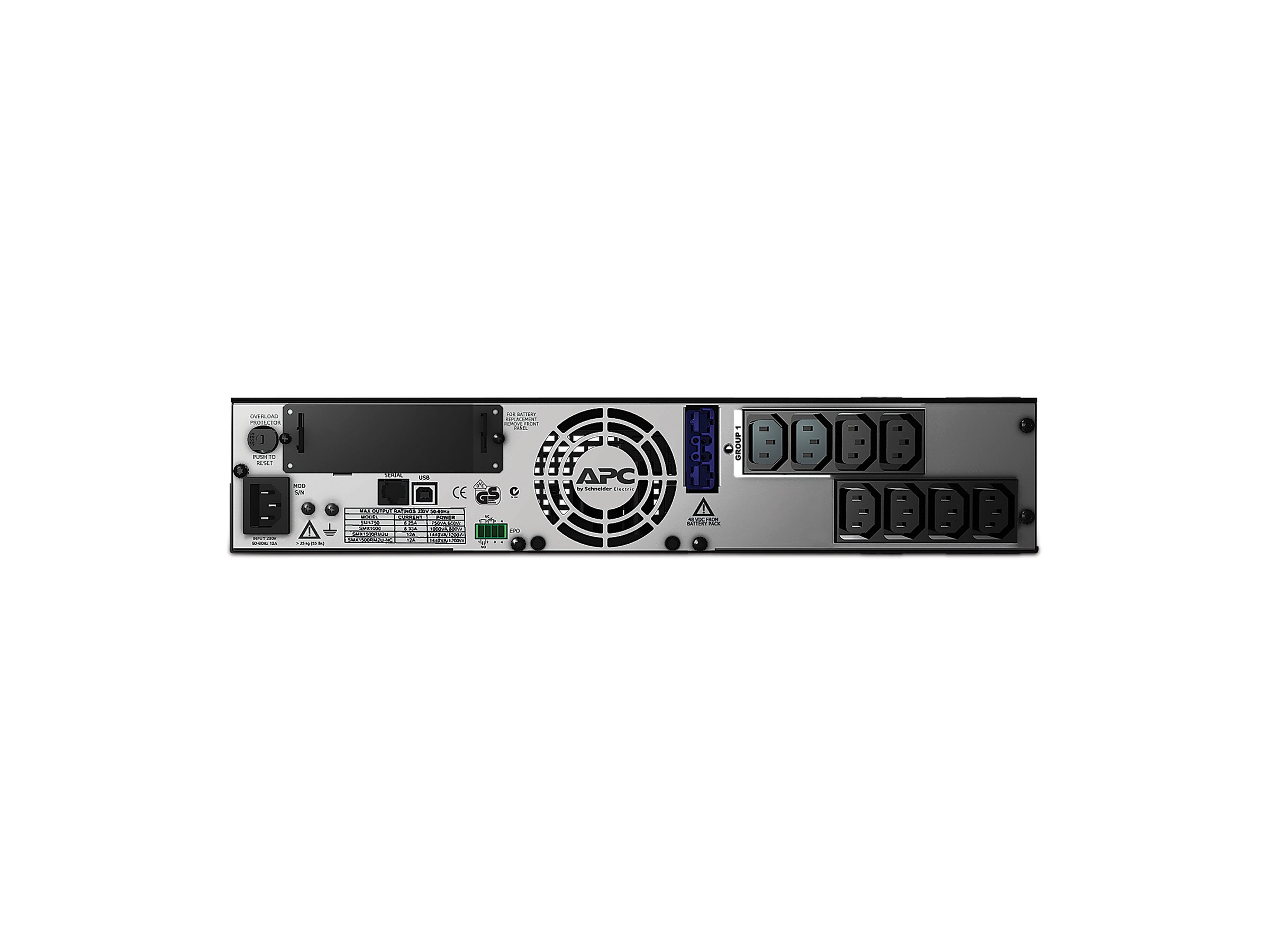

Interfaces 1 x USB | 1 x RS-232 - RJ-45 | 1 x EPO (emergency power off)
Miscellaneous
Compliant Standards VDE, EN 62040-2, EAC, RCM, EN 62040-1
Software / System Requirements
Software Included APC PowerChute Business Edition
Manufacturer Warranty
Service & Support Limited warranty - 3 years | Limited warranty - batteries - 2 years
Dimensions & Weight
Depth 49.3 cm
Height 8.9 cm
Weight 23 kg
Width 43.2 cm
Compatibility Information
Designed For P/N: ACDC2513, AR106SH6, AR109SH6, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103SP, AR3105SP, AR31
