Product no 987671904
Model SURT20KRMXLI
Brand APC
EAN 0731304255710
Weight 314.27 kg

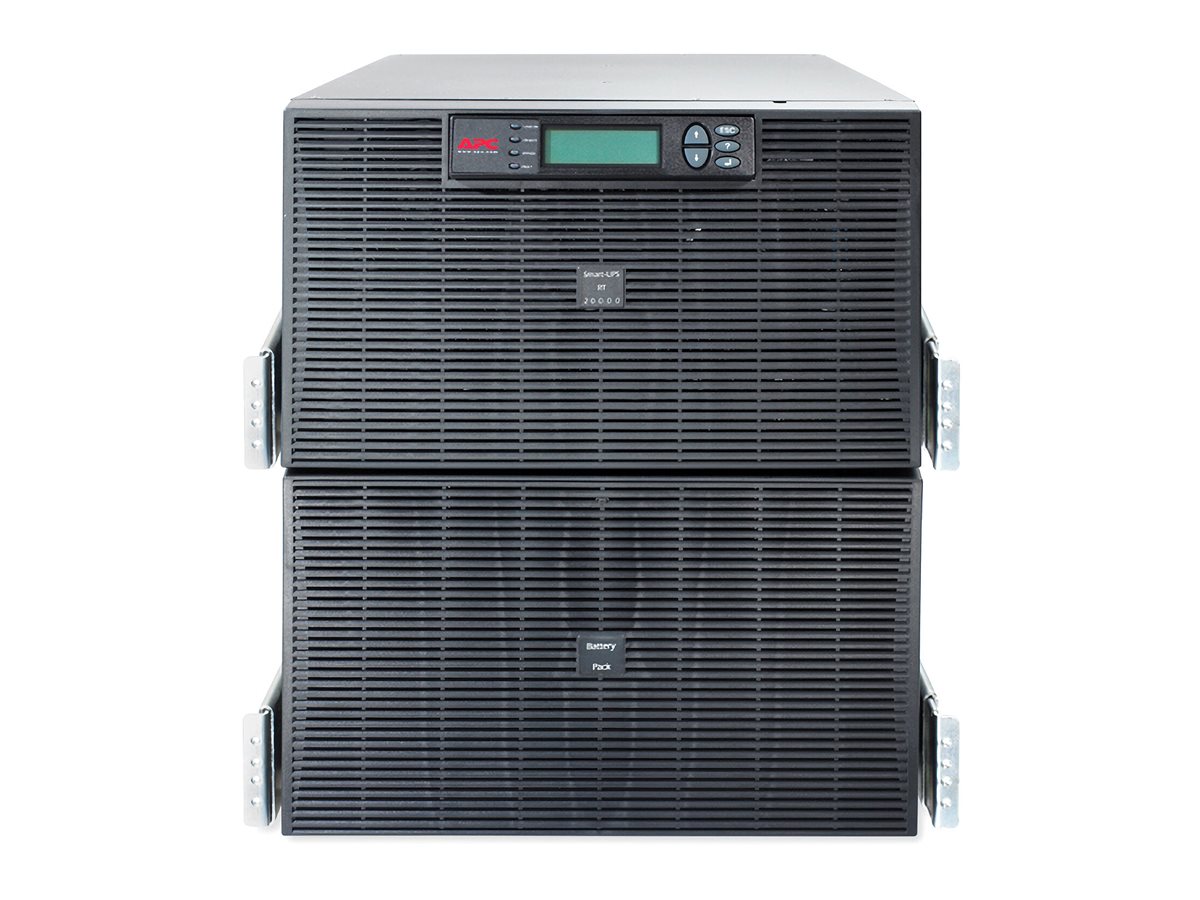

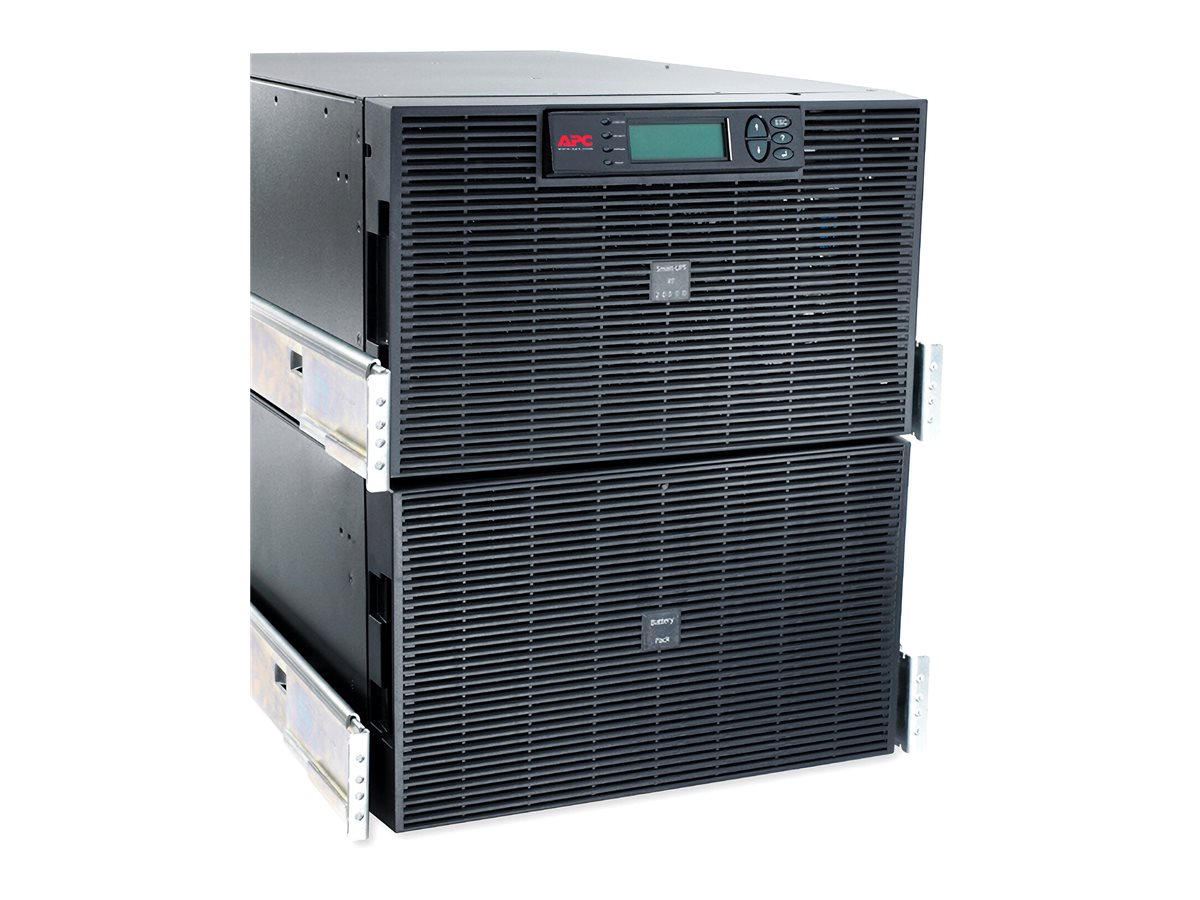

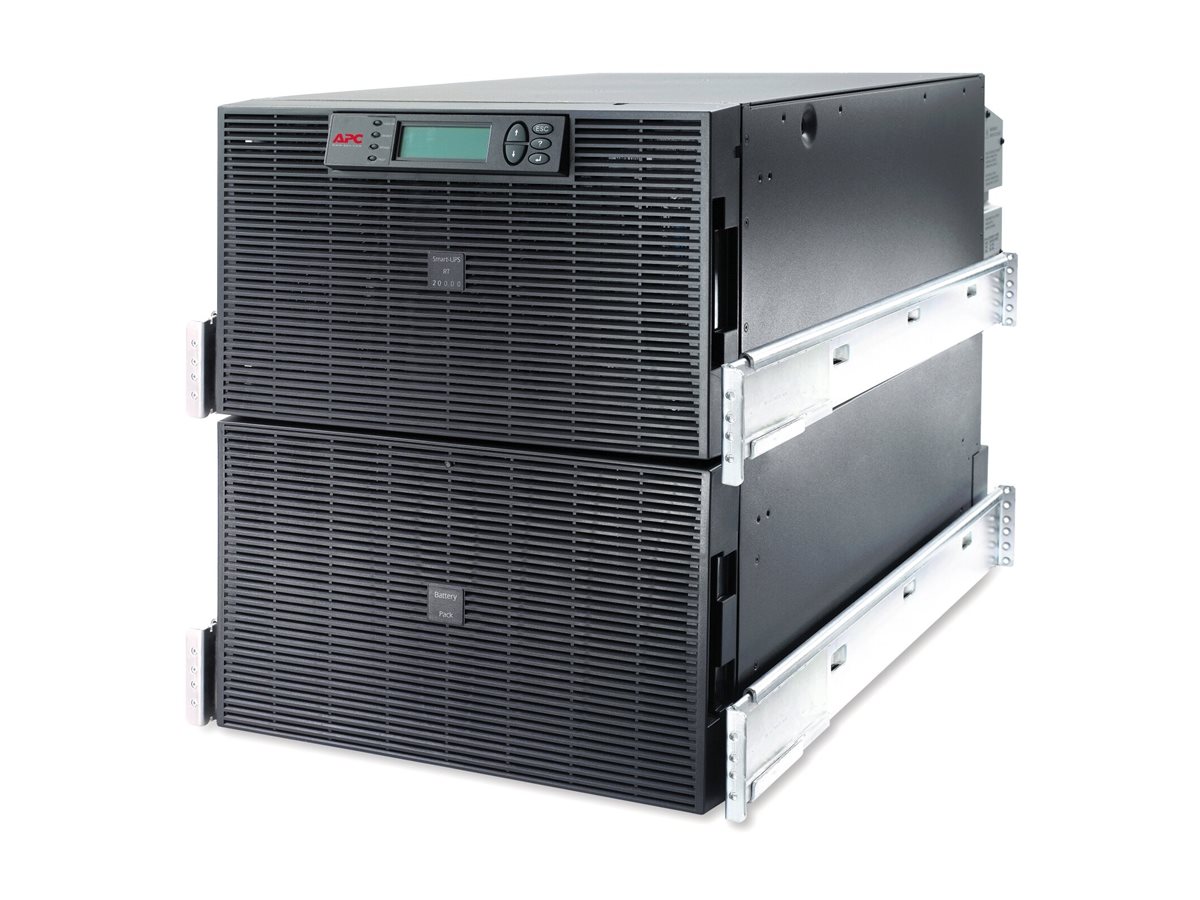

Produktbeskrivelse | APC Smart-UPS RT - UPS - 16 kW - 20000 VA |
Enhedstype | UPS - rackversion |
Rackstørrelse | 12U |
Vægt | 248 kg |
Indgangskabler | Trefaset / enfaset |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 220/230/240 V ± 5% |
Strømkapacitet | 16 kW / 20000 VA |
Input-stik | 1 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
Output-stikforbindelser | 1 x hardwire 3-wire (2PH + G)<br>1 x hardwire 5-wire (3PH + N + G)<br>8 x strøm IEC 60320 C19 |
Batteri | Blysyre |

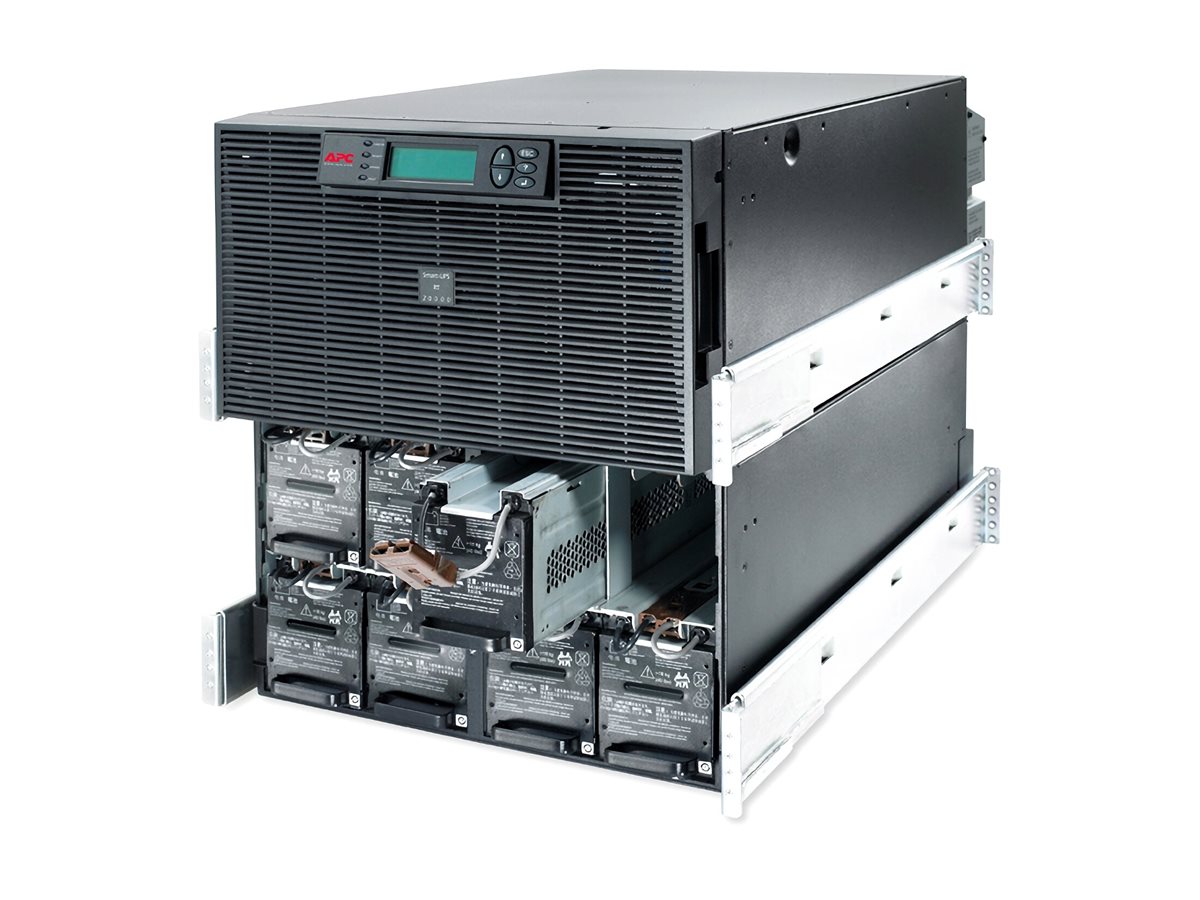

Batteri formfaktor | Indstiksmodul |
Antal batterier | 4 |
Driftstid (op til) | 4.9 min ved fuld belastning |
Netværk | Ethernet 10/100, RS-232 |
Protokol til fjernadministration | SNMP, Telnet, HTTP, HTTPS |
Farve | Sort |
Dimensioner (B x D x H) | 43.2 cm x 77.3 cm x 53.3 cm |
Producentgaranti | 2 års garanti |
Designet for | P/N: AR2200, AR2280, AR2487G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A |
General | |
---|---|
Battery Enclosure Type | Plug-in module |
Color | Black |
Device Type | UPS - rack-mountable |
Height (Rack Units) | 12U |
Power Device | |
Circuit Protection | Circuit breaker |
Frequency Provided | 50/60 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 - 280 V |
Input Wiring | 3-phase / 1-phase |
Output Voltage | AC 220/230/240 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 16 kW / 20000 VA |

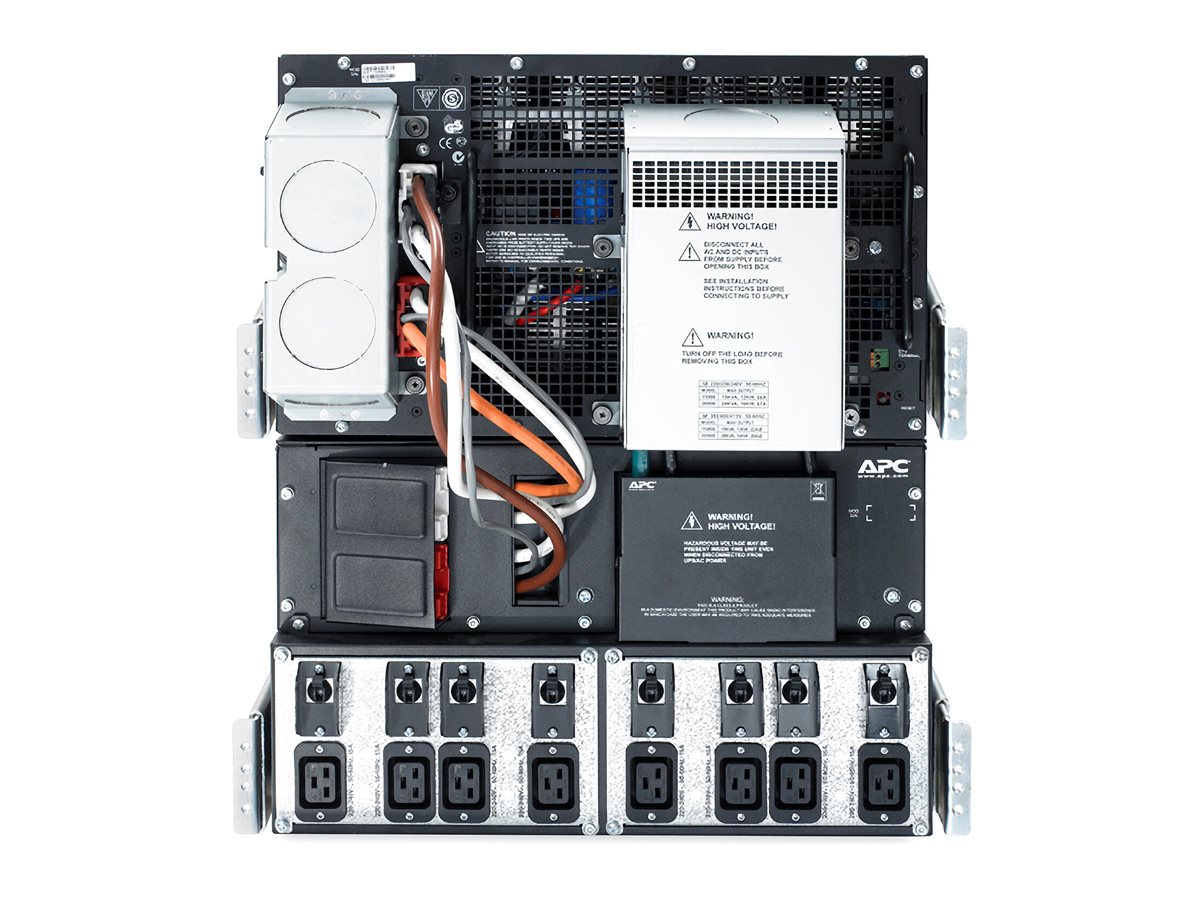

Power Output Connectors Details | 1 x hardwire 3-wire (2PH + G) | 1 x hardwire 5-wire (3PH + N + G) | 8 x power IEC 60320 C19 |
Surge Suppression | Yes |
UPS Technology | On-line |
Battery | |
Quantity | 4 |
Recharge Time | 2.5 hours |
Run Time (Up To) | 4.9 min at full load |
Technology | Lead acid |
Voltage Provided | 192 V |
Networking | |
Remote Management Interface | Ethernet 10/100, RS-232 |
Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
Expansion / Connectivity | |
Expansion Slots | SmartSlot |
Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (Ethernet) - RJ-45 | 1 x EPO (emergency power off) |
Miscellaneous | |
Cables Included | Serial cable - external |
Compliant Standards | UL 1449, VDE, IEC 62040-1-1 |
Features | Audible alarm, emergency power off, LCD display, built-in static bypass, internal bypass |
Rack Mounting Kit | Included |
Software / System Requirements | |
Software Included | APC PowerChute Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 59 dBA |
Dimensions & Weight | |
Depth | 77.3 cm |
Height | 53.3 cm |
Weight | 248 kg |
Width | 43.2 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 100 cm |
Shipping Height | 99 cm |
Shipping Weight | 314 kg |
Shipping Width | 61 cm |
Compatibility Information | |
Designed For | P/N: ACCS1005, ACCS1006, ACCS1007, ACDC1019, ACDC1021, ACDC2513, AP5602, AP5606, AP5607, AP5616, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR310 |
