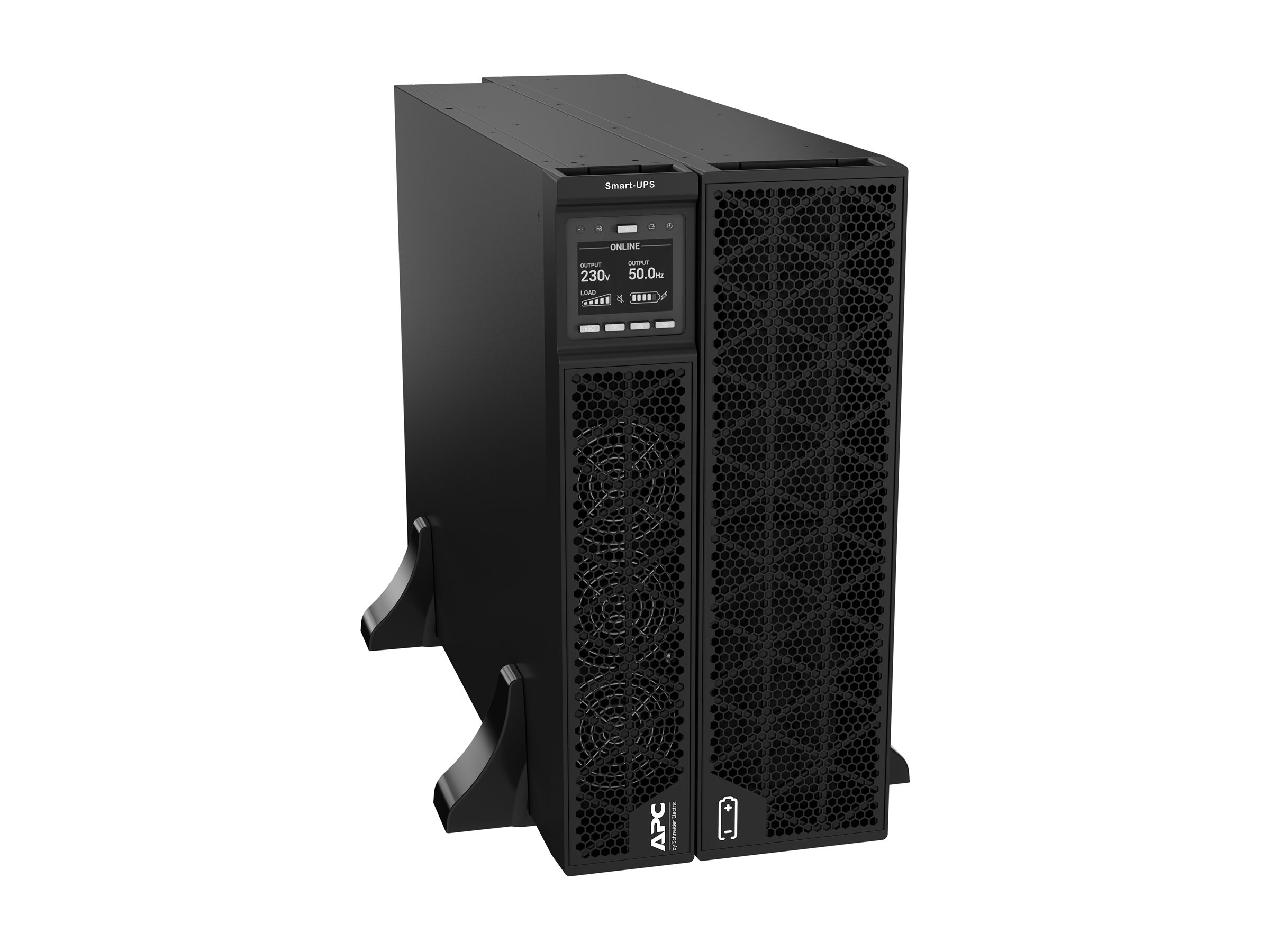

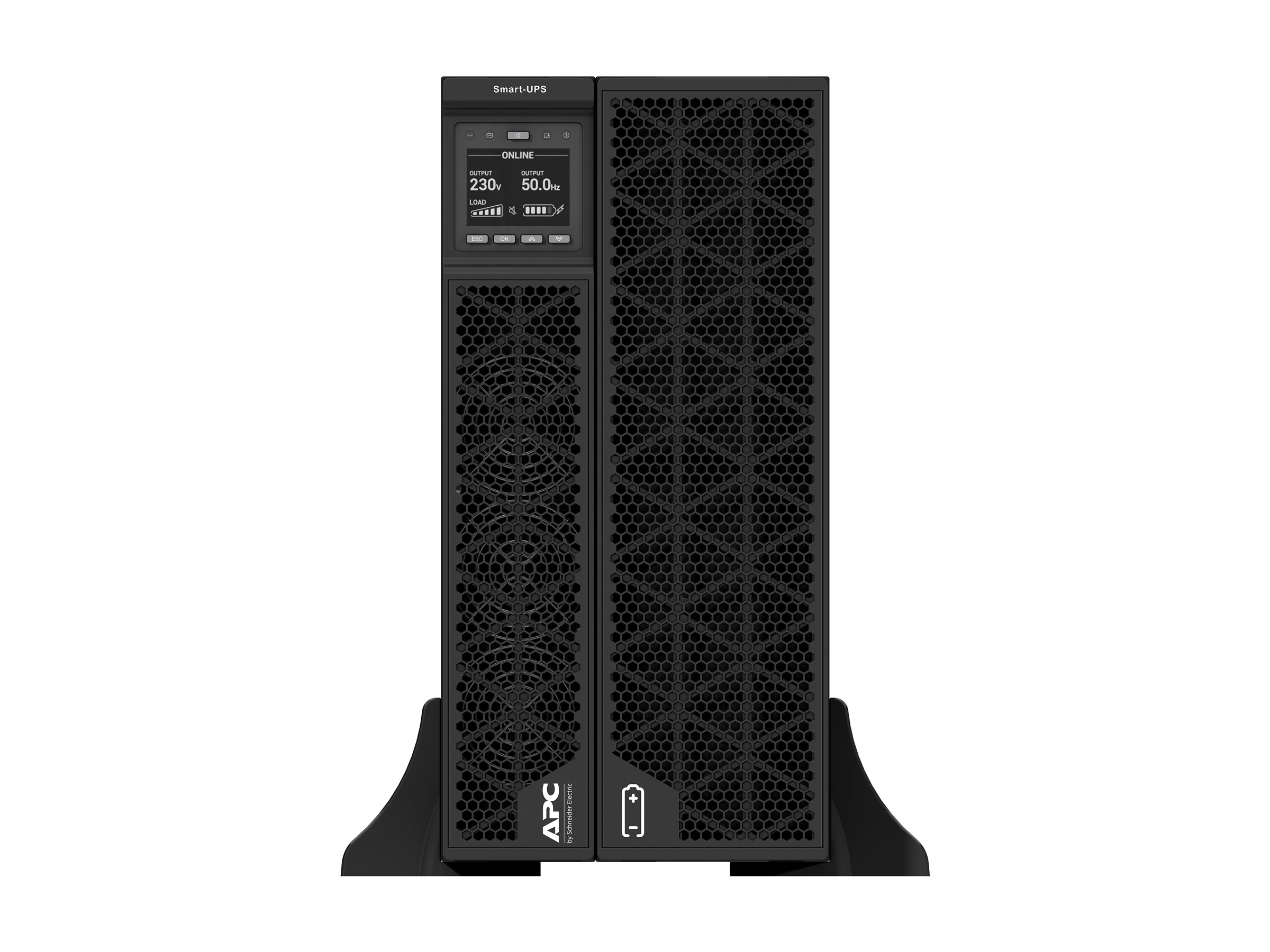

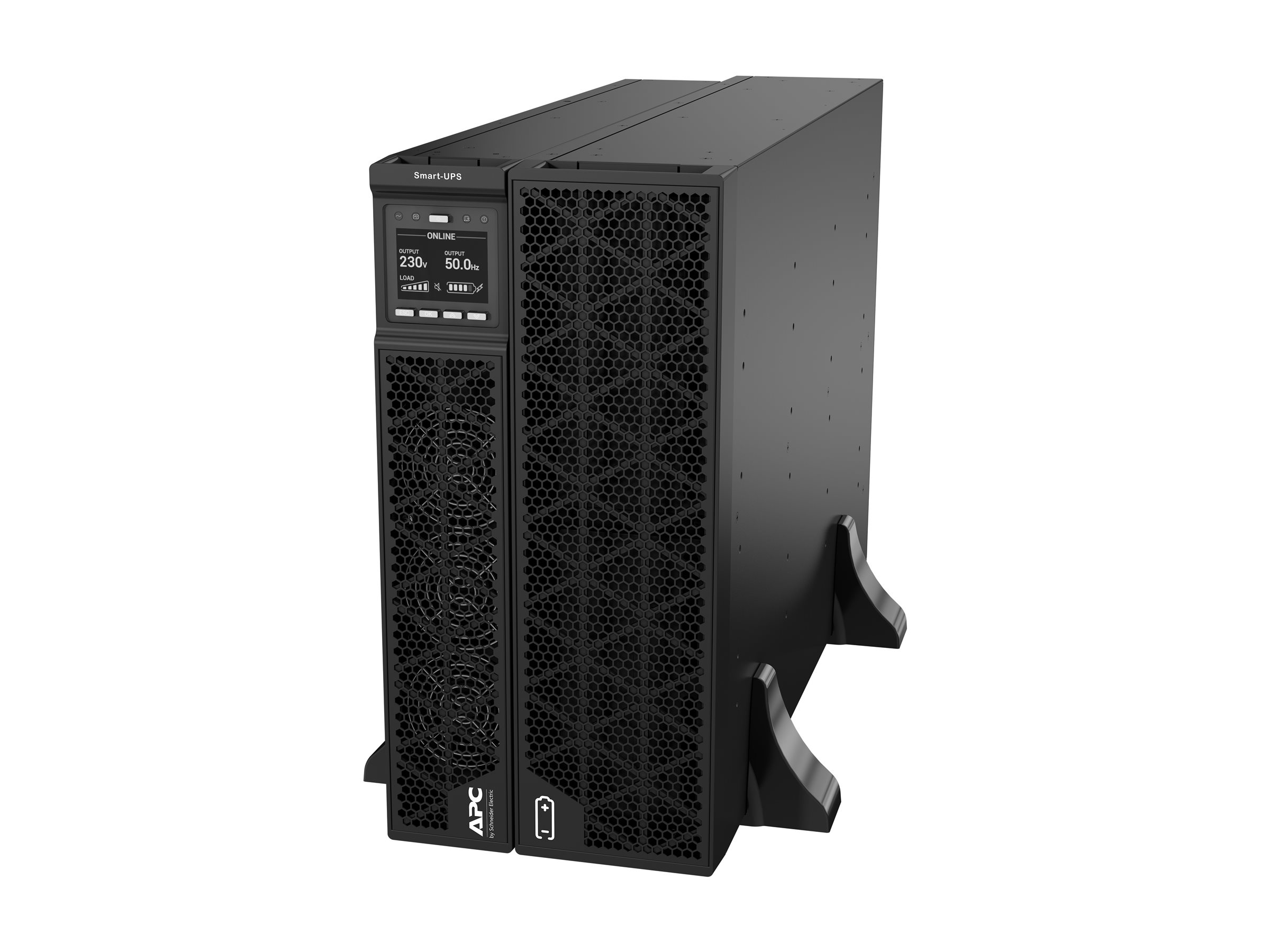

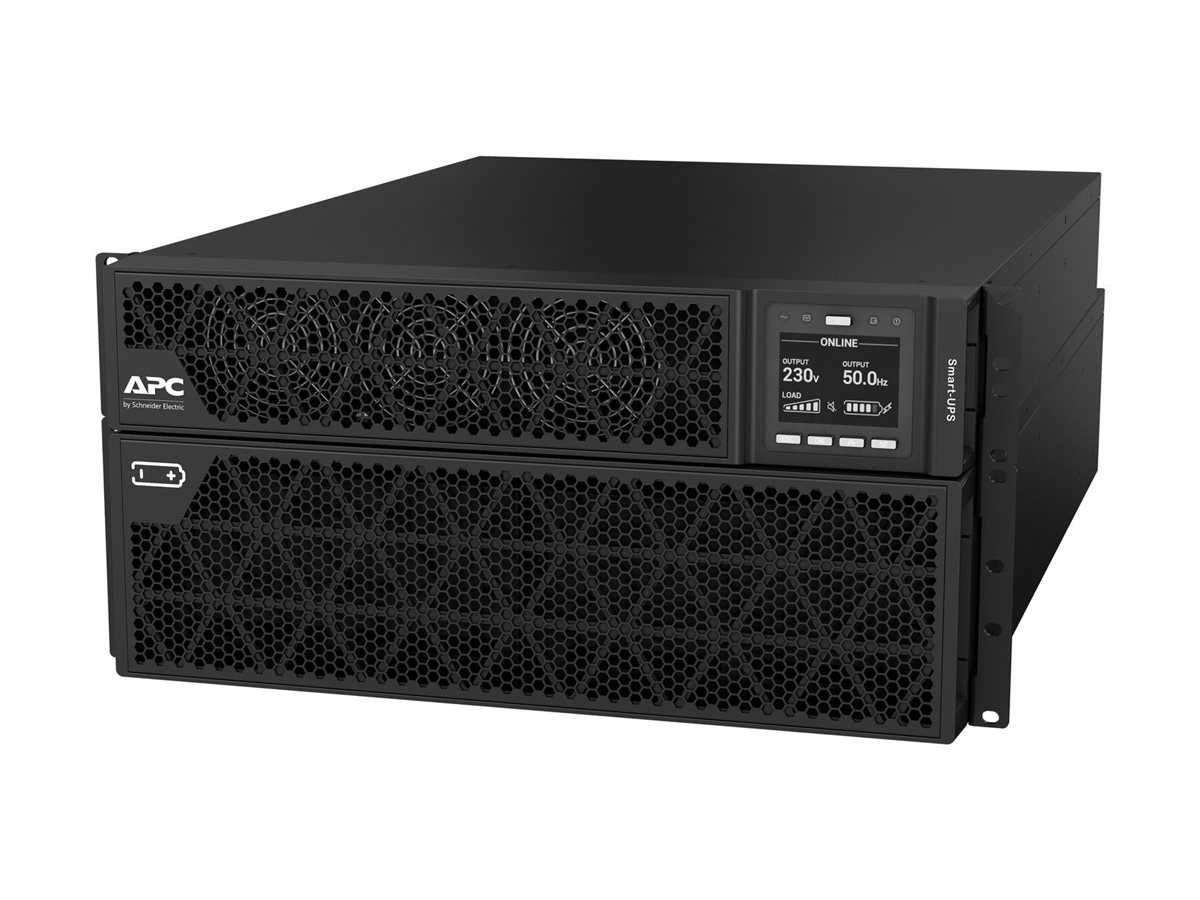

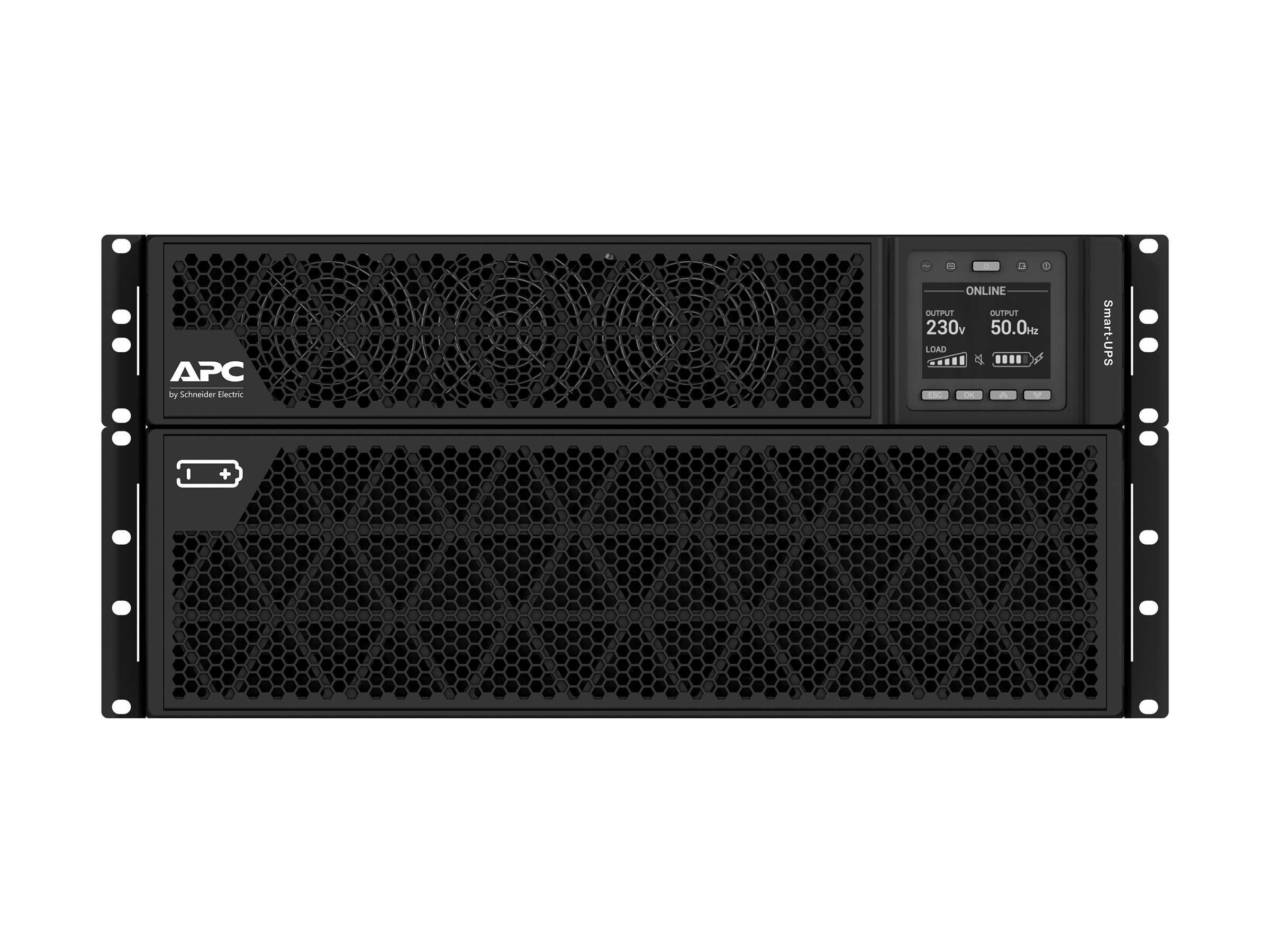

APC Smart-UPS RT SRTG10KXLI UPS
APC Smart-UPS RT SRTG10KXLI - UPS (rackversion) - AC 230 V - 10000 Watt - 10000 VA - RS-232 - output-stikforbindelser: 4
Disse APC-Smart-ups er designet til IT-fagfolk eller netværksadministratorer for at opretholde oppetid og kontinuitet i forretningen. Denne UPS på 10 kVA-onlinerack/tower leverer ren sinusbølgeeffekt og udvidet kørselstid til understøttelse af kritisk elektronik under strømafbrydelser. Den leveres med hård 3-wire-indgang (1P+N+E), 2x IEC 320 C13, 1x IEC 320 C19 og hård wire 3-wire (H+N+E) udgange. UPS'en har et integreret netværksstyringskort til netværksbaseret overvågning og styring af UPS. UPS'en leveres med PowerChute, en netværksnedlukning, der giver effektiv nedlukning af fysiske servere, virtuelle maskiner og HCI-klynger. UPS'en kan tilsluttes EcoStruxure IT eller centraliserede styringsplatforme fra tredjeparter. UPS'en er kompatibel med SRTGRK1-skinnesættet, der sælges separat.
-
Product no 1000730402
Model SRTG10KXLI
Brand APC
EAN 0731304411864
Weight 83.14 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS RT SRTG10KXLI - UPS - 10000 Watt - 10000 VA |
| Enhedstype | UPS - rackversion |
| Vægt | 81.12 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 220-240 V |
| Strømkapacitet | 10000 Watt / 10000 VA |
| Input-stik | 1 x hardwire 3-wire (1PH + N + G) |

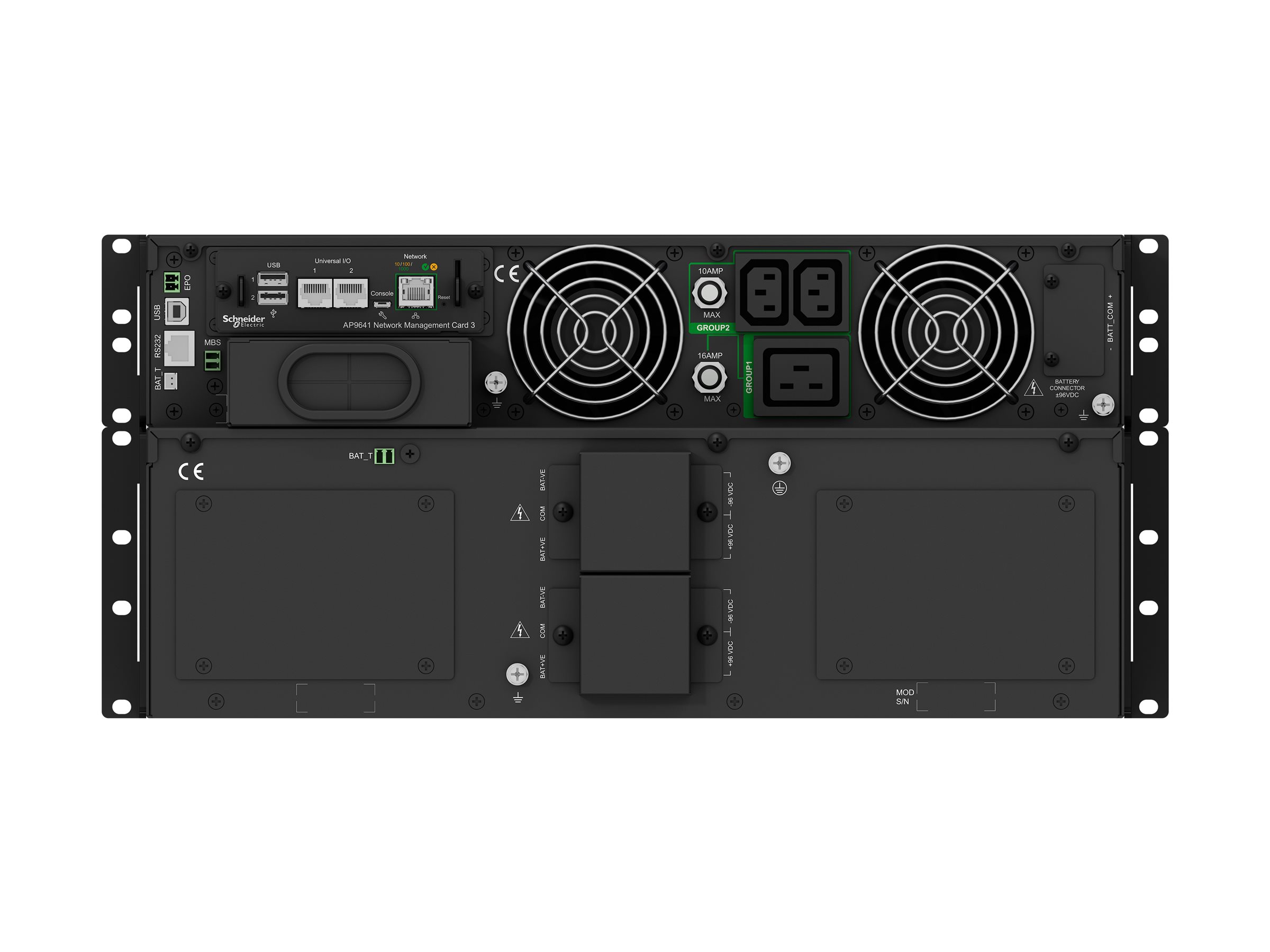

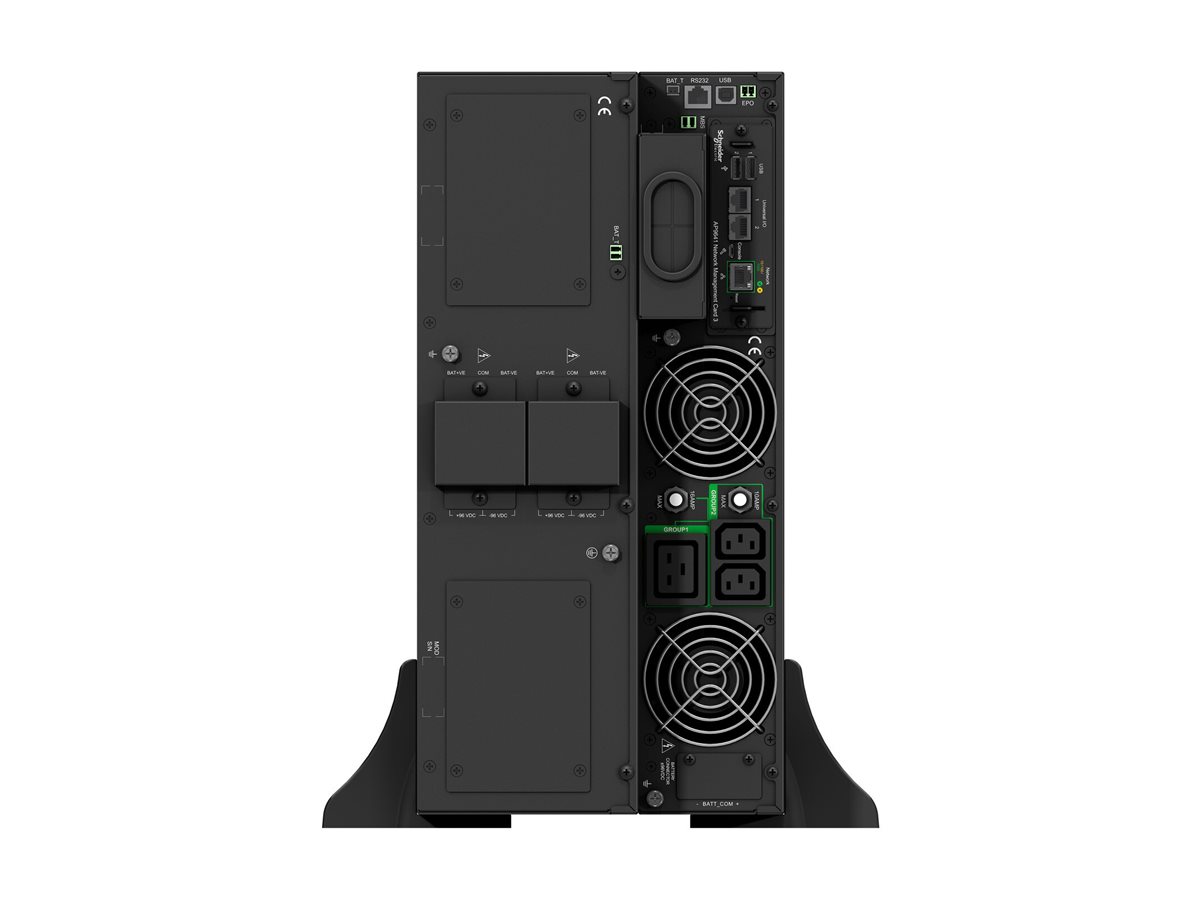

| Output-stikforbindelser | 1 x strøm IEC 60320 C19<br>2 x power IEC 60320 C13<br>1 x hardwire 3-wire (1PH + N + G) |
| Batteri | Blysyre |
| Netværk | RS-232 |
| Dimensioner (B x D x H) | 44 cm x 62 cm x 21.7 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | UPS - rack-mountable |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 285 V |
| Output Voltage | AC 220-240 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10000 Watt / 10000 VA |
| Power Output Connectors Details | 1 x power IEC 60320 C19 | 2 x power IEC 60320 C13 | 1 x hardwire 3-wire (1PH + N + G) |
| Surge Energy Rating | 600 Joules |
| UPS Technology | On-line |
| Battery | |
| Recharge Time | 4 hours |
| Technology | Lead acid |
| Voltage Provided | 96 V |
| Networking | |
| Remote Management Interface | RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | IP20 |
| Features | LCD display, internal bypass |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Dimensions & Weight | |
| Depth | 62 cm |
| Height | 21.7 cm |
| Weight | 81.12 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 79 cm |
| Shipping Height | 41.4 cm |
| Shipping Weight | 83.14 kg |
| Shipping Width | 59 cm |
