Product no 995833741
Model SMTL750RMI2UC
Brand APC
EAN 0731304407966
Weight 19.5 kg

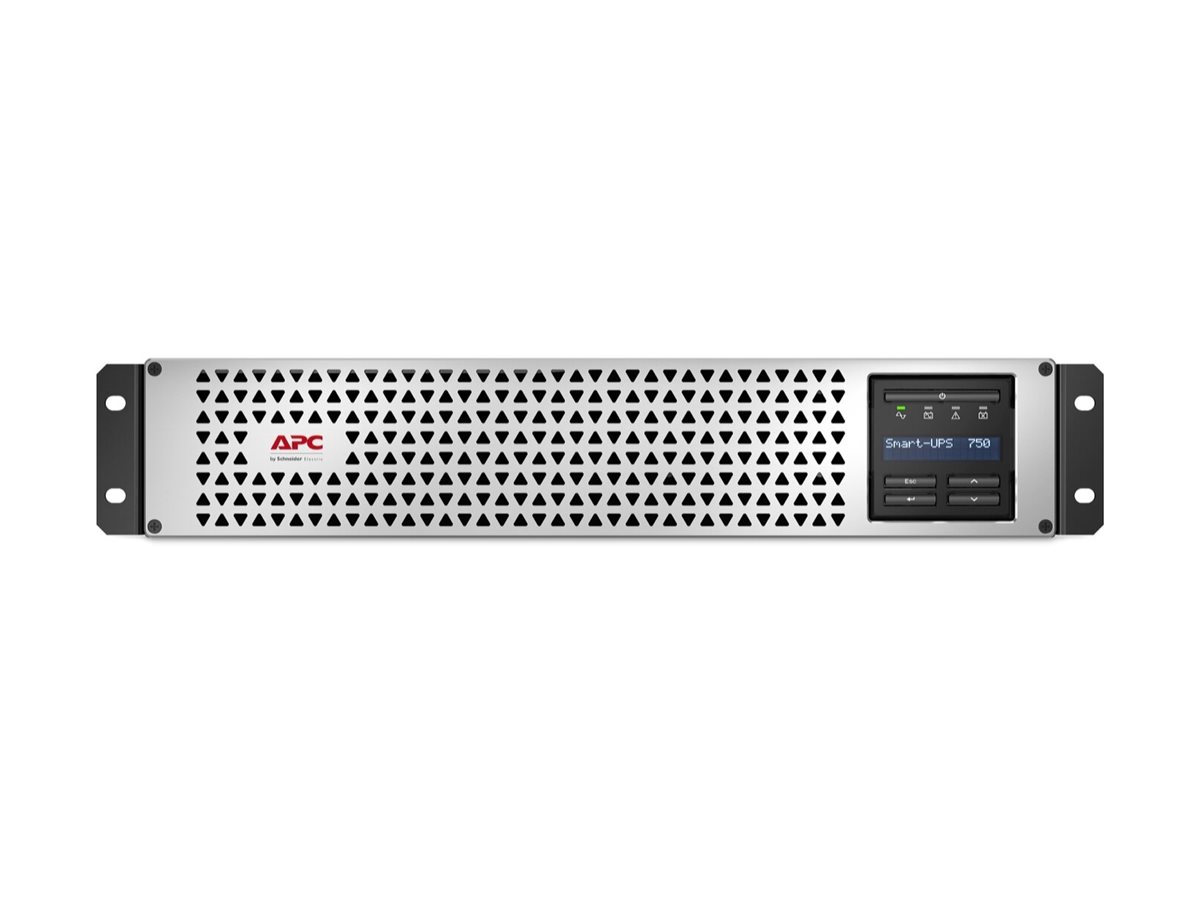

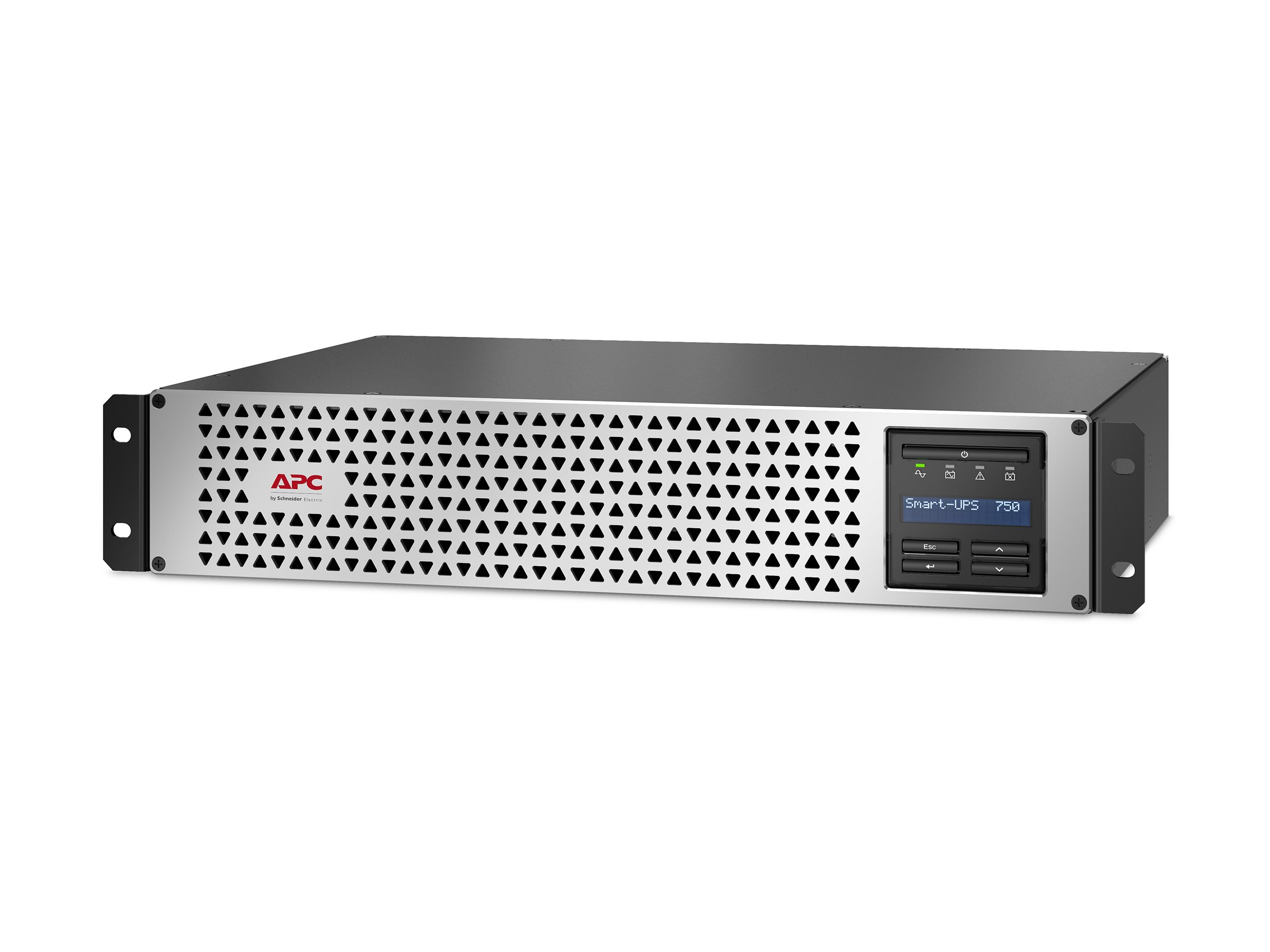

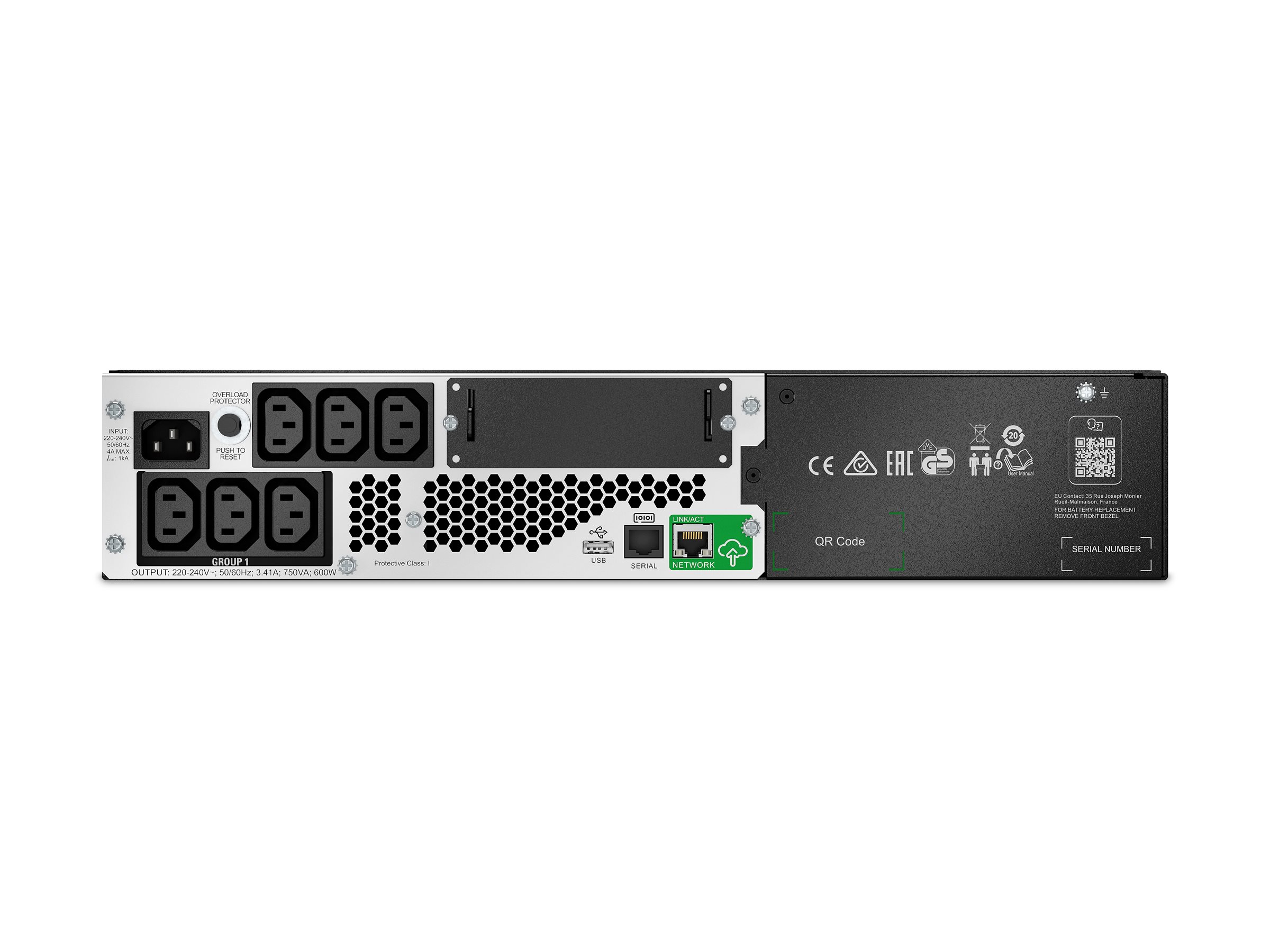

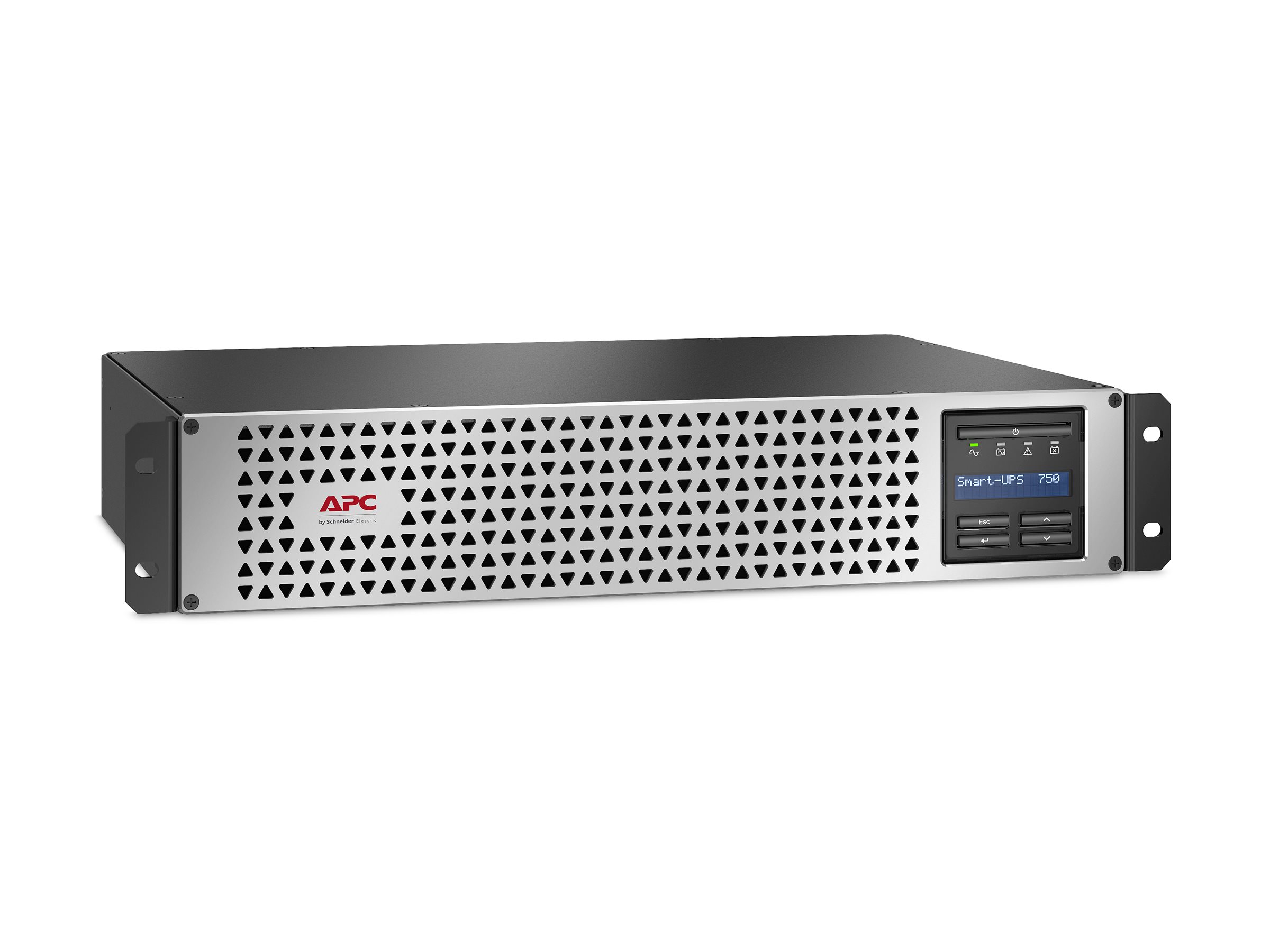

Produktbeskrivelse | APC Smart-UPS Li-Ion 750VA Short Depth with SmartConnect - UPS - 600 Watt - 750 VA |
Enhedstype | UPS - stativ-monterbar / ekstern |
Rackstørrelse | 2U |
Vægt | 17.69 kg |
Indgangspænding | AC 230 V |
Udgangspænding | AC 230 V ± 5% |
Strømkapacitet | 600 Watt / 750 VA |
Input-stik | Strøm IEC 60320 C14 |
Output-stikforbindelser | 6 x power IEC 60320 C13 |
Batteri | Litium-ion |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 43.8 cm x 31.8 cm x 8.6 cm |
Producentgaranti | 5 års garanti |
Designet for | P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR204A, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432 |
General | |
---|---|
Color | Black |
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Power Device | |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | Power IEC 60320 C14 |
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Output Voltage | AC 230 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 600 Watt / 750 VA |
Power Output Connectors Details | 6 x power IEC 60320 C13 |
Surge Energy Rating | 645 Joules |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Recharge Time | 3 hours |
Technology | Lithium ion |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Interfaces | 1 x management (RS-232) - RJ-45 | 1 x management (USB) |
Miscellaneous | |
Compliant Standards | NOM, UL 1449, UL 1778, CSA C22.2 No. 107.1, RoHS, FCC Part 15 A, REACH, IP20 |
Features | Audible alarm, LCD display |
Software / System Requirements | |
Software Included | APC PowerChute Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dB |
Dimensions & Weight | |
Depth | 31.8 cm |
Height | 8.6 cm |
Weight | 17.69 kg |
Width | 43.8 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 47.2 cm |
Shipping Height | 22.9 cm |
Shipping Weight | 18.6 kg |
Shipping Width | 58.4 cm |
Compatibility Information | |
Designed For | P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR204A, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432 |
