APC NetShelter

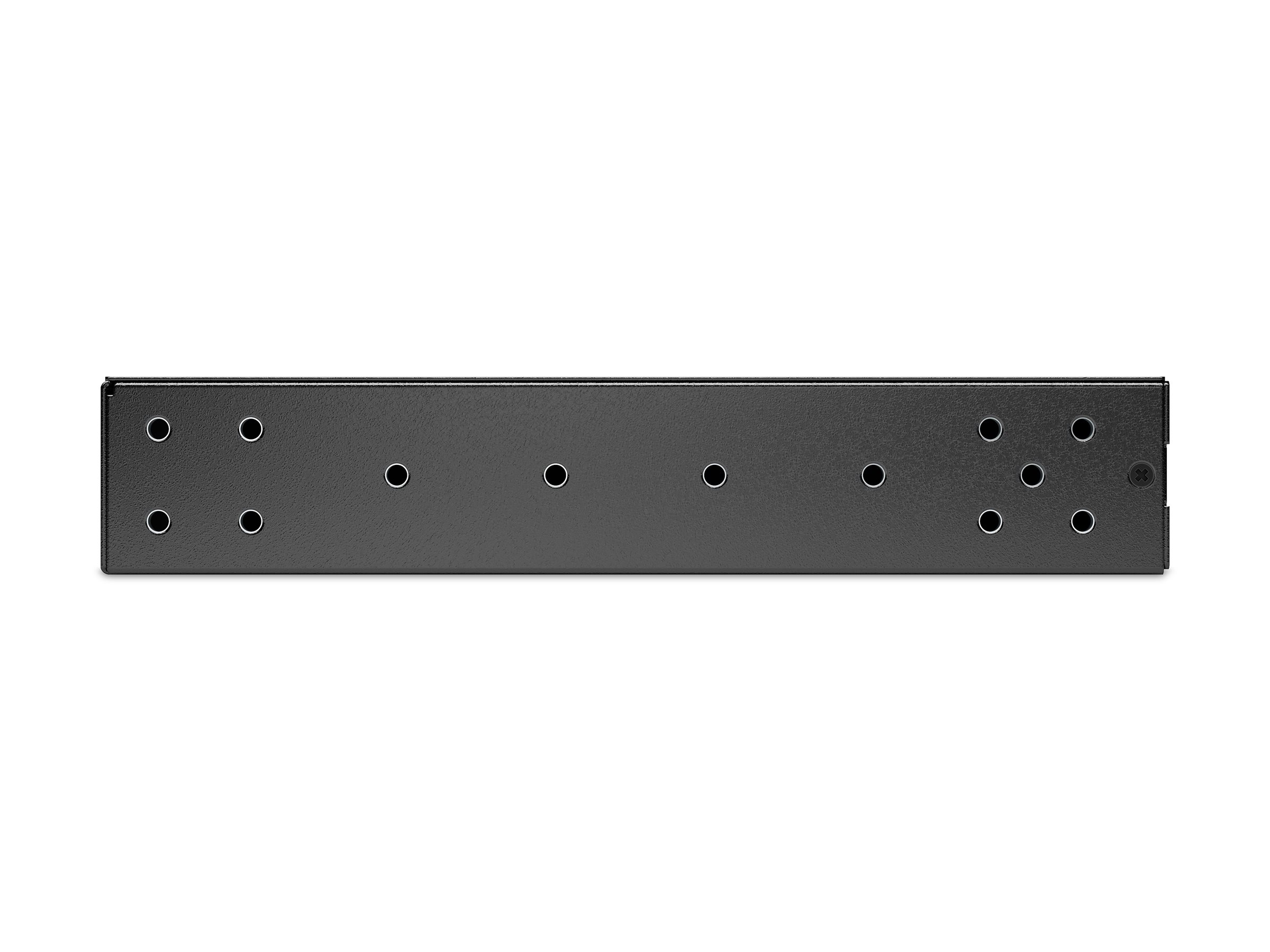

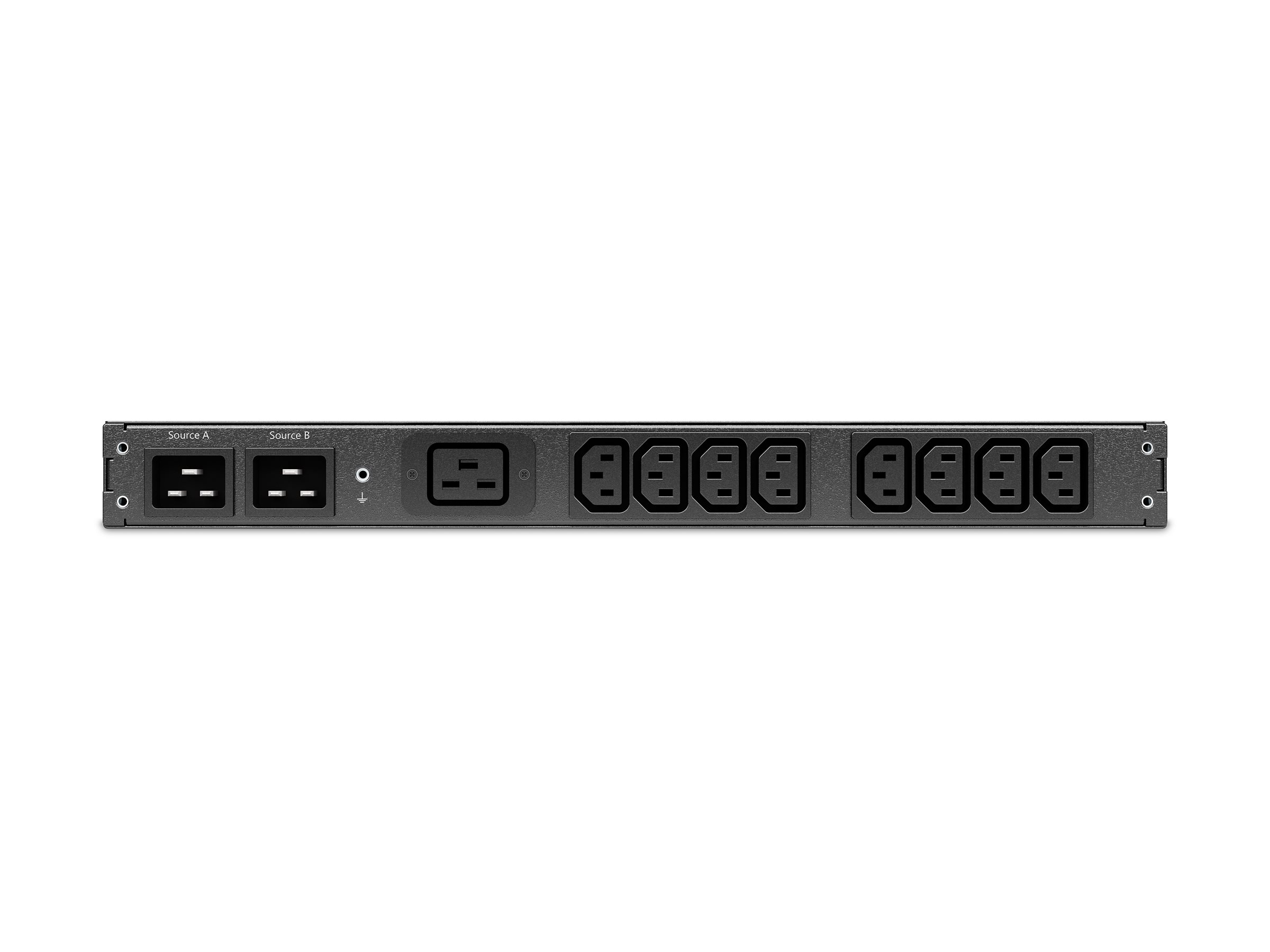

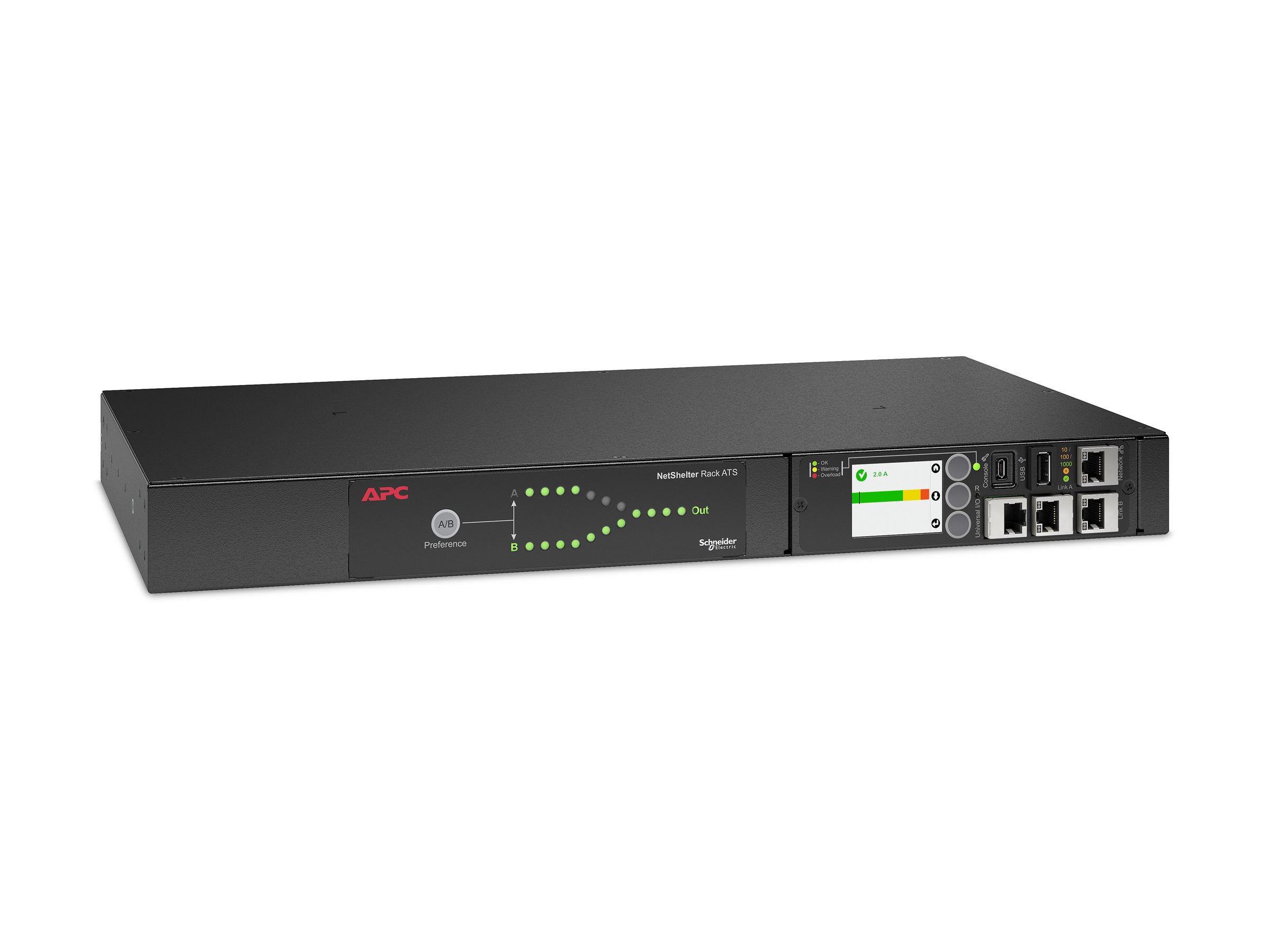

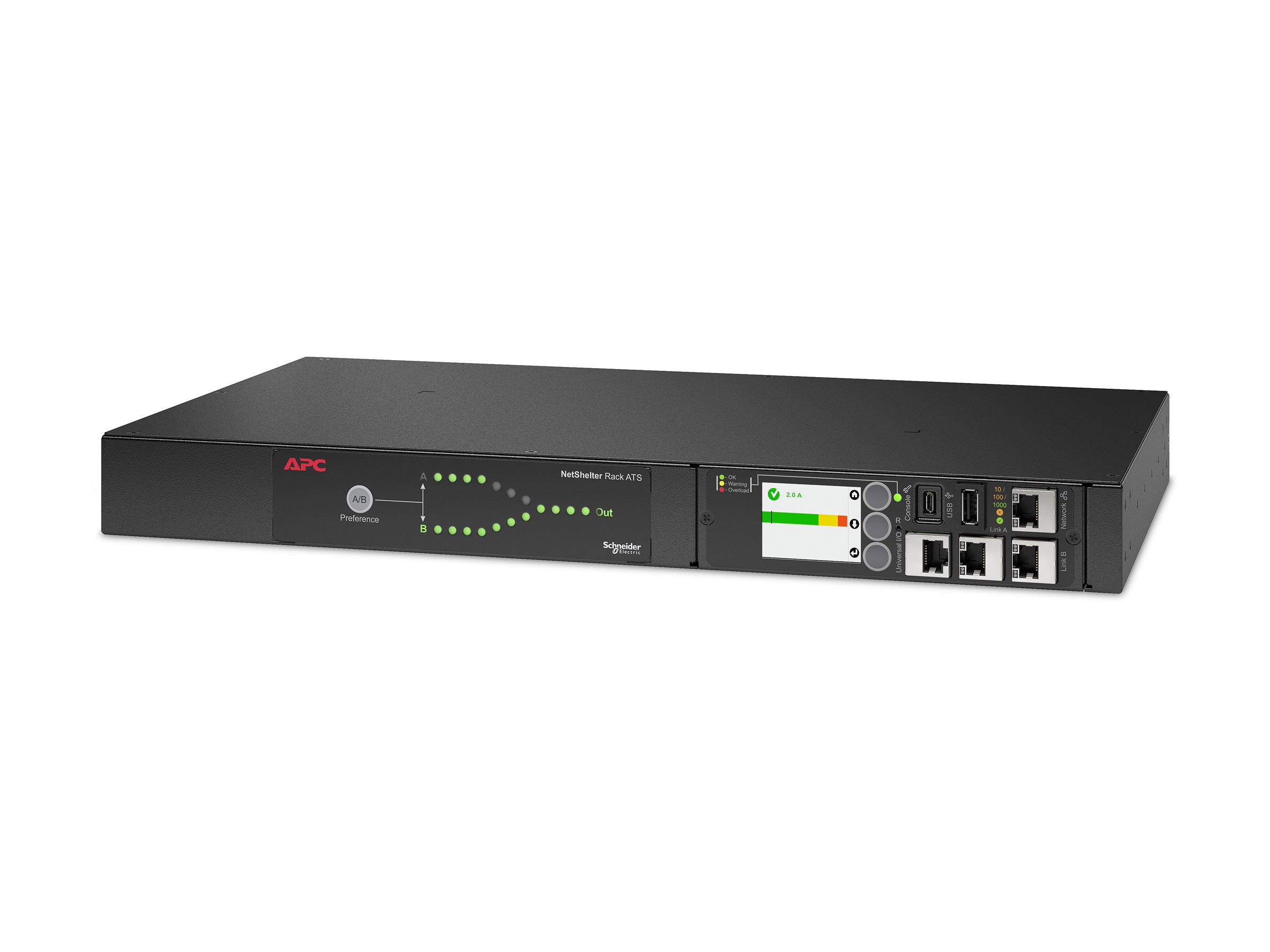

APC NetShelter - Automatisk transferkontakt (rackversion) - AC 207-253 V - 3700 VA - 1-faset - Ethernet 10/100/1000, USB - output-stikforbindelser: 9 - 1U - 2.44 m ledning - sort

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A er femte generation af switche med høj tilgængelighed, der giver større kontrol over dit it-udstyr fra cloud til edge. Med brancheførende pålidelighed, smidighed og håndterbarhed giver APC NetShelter Rack ATS redundant strøm til enkeltkablede udstyrsbelastninger i it-stativet. AP4423A er en enfaset 1U Rack ATS med 16 A nominel strøm, 230 V nominel spænding og 3700 VA belastningskapacitet. Den leveres med 2 IEC C20-indgangsstik og 8 IEC C13, 1 IEC C19-udgangsstik. Den er blevet opgraderet med APC NMC3 og forskellige tekniske fremskridt til deling af netværksporte, miljøovervågning og forbedret sikkerhed. Den har 2 års standardgaranti og 5 års udvidet garanti, så du kan have ro i sindet og bruge den i mange år fremover. Brugere kan få adgang til og konfigurere Rack ATS via sikker Web UI, SNMP, CLI og er fuldt kompatible med EcoStruxure IT.

Product no: 1000791426
Model: AP4423A
EAN: 0731304432449
Brand:
APC
Weight: 5.51 kg

Specifications

Produktbeskrivelse
APC NetShelter - automatisk transferkontakt - 3700 VA
Enhedstype
Automatisk transferkontakt - rackversion
Ledningslængde
2.44 m
Rackstørrelse
1U
Vægt
3.74 kg
Indgangskabler
1-faset
Indgangspænding
AC 207-253 V
Udgangspænding
AC 230 V
Strømkapacitet
3700 VA
Input-stik
Strøm IEC 60320 C20 16A
Output-stikforbindelser
9 x power IEC 60320 C13<br>1 x strøm IEC 60320 C19
Netværk
Ethernet 10/100/1000, USB
Udstyr inkluderet
Monteringspakke, stativmonterede bøjler
Farve
Sort
Dimensioner (B x D x H)
43.2 cm x 23.6 cm x 4.4 cm
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Color
Black
Cord Length
2.44 m
Device Type
Automatic transfer switch - rack-mountable
Height (Rack Units)
1U
Power Device
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C20 16A
Input Voltage
AC 207-253 V
Input Wiring
1-phase
Max Electric Current
20 A
Output Voltage
AC 230 V
Power Capacity
3700 VA
Power Output Connectors Details
9 x power IEC 60320 C13 | 1 x power IEC 60320 C19
Networking
Remote Management Interface
USB, Ethernet 10/100/1000
Expansion / Connectivity
Interfaces
4 x LAN - RJ-45 | 1 x USB - 4 pin USB Type A | 1 x USB - 5 pin Micro-USB Type B
Miscellaneous
Cables Included
Power cable 2.44 m
Compliant Standards
UL, cUL, WEEE, FCC Part 15 A, REACH, China RoHS, EN 55022 Class A, EU RoHS
Features
Horizontal orientation, mercury free, box package, LED indicators
Included Accessories
Mounting kit, rack mounting brackets
Rack Mounting Kit
Included
Manufacturer Warranty
Service & Support
Limited warranty - replace or repair - 2 years
Environmental Parameters
Humidity Range Operating
5 - 95%
Max Operating Temperature
45 °C
Min Operating Temperature
-5 °C
Dimensions & Weight
Depth
23.6 cm
Height
4.4 cm
Weight
3.74 kg
Width
43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth
35.6 cm
Shipping Height
11.4 cm
Shipping Weight
5.51 kg
Shipping Width
60 cm
