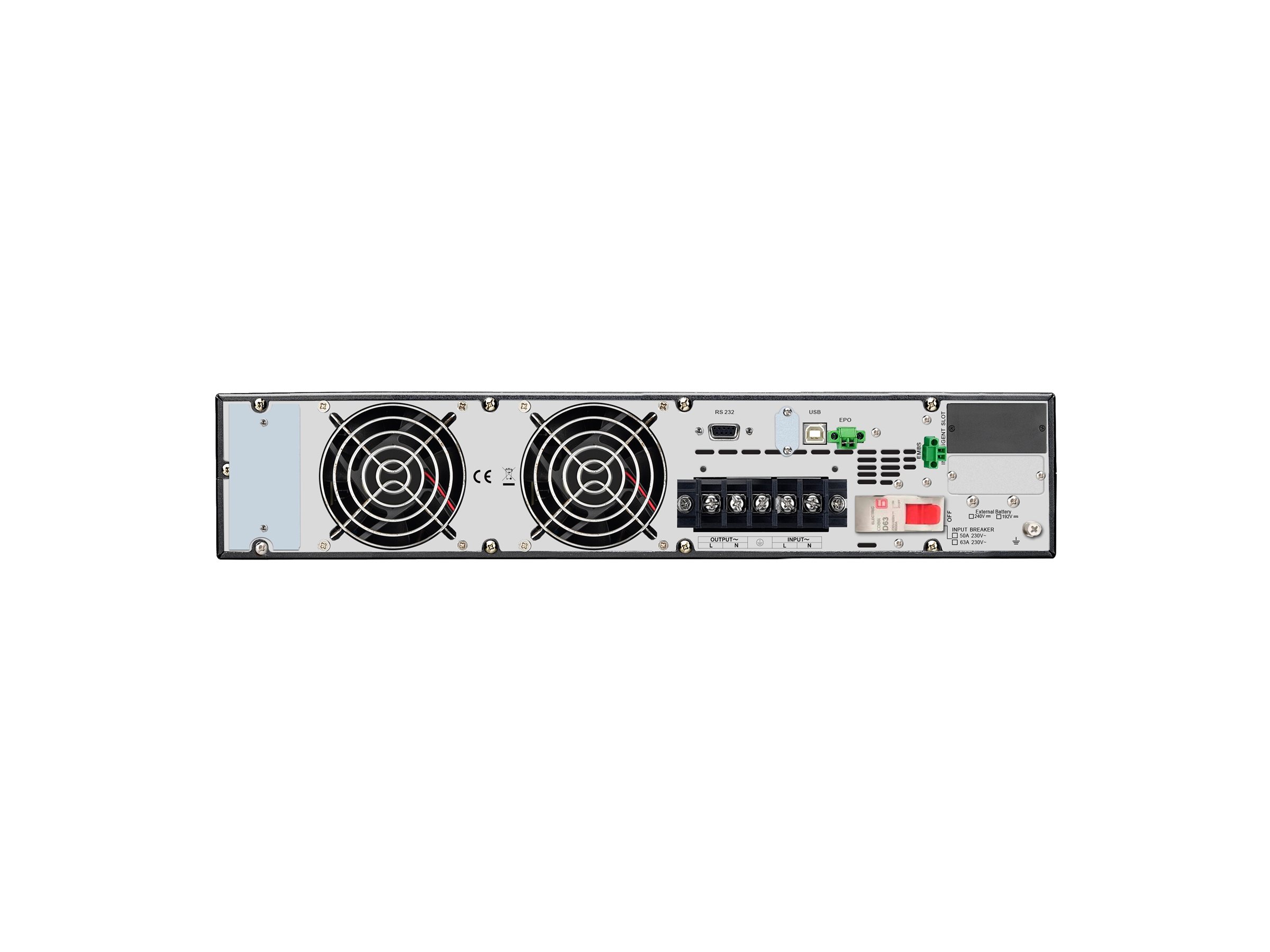

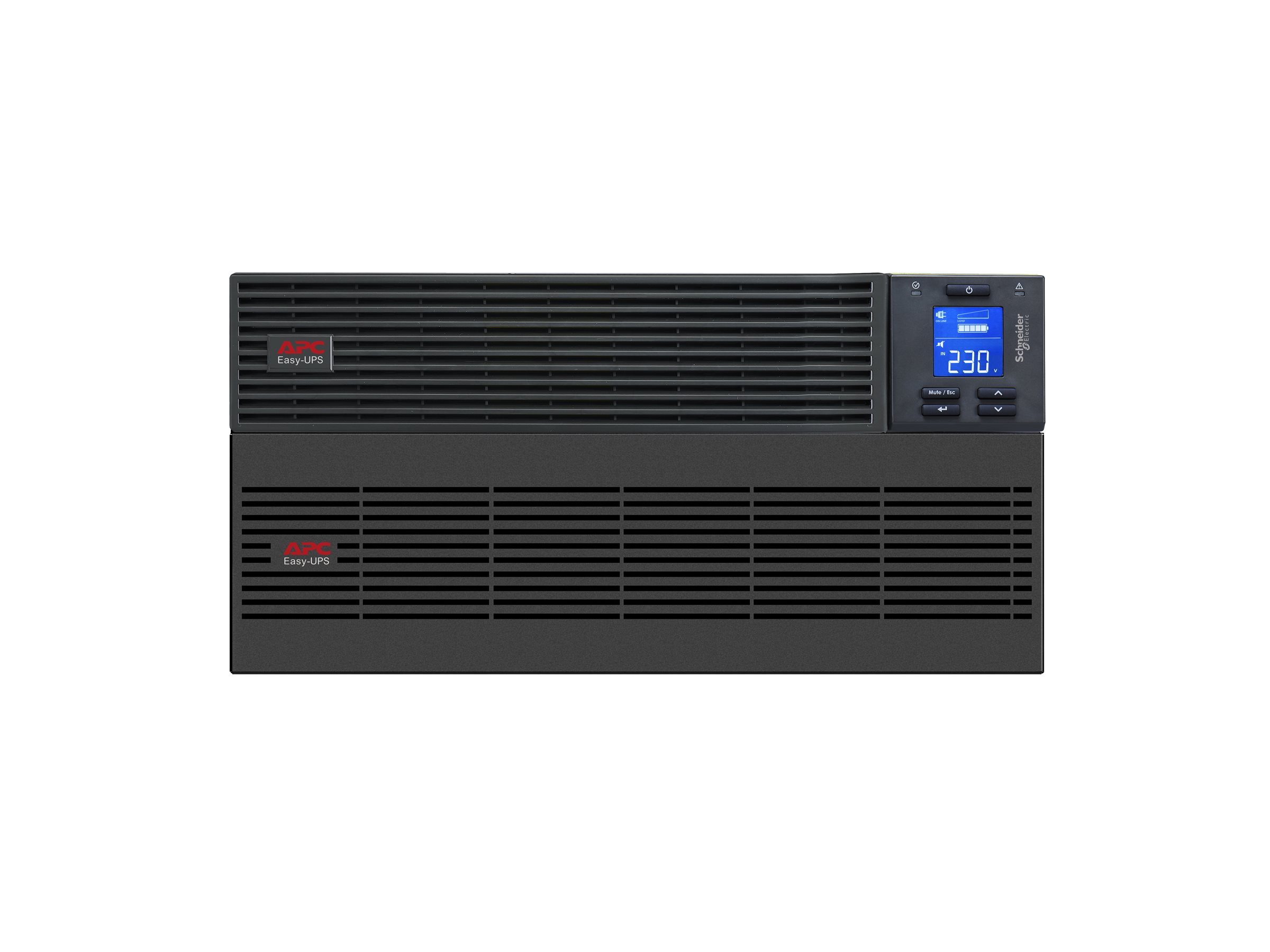

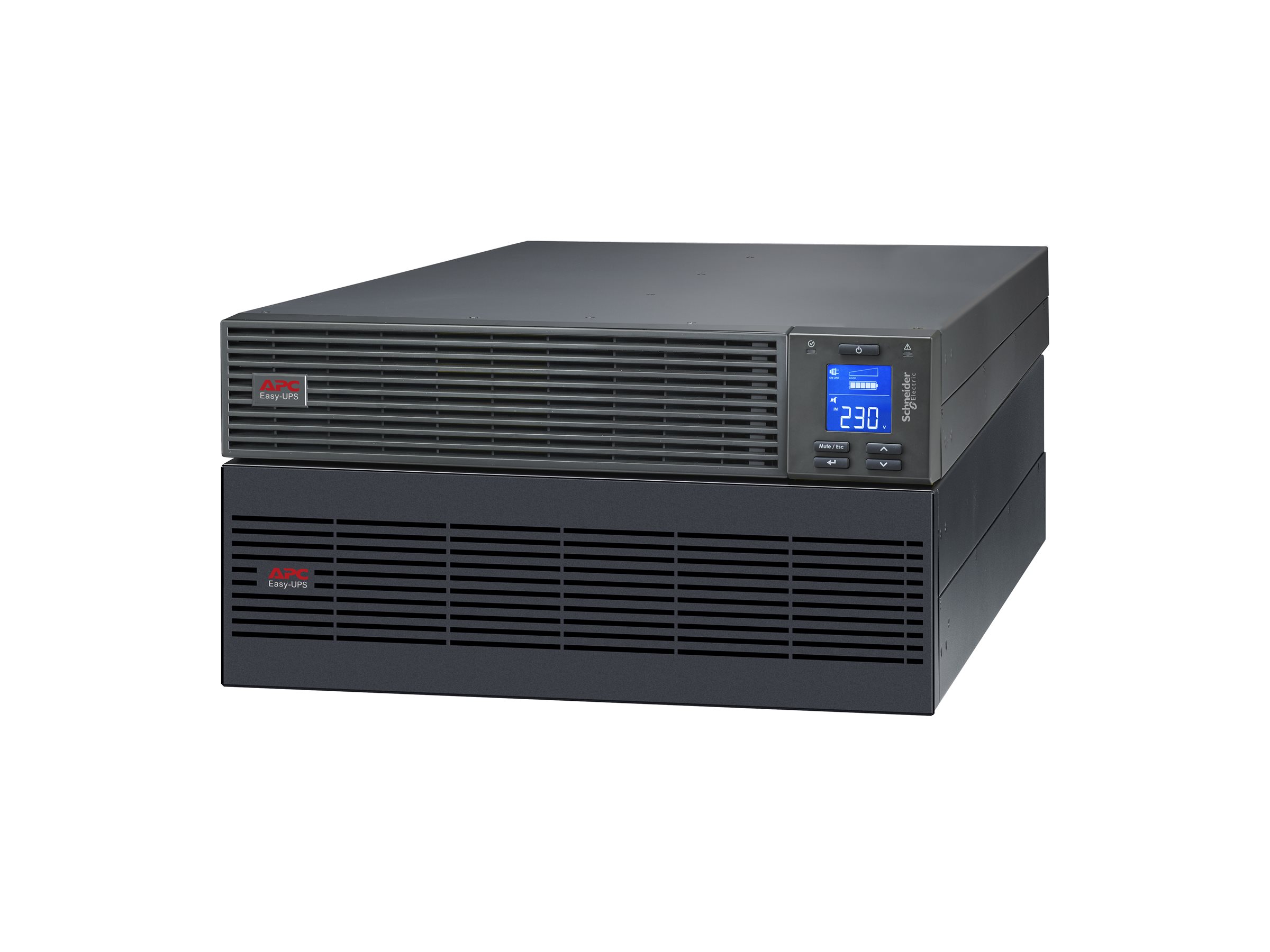

APC Easy UPS SRV SRV10KRILRK UPS
APC Easy UPS SRV SRV10KRILRK - UPS (rackversion) - AC 220-240 V - 10000 Watt - 10000 VA - 1-faset - RS-232, USB - output-stikforbindelser: 1 - 2U - med Rail Kit, External Battery Pack
Denne APC Single phase Easy UPS er designet til it-professionelle eller netværksadministratorer, der skal opretholde virksomhedens oppetid og kontinuitet. Denne 10kVA dobbeltkonverterede online 5U rackmonterede UPS giver ren sinusbølgekraft og forlænget driftstid til at understøtte kritisk elektronik under strømafbrydelser. SRV leveres med fast 3-leder (1P+N+E) indgang og fast 3-leder (1P+N+E) udgang. On-Line UPS har en intelligent kortplads til valgfrit netværksstyringskort (AP9544, SRVSMB001, VGL9901l), der muliggør netværksbaseret UPS-overvågning og -styring. UPS'en kan tilsluttes EcoStruxure IT eller centraliserede styringsplatforme fra tredjeparter. Den indbyggede automatiske og manuelle bypass giver problemfri strøm til belastningen, selv i tilfælde af en intern registreret fejl eller fejl i UPS'en. UPS'en og det indbyggede blysyrebatteri har 2 års garanti. Ideel til små datacentre, produktionsfaciliteter, computerrum, netværkslagerenheder, telekommunikation og sundheds-it.
-
Product no 994401573
Model SRV10KRILRK
Brand APC
EAN 0731304346180
Weight 79 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Easy UPS SRV SRV10KRILRK - UPS - 10000 Watt - 10000 VA - med Rail Kit, External Battery Pack |
| Enhedstype | UPS - rackversion |
| Rackstørrelse | 2U |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 220-240 V |
| Udgangspænding | AC 220/230/240 V ± 1% |
| Strømkapacitet | 10000 Watt / 10000 VA |
| Input-stik | 1 x terminalblok |
| Output-stikforbindelser | 1 x terminalblok |
| Batteri | Blysyre |
| Antal batterier | 1 |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 43.8 cm x 61.5 cm x 8.65 cm |
| Producentgaranti | 2 års garanti |

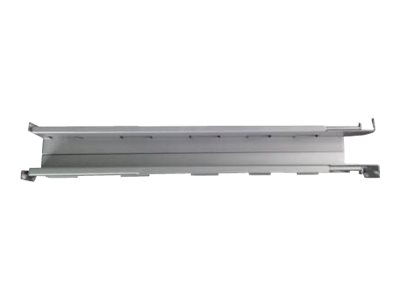

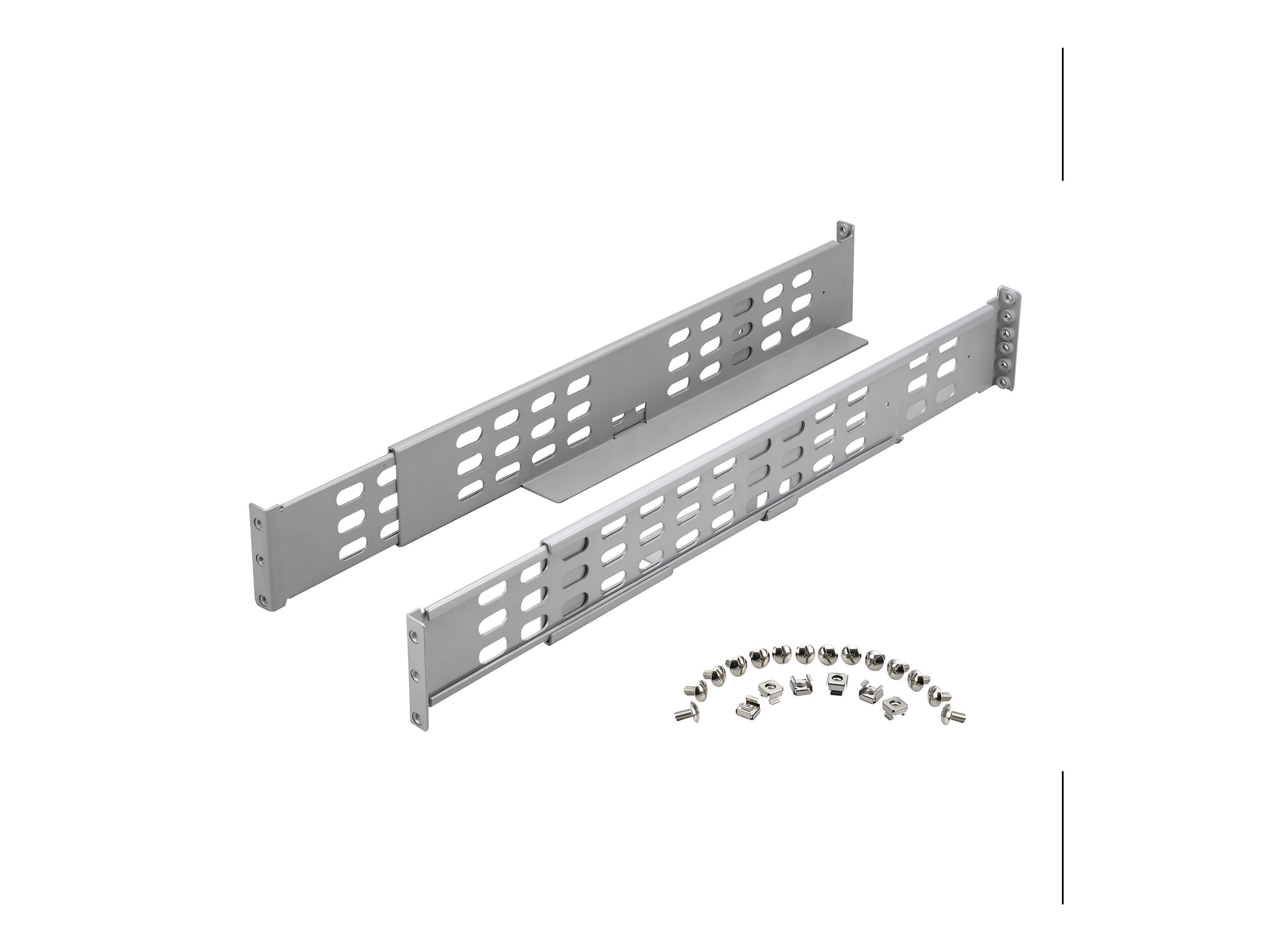

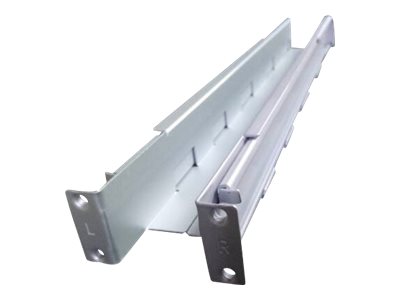

| Bundtet med | Rail Kit, External Battery Pack |
| General | |
|---|---|
| Bundled with | Rail Kit, External Battery Pack |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 94% AC mode |
| Frequency Provided | 50/60 Hz ± 4Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x terminal block |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 110 - 300 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10000 Watt / 10000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 1 x terminal block |
| Surge Energy Rating | 600 Joules |
| UPS Technology | On-line |
| Battery | |
| Features | Maintenance free, sealed |
| Quantity | 1 |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) | 1 x management (RS-232) | EPO (emergency power off) |
| Miscellaneous | |
| Features | LCD display, internal bypass, overvoltage protection, firmware upgradable, Eco-Mode, generator compatible |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Dimensions & Weight | |
| Depth | 61.5 cm |
| Height | 8.65 cm |
| Width | 43.8 cm |
