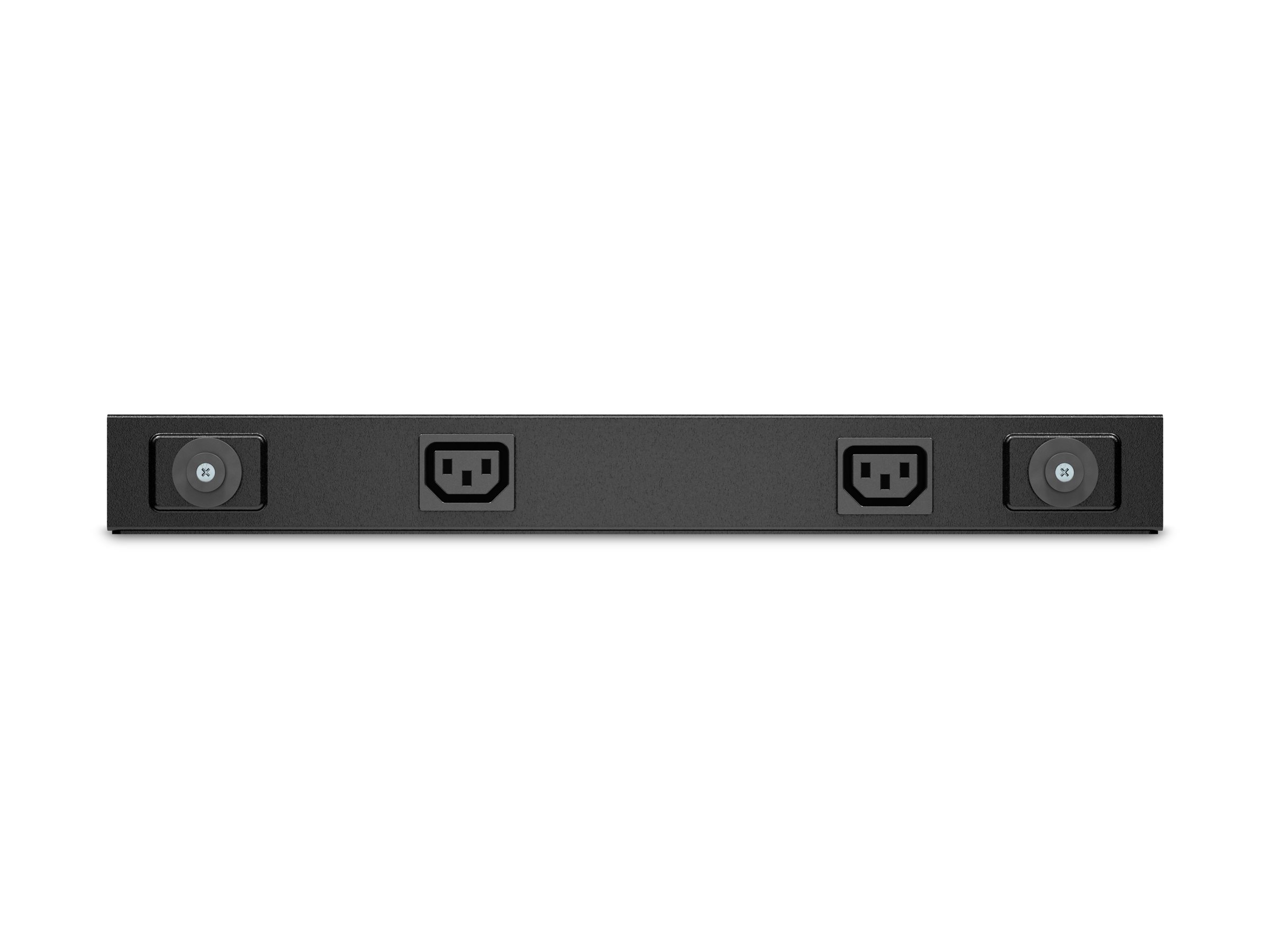

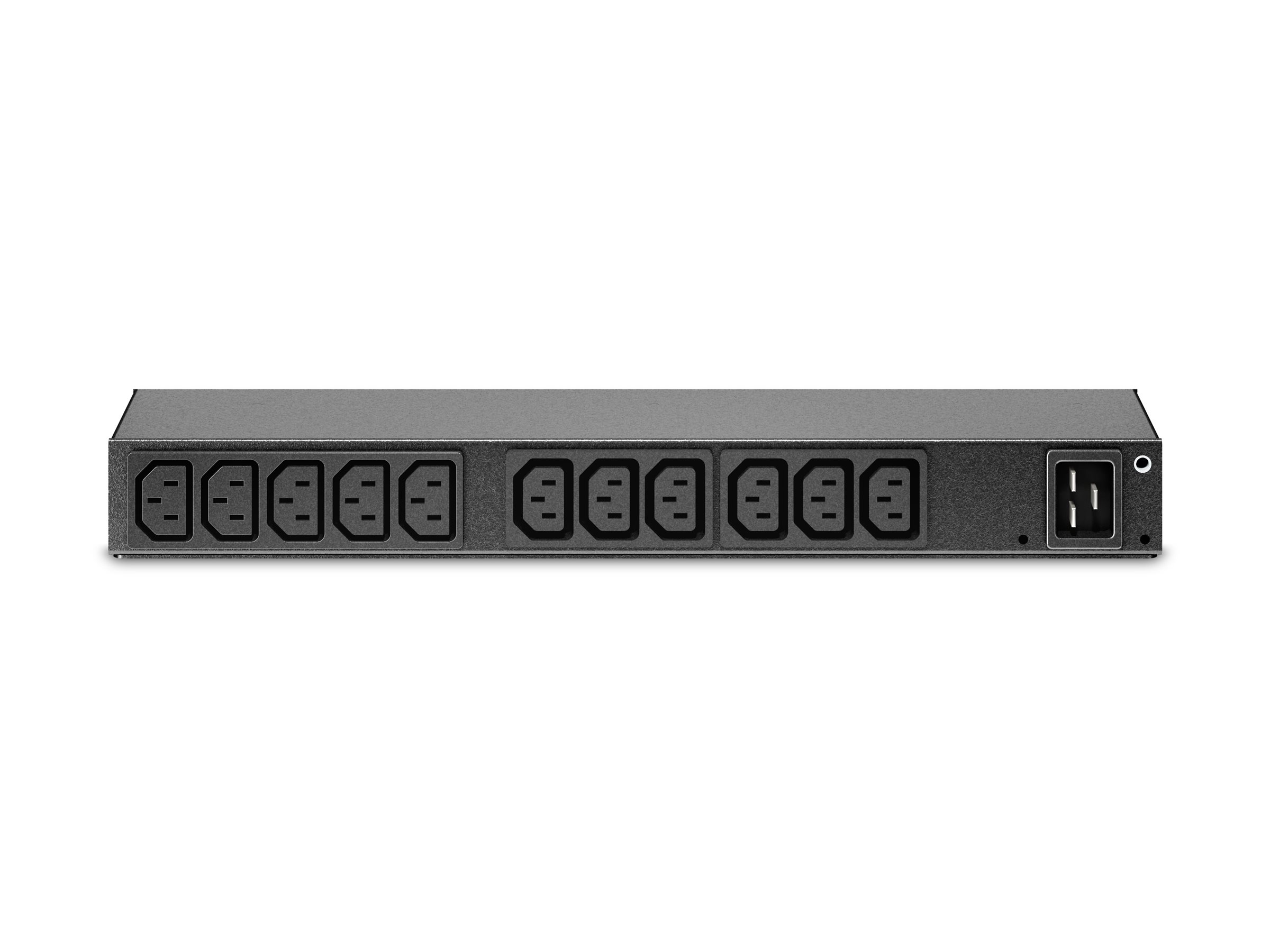

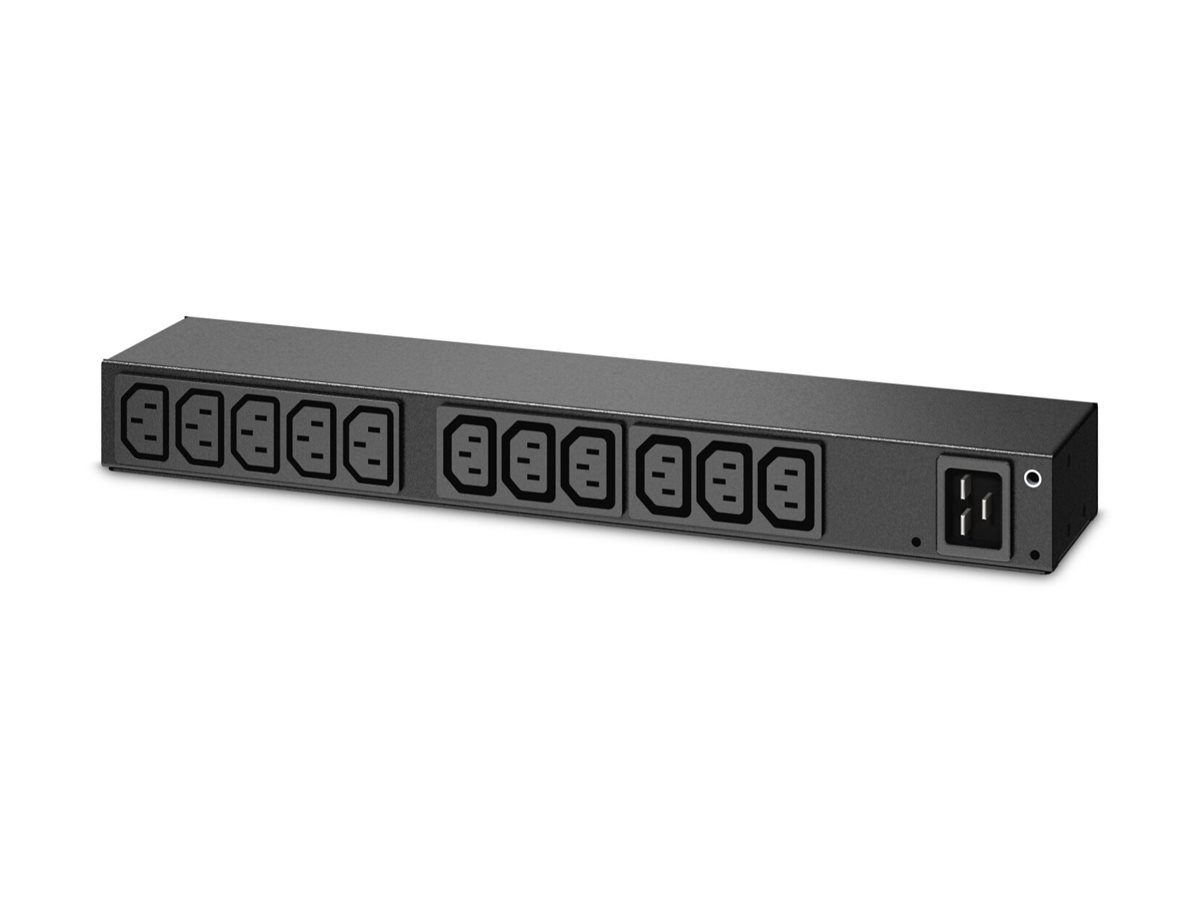

APC Basic Rack PDU AP6020A Strømfordelingsenhed 13-stik 20A

APC Basic Rack PDU AP6020A - Strømfordelingsenhed (rackversion) - AC 100-240 V - input: IEC 60320 C20 - output-stikforbindelser: 13 (power IEC 60320 C13) - for P/N: SCL500RM1U, SCL500RMI1U, SMTL750RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS

Pålidelig strømfordeling til racks, der er udviklet til at øge håndterbarheden og effektiviteten i data center Udgangs- og indgangsforbindelser er (13) C13 Fjernovervågning af tilsluttede belastninger i realtid Brugerdefinerede alarmer advarer IT- og data center-administratorer om potentielle overbelastninger af kredsløbet for at forhindre utilsigtet strømsvigt i kritisk udstyr.

Product no: 992503913
Model: AP6020A
EAN: 0731304327806
Brand:
APC
Weight: 1.83 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
APC Basic Rack PDU AP6020A - strømfordelingsenhed
Enhedstype
Strømfordelingsenhed - rackversion
Vægt
1.5 kg
Indgangspænding
AC 100-240 V
Udgangspænding
AC 100-240 V + 6% / - 10%
Input-stik
1 x strøm IEC 60320 C20
Output-stikforbindelser
13 x power IEC 60320 C13
Dimensioner (B x D x H)
4.36 cm x 9.29 cm x 38.81 cm
Producentgaranti
2 års garanti
Designet for
P/N: AR3103SP, AR3106SP, SCL400RMJ1U, SCL500RM1U, SCL500RM1UNC, SCL500RMI1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RM2UCNC, SMTL1000RMI2UC, SMTL750RM2UCNC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRT5KRMXLW-TW
Specifications

Full specifications

General
Device Type
Power distribution unit - rack-mountable
Power Device
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C20
Input Voltage
AC 100-240 V
Max Electric Current
20 A
Output Voltage
AC 100-240 V + 6% / - 10%
Power Output Connectors Details
13 x power IEC 60320 C13
Miscellaneous
Compliant Standards
UL, VDE, RoHS 2011/65/EU
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
Dimensions & Weight
Depth
9.29 cm
Height
38.81 cm
Weight
1.5 kg
Width
4.36 cm
Dimensions & Weight (Shipping)
Shipping Depth
7.59 cm
Shipping Height
43.61 cm
Shipping Weight
2 kg
Shipping Width
21.03 cm
Compatibility Information
Designed For
P/N: AP7950B, AR3103SP, AR3105W, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX43

Media

Support

Se APC's seneste FAQ - løser 90% af typiske problemer
http://www.apc.com/dk/en/faqs/home/
Teknisk support: 88 30 20 10

RMA

For håndtering og oprettelse af APC garanti benyt
http://www.apc.com/dk/en/support/contact-us/index.jsp

I tilfælde af problemer kan APC kontaktes på 88 30 20 10
