Product no 994965355
Model BR650MI
Brand APC
EAN 0731304346937
Weight 7.36 kg

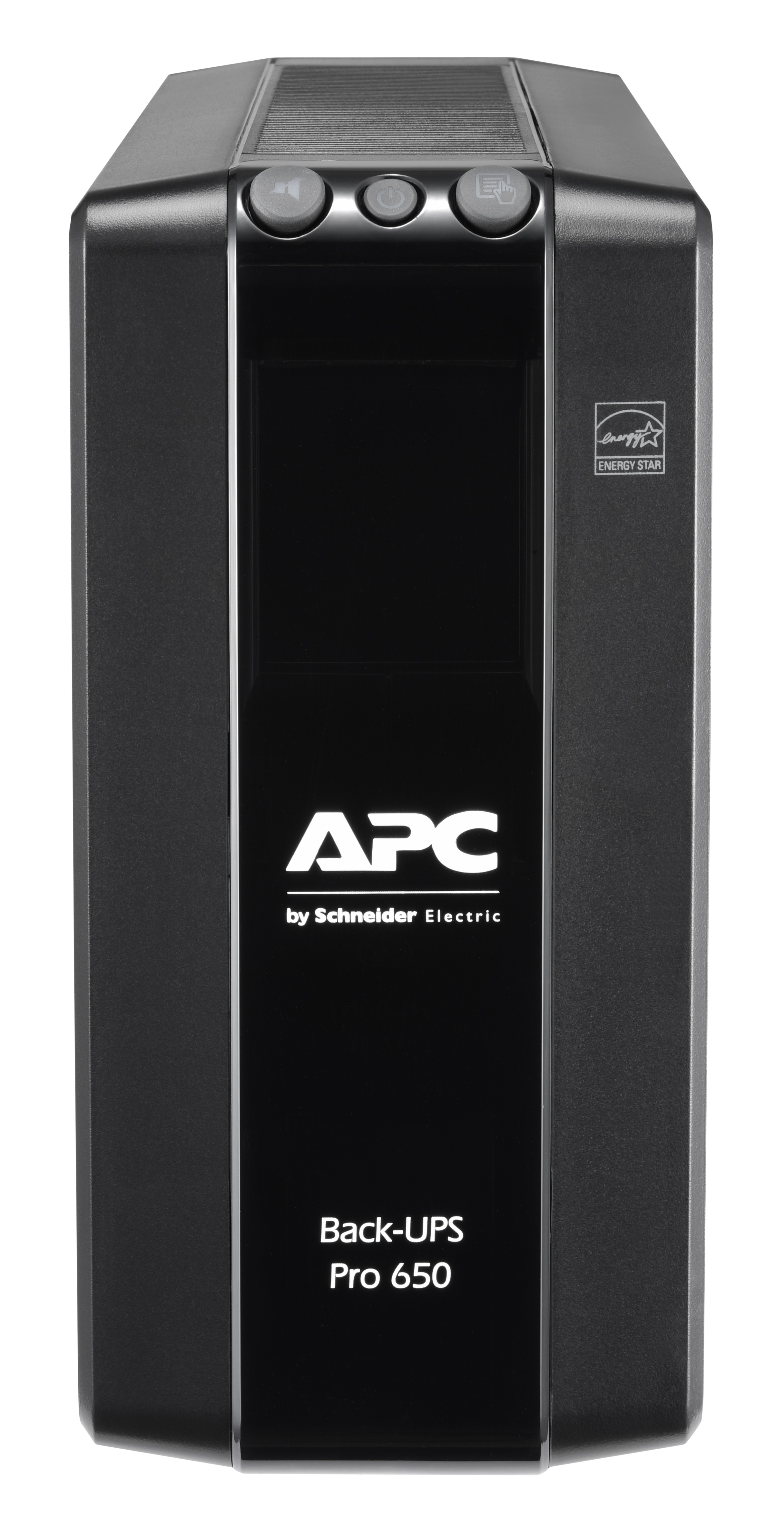

Produktbeskrivelse | APC Back-UPS Pro BR650MI - UPS - 390 Watt - 650 VA |
Enhedstype | UPS - ekstern |
Vægt | 6.4 kg |
Indgangspænding | AC 230 V |
Udgangspænding | AC 230 V ± 8% |
Strømkapacitet | 390 Watt / 650 VA |
Input-stik | 1 |
Output-stikforbindelser | 6 x strøm (UPS og overspænding) |
Batteri | Blysyre |
Driftstid (op til) | 3 min ved fuld belastning |
Netværk | USB |
Farve | Sort |
Dimensioner (B x D x H) | 9.1 cm x 31 cm x 19 cm |
Producentgaranti | 2 års garanti (Den Europæiske Union - 3 år) |
General | |
---|---|
Color | Black |
Device Type | UPS - external |
Power Device | |
Circuit Protection | Circuit breaker |
Dataline Surge Protection | Ethernet 10/100/1000Base-T - RJ-45 - 1 input line / 1 output line | Phone line - 1 input line / 1 output line |
Frequency Provided | 50/60 Hz ± 1Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 |
Input Voltage | AC 230 V |
Input Voltage Range | AC 176 - 294 V |
Output Voltage | AC 230 V ± 8% - 50/60 Hz |
Output Waveform | Stepped approximation to a sinewave |
Power Capacity | 390 Watt / 650 VA |
Power Factor (PF) | 0.6 |
Power Output Connectors Details | 6 x power (UPS and surge) |
Surge Energy Rating | 557 Joules |
UPS Technology | Line interactive |
Battery | |
Recharge Time | 12 hours |
Run Time (Up To) | 3 min at full load | 10.5 min at half load | 4 min at 335 Watts | 7 min at 240 Watts | 20 min at 119 Watts | 64 min at 40 Watts |
Technology | Lead acid |
Networking | |
Remote Management Interface | USB |
Expansion / Connectivity | |
Interfaces | Management (USB) |
Miscellaneous | |
Cables Included | Power cable 1.83 m | USB cable |
Compliant Standards | TUV GS, EMC, IP20, KETI, EAC, RCM, TISI, CB 60950 |
Equipment Protection Value | 150000 Euros |
Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, dataline protection |
Software / System Requirements | |
Software Included | APC PowerChute Personal Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - replace or repair - 2 years | European Union: limited warranty - replace or repair - 3 years |
Environmental Parameters | |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 31 cm |
Height | 19 cm |
Weight | 6.4 kg |
Width | 9.1 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 14.3 cm |
Shipping Height | 25.5 cm |
Shipping Weight | 7.4 kg |
Shipping Width | 44 cm |
