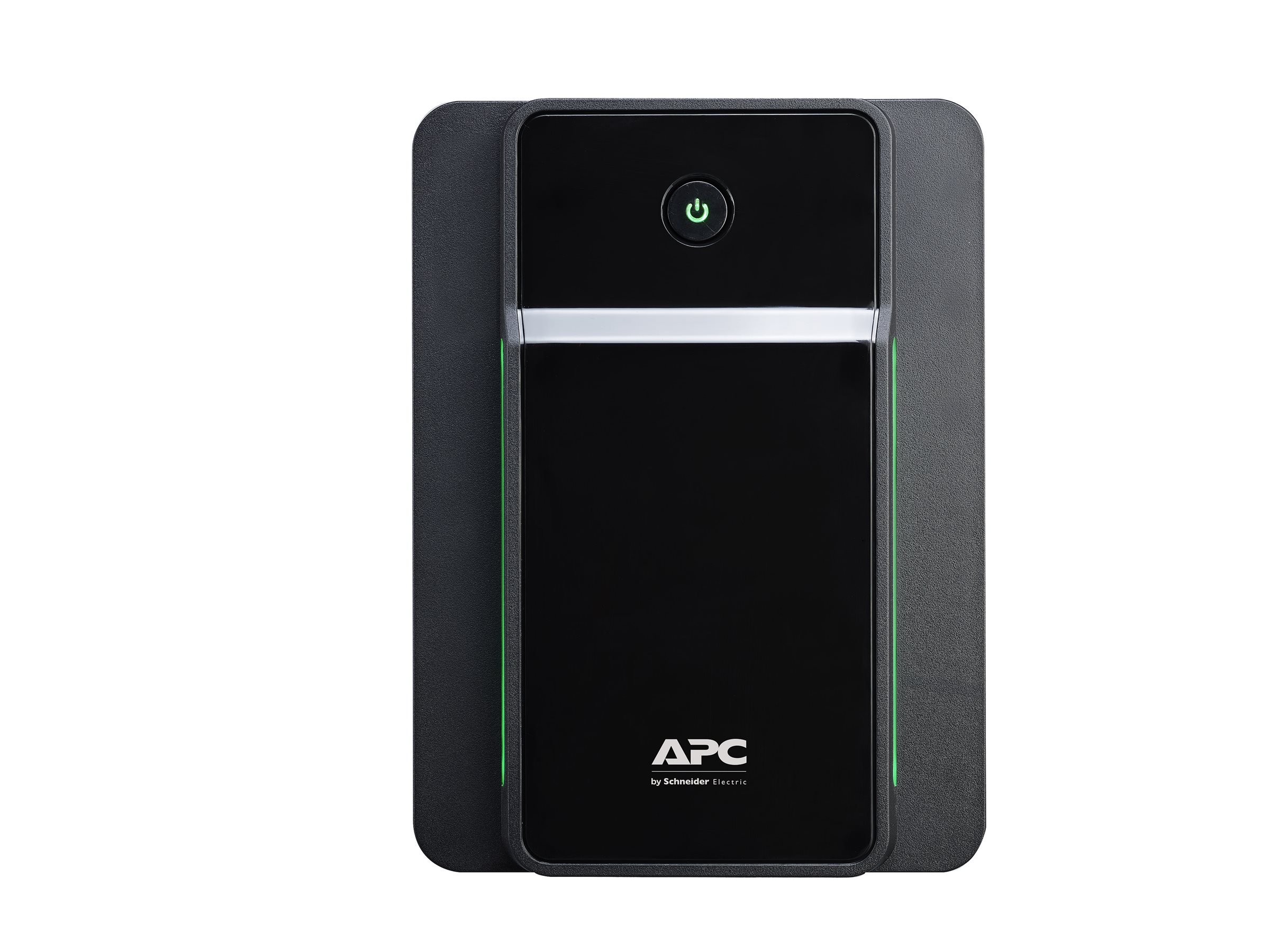

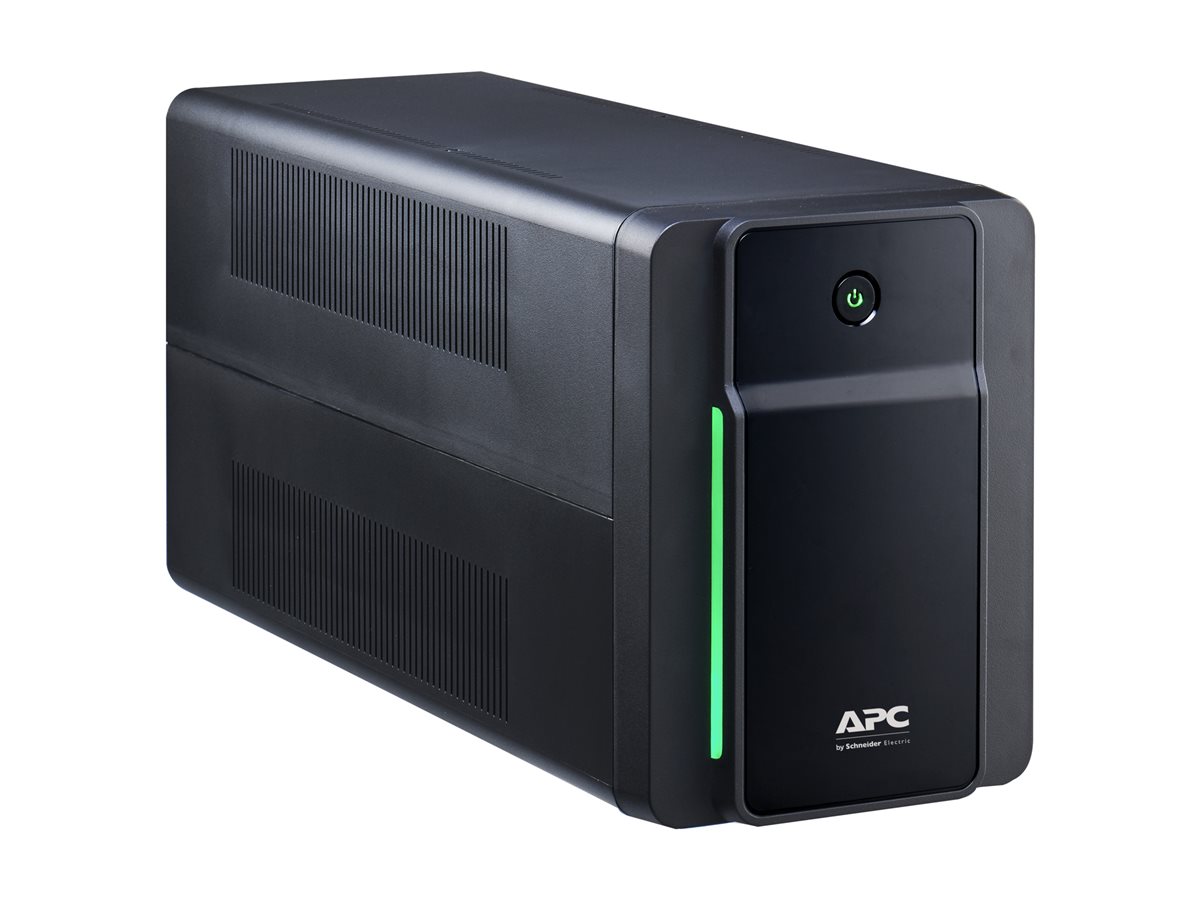

APC Back-UPS BX Series BX2200MI-GR UPS 1200Watt 2200VA
APC Back-UPS BX Series BX2200MI-GR - UPS - AC 230 V - 1200 Watt - 2200 VA - 9 At - output-stikforbindelser: 4
-
Product no 996609553
Model BX2200MI-GR
Brand APC
EAN 0731304410881
Weight 13.7 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Back-UPS BX Series BX2200MI-GR - UPS - 1200 Watt - 2200 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 12.3 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 10% |
| Strømkapacitet | 1200 Watt / 2200 VA |
| Input-stik | 1 |
| Output-stikforbindelser | 4 x strømtype F |
| Batteri | Blysyre - 9 At |
| Antal batterier | 2 |
| Driftstid (op til) | 8.5 min ved halv belastning |
| Dimensioner (B x D x H) | 14 cm x 39 cm x 19 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 300 V |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Output Waveform | Stepped approximation to a sinewave |
| Power Capacity | 1200 Watt / 2200 VA |

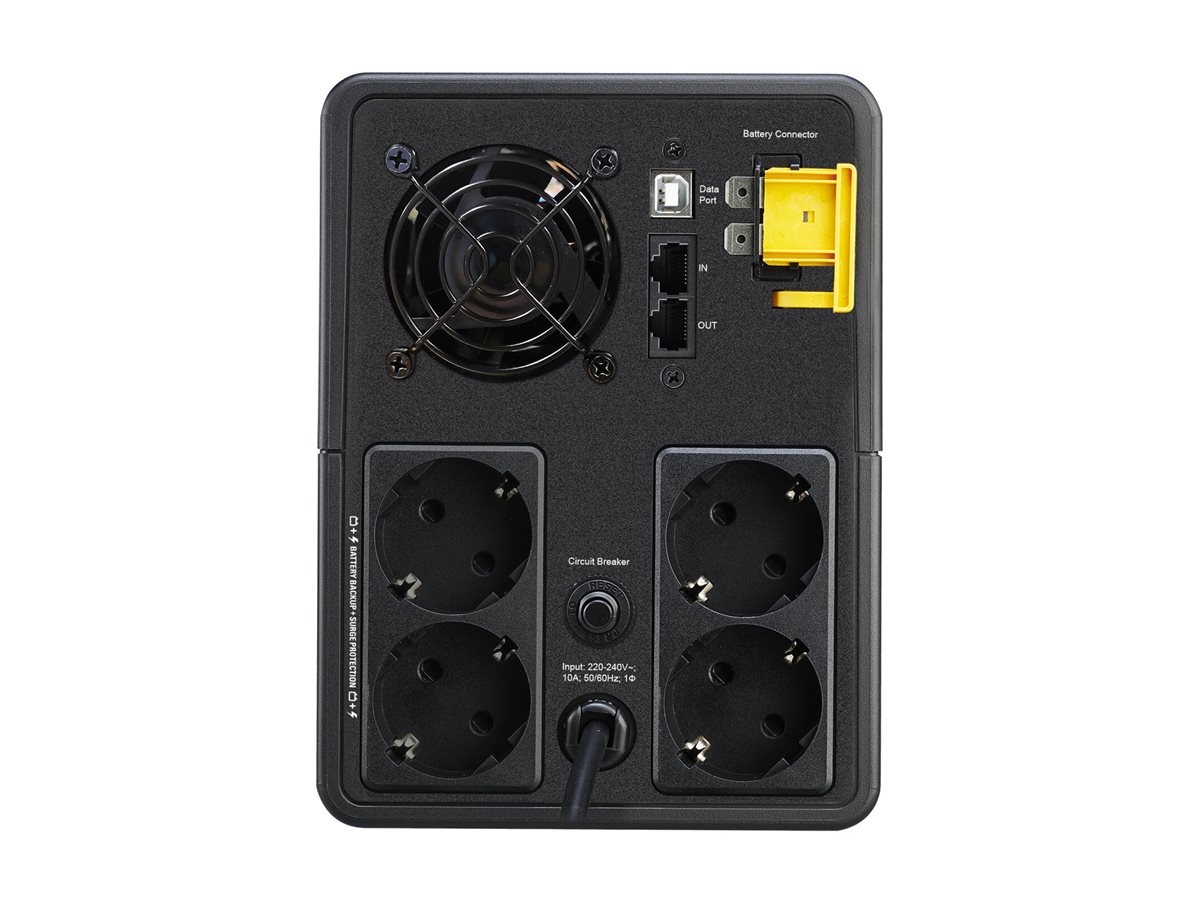

| Power Output Connectors Details | 4 x power Type F |
| Surge Energy Rating | 273 Joules |
| UPS Technology | Line interactive |
| Battery | |
| Capacity | 9 Ah |
| Features | Maintenance free, sealed |
| Quantity | 2 |
| Recharge Time | 8 hours |
| Run Time (Up To) | 8.5 min at 50% load | 1 min at full load |
| Technology | Lead acid |
| Transfer Time | 6 ms |
| Voltage Provided | 12 V |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Cables Included | Power cable - external - 1.2 m |
| Compliant Standards | CB, IEC 62040-2, IP20, IEC 62040-1, EN 62040-1 |
| Features | Audible alarm, Automatic Voltage Regulation (AVR) |
| Software / System Requirements | |
| Software Included | APC PowerChute Personal Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 39 cm |
| Height | 19 cm |
| Weight | 12.3 kg |
| Width | 14 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 49.5 cm |
| Shipping Height | 29.7 cm |
| Shipping Weight | 13.3 kg |
| Shipping Width | 23.5 cm |
