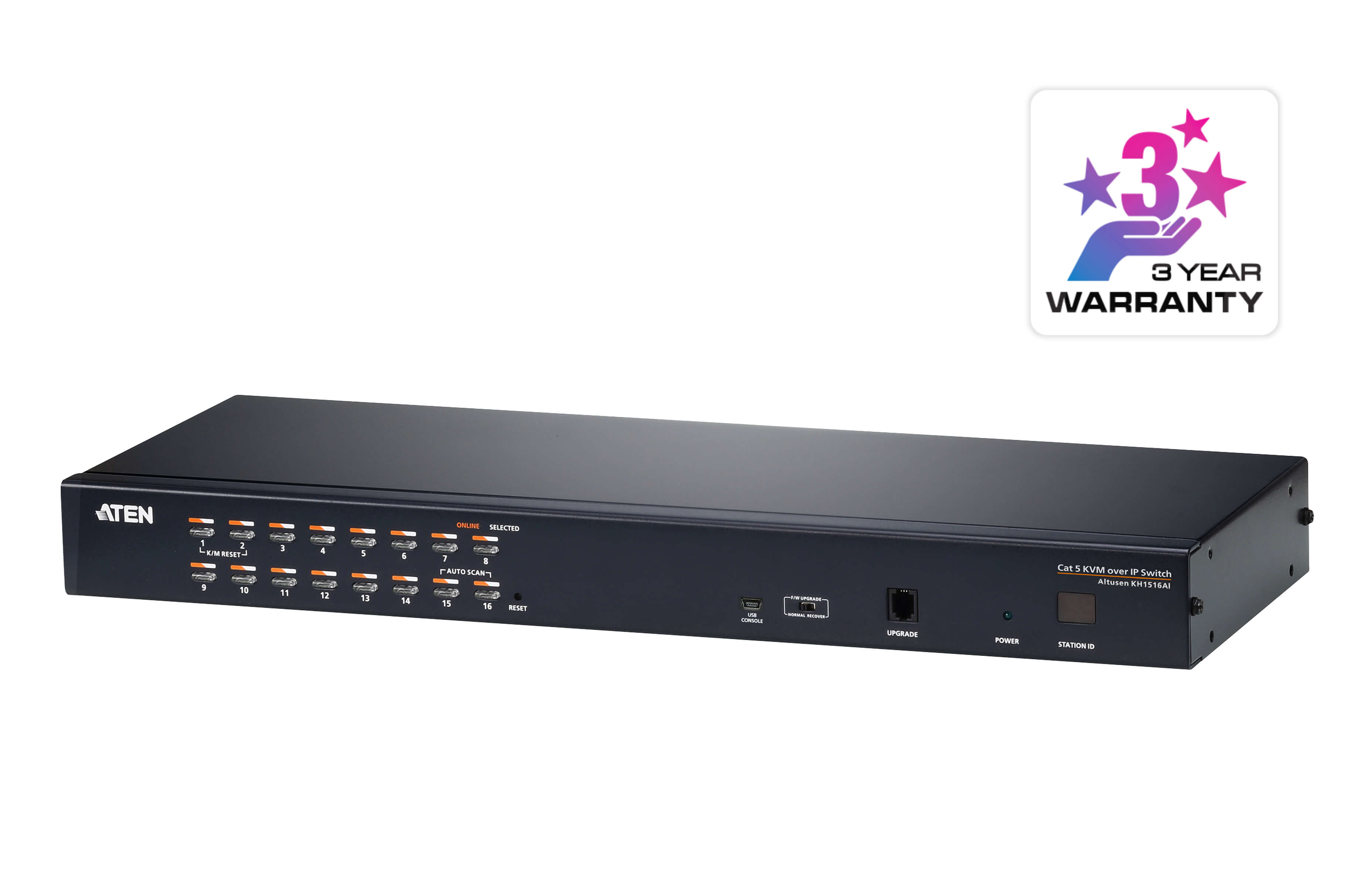

ALTUSEN KH1516AI KVM switch Monterbar på stativ

ALTUSEN KH1516AI - KVM switch - 16 x KVM port(s) - monterbar på stativ

  • Product no 988100555

    Model KH1516AI-AX-G

    Brand ATEN Technology

    EAN 4710423777446

    Weight 3.5 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Antal kontrollerede computere 16
Tastatur porttype USB, PS/2
Mus porttype USB, PS/2
Video porttype VGA
Konsol porte PS/2, USB A, VGA (D-Sub)
HD-type WUXGA
Maksimal opløsning 1920 x 1200 pixel
Produktfarve Sort
Indbygget skærm Ingen
General
Device Type KVM switch - 16 ports - cascadable
Enclosure Type Rack-mountable 1U
Features On-Screen Display, firmware upgradable
Keyboard / Mouse Interface PS/2, USB
Max Cascading Depth 512
Max Resolution 1600 x 1200 @ 60 Hz
Ports 16 x KVM port(s)
Subtype KVM
Expansion / Connectivity
Interfaces 16 x KVM RJ-45 | 1 x keyboard (PS/2) | 1 x mouse (PS/2) | 1 x VGA HD-15 | 1 x keyboard (USB) Type A | 1 x mouse (USB) Type A | 1 x cascading DB-25 | 1 x RJ-11 management
Power
Power Consumption Operational 12.5 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards RoHS
Rack Mounting Kit Included
Dimensions & Weight
Depth 16.1 cm
Height 4.4 cm
Width 43.7 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating 0 - 80% (non-condensing)
Max Operating Temperature 50 °C
Max Storage Temperature 60 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
