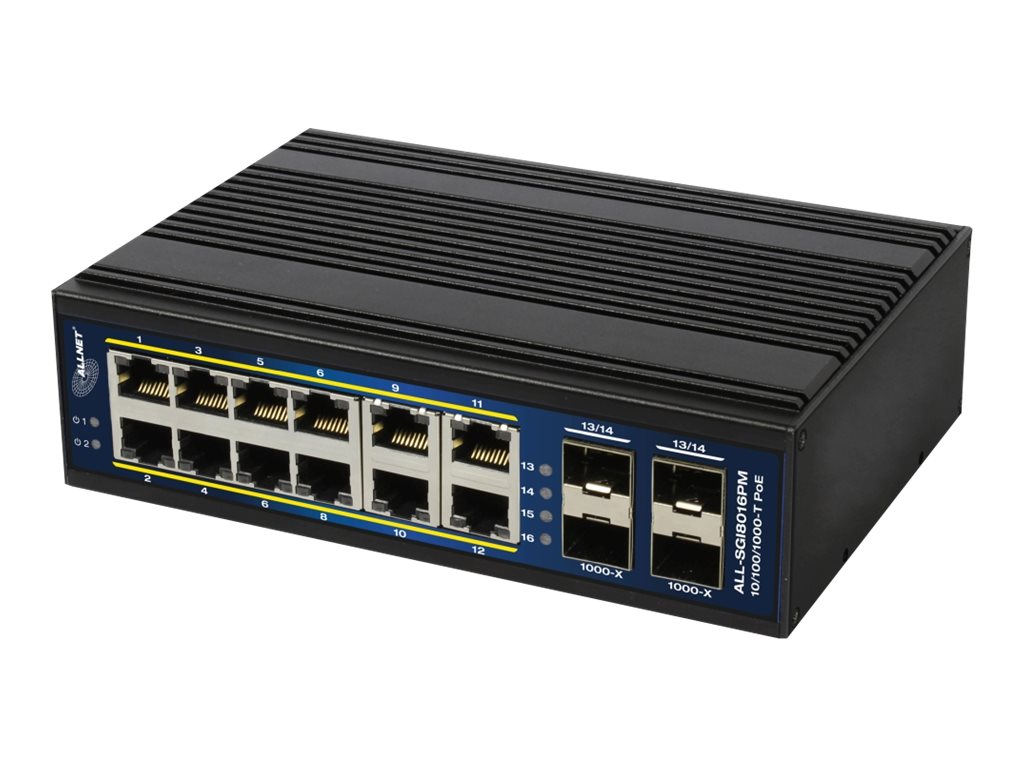

ALLNET ALL-SGI8016PM Switch 12-porte Gigabit PoE+
ALLNET ALL-SGI8016PM - Switch - L3 - Administreret - 12 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, DIN monterbar på skinne, væg-monterbar - PoE+ - DC power
Specifications
|
Produktbeskrivelse
|
ALLNET ALL-SGI8016PM - switch - 12 porte - Administreret
|
|
Enhedstype
|
Switch - 12 porte - L3 - Administreret
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
12 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Præstation
|
Omkoblingskapacitet: 32 Gbps<br>Kapacitet: 23.8 Mpps
|
|
Kapacitet
|
ACL: 64<br>Multicast-grupper: 256<br>Prioritets QoS-køer: 4
|
|
MAC adresse table størrelse
|
16K indtastningshukommelse
|
|
Routingprotokol
|
OSPF, RIP, IGMPv2, IGMP, IGMPv3
|
|
Egenskaber
|
Datatransport, auto-negotiation, understøttet af ARP, portspejling, MAC-adresse-filtrering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MDL snooping, LACP support, Port Security, portisolering, CoS, SP, GARP, DoS, 4 MB pakkebuffer, GVRP, Protokol-baseret VLANs support, ARP-inspektion, 6 KV strømstødsbeskyttelse, Static Link Aggregation, Root Guard, Loop Guard, Voice VLAN, VLAN-administration, Private VLAN, Guest VLAN, BPDU Filter, WRR, MAC based VLAN, tilbageløkke-detektion, portbaseret VLAN, Unknown Storm Control, BPDU Guard, Q-i-Q tunnelering, DHCP-filtrering, 8KV ESD Protector (kontaktafladning), 15KV ESD Protector (lufthulsafladning)
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
|
|
Effekt
|
DC 48 - 57 V
|
|
Dimensioner (B x D x H)
|
11.4 cm x 16.5 cm x 4.6 cm
|
|
Vægt
|
530 g
|
|
Farve
|
Sort
|
|
Producentgaranti
|
2 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
|
|
Capacity
|
ACL: 64 | Multicast groups: 256 | Priority QoS queues: 4
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
|
|
Device Type
|
Switch - 12 ports - L3 - managed
|
|
Enclosure Type
|
Desktop, DIN rail mountable, wall-mountable
|
|
Encryption Algorithm
|
TLS 1.0, SSL 3.0, SSL 2.0
|
|
Features
|
Flow control, auto-negotiation, ARP support, port mirroring, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple S
|
|
MAC Address Table Size
|
16K entries
|
|
Performance
|
Switching capacity: 32 Gbps | Throughput: 23.8 Mpps
|
|
Ports
|
12 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
Routing Protocol
|
OSPF, RIP, IGMPv2, IGMP, IGMPv3
|
|
Status Indicators
|
Power, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
12 x 1000Base-T RJ-45 PoE+ - 30 W | 4 x Gigabit LAN SFP | 1 x console RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
20 Watt
|
|
Power Device
|
External power adapter
|
|
Voltage Required
|
DC 48 - 57 V
|
|
Miscellaneous
|
|
|
Color
|
Black
|
|
Dimensions & Weight
|
|
|
Depth
|
16.5 cm
|
|
Height
|
4.6 cm
|
|
Weight
|
530 g
|
|
Width
|
11.4 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 2 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
75 °C
|
|
Max Storage Temperature
|
85 °C
|
|
Min Operating Temperature
|
-40 °C
|
|
Min Storage Temperature
|
-40 °C
|
