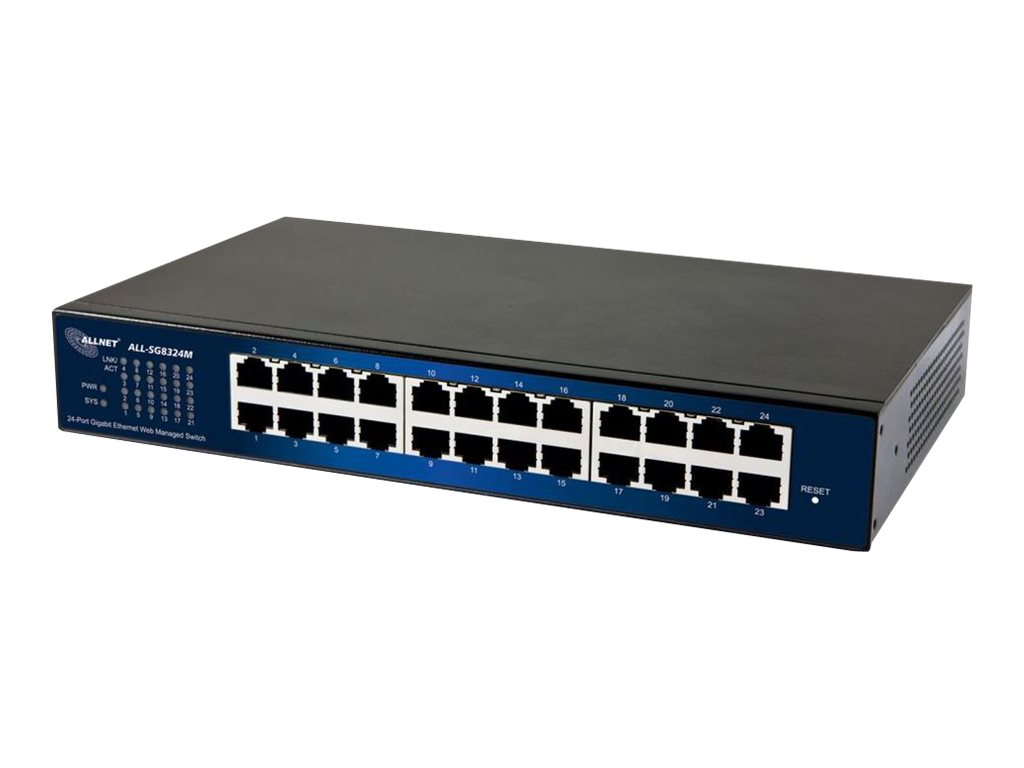

ALLNET ALL-SG8324M Switch 24-porte Gigabit
ALLNET ALL-SG8324M - Switch - Administreret - 24 x 10/100/1000 - desktop, monterbar på stativ
Specifications
|
Produktbeskrivelse
|
ALLNET ALL-SG8324M - switch - 24 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 24 porte - Administreret
|
|
Pakningstype
|
Monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
24 x 10/100/1000
|
|
Præstation
|
Stof-gennemløb: 48 Gbps<br>Fremsendelsespræstation: 35.7 Mpps<br>Switching-kapacitet (64-byte pakkestørrelse): 1488095 pakker pr. sekund
|
|
MAC adresse table størrelse
|
8K indtastningshukommelse
|
|
Jumborammesupport
|
10KB
|
|
Routingprotokol
|
IGMPv2, IGMP, IGMPv3
|
|
Protokol til fjernadministration
|
SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, CLI
|
|
Egenskaber
|
Datatransport, auto-negotiation, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack beskyttelse, portspejling, gem og send, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, STP support, RSTP support, QoS, blæserløs, LACP, DHCP klient, portisolering, metalkabinet, 525 KB pakkebuffer, IGMP-filtrering, IGMP-drosling, Storm Control
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
26.7 cm x 16.2 cm x 4.2 cm
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
|
|
Device Type
|
Switch - 24 ports - managed
|
|
Enclosure Type
|
Desktop, rack-mountable 1U
|
|
Encryption Algorithm
|
SSL 2.0
|
|
Features
|
Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spannin
|
|
Flash Memory
|
16 MB
|
|
Jumbo Frame Support
|
10KB
|
|
MAC Address Table Size
|
8K entries
|
|
Performance
|
Fabric throughput: 48 Gbps | Forwarding performance: 35.7 Mpps | Switching capacity (64-byte packet size): 1488095 packets per second
|
|
Ports
|
24 x 10/100/1000
|
|
RAM
|
128 MB DDR2 SDRAM
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, CLI
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3
|
|
Status Indicators
|
Power, link/activity
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
24 x 1000Base-T RJ-45
|
|
Power
|
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
EMC, FCC, EN 60950-1, LVD
|
|
Dimensions & Weight
|
|
|
Depth
|
16.2 cm
|
|
Height
|
4.2 cm
|
|
Width
|
26.7 cm
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
10 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
70 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-40 °C
|
