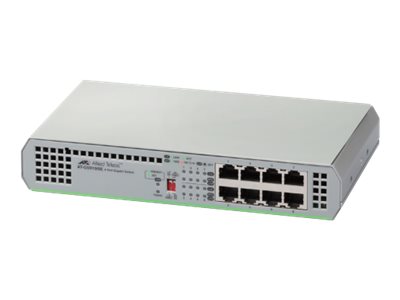

Allied Telesis CentreCOM AT-GS910/8 Switch 8-porte Gigabit
Allied Telesis CentreCOM AT-GS910/8 - Switch - 8 x 10/100/1000 - desktop
Specifications
|
Produktbeskrivelse
|
Allied Telesis CentreCOM AT-GS910/8 - switch - 8 porte
|
|
Enhedstype
|
Switch - 8 porte
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
8 x 10/100/1000
|
|
Præstation
|
Skift af stofbåndbredde: 16 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 11.9 Mpps
|
|
MAC adresse table størrelse
|
4K indtastningshukommelse
|
|
Egenskaber
|
Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, til vægmontering, blæserløs, 128 KB pakkebuffer, løkkeforebyggelse, BPDU
|
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x
|
|
Effekt
|
AC 120/230 V (50/60 Hz)
|
|
Dimensioner (B x D x H)
|
21 cm x 12.1 cm x 3.8 cm
|
|
Vægt
|
780 g
|
|
Lokalisering
|
Europa
|
|
Producentgaranti
|
5 års garanti
|
Full specifications
|
General
|
|
|---|---|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x
|
|
Device Type
|
Switch - 8 ports
|
|
Enclosure Type
|
Desktop
|
|
Features
|
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, wall mountable, fanless, 128KB packet buffer, loop prevention, Bridge protocol data unit (BPDU)
|
|
Flash Memory
|
512 KB
|
|
MAC Address Table Size
|
4K entries
|
|
Performance
|
Switching fabric bandwidth: 16 Gbps | Forwarding performance (64-byte packet size): 11.9 Mpps
|
|
Ports
|
8 x 10/100/1000
|
|
Status Indicators
|
Port transmission speed, power, link/activity, loop
|
|
Subtype
|
Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Interfaces
|
8 x 1000Base-T RJ-45
|
|
Power
|
|
|
Power Consumption Operational
|
4.8 Watt
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
|
Compliant Standards
|
RoHS, UL 60950-1, CSA C22.2 No. 60950-1, EMI, VCCI Class A
|
|
Localization
|
Europe
|
|
Rack Mounting Kit
|
Optional
|
|
Dimensions & Weight
|
|
|
Depth
|
12.1 cm
|
|
Height
|
3.8 cm
|
|
Weight
|
780 g
|
|
Width
|
21 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years
|
|
Environmental Parameters
|
|
|
Humidity Range Operating
|
0 - 80% (non-condensing)
|
|
Humidity Range Storage
|
0 - 95% (non-condensing)
|
|
Max Operating Temperature
|
50 °C
|
|
Max Storage Temperature
|
60 °C
|
|
Min Operating Temperature
|
0 °C
|
|
Min Storage Temperature
|
-20 °C
|
