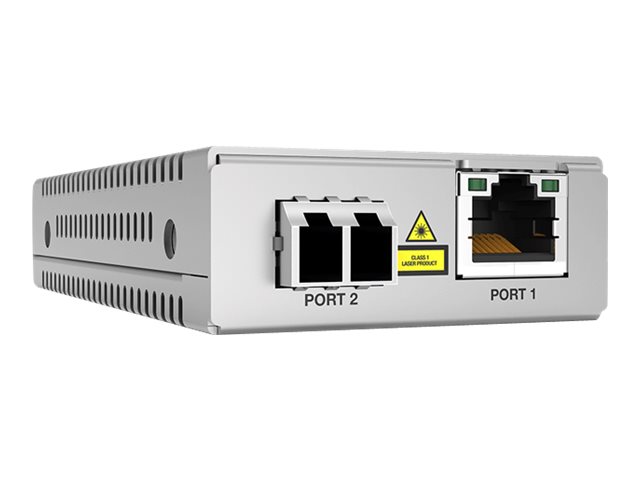

Allied Telesis AT MMC2000LX/LC Fibermedieomformer Gigabit Ethernet

Allied Telesis AT MMC2000LX/LC - Fibermedieomformer - 1GbE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T, 1000Base-LC - RJ-45 / LC/LX enkelttilstand - op til 20 km - 1310 nm - TAA-kompatibel

Denne standalone mini-medie- og hastighedskonverter har 10/100/1000T til 1000SX-konvertering med et single-mode LC-fiberstik og understøtter op til 10 km. Den er kompatibel med MMCR18 rackmonteret chassis.

Product no: 998325546
Model: AT-MMC2000LX/LC-960
EAN: 0767035216409
Brand:
Allied Telesis
Weight: 0.51 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Allied Telesis AT MMC2000LX/LC - fibermedieomformer - 1GbE - TAA-kompatibel
Enhedstype
Fibermedieomformer - RJ-45 / LC/LX enkelttilstand
Model
Ekstern
Lokalisering
Australien, United Kingdom, USA, Europa
Kabeltype
10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T, 1000Base-LC
Dataoverførselshastighed
1 Gbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
1GbE
Maks. overføringsafstand
20 km
Effekt
DC 12 V
Dimensioner (B x D x H)
5.6 cm x 10.16 cm x 2.18 cm
Vægt
170 g
TAA kompatibel
Ja
Specifications

Full specifications

General
Device Type
Fiber media converter
Form Factor
External
Localization
Australia, United Kingdom, United States, Europe
Networking
Cabling Type
10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T, 1000Base-LC
Compliant Standards
IEEE 802.1Q
Connectivity Technology
Wired
Data Link Protocol
GigE
Data Transfer Rate
1 Gbps
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, Far End Fault (FEF), Smart Link Restoration, 10 KB Jumbo Frame
MAC Address Table Size
2K entries
Max Transfer Distance
20 km
Optical Wave Length
1310 nm
Status Indicators
Power, system, link/activity
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-T - RJ-45 female | 1 x Ethernet 100Base-LC/100Base-LX - LC/LX single-mode female x 2
Miscellaneous
Compliant Standards
FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, UL 60950-1, EN 60950-1, EN 55022 Class A, OM1, OM2
Mounting Kit
Optional
TAA Compliant
Yes
Power
Power Device
External power adapter
Voltage Required
DC 12 V
Dimensions & Weight
Depth
10.16 cm
Height
2.18 cm
Weight
170 g
Width
5.6 cm
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Max Operating Temperature
50 °C
Min Operating Temperature
0 °C
