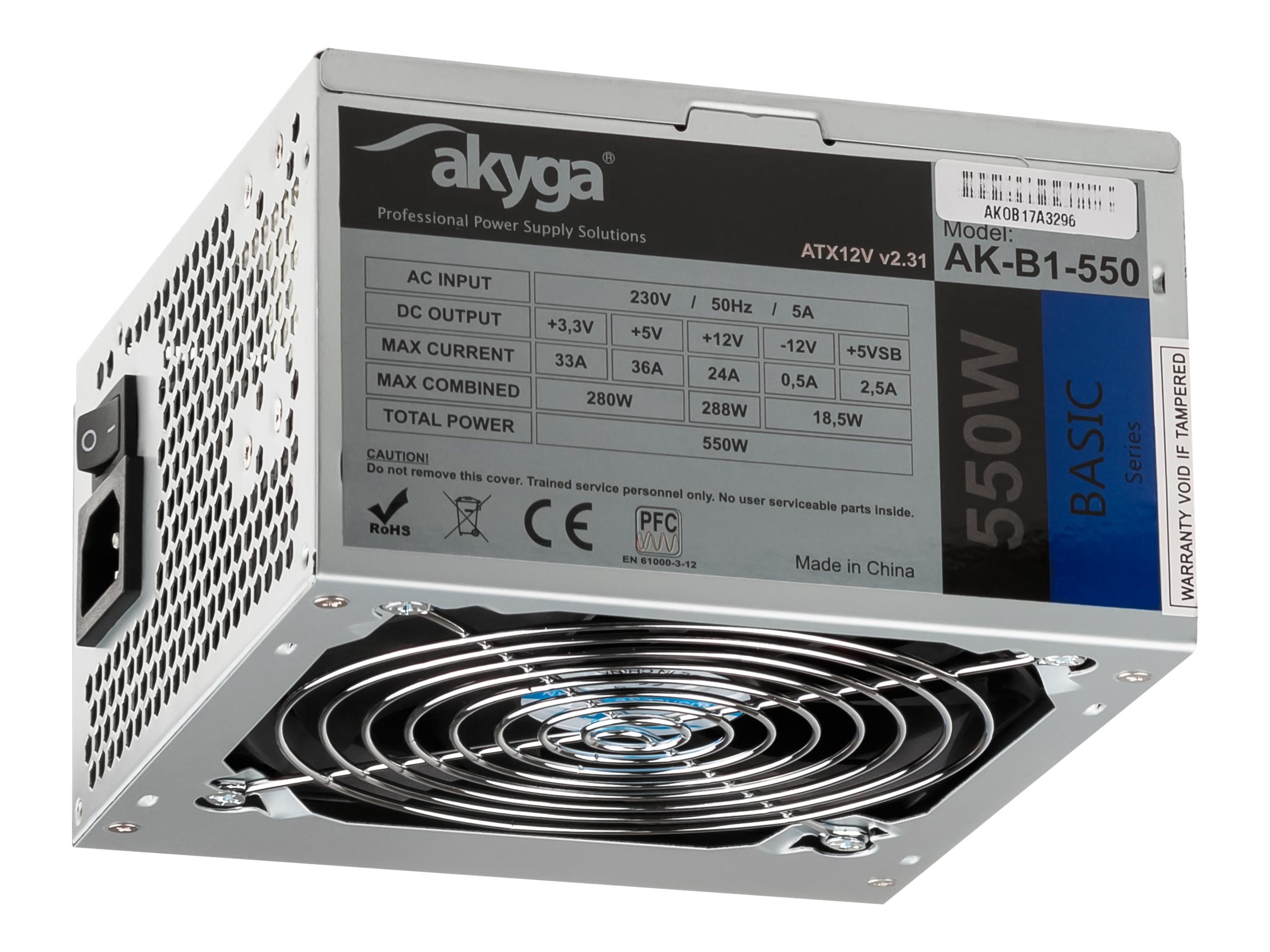

Akyga Basic Series AK-B1-550 Strømforsyning 550Watt

Akyga Basic Series AK-B1-550 - Strømforsyning (intern) - ATX12V 2.31 - AC 230 V - 550 watt - PFC - grå

Product no: 993903231
Model: AK-B1-550
EAN: 5901720130341
Brand:
Akyga
Weight: 1.2 kg

Specifications

Produktbeskrivelse
Akyga Basic Series AK-B1-550 - strømforsyning - 550 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
Vægt
1.04 kg
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
550 watt
Output Current
+3.3V - 33 A<br>+5V - 36 A<br>+12V - 24 A<br>-12V - 0.5 A<br>+5VSB - 2.5 A
Input-stik
1 x strøm IEC 60320 C14
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x effekt ATX12V 4-pin stik<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x 6 pin PCI Express-strøm
Kølesystem
120 mm ventilator
Farve
Grå
Dimensioner (B x D x H)
15 cm x 14 cm x 8.5 cm
Specifications

Full specifications

General
Color
Gray
Device Type
Power supply - Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.31
Power Device
Efficiency
70%
Frequency Required
50 Hz
Input Connectors
1 x power IEC 60320 C14
Input Voltage
AC 230 V
Output Current
+3.3V - 33 A | +5V - 36 A | +12V - 24 A | -12V - 0.5 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
550 Watt
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 6 pin PCI Express power
Miscellaneous
Compliant Standards
RoHS, REACH, EN 61000-3
Cooling System
120 mm fan
Features
EcoBox package, overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fan speed control
MTBF
100,000 hours
Environmental Parameters
Max Operating Temperature
50 °C
Min Operating Temperature
5 °C
Dimensions & Weight
Depth
14 cm
Height
8.5 cm
Weight
1.04 kg
Width
15 cm
Dimensions & Weight (Shipping)
Shipping Depth
22 cm
Shipping Height
9.5 cm
Shipping Weight
1.12 kg
Shipping Width
16 cm
