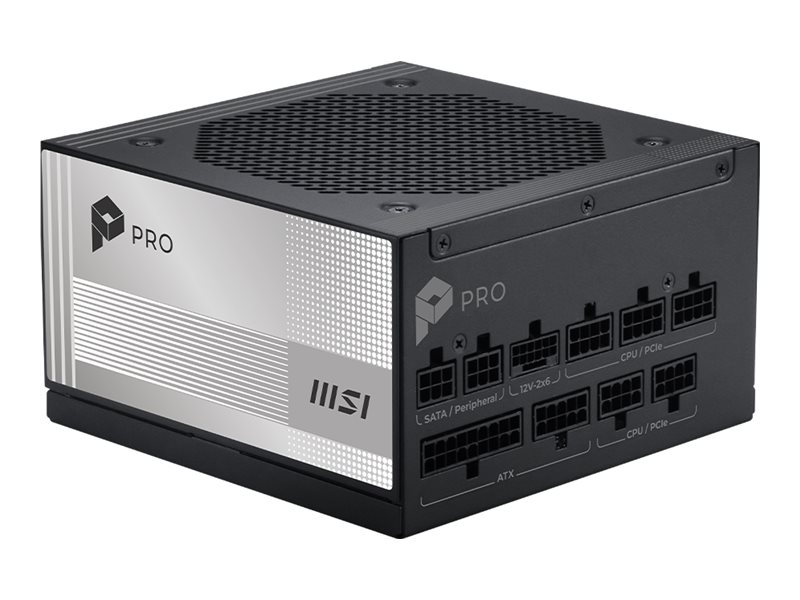

MSI PRO A850PL PCIE5 850Watt 80 PLUS Platinum

MSI PRO A850PL PCIE5 - Strømforsyning (intern) - ATX12V 3.1/ EPS12V - 80 PLUS Platinum - Cybenetics Titanium - AC 100-240 V - 850 watt - aktiv PFC

  • Product no 1004238905

    Model PRO-A850PL-PCIE5

    Brand
    Go to brand's website

    EAN 4711377383639

    Weight kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse MSI PRO A850PL PCIE5 - strømforsyning - 850 watt
Enhedstype Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse ATX12V 3.1/ EPS12V
80 PLUS certificering 80 PLUS Platinum
Cybenetics-certificering Cybenetics Titanium
Indgangspænding AC 100-240 V
Udgangspænding +3.3, +5, ±12 V, +5Vsb V
Strømkapacitet 850 watt
Output Current +3.3V - 20 A<br>+5V - 20 A<br>+12V - 70.8 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser 1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x strøm 8 pin EPS12 V<br>3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>2 x 4-PIN intern strøm<br>1 x 16-pin PCI Express-strøm<br>6 x 15 pin Serial ATA strøm
Modulær Kabel Administration Ja
Kølesystem 120 mm ventilator
Dimensioner (B x D x H) 15 cm x 15 cm x 8.6 cm
