Produktbeskrivelse
|

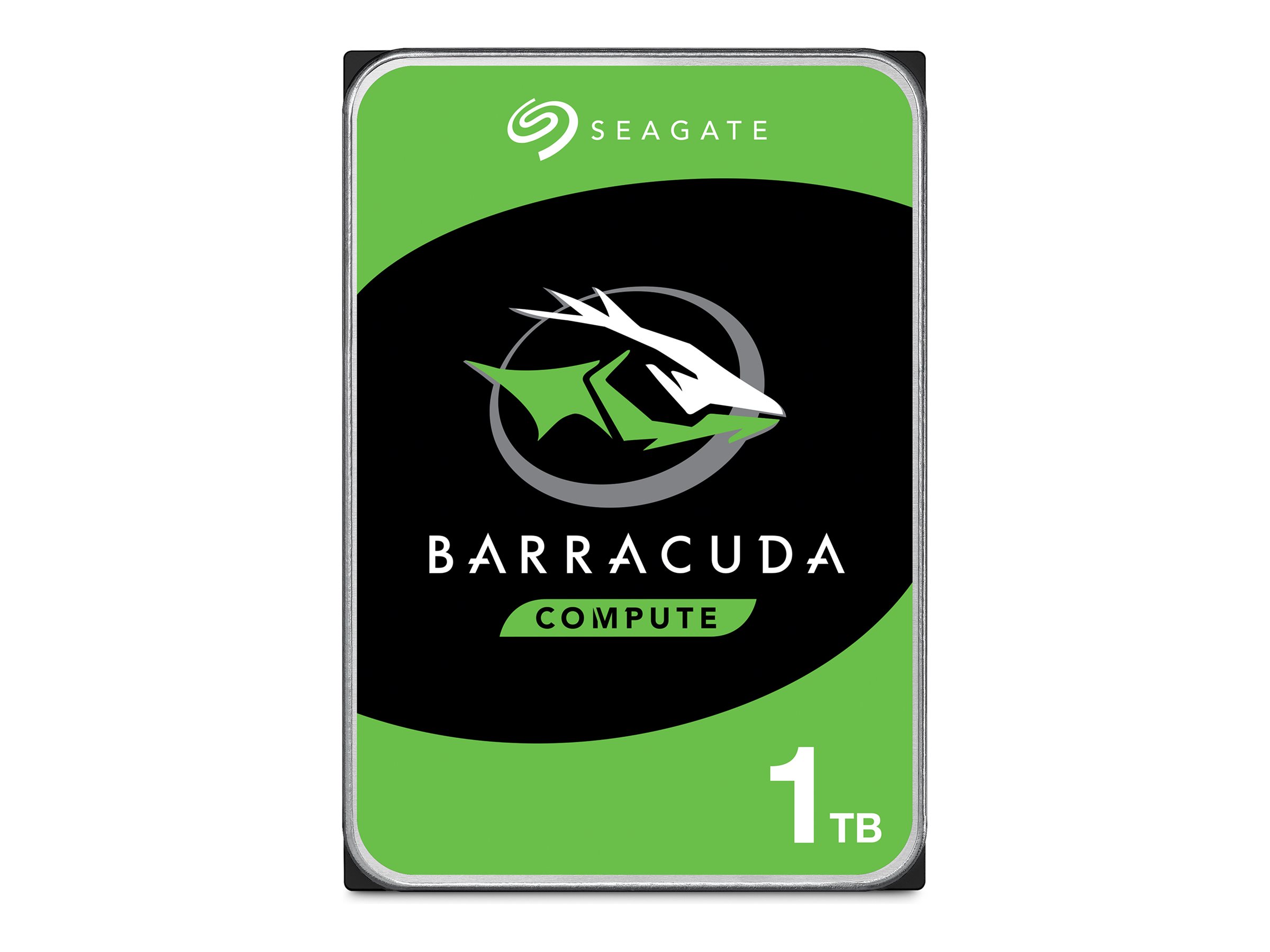

Seagate Barracuda ST1000DM014 - harddisk - 1 TB - SATA 6Gb/s - FACTORY RECERTIFIED
|
|
Type
|
Harddisk - intern
|
|
Kapacitet
|
1 TB
|
|
Model
|
3.5"
|
|
Grænseflade
|
SATA 6Gb/s
|
|
Dataoverførselshastighed
|
600 MBps
|
|
Buffer størrelse
|
256 MB
|
|
Spindelhastighed
|
7200 rpm
|
|
Egenskaber
|
Native Command Queuing (NCQ), PIO-tilstand 0-4 support, Multi-Word DMA-tilstand 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), ralmagnetisk optagelse (SMR), S.M.A.R.T sunhedsinformationssupport
|
|
Dimensioner (B x D x H)
|
101.6 mm x 146.99 mm x 20.2 mm
|
|
Vægt
|
490 g
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.
Seagate Barracuda Harddisk ST1000DM014 1TB 3.5" SATA-600 7200rpm - FACTORY RECERTIFIED
Seagate Barracuda ST1000DM014 - Harddisk - 1 TB - intern - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB
Specifications
Full specifications
|
Generelt
|
|
|---|---|
|
Bredde
|
101.6 mm
|
|
Buffer størrelse
|
256 MB
|
|
Byte pr. sektor
|
4096
|
|
Dybde
|
146.99 mm
|
|
Egenskaber
|
Native Command Queuing (NCQ), PIO-tilstand 0-4 support, Multi-Word DMA-tilstand 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), ralmagnetisk optagelse (SMR), S.M.A.R.T sunhedsinformationssupport
|
|
Enhedstype
|
Harddisk - intern
|
|
Grænseflade
|
SATA 6Gb/s
|
|
Højde
|
20.2 mm
|
|
Kapacitet
|
1 TB
|
|
Model
|
3.5"
|
|
Vægt
|
490 g
|
|
Præstation
|
|
|
Gennemsnitsventetid
|
6 ms
|
|
Overføringshastighed, drev
|
600 MBps (ekstern)
|
|
Spindelhastighed
|
7200 rpm
|
|
Driftssikkerhed
|
|
|
Ikke-korrigerbare fejl
|
1 pr. 10^14
|
|
Ekspansion og forbindelse
|
|
|
Interface
|
1 x SATA 6 Gb/s - 7 pin Serial ATA
|
|
Kompatibel bås
|
3.5"
|
|
Effekt
|
|
|
Strømforbrug
|
3.9 watt (ledig) | 5.1 watt (læse/skrive) | 0.3 watt (standby) | 0.3 watt (sov)
|
|
Programmer & Systemkrav
|
|
|
Med software
|
Seagate SeaTools
|
|
Diverse
|
|
|
Overensstemmelsesstandarder
|
China RoHS, EN 61000-4-2:95, EN 61000-4-3:96, EN 61000-4-4:95, EN 61000-4-5:95, EN 61000-4-6:97, EN 61000-4-11:94, ENV 50204:95, ASTM B845, EU RoHS
|
|
Miljømæssige parametre
|
|
|
Fugtighedsgrad ved brug
|
5 - 90 % (ikke kondenserende)
|
|
Lydudbredelse
|
28 dB
|
|
Maks. driftstemperatur
|
60 °C
|
|
Maks. Opbevaringstemperatur
|
70 °C
|
|
Min. driftstemperatur
|
0 °C
|
|
Min. lagertemperatur
|
-40 °C
|
|
Modstandsdygtighed over for stød (non-operativ)
|
350 g @ 2 ms
|
|
Modstandsdygtighed over for stød (operativ)
|
80 g @ 2 ms
|
|
Vibration tolerance (non-operativ)
|
3 g @ 350-500 Hz
|
|
Vibration tolerance (operativ)
|
0.25 g @ 350-500 Hz
|
