CPU
|
Supports Intel Core Ultra Processors (Series 2) (LGA1851), up to 65W
|
|
Chipset
|
Intel B860
|
|
Cooler
|
Supports Intel CPU Cooler (Max. Height ≦ 47mm)
|
|
Memory
|
2x DDR5 SO-DIMM Slots (Dual Channel) - Up to 5600Mhz - Max 128GB
|
|
Graphics
|
Integrated Graphics (Depends on CPU)
|
|
Graphics Output
|
2x DisplayPort 1.4 (8K@60Hz / 4K@120Hz), 1x HDMI 2.1 (4K@120Hz), 1x Intel Thunderbolt 4
|
|
Audio
|
Realtek ALC269 Audio Codec
|
|
Storage
|
2x SATA 6Gb/s Ports, 2x M.2 2280 Slot (1x Gen5x4, 1x Gen4x4)
|
|
LAN
|
2.5 Gigabit LAN (RTL8125BG)
|
|
WLAN
|
1x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
|
|
Front I/O
|
1x MIC-in, 1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2 Type-A Port, 1x Headphone/Headset Jack
|
|

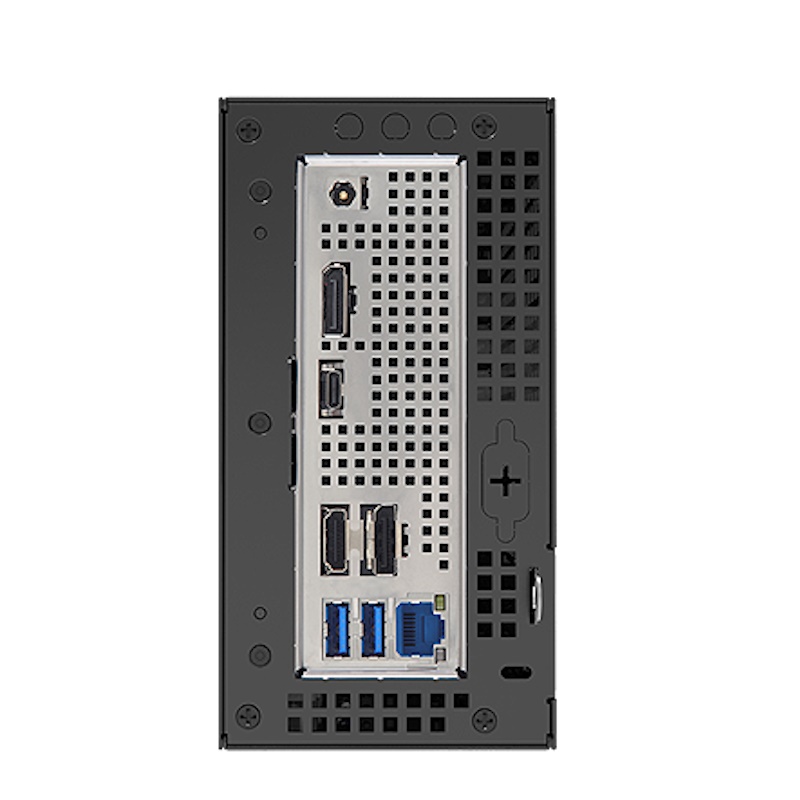

Rear I/O
|
1x DC-In Jack, 1x Intel Thunderbolt 4, 1x USB 3.2 Gen2 Type-A Port, 1x USB 3.2 Gen1 Type-A Port, 1x 2.5 Gigabit LAN
|
|
Accessory
|
2x SATA Data with Power Cable, 2x Screws for M.2 Sockets, 1x Screw for WiFi Module
|
|
Dimension
|
155 x 155 x 80 mm (1.92L)
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

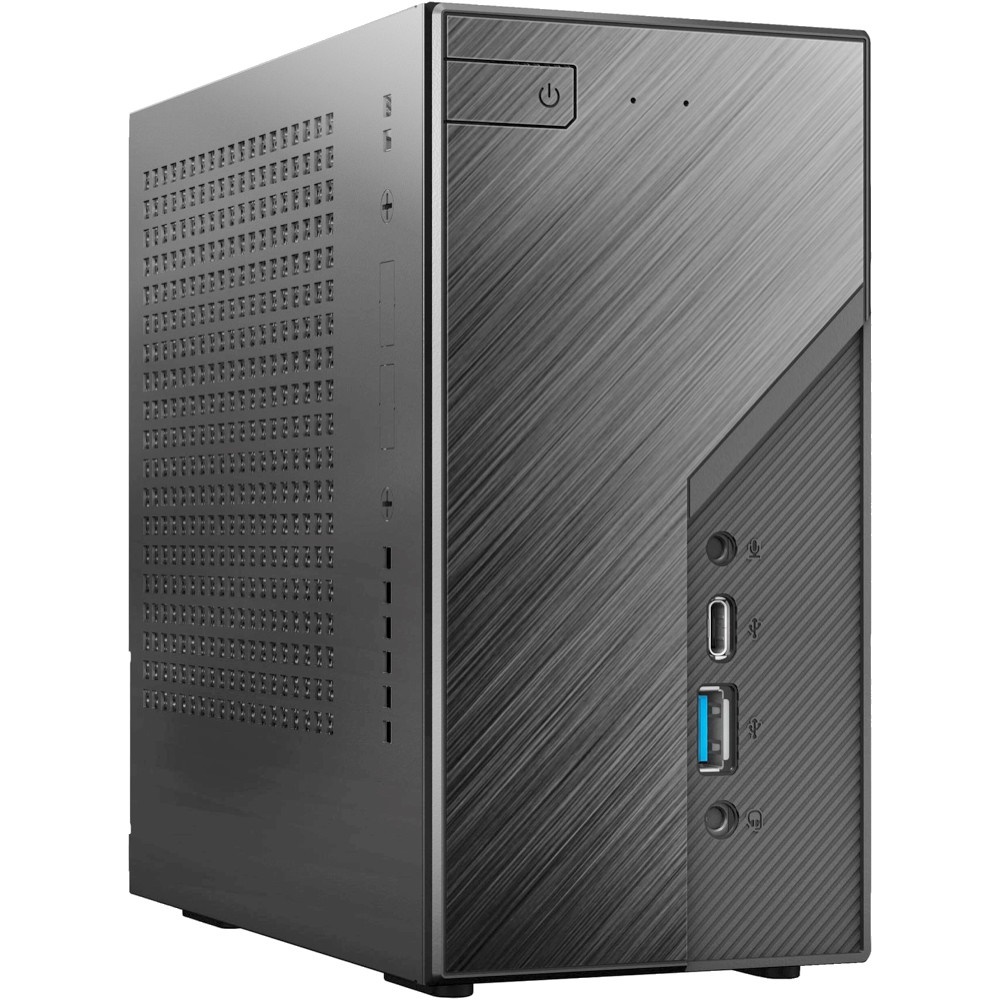

ASRock Deckmini B860 Barebone LGA1851 0GB
ASRock Deskmeet B860 - Barebone - kompakt PC - Socket LGA1851 - Intel B860 - uden CPU - RAM 0 GB - 2.5 Gigabit Ethernet
Varenummer:
1003810846
Model:
90BXG5501-A10GA0W
EAN:
4711581493179
Brand:
Vægt:
1.72 kg
