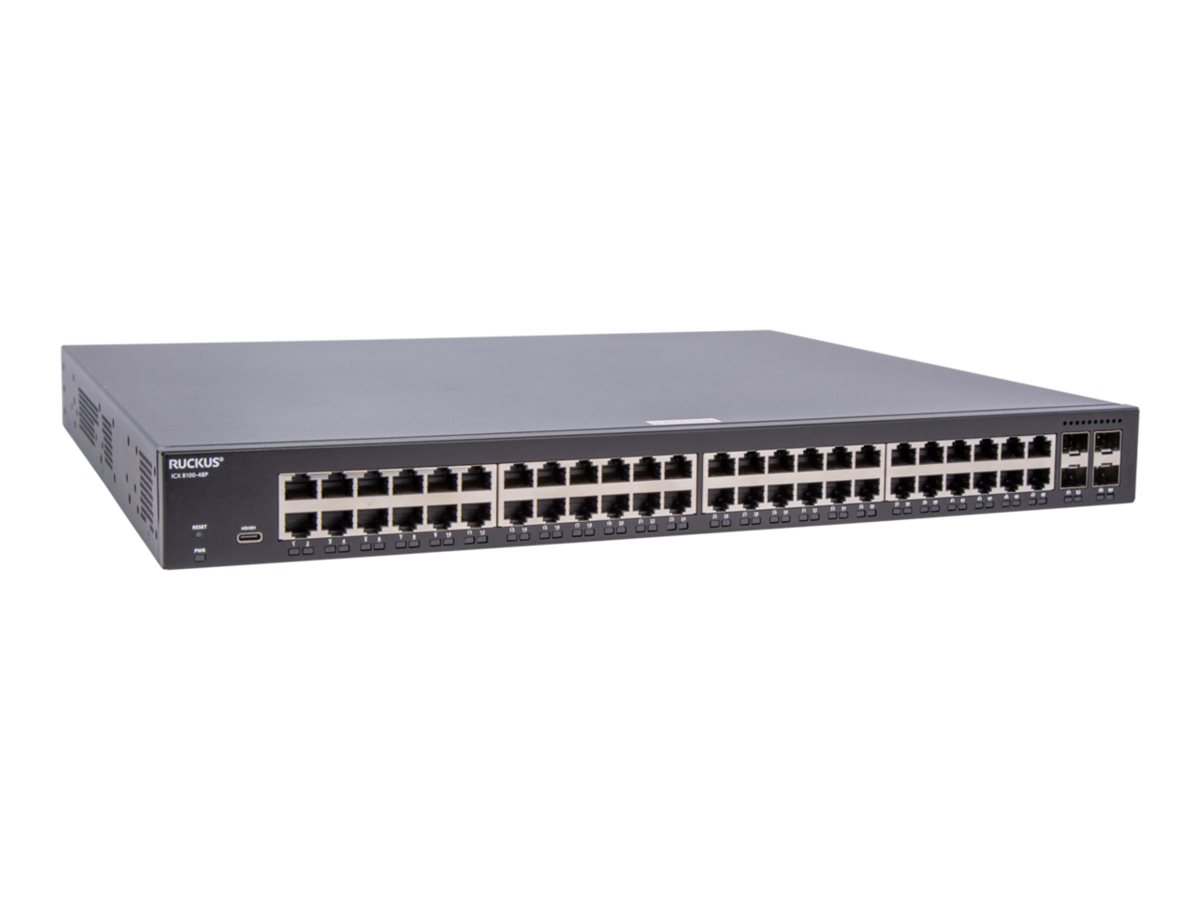

Ruckus ICX 8100-48PF Switch 48-porte Gigabit Ethernet PoE+
Ruckus ICX 8100-48PF - Switch - Administreret - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - front og side til ryg - monterbar på stativ - PoE+ (740 W)
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
|
Produktbeskrivelse
|
Ruckus ICX 8100-48PF - switch - 48 porte - Administreret - monterbar på stativ
|
|
Enhedstype
|
Switch - 48 porte - Administreret
|
|
Pakningstype
|
Front og side til ryg monterbar på stativ 1U
|
|
Undertype
|
Gigabit Ethernet
|
|
Porte
|
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
|
|
Power Over Ethernet (PoE)
|
PoE+
|
|
PoE-budget
|
740 W
|
|
Præstation
|
Omkoblingskapacitet: 176 Gbps<br>Videresendelseskapacitet: 132 Mpps
|
|
Kapacitet
|
Pakkebufferstørrelse: 4 MB<br>Maksimalt antal VLANs: 4095<br>PVLAN-understøttet: 32<br>STP-instanser: 254<br>ARP-indtastninger: 8192<br>Linksammenlægningsgrupper: 128<br>Maksimale medlemsporte per LAG: 8<br>QoS-prioritetskøer per port: 8<br>IGMP multicast-grupper: 4096<br>MLD multicast-grupper: 512
|
|
MAC adresse table størrelse
|
32K indtastningshukommelse
|
|
Jumborammesupport
|
9216 byte
|
|
Routingprotokol
|
IGMPv2, IGMPv3, IGMP, MLD, PIM-SM, PIM-SMv6
|
|
Protokol til fjernadministration
|
DHCP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, NTP, SCP, BOOTP, Telnet, TFTP, CLI, SSH, SSH-2
|
|
Egenskaber
|
sFlow, EEE, CoS, DSCP/ToS mapping, QoS, trafikadministration, 802.1x autentificering, MAC-adresseautentificering, Fleksibel autentificering, Webautentificering, DHCP snooping, DAI, IPv6 nabo opdagelse inspektion, AAA, DoS protection, MAC-adresseblokering, SCP, beskyttede porte, CoA, TPM, Syslog understøttet, Layer 2 switching, Høj rådighedsgrad, auto-uplink (auto MDI/MDI-X), BPDU Guard, dobbelt VLAN-tilstand, GVRP, IGMP hurtigafgang, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG-justering, LFS, MAC-adresse-filtrering, MAC based VLAN, MAC Learning Disable, MDL snooping, MLD snogning v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, portspejling, Private VLAN, Q-i-Q tunnelering, RFN, Root Guard, UDLD, VLAN kortlægning, DHCP server, DHCP videresendelse, RSPAN
|
|
Overensstemmelsesstandarder
|
IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1 AVB, IEEE 802.1BR, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
|
|
Effekt
|
AC 100-240 V (50 - 60 Hz)
|
|
Dimensioner (B x D x H)
|
44 cm x 37 cm x 4.4 cm
|
|
Vægt
|
6.39 kg
|
|
Lokalisering
|
Asien, Australien, New Zealand, EMEA, Mellemamerika, Nordamerika
|
|
Producentgaranti
|
Begrænset livtidsgaranti
|
