CPU
|
Socket AM5
|
|
Chipset
|
AMD B650
|
|
Memory
|
4x DDR5 DIMM (Dual channel) 8200(O.C) non-ECC - up to 256 GB
|
|
Display outputs
|
1x DisplayPort 1.4, 1x HDMI 2.1
|
|
Audio
|
Realtek Audio CODEC - 2/4/5.1/7.1-channel
|
|
LAN
|
Realtek 2.5GbE LAN
|
|
Wireless
|
MediaTek Wi-Fi 6E MT7902, Bluetooth 5.3
|
|
Expansion Slots
|
1x PCI Express x16 slot (5.0 x16), 1x PCI Express x16 slot (4.0 x4), 2x PCI Express x16 (PCIe 3.0 x1)
|
|
Storage Interface
|
3x M.2 22110/2280 (1x 5.0 x4/x2, 1x PCIe 4.0 x4/x2, 1x PCIe 4.0 x2), 4x SATA 6Gb/s
|
|
USB
|
2x USB Type-C 3.2 Gen 1, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 8x USB 2.0/1.1
|
|

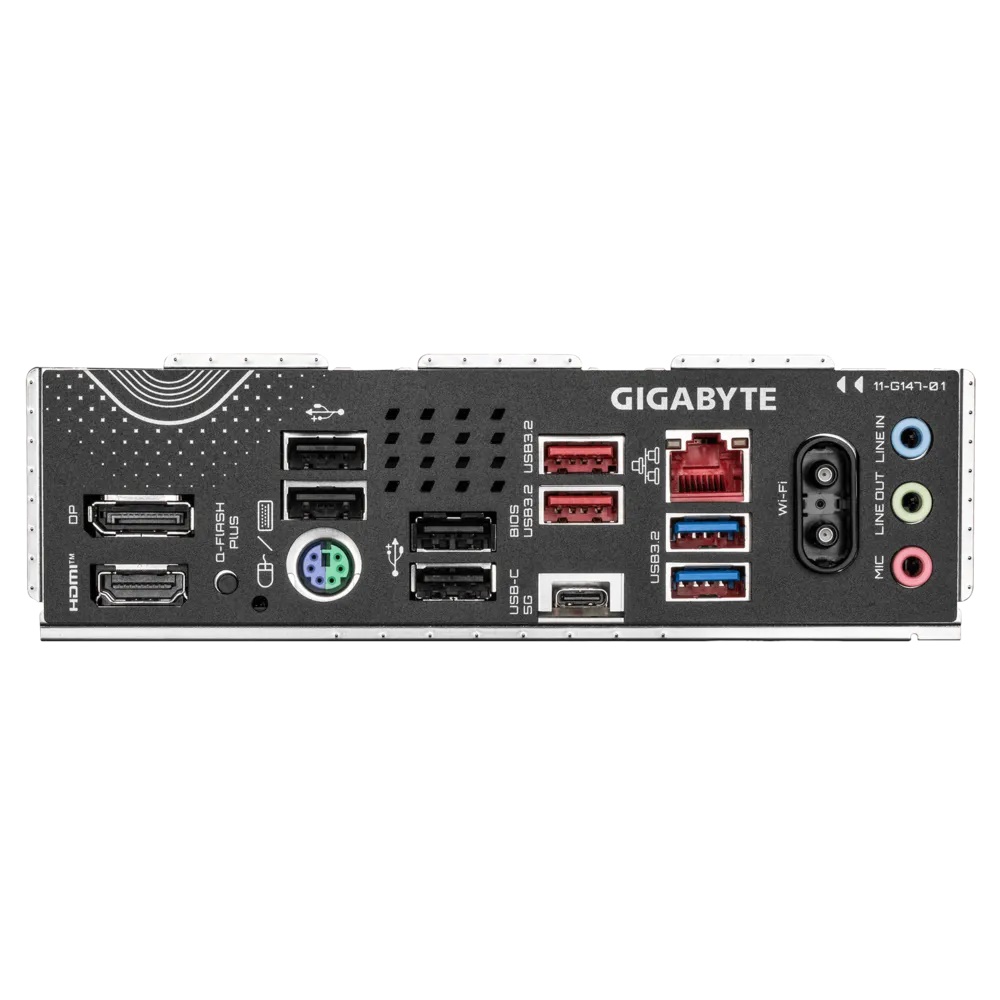

Back Panel Connectors
|
1x DisplayPort 1x HDMI, 1x Q-Flash Plus button, 4x USB 2.0/1.1 ports, 1x PS/2, 2x USB 3.2 Gen 2 Type-A ports (red), 1x USB Type-C 3.2 Gen 1, 1x RJ-45, 1x USB 3.2 Gen 1, 2x antenna connectors (1T1R), 3x audio jacks
|
|
I/O Controller
|
iTE I/O Controller Chip
|
|
BIOS
|
256 Mbit flash AMI UEFI BIOS
|
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

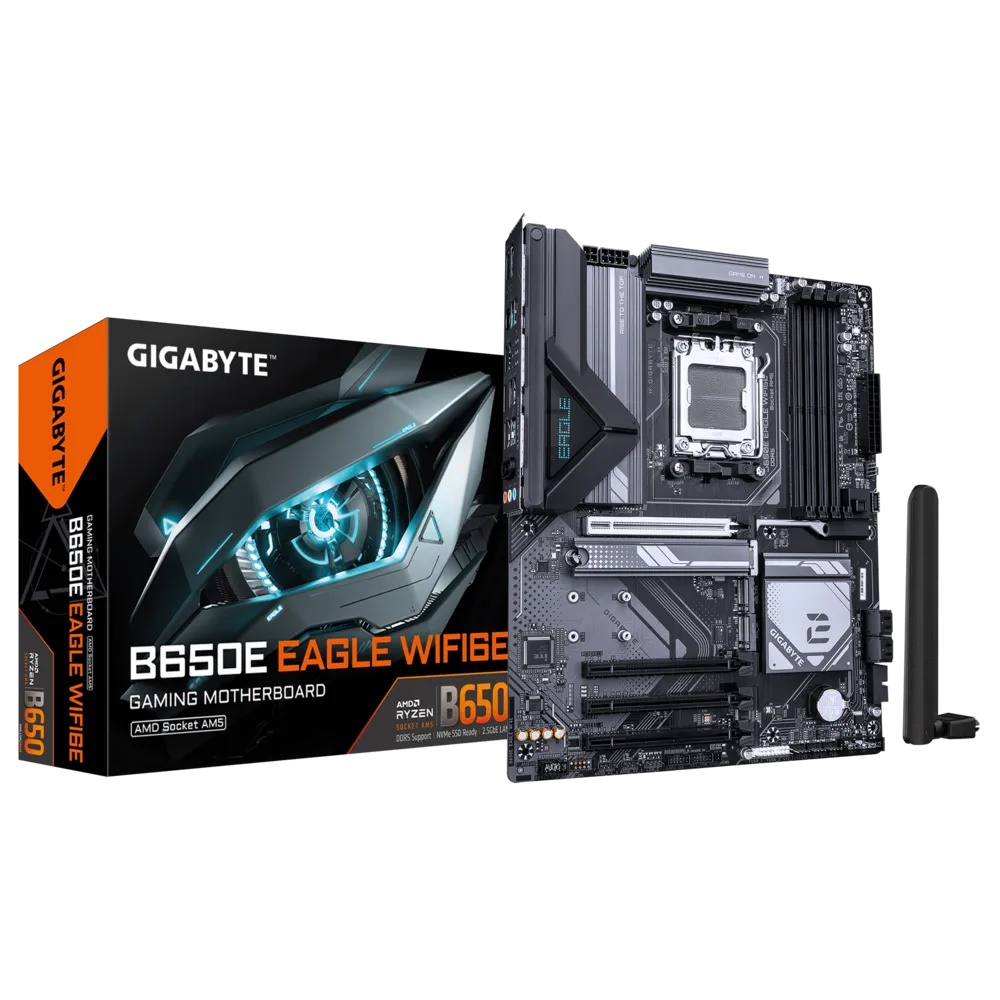

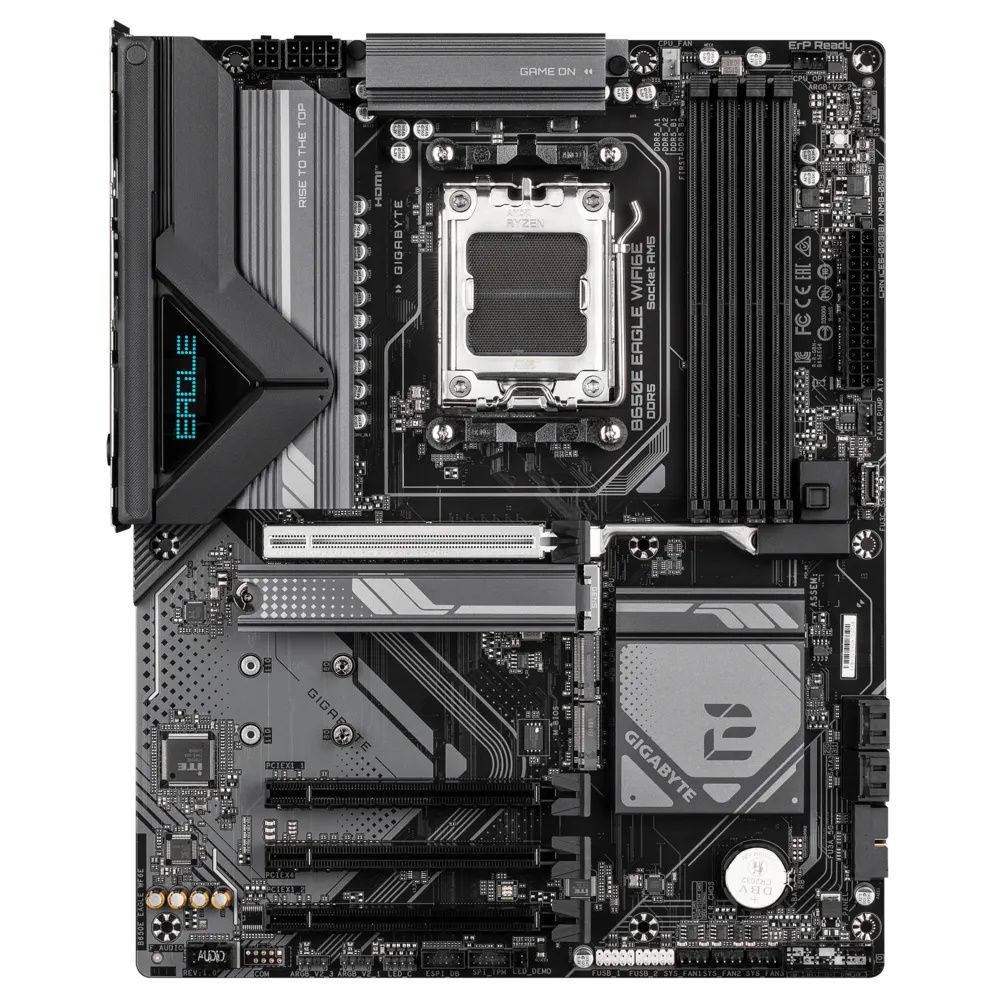

Gigabyte B650E Eagle WIFI6E ATX AM5
Gigabyte B650E Eagle WIFI6E - Bundkort - ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - Realtek HD Audio
Product no:
1003629388
Model:
B650E EAGLE WF6E
EAN:
4719331877798
Brand:
Weight:
1.67 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
