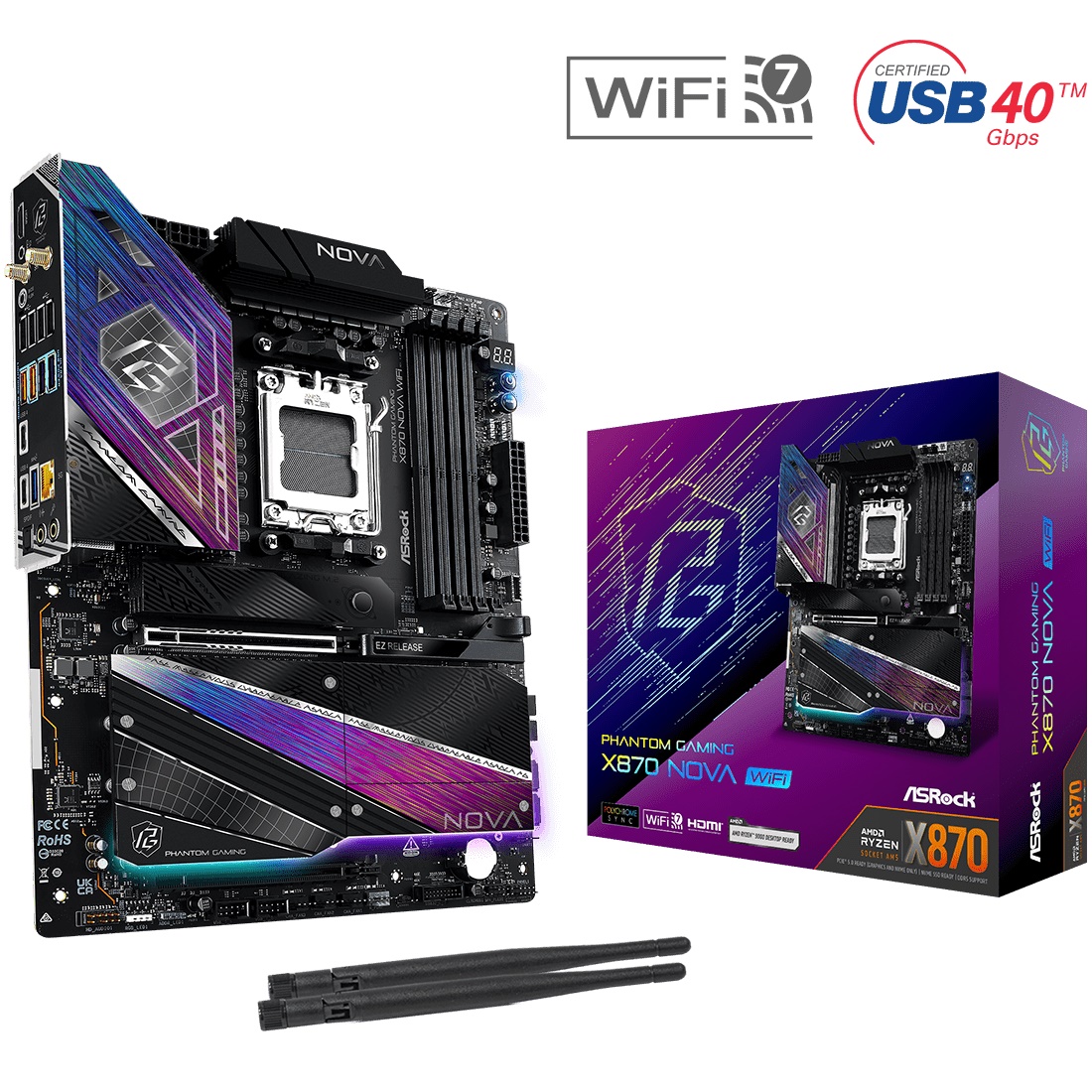

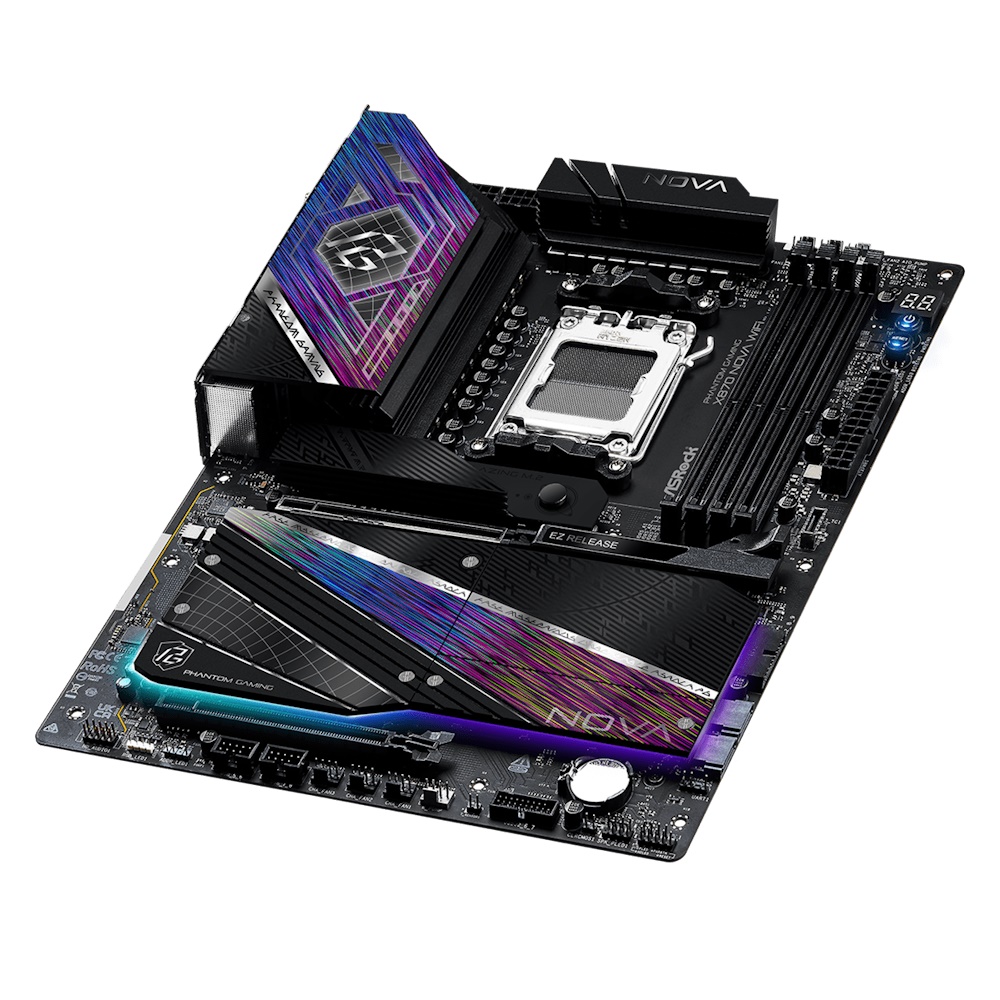

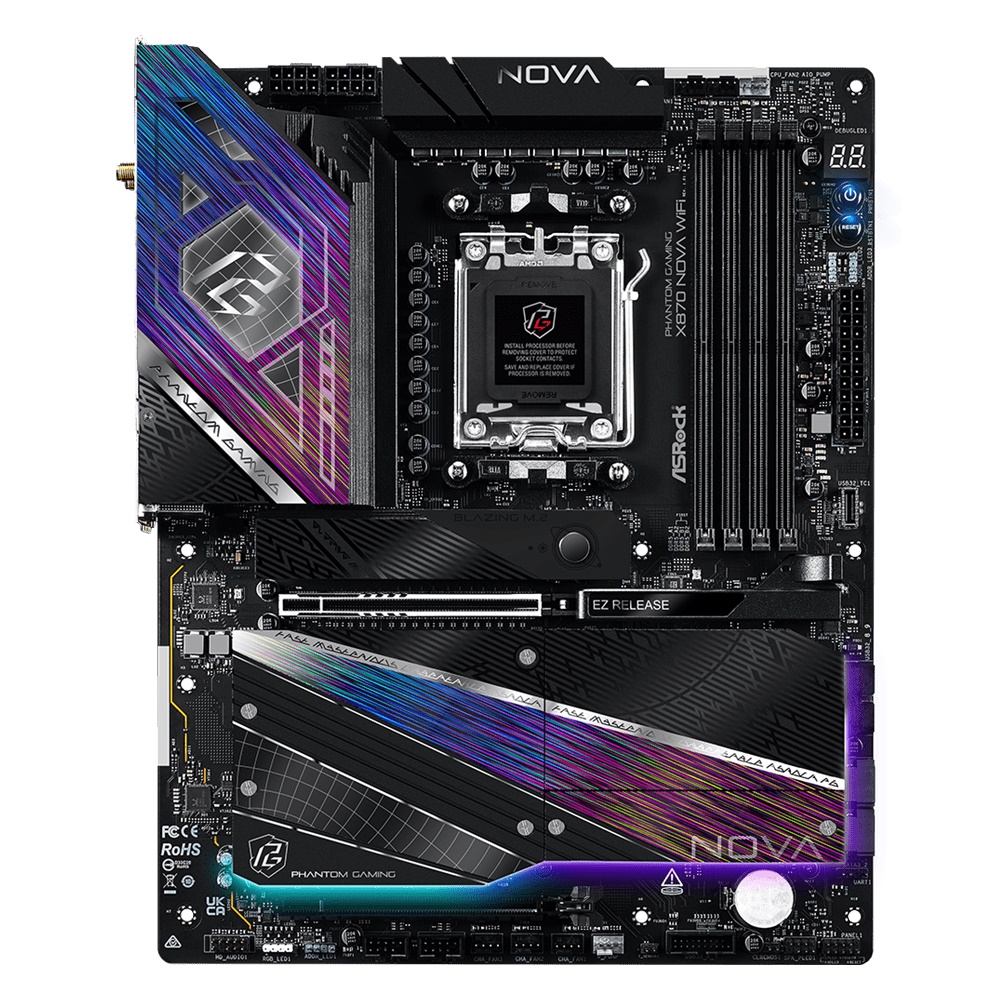

Asrock X870 Nova WiFi ATX AM5

Asrock X870 Nova WiFi - ATX - Socket AM5 - 4x DDR5 slots - HDMI 2.1 - USB4 - Realtek RTL8126 - WiFi 7

Varenummer: 1003523762
Model: 90-MXBT20-A0UAYZ
EAN: 4710483942754
Brand:
Vægt: 2.84 kg

Specifications

Power Phase
18+2+1
CPU
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD X870
Memory
4x DDR5 DIMM Slots, Dual Channel DDR5
Memory Support
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC), Max 256GB
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Display output
1x HDMI 2.1, 2x USB4 (support HDCP 2.3 and max. resolution up to 8K 30Hz)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
LAN
Realtek RTL8126, 5 Gigabit LAN
Wireless
802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4
Slots
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x M.2 Socket (Key E) for WiFi module
Storage
2x Blazing M.2 Socket 2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket 2280 SATA/PCIe Gen3x2 (16 Gb/s), 2x Hyper M.2 2280 PCIe Gen4x4 (64 Gb/s), 2x SATA3 6.0 Gb/s
USB
2x USB4 Type-C (Rear), USB 3.2 Gen2 Type-A (Rear (USB32_3), USB 3.2 Gen1 Type-A (Rear (USB32_1), USB 3.2 Gen2x2 Type-C (Front), USB 3.2 Gen2 Type-A (Rear (USB32_4), 6x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front), 8x USB 2.0 (4 Rear, 4 Front)

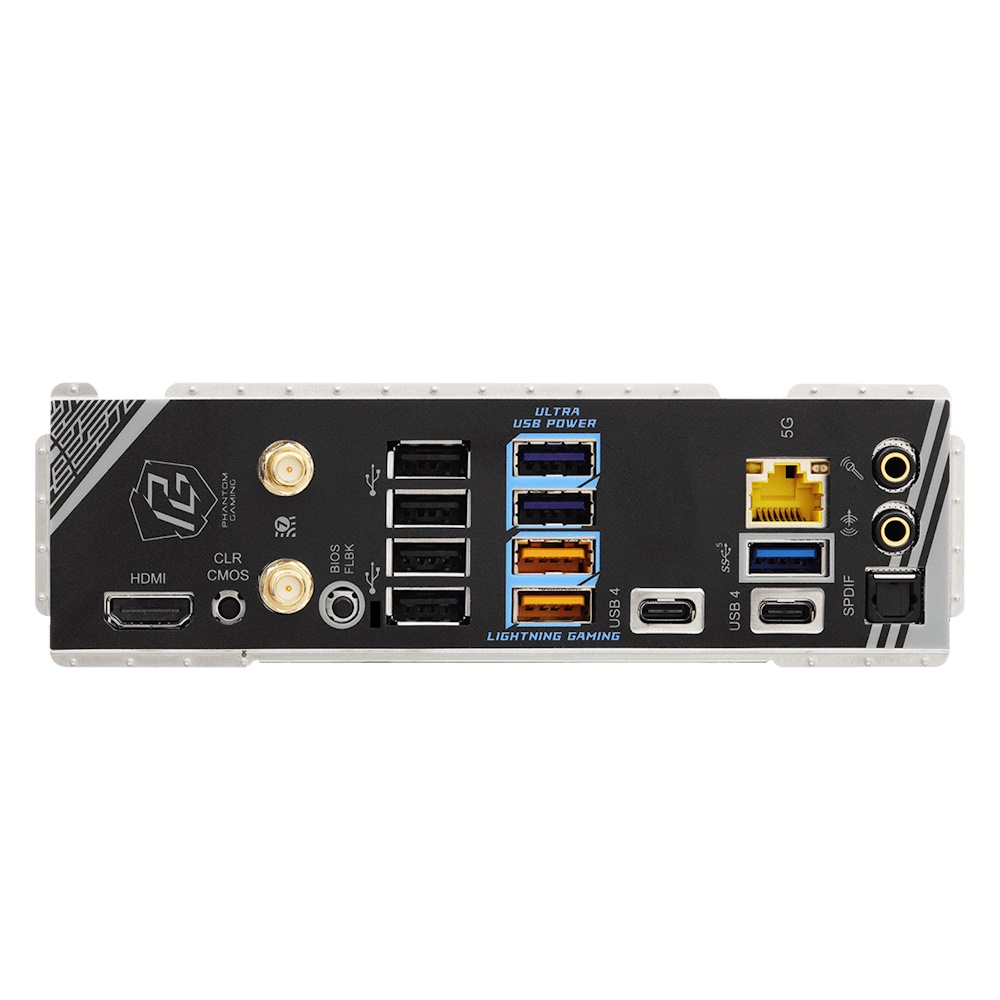

Rear Panel I/O
2x Antenna Ports, 1x HDMI Port, 1x Optical SPDIF Out Port, 3x USB4 Type-C Ports (40 Gb/s), 2x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 3x USB 3.2 Gen1 Type-A Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
Accessories
2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x ARGB Splitter Cable, 1x Thermistor Cable
Form Factor
ATX Form Factor (30.5 cm x 24.4 cm)
