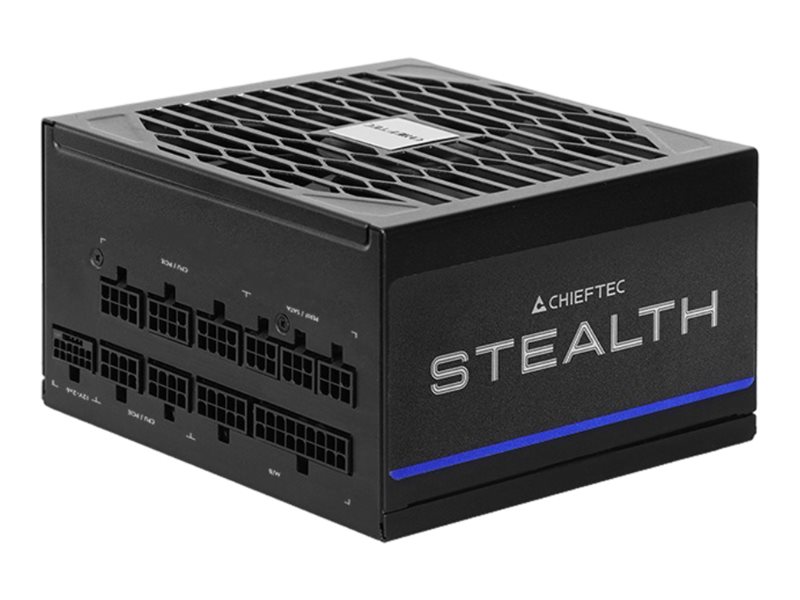

Chieftec Stealth Strømforsyning 1000Watt
Chieftec Stealth - Strømforsyning (intern) - ATX12V 2.31/ EPS12V - 80 PLUS Platinum - AC 100-240 V - 1000 Watt - aktiv PFC
-
Product no 1003510337
Model SPX-1000-FC
Brand Chieftec Industrial
EAN 0753263079251
Weight kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Stealth - strømforsyning - 1000 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.31/ EPS12V |
| 80 PLUS certificering | 80 PLUS Platinum |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V, +5Vsb V |
| Strømkapacitet | 1000 Watt |
| Output Current | +3.3V - 20 A<br>+5V - 20 A<br>+12V - 83.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x strøm 8 pin EPS12 V<br>3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 16-pin PCI Express-strøm<br>8 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>2 x 4-pin (molex) |
| Modulær Kabel Administration | Ja |
| Kølesystem | 135 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 5 års garanti |
