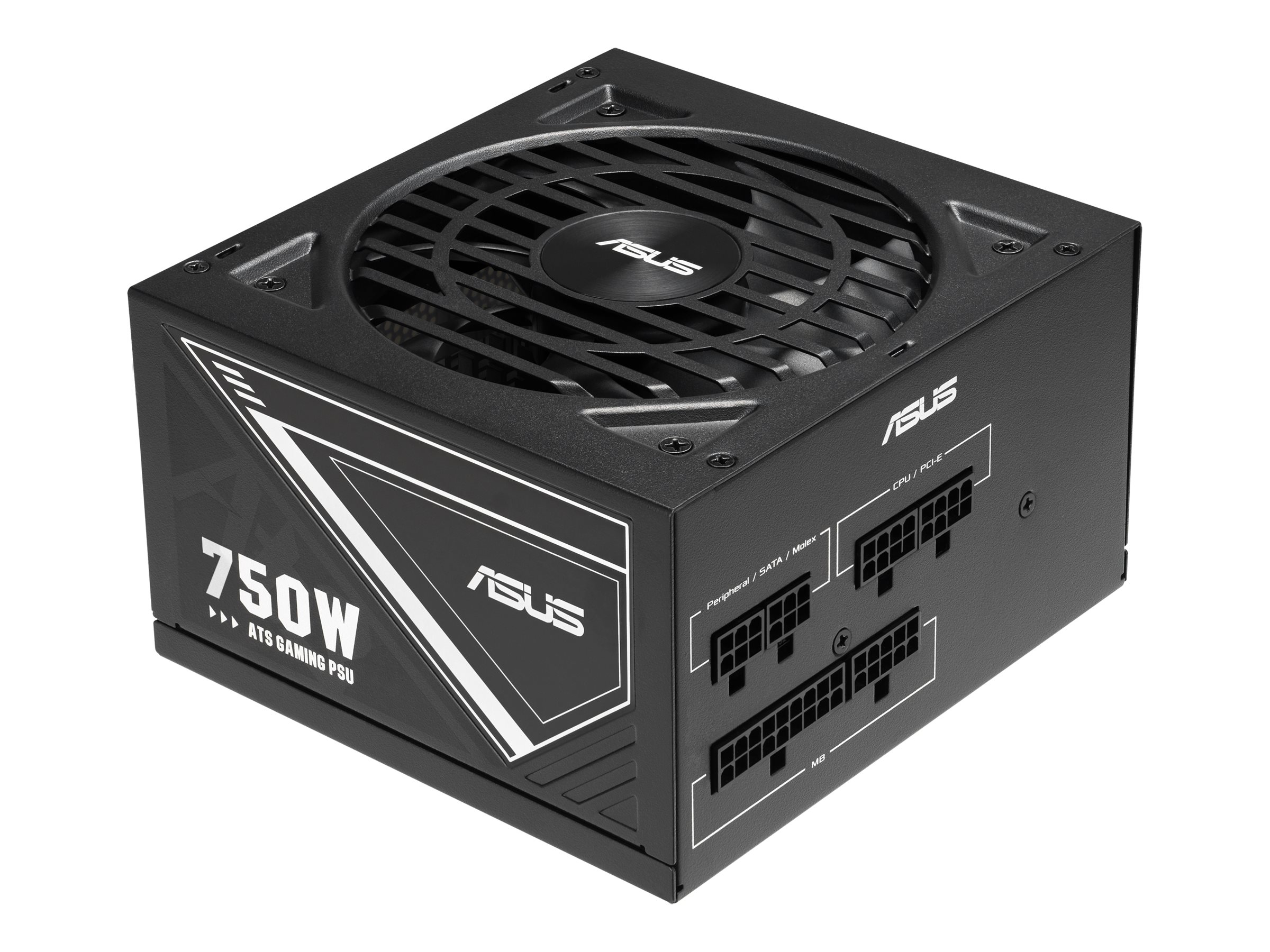

ASUS ATS Strømforsyning 750Watt

ASUS ATS - Strømforsyning (intern) - ATX12V - 80 PLUS Gold - AC 110-240 V - 750 watt - aktiv PFC

Varenummer: 1003487992
Model: 90YE04A1-B0NC00
EAN: 4711387870020
Brand:
ASUSTeK COMPUTER
Vægt: 2.78 kg

Specifications

Produktbeskrivelse
ASUS ATS - strømforsyning - 750 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V
80 PLUS certificering
80 PLUS Gold
Vægt
1.529 kg
Indgangspænding
AC 110-240 V
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
750 watt
Output Current
+3.3V - 20 A<br>+5V - 20 A<br>+12V - 62.5 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Udstyr inkluderet
Skruer
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
3 års garanti
