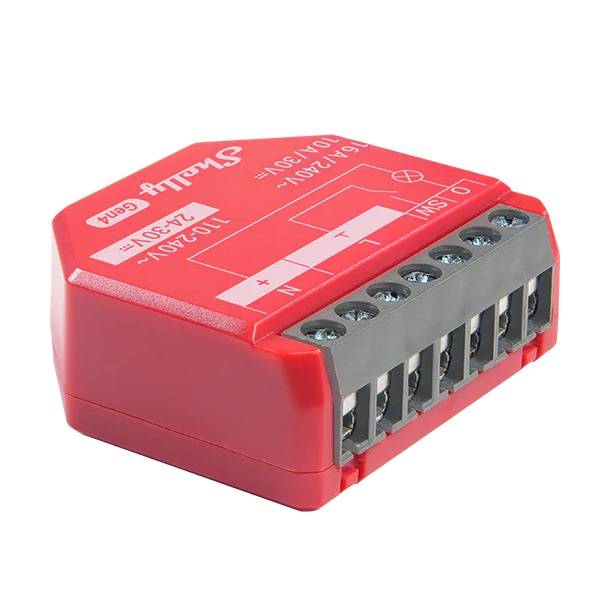

Shelly 1PM Gen4 Relækontakt

Shelly 1PM Gen4 - Relækontakt - trådløs - 802.11 b/g/n/ax, Bluetooth 5.0, Zigbee - 2.400 - 2.483,5 MHz - rød

Product no: 1003273297
Model: Shelly_1PM_Gen4
EAN: 3800238070717
Brand:
Shelly
Weight: 0.04 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Size (HxWxD)
37 x 42 x 16 mm
Weight
27 g
Conductor cross section
0.5 to 4 mm² / 20 to 11 AWG
Conductor stripped length
6 to 7 mm
Shell material
Plastic
Power supply
110-240 V, 24-30 V⎓
Power consumption
< 1 W
Sensors, meters
Voltmeter (AC), Ammeter (AC), Internal-temperature sensor
Trådløs
Wi-Fi 802.11 b/g/n/ax, Bluetooth 5.0, Zigbee 802.15.4
CPU
ESP-Shelly-C68F
Flash
8MB
Schedules
20
Webhooks (URL actions)
20 with 5 URLs per hook
Scripting
Yes
MQTT
Yes
