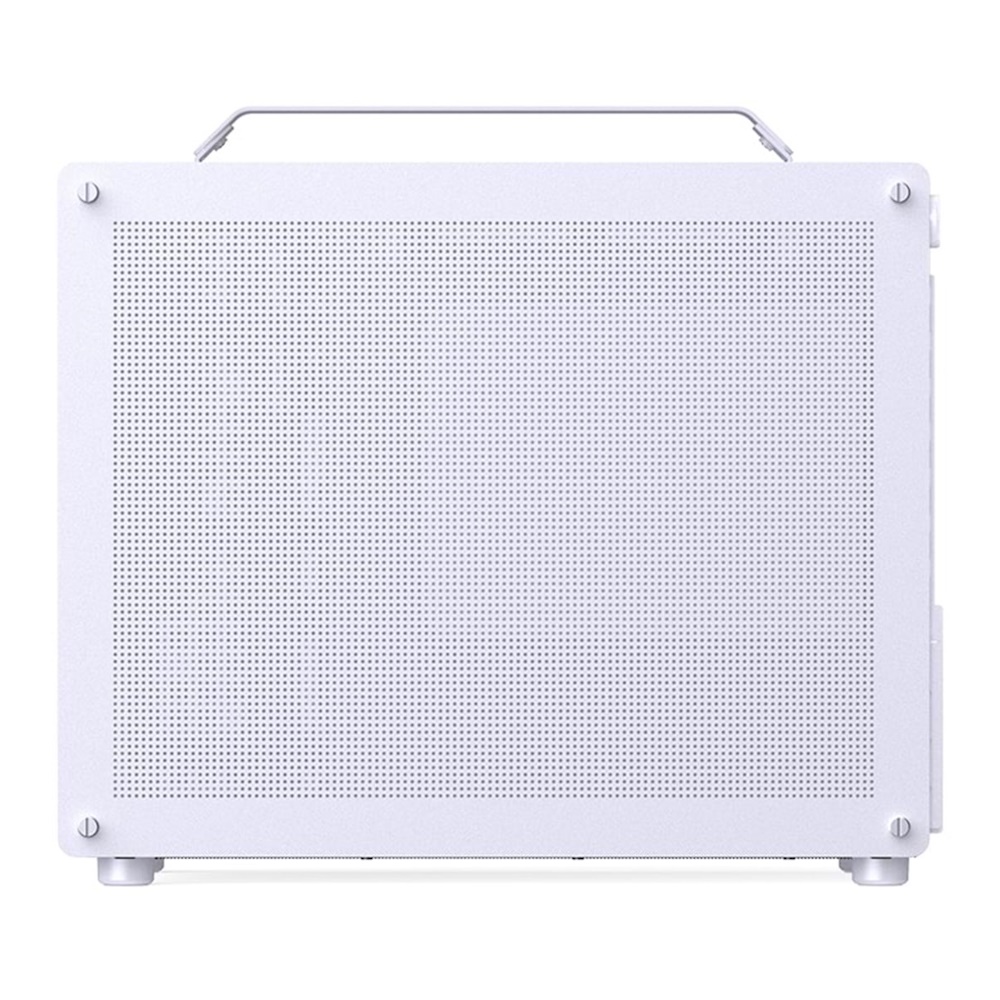

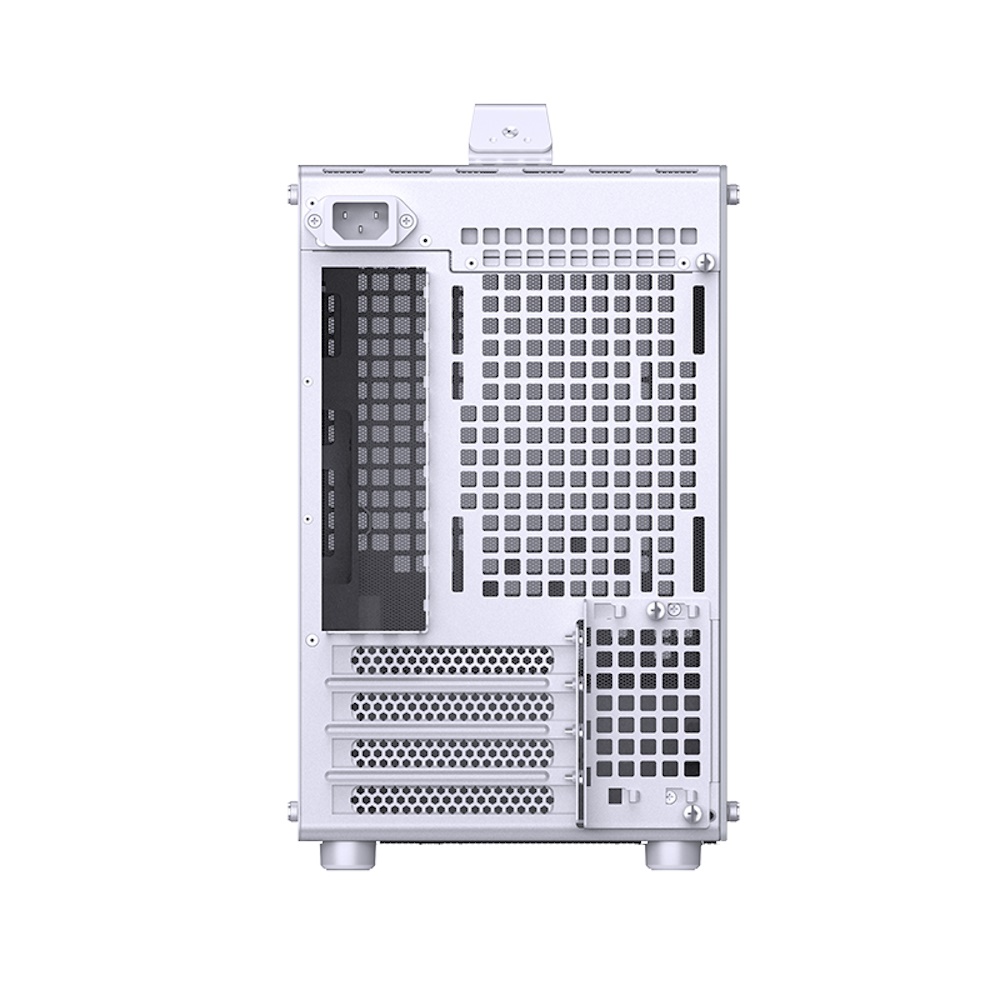

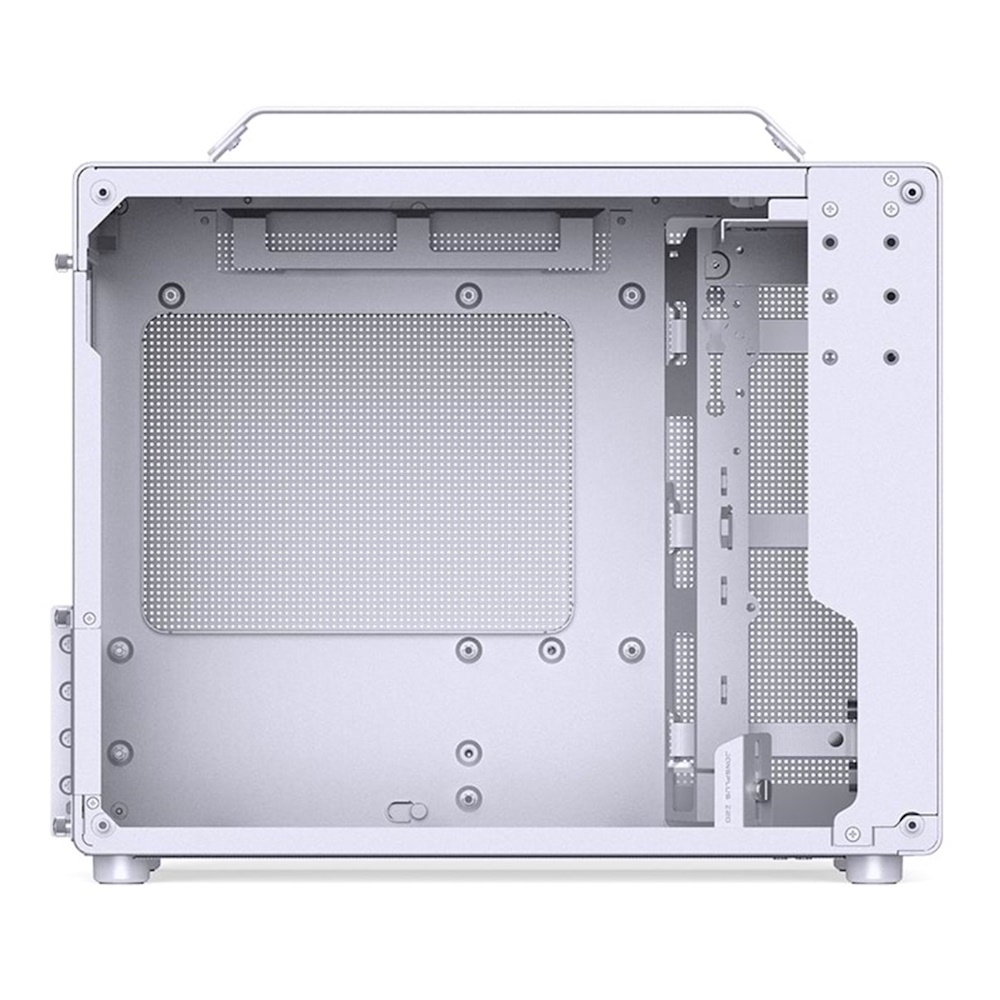

Jonsbo Z20 Tempered Glass Tårn mATX Ingen strømforsyning Hvid

Jonsbo Z20 Tempered Glass - Tower - micro ATX, mini-ITX - sidepanel med vindue (hærdet glas) - ingen strømforsyning (ATX) - hvid - USB/Lyd

Varenummer: 1003019717
Model: Z20 WHITE
EAN: 6970620553696
Brand:
Jonsplus
Vægt: 6.33 kg

Specifications

Color
White
Dimensions w/o protrusions (D x W x H)
370 x 186 x 295 mm
Dimensions w protrusions (D x W x H)
382 x 198 x 335 mm
Case Material
SPCC Steel, Tempered Glass
Motherboard Support
Mini-ITX / Micro-ATX
Drive Bay
Up to 3x 2.5" SSD, Up to 1x 3.5'' HDD
Front IO Port
1x USB3.2 Gen1 Type-A, 1x USB3.2 Gen 2 Type-C, 1x AUDIO & MIC
FAN
Top：2x 120mm / 2x 140mm, Rear 1x 120mm / 1x 92mm; Bottom: 2x 120mm / 2x 140mm
Radiator support
Top, up to 240mm
ATX PS2 PSU Clearance
Up to 180mm, recommended length ≤140mm
SFX PSU Support
SFX / SFX-L
CPU Air Cooler Clearance
164mm MAX (Intel CPU) or 163mm MAX (AMD CPU)
GPU Clearance
Up to 363mm
Weight
N.W. 5kg / G.W. 6.5kg
