Socket
|
Intel LGA 1851
|
|
CPU
|
Intel® Core™ Ultra Processors (Series 2)
|
|
Chipset
|
Intel® B860
|
|
Memory slots
|
4x DDR5 DIMM (Dual Channel)
|
|
Memory support
|
DDR5 non-ECC, un-buffered memory up to 8666+(OC), Max. capacity: 256GB
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
Intel Xe LPG Graphics Architecture
|
|
Display output
|
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
|
|
Audio
|
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
LAN
|
Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Slots
|
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
Storage
|
1x (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1x (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1x USB 3.2 Gen2x2 Type-C (Rear), 1x USB 3.2 Gen1 Type-C (Front), 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front)
|
|

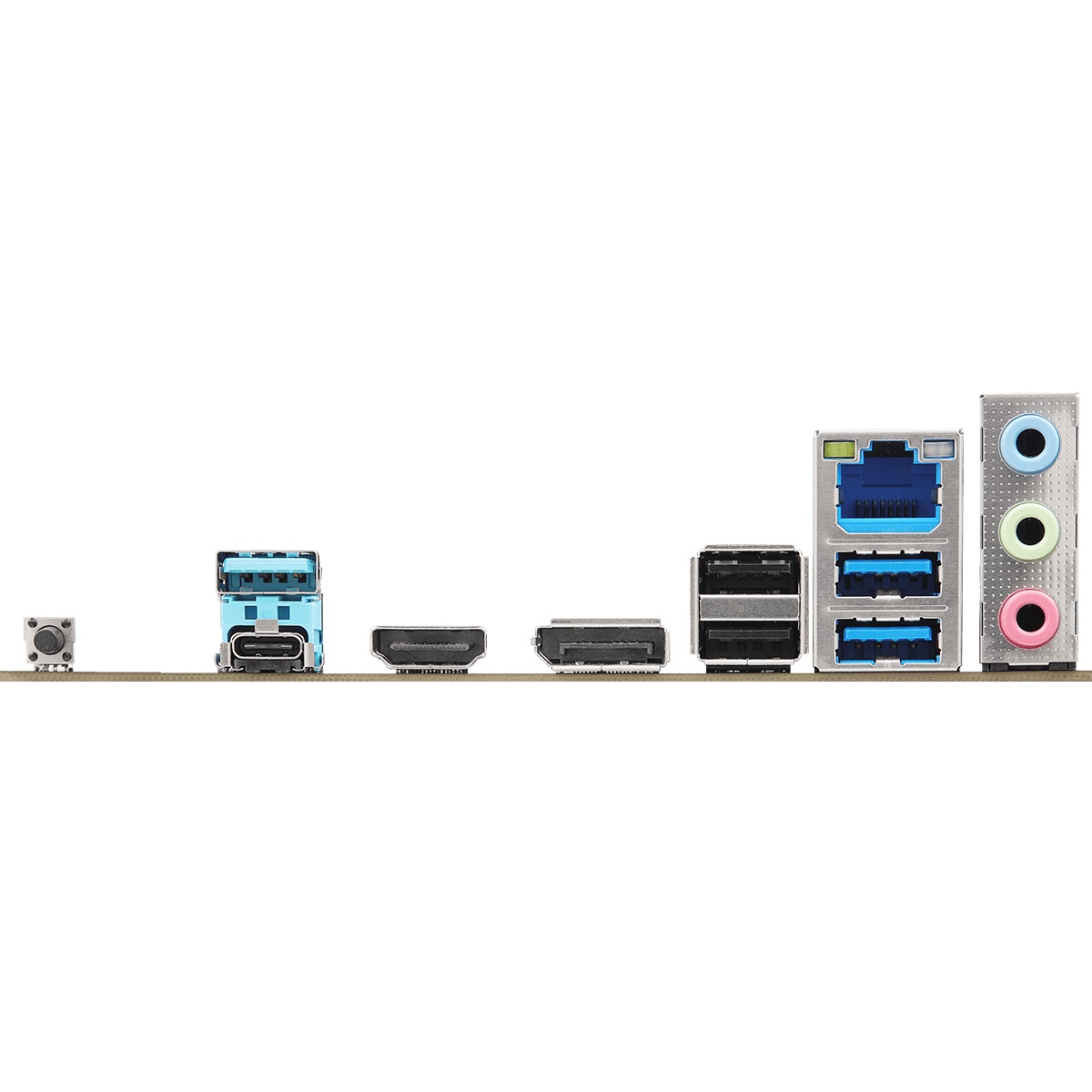

Rear Panel I/O
|
2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 3x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Accessories
|
1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket
|
|
Form Factor
|
Micro ATX Form Factor: 24.4 cm x 24.4 cm
|
|
Certifications
|
FCC, CE, ErP/EuP ready
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

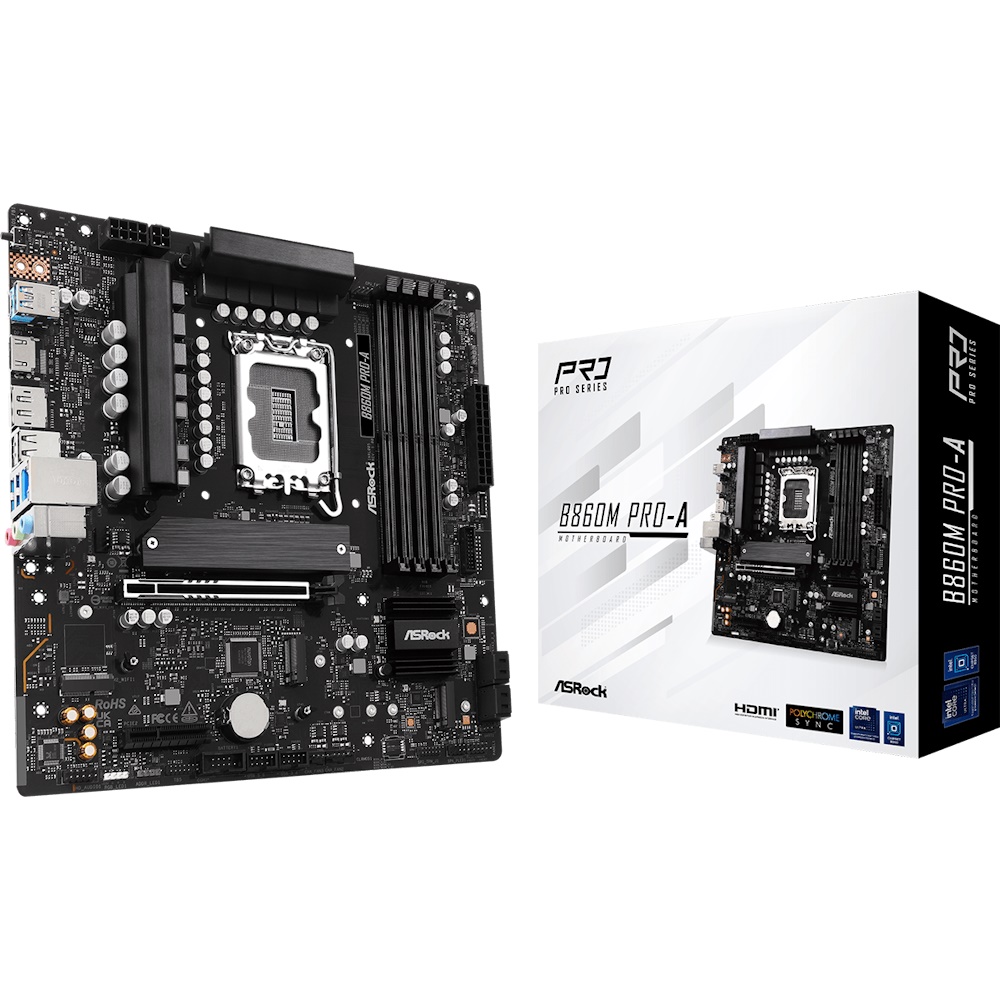

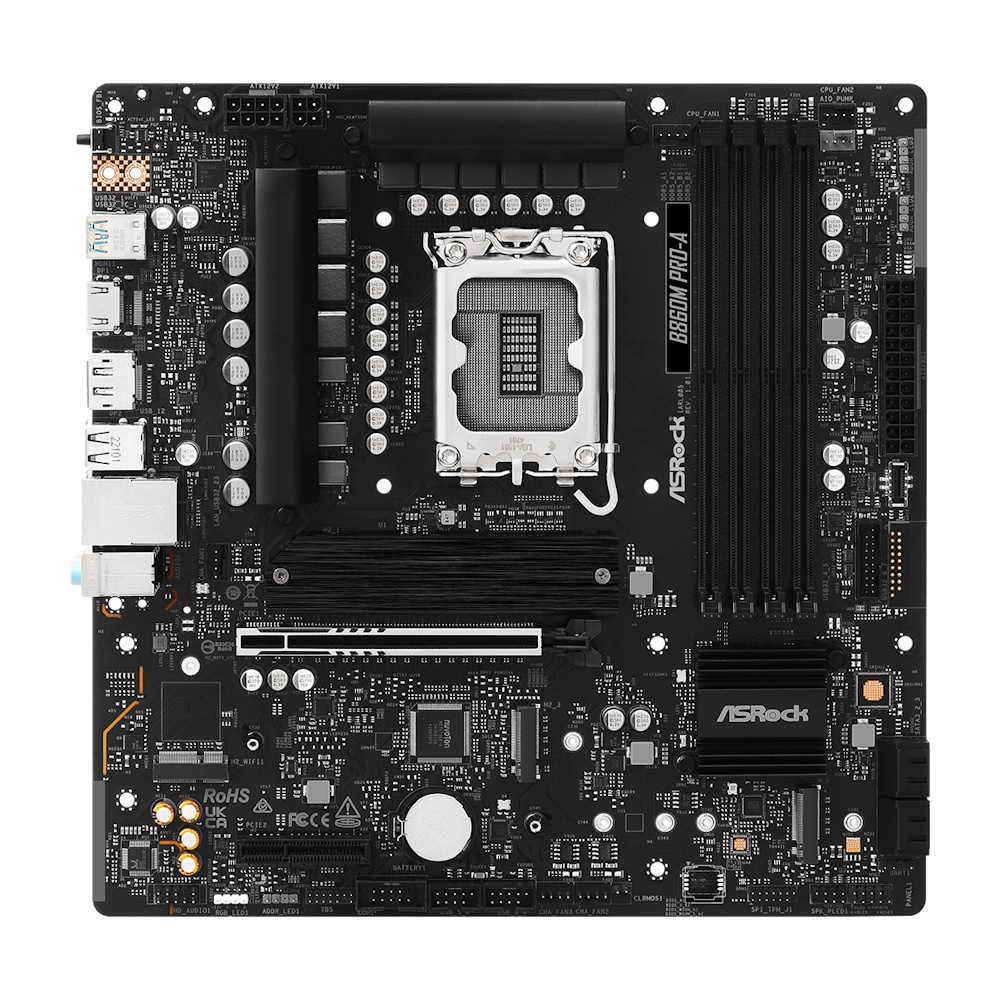

ASRock B860M Pro-A mATX DDR5 LGA1851
ASRock B860M Pro-A - Bundkort - micro-ATX - LGA1851 sokkel - B860 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (7.1-kanaler)
Product no:
1002951782
Model:
90-MXBRR-A0UAYZ
EAN:
4711581490291
Brand:
Weight:
1.12 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
