Chipset
|
AMD B850
|
|
CPU
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
|
|
Socket
|
AM5
|
|
Memory
|
4x DDR5 UDIMM supports DDR5 8400 - 5600, Max 256GB
|
|
Onboard Graphics
|
1x HDMI 2.1
|
|
Slot
|
3x PCI-E x16 slot (1x PCIe 5.0 in 16x, 1x PCIe 4.0 in 4x, 1x PCIe 3.0 in 1x
|
|
Audio
|
Realtek® ALC4080 Codec
|
|
Storage
|
4x M.2 (2x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G
|
|
USB
|
4x USB 2.0 (Rear), 4x USB 2.0 (Front), 1x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 2x USB 10Gbps Type A (Rear), 3x USB 10Gbps Type C (Rear), 1x USB 20Gbps Type C (Front)
|
|
LAN
|
Realtek® 8126VB 5G LAN
|
|
Wireless
|
Wi-Fi 7 (pre-installed in the M.2 (Key-E) slot), Bluetooth® 5.4
|
|

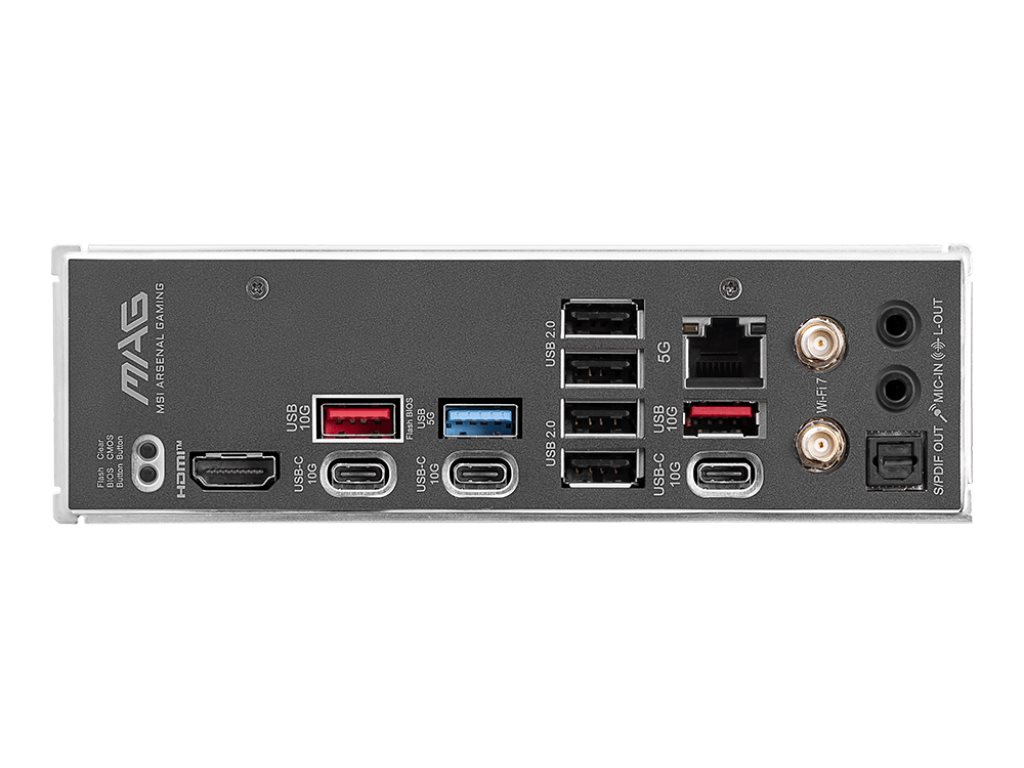

Back panel ports
|
Clear CMOS Button, 2x USB 10Gbps Type-A, USB 5Gbps Type-A, 4x USB 2.0, 5G LAN, Wi-Fi / Bluetooth Antenna connectors, S/PDIF output, Mic-in, Line out, Flash BIOS Button, 1x HDMI, 2x USB 10Gbps Type-C
|
|
Box contents
|
1x SATA cable, Quick installation guide, EU regulatory notice, Shout-out flyer, EZ M.2 Clips II, EZ M.2 Clip II Remover, Cable stickers, EZ Wi-Fi Antenna, 1 to 3 EZ Conn-Cable (V2), EZ front panel cable
|
|
PCB Info
|
ATX, 243.84 x 304.8mm
|
Effective Friday, July 3, 2026, the office will close at 4:30 PM on Fridays. From Monday to Thursday, Sales contact hours remain unchanged from 9:00 AM to 5:00 PM, while contact hours for Accounting, Purchasing, and RMA remain unchanged in general.
To gain full access to our webshop, find our entire product range and see our prices, you need to be logged in.
Log in to your account here or sign up as a customer here.

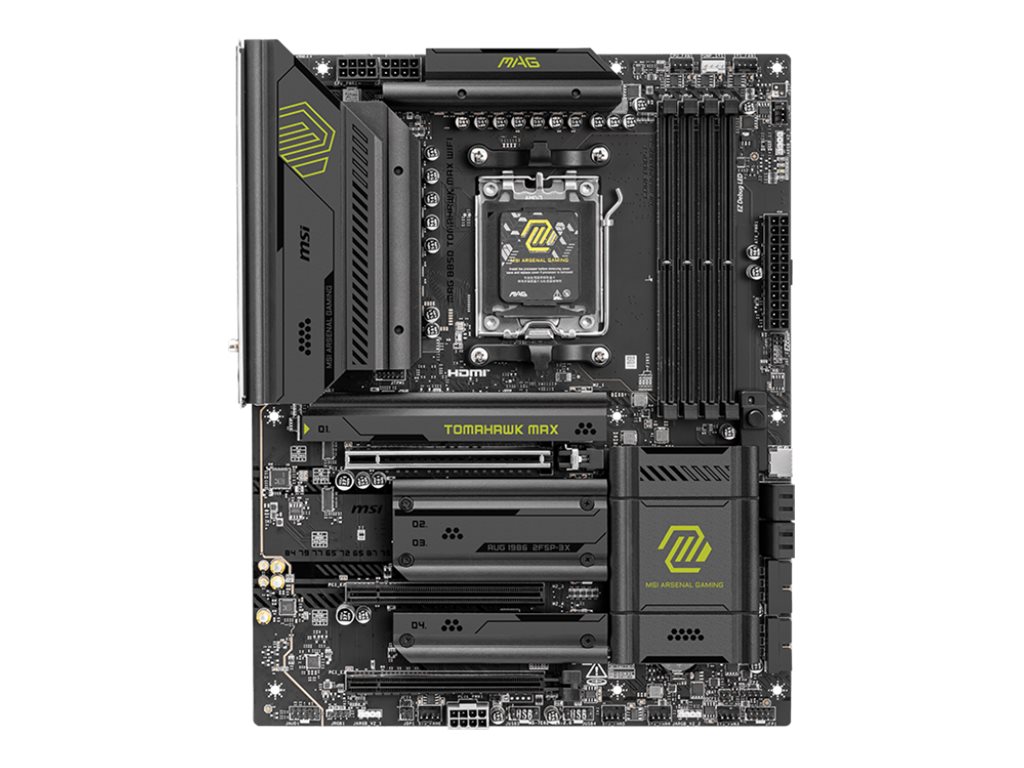

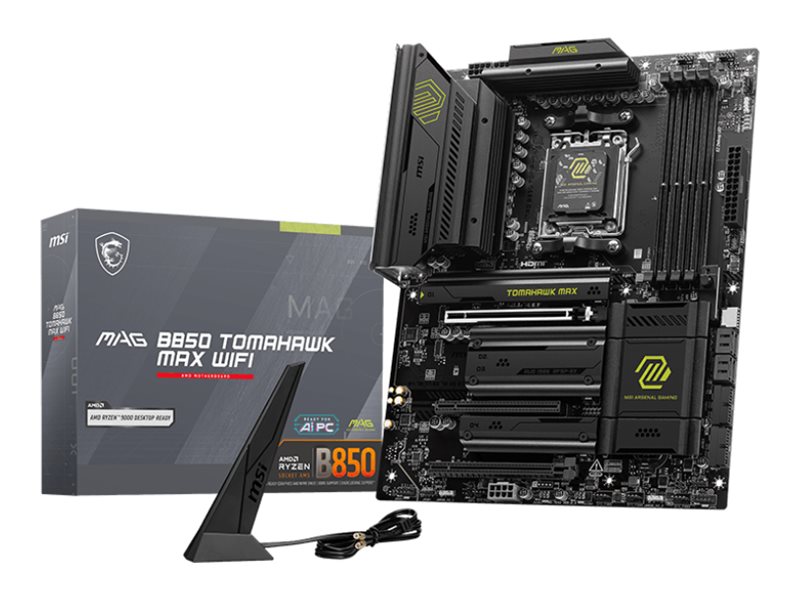

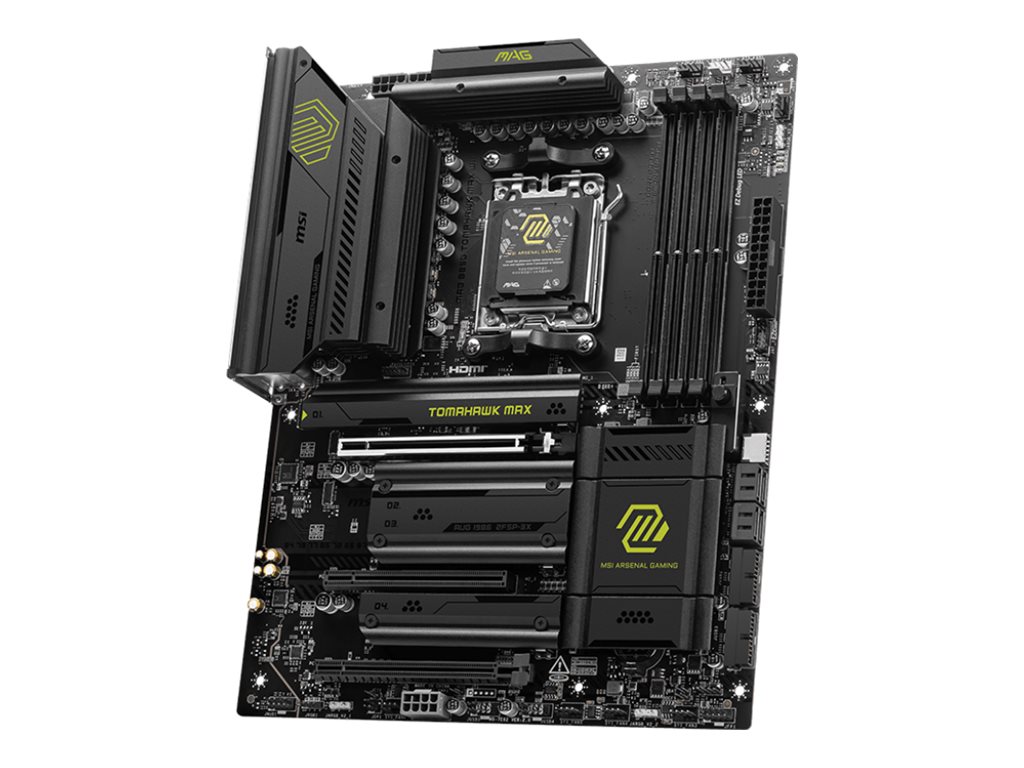

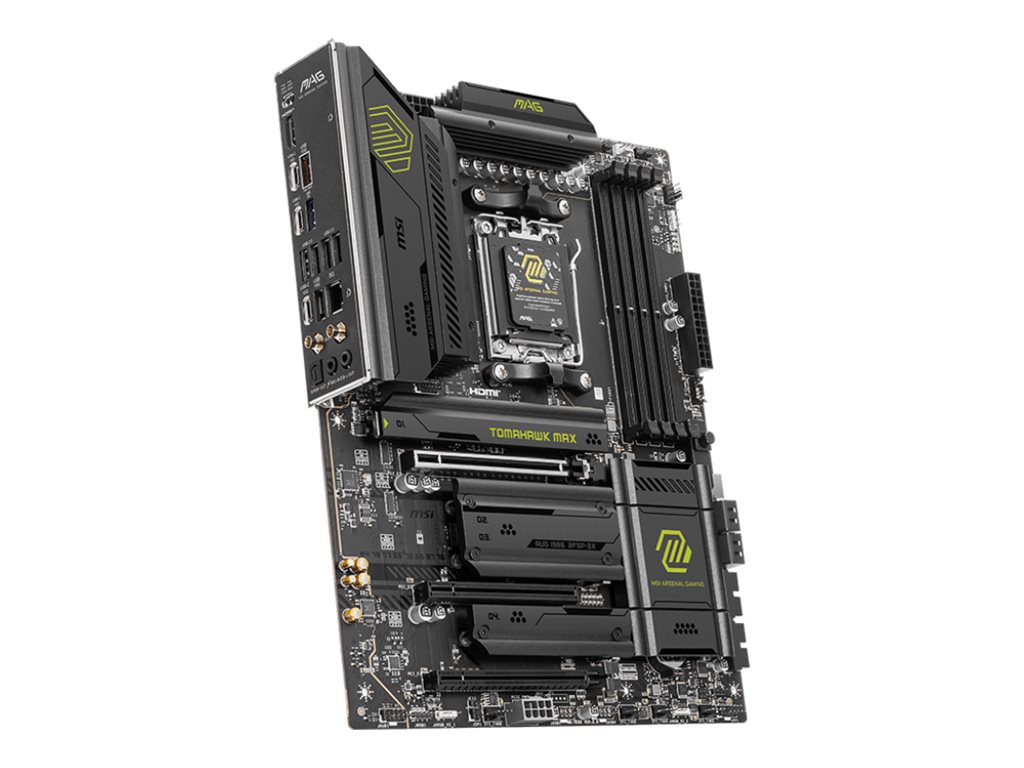

MSI Mag B850 Tomahawk Max WIFI ATX Socket AM5
MSI Mag B850 Tomahawk Max WIFI - ATX - Socket AM5 - Wi-Fi 7 - Realtek 5G Lan - 4x DDR5 slots
Product no:
1002938643
Model:
MAG B850 TOMAHAWK MA
EAN:
4711377290623
Brand:
Weight:
2.05 kg
