CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
|
|
Chipset
|
AMD B840 Chipset
|
|
Memory
|
4x DIMM, DDR5, up to 7600+MT/s, 192GB max.
|
|
Graphics
|
1x DisplayPort 1.4, 1x HDMI™ 2.1 port
|
|
Expansion Slots
|
1x Ryzen 9000 & 7000: PCIe 4.0 x16 slot (x16 mode) OR Ryzen 8000: PCIe 4.0 (x8/x4 mode), 1 x PCIe 3.0 x16 slot (support x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode), 1 x PCIe 3.0 x1 slot
|
|
Storage
|
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode, 4 x SATA 6Gb/s ports
|
|
Ethernet
|
1x Realtek 2.5Gb Ethernet
|
|
Wireless & Bluetooth
|
2x2 Wi-Fi 6E (802.11ax), Bluetooth® v5.3
|
|
Rear USB
|
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
|
|
Front USB
|
1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
|

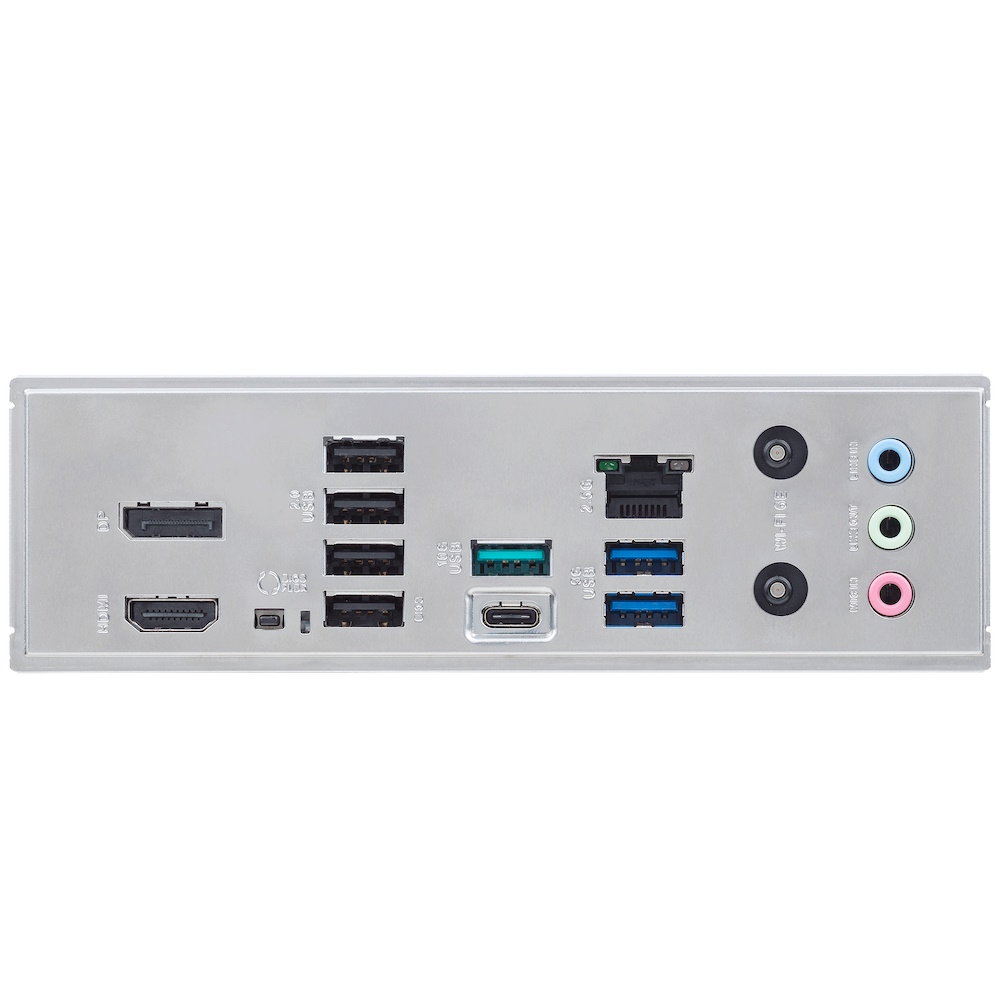

Back Panel I/O Ports
|
1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks,, 1 x BIOS FlashBack™ button
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Accessories
|
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber packages, 3 x Screw packages for M.2 SSD, 1 x Quick start guide
|
