CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
|
|
Chipset
|
AMD B850 Chipset
|
|
Memory
|
4x DIMM, DDR5, up to 8000+MT/s, 192GB max.
|
|
Graphics
|
1x DisplayPort 1.4, 1x HDMI™ 2.1 port
|
|
Expansion Slots
|
1x Ryzen 9000 & 7000: PCIe 5.0 x16 slot (x16 mode) OR Ryzen 8000: PCIe 4.0 (x8/x4 mode), 1x PCIe 4.0 x1 slot
|
|
Storage
|
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode (PCIe 4.0 x4 for Ryzen 8000)), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4x SATA 6Gb/s ports
|
|
Ethernet
|
1x Realtek 2.5Gb Ethernet
|
|
Wireless & Bluetooth
|
2x2 Wi-Fi 6E (802.11ax), Bluetooth® v5.3
|
|
Rear USB
|
1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
|
|
Front USB
|
1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports
|
|
Audio
|
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
|
|

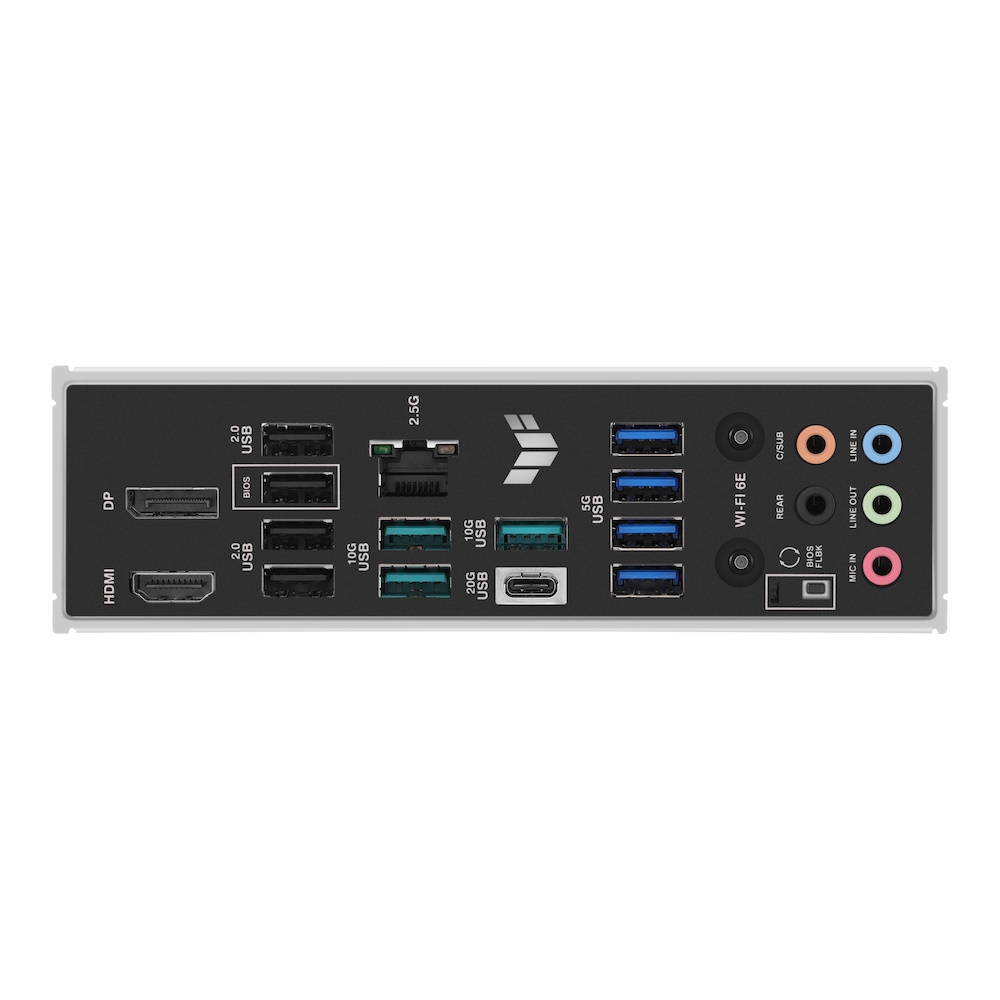

Back Panel I/O Ports
|
1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Accessories
|
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF GAMING sticker, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x Quick start guide
|
|
Form Factor
|
micro-ATX Form Factor (24.4 cm x 24.4 cm)
|
