Asrock B850 Steel Legend WiFi ATX AM5 Socket DDR5

ASRock B850 STEEL LEGEND WIFI - Bundkort - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

Varenummer: 1002936288
Model: 90-MXBQS-A0UAYZ
EAN: 4711581490062
Brand:
Vægt: 2.05 kg

Specifications

CPU
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
Memory
4x DIMM Slots, Dual Channel DDR5 up to 8000+ 256GB
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
LAN
Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Wireless LAN
802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4
Slots
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
1x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s), 4x SATA3 6.0 Gb/s Connectors
USB
2x USB 3.2 Gen2 Type-C Rear, 2x USB 3.2 Gen2 Type-A Rear, 7x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 1x USB 3.2 Gen2x2 Type-C Front, 8x USB 2.0 (4 Rear, 4 Front)

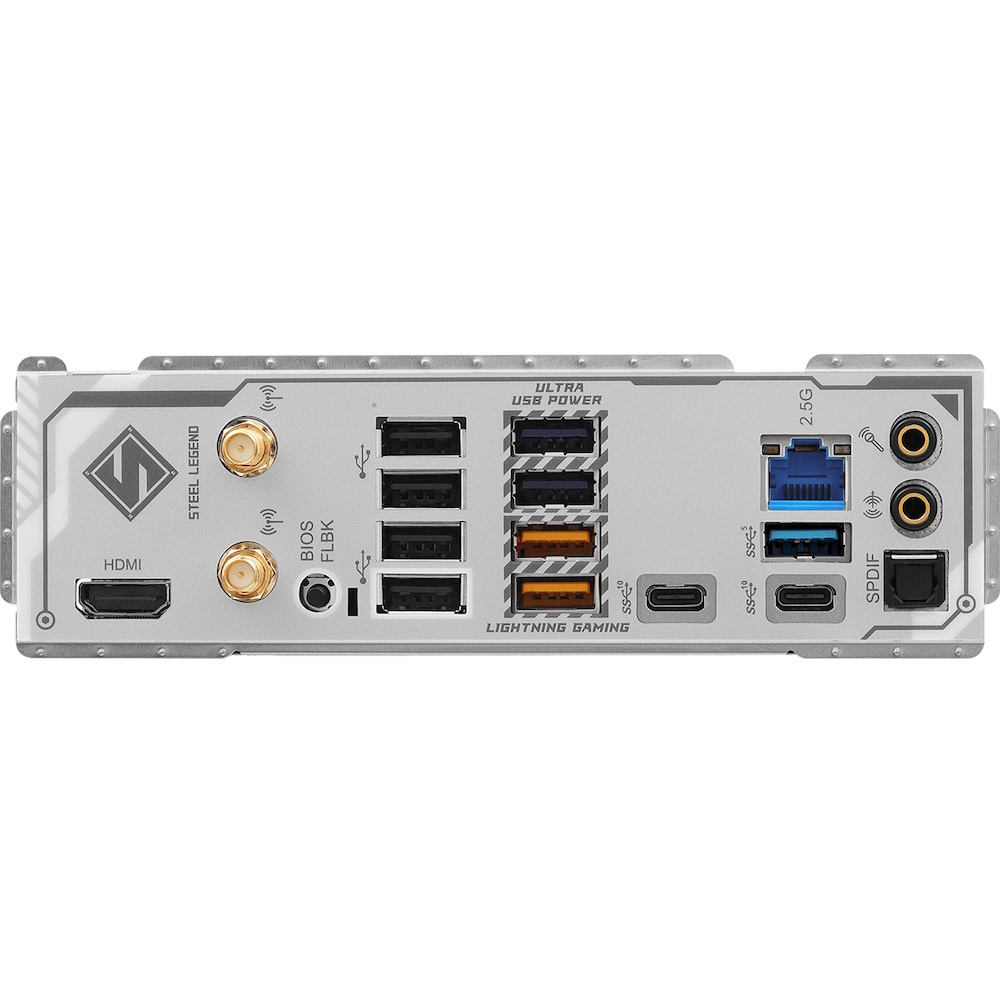

Rear ports
2x Antenna Ports, 1x HDMI Port, 1x Optical SPDIF Out Port, 1x RJ-45 LAN Port, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
Accessories
2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x Thermistor Cable
Form Factor
ATX Form Factor: 30.5 cm x 24.4 cm
Certifications
ErP/EuP ready, FCC, CE
