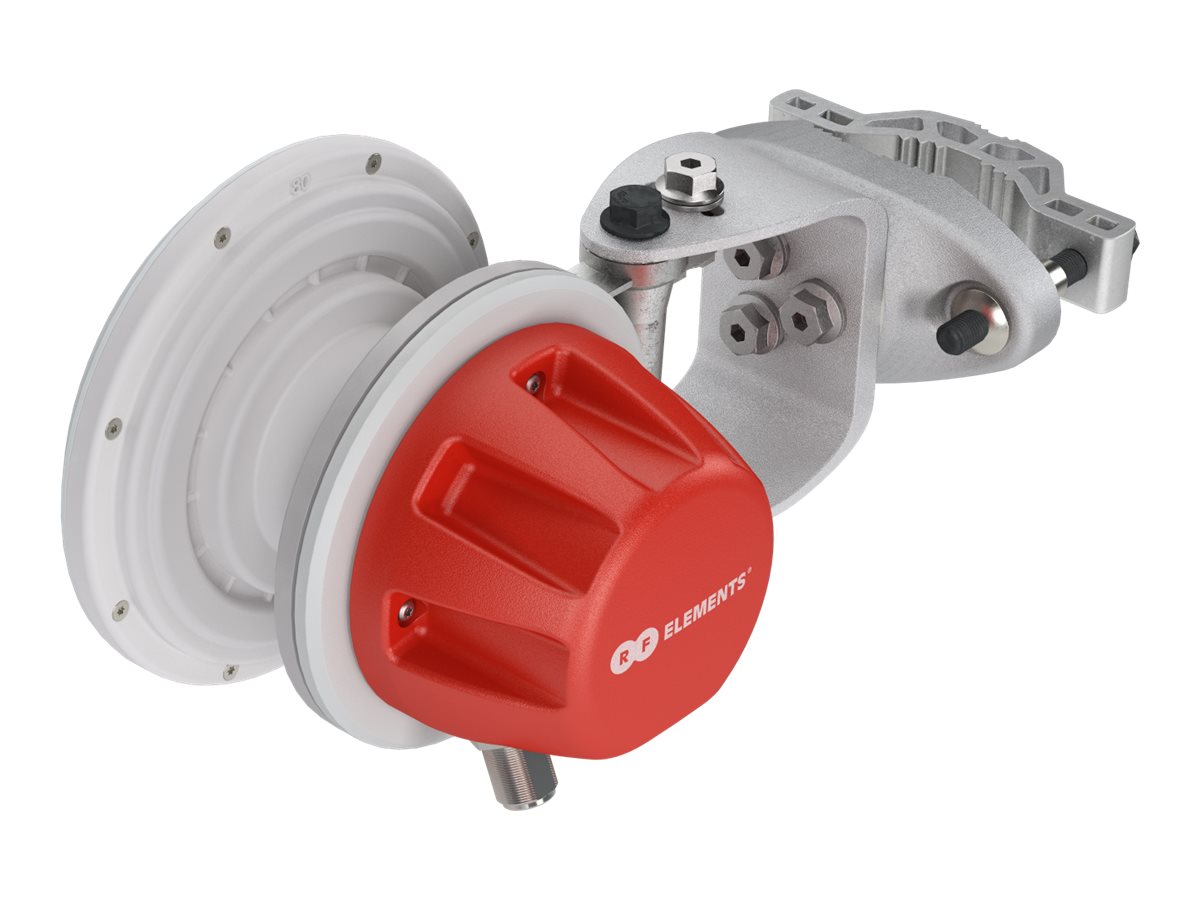

RF elements HG3-CC-S70 Antenne Horn Rød Hvid 5180 - 6400 MHz
RF elements HG3-CC-S70 - Antenne - horn - 11.5 dBi - udendørs
-
Product no 996907471
Model HG3-CC-S70
Brand RF elements
EAN 4250605584979
Weight 2.6 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | RF elements HG3-CC-S70 - antenne |
| Enhedstype | Antenne |
| Model | Horn |
| Antenneplacering/montering | Udendørs |
| Dimensioner (B x D x H) | 31.2 cm x 16.2 cm x 15.2 cm |
| Vægt | 1.8 kg |
| Frekvensrækkevidde | 5180 - 6400 MHz |
| Forstærkning | 11.5 dBi |
| Egenskaber | Anti-UV belægning, IP55, dobbelt lineær polarisering, VSWR 1.6 (til 5180 - 5850 MHz), VSWR 1.9 (til 5850 - 6400 MHz) |
| General | |
|---|---|
| Antenna Placing / Mounting | Outdoor |
| Depth | 16.2 cm |
| Form Factor | Horn |
| Height | 15.2 cm |
| Product Material | Stainless steel, aluminum, polycarbonate, polypropylene, zinc |
| Product Type | Antenna |
| Weight | 1.8 kg |
| Width | 31.2 cm |
| Antenna | |
| Features | Anti-UV coating, IP55, dual linear polarization, VSWR 1.6 (for 5180 - 5850 MHz), VSWR 1.9 (for 5850 - 6400 MHz) |
| Frequency Range | 5180 - 6400 MHz |
| Gain | 11.5 dBi |
| Impedance | 50 Ohm |
| Max Wind Speed | 160 km/h |
| Wind Load | 21 N (at 160 km/h) |
| Connector Provided | |
| Type | 2 x antenna - N connector (female) |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 23.9 cm |
| Shipping Height | 18.3 cm |
| Shipping Weight | 2.6 kg |
| Shipping Width | 30.5 cm |
