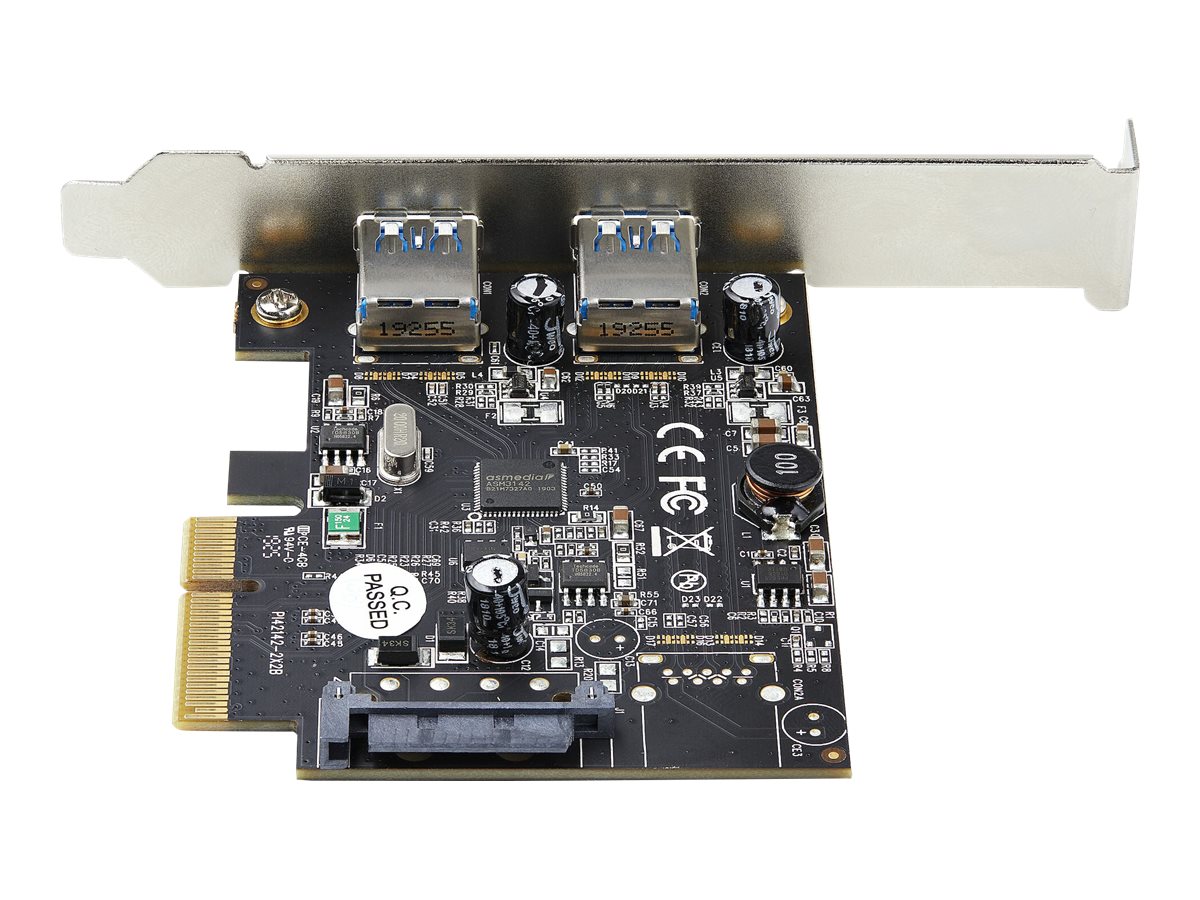

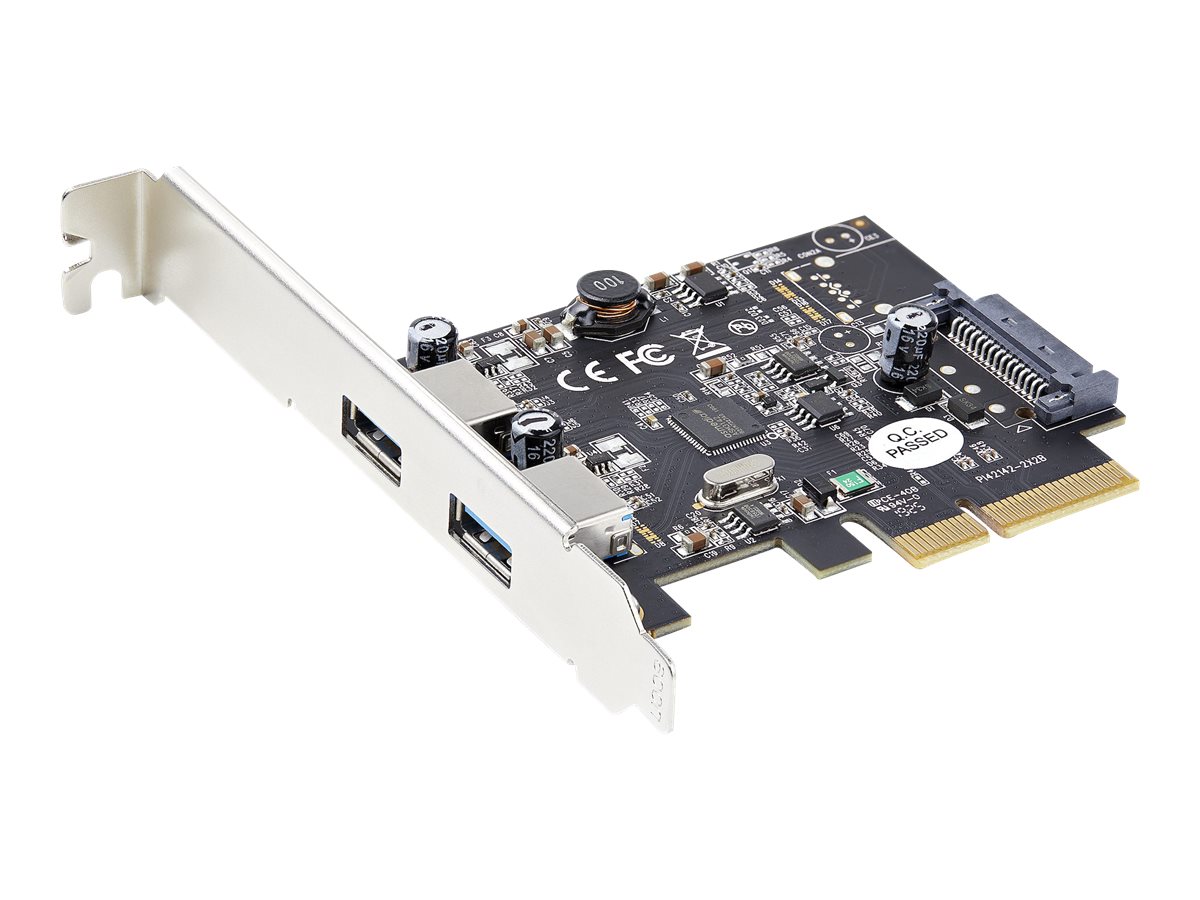

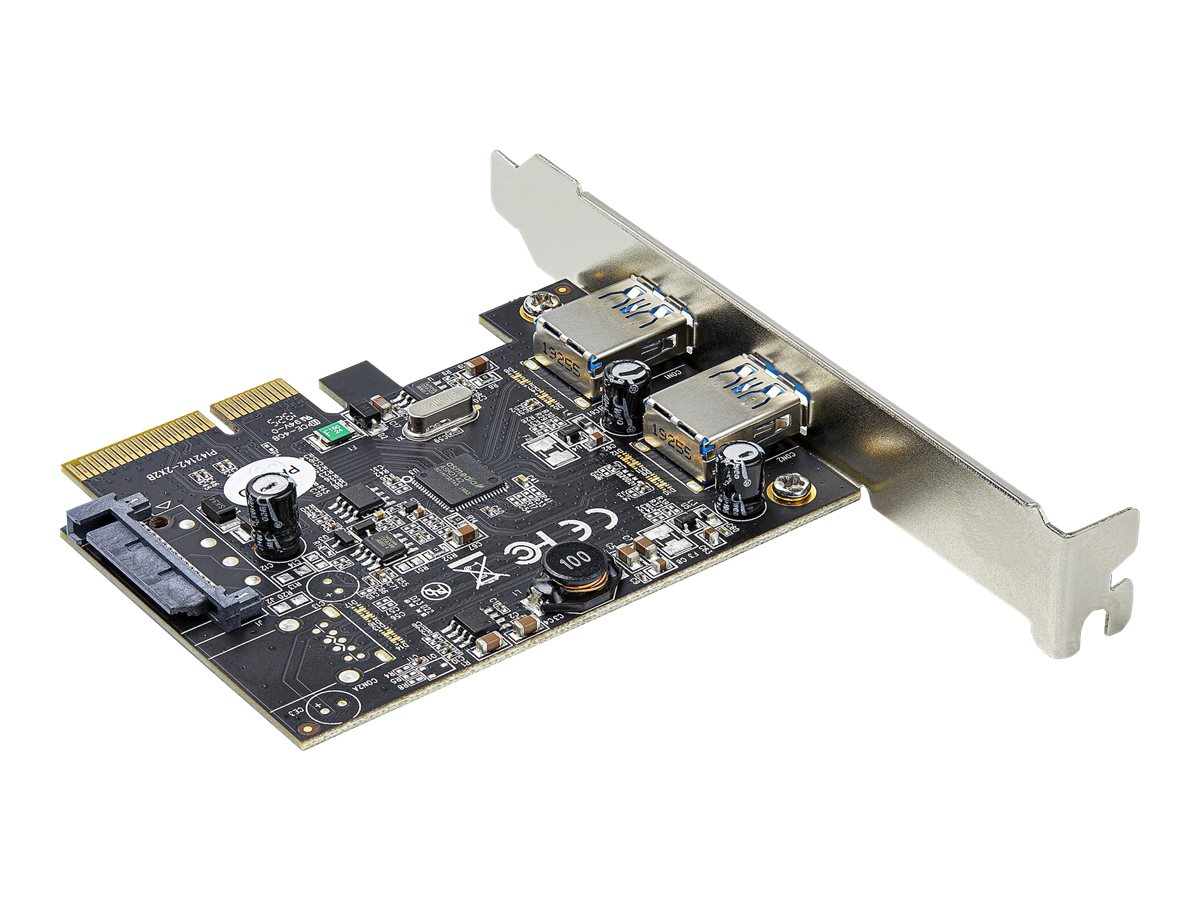

StarTech.com USB-adapter PCI Express 3.0 x4 10Gbps
Startech 2-Port USB PCIe Card 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Windows/Linux - USB-adapter - PCIe 3.0 x4 lavprofil - USB-C 3.1 Gen 2 x 2 - TAA-kompatibel
-
Product no 998369132
Model PEXUSB312A3
Brand StarTech.com
EAN 0065030887427
Weight 0.13 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| General | |
|---|---|
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0, USB 3.1 |
| Data Transfer Rate | 10 Gbps |
| Features | USB Attached SCSI Protocol (UASP) |

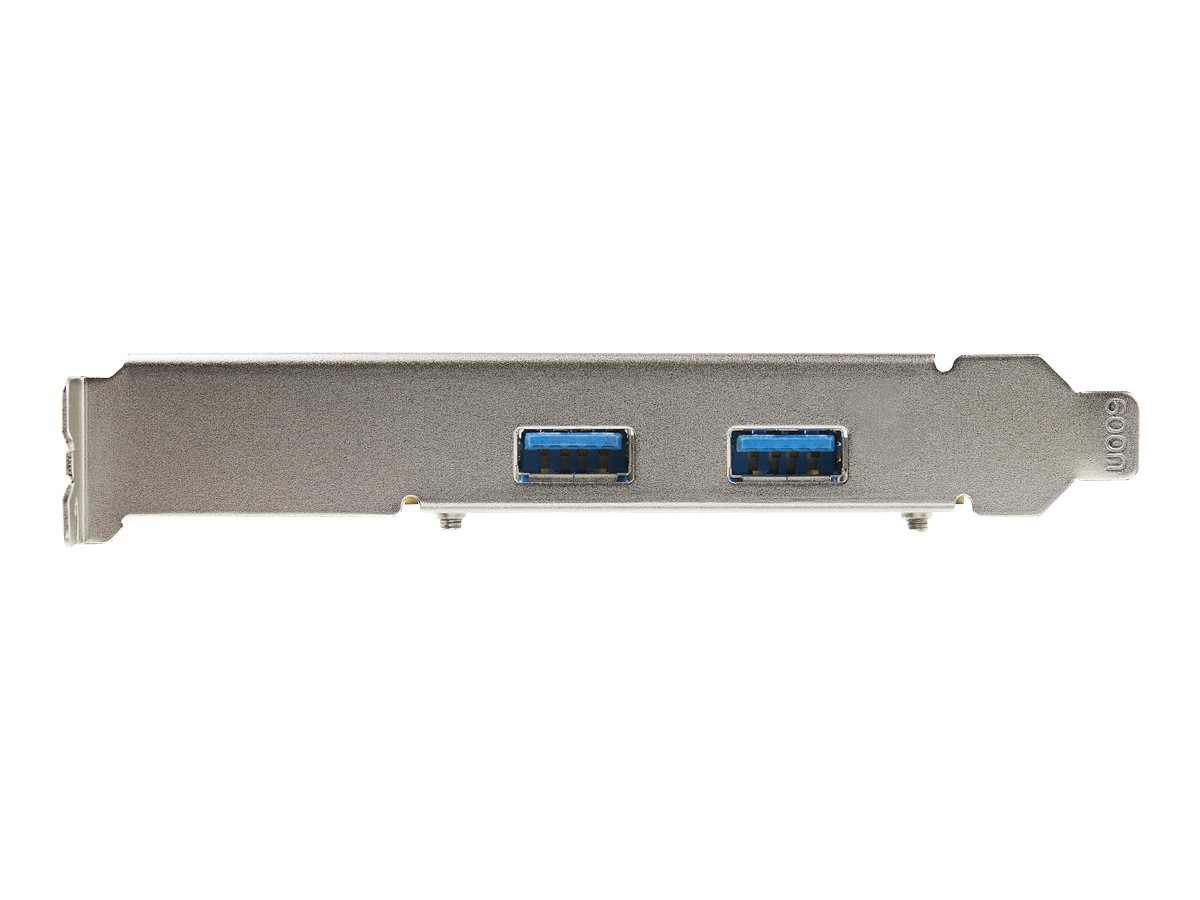

| Ports | USB-C 3.1 Gen 2 x 2 |
| Processor / Memory | |
| Processor | ASMedia ASM1142 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 - 9 pin USB Type A | 1 x SATA power - 15 pin Serial ATA power (internal) |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, WEEE, UASP (USB Attached SCSI Protocol) |

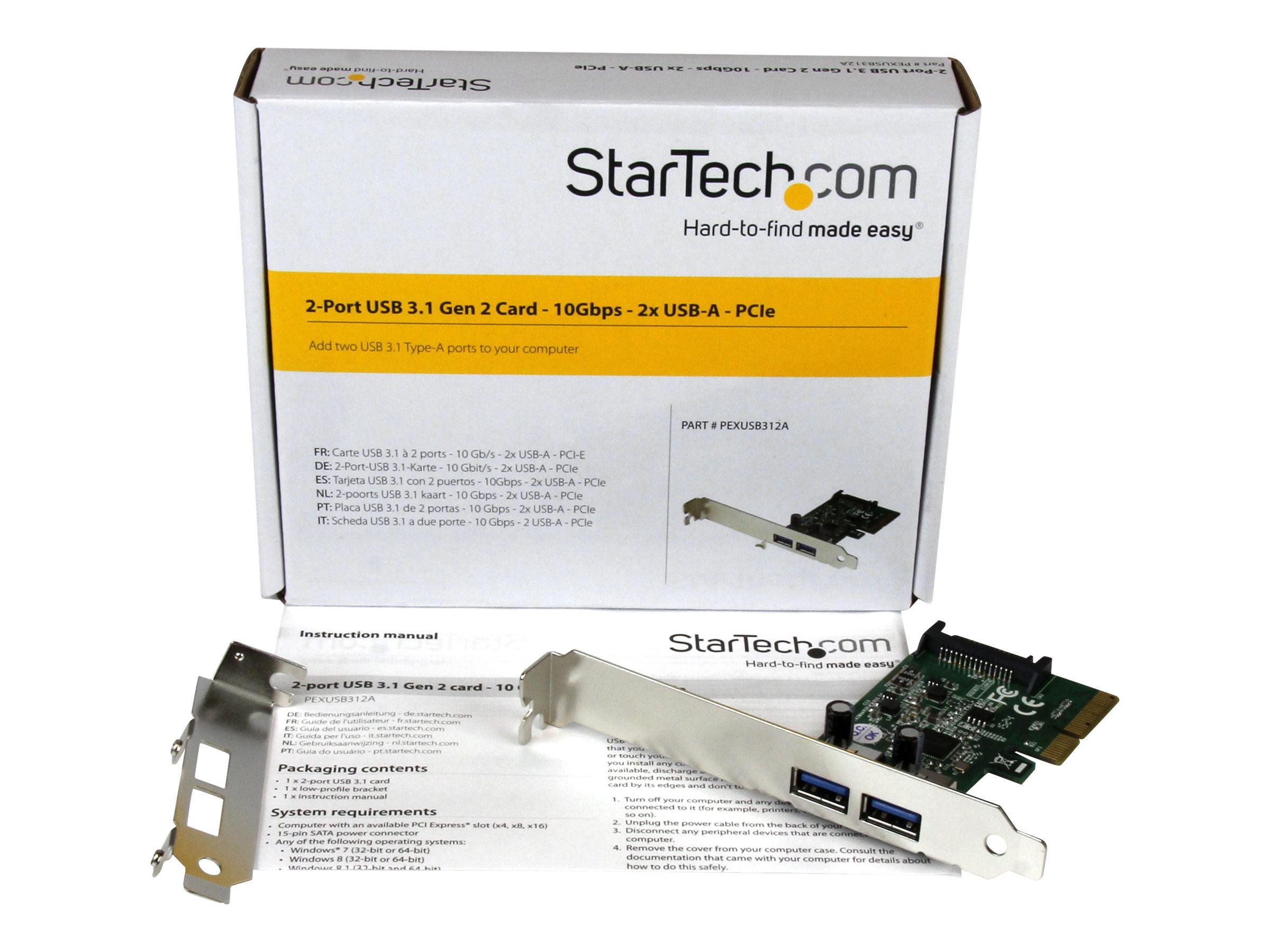

| Included Accessories | Low-profile bracket |
| MTBF | 50,000 hours |
| TAA Compliant | Yes |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple |
| Dimensions & Weight | |
| Depth | 9 cm |
| Height | 12 cm |
| Weight | 50 g |
| Width | 1.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 100 g |
| Shipping Width | 13 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
