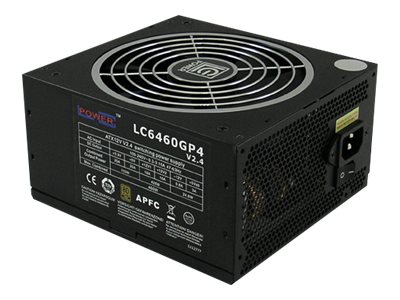

LC Power GP4 Series LC6460GP4 V2.4 460Watt 80 PLUS Gold
LC Power GP4 Series LC6460GP4 V2.4 - Strømforsyning (intern) - ATX12V 2.4 - 80 PLUS Gold - 460 Watt - aktiv PFC
-
Product no 990144760
Model LC6460GP4 V2.4
Brand LC Power
EAN 4260070124969
Weight 2.55 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LC Power GP4 Series LC6460GP4 V2.4 - strømforsyning - 460 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.4 |
| 80 PLUS certificering | 80 PLUS Gold |
| Vægt | 2.58 kg |
| Udgangspænding | +3.3, +5, +12 V |
| Strømkapacitet | 460 Watt |
| Output Current | +3.3V - 20 A<br>+5V - 20 A<br>+12V1 - 18 A<br>+12V2 - 18 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>6 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Kølesystem | 140 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 16 cm x 8.6 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.4 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 92% |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V1 - 18 A | +12V2 - 18 A |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 460 Watt |

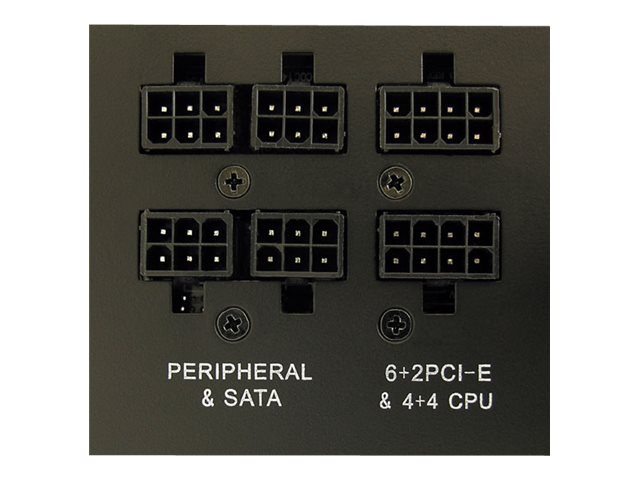

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 4 x 4 pin internal power | 1 x 4 pin mini-pow |
| Miscellaneous | |
| Compliant Standards | ErP 2014 |

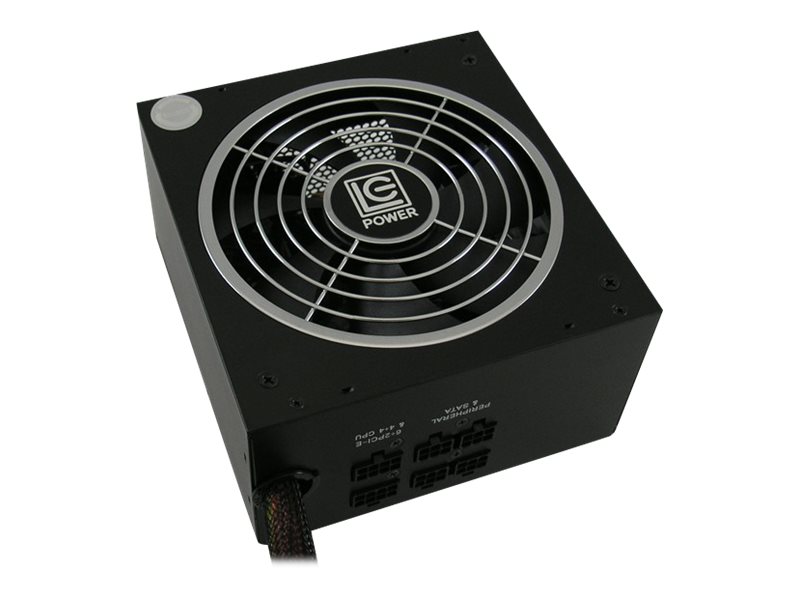

| Cooling System | 140 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection, Intel 4th-gen CPU (Haswell) compatible, non-modular |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 2.58 kg |
| Width | 15 cm |
