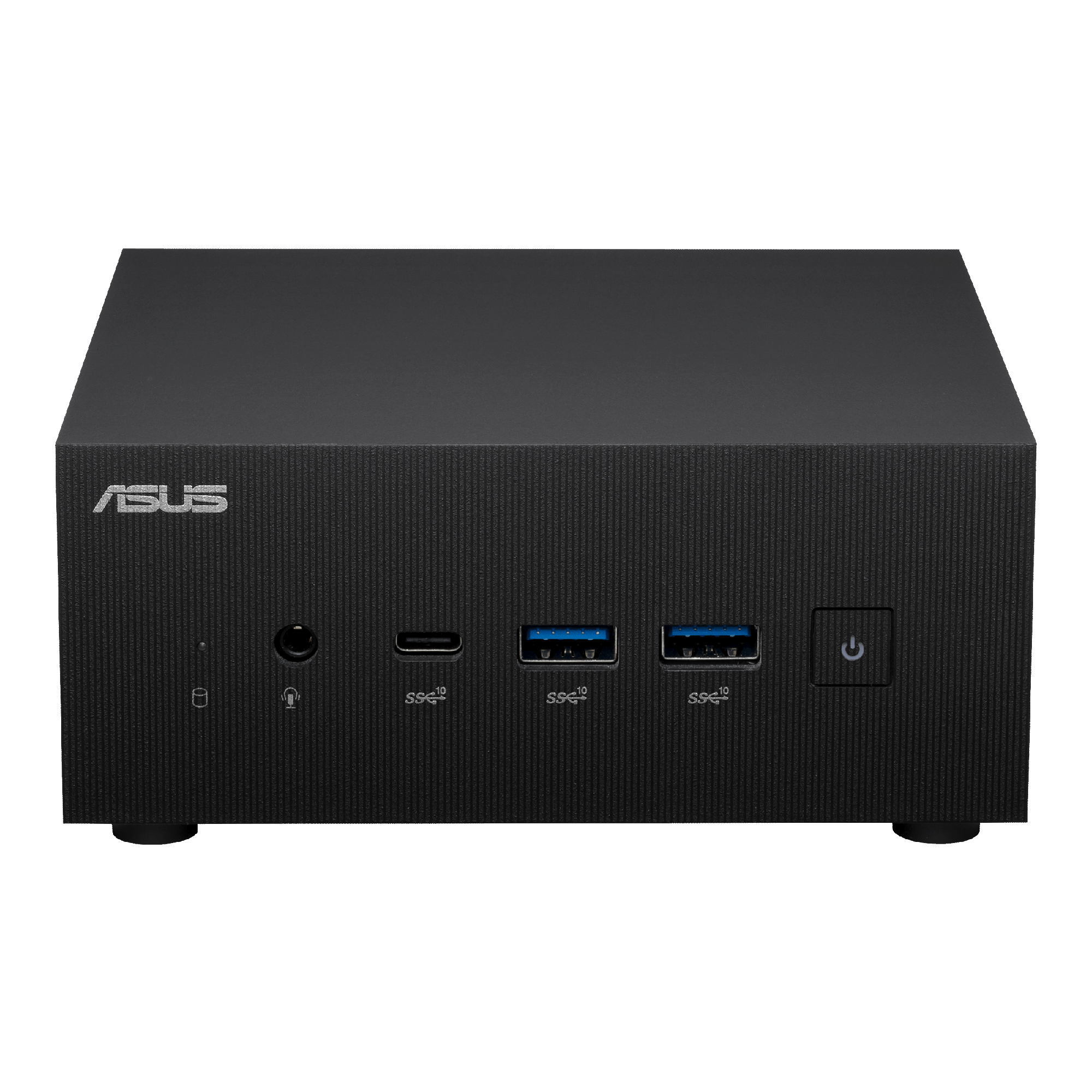

ASUS ExpertCenter PN64 S7013MD Mini PC Core i7 I7-12700H 16GB 512GB Intel Iris Xe Graphics No-OS
ASUS ExpertCenter PN64 S7013MD - Barebone - mini PC 1 x Core i7 12700H / op til 4.7 GHz - RAM 16 GB - SSD 512 GB - Intel Iris Xe Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) - sort
-
Product no 1000683574
Model 90MS02G1-M000D0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081869924
Weight 1.71 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | Intel |
| Processorserie | Intel® Core™ i7 |
| Processormodel | i7-12700H |
| Intern hukommelse | 16 GB |
| Maksimal intern hukommelse | 32 GB |
| Samlet lagringskapacitet | 512 GB |
| Optisk drevtype | Ingen |
| Lagermedie | SSD |
| Diskret grafikadapter | Ingen |
| On-board grafikkort | Ja |
| Diskret grafikadaptermodel | Ikke tilgængelig |
| On-board grafikkort, model | Intel Iris Xe Graphics |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Antal USB 2.0-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 3 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| Antal Thunderbolt 3-porte | 0 |
| Antal HDMI-porte | 2 |
| Kabinettype | Mini PC |
| Produktfarve | Sort |
| Produkttype | Mini PC |
| Operativsystem installeret | Ingen |
| Bredde | 120 mm |
| Dybde | 130 mm |
| Højde | 58 mm |
| Vægt | 1 kg |
| Skærm inkluderet | Ingen |
| General | |
|---|---|
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Processor / Chipset | |
| Clock Speed | 2.3 GHz |
| CPU | Intel Core i7 (12th Gen) 12700H |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 14-core |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | L3 cache - 24 MB |
| RAM | |
| Effective Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 16 GB |
| Rated Memory Speed | 4800 MHz |
| Technology | DDR5 SDRAM |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 |
| Type | SSD - M.2 |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Ethernet Controller | Intel I225-V |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI | 1 x LAN (2.5Gigabit Ethernet) | 1 x DisplayPort 1.4 | 1 x headphones/microphone | 3 x USB 3.2 Gen 2 | 2 x USB-C 3.2 Gen 2 |
| Slots | M.2 Card |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | Yes |
| Power | |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Operating System / Software | |
| OS Provided | No operating system |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 1 kg |
| Width | 12 cm |
