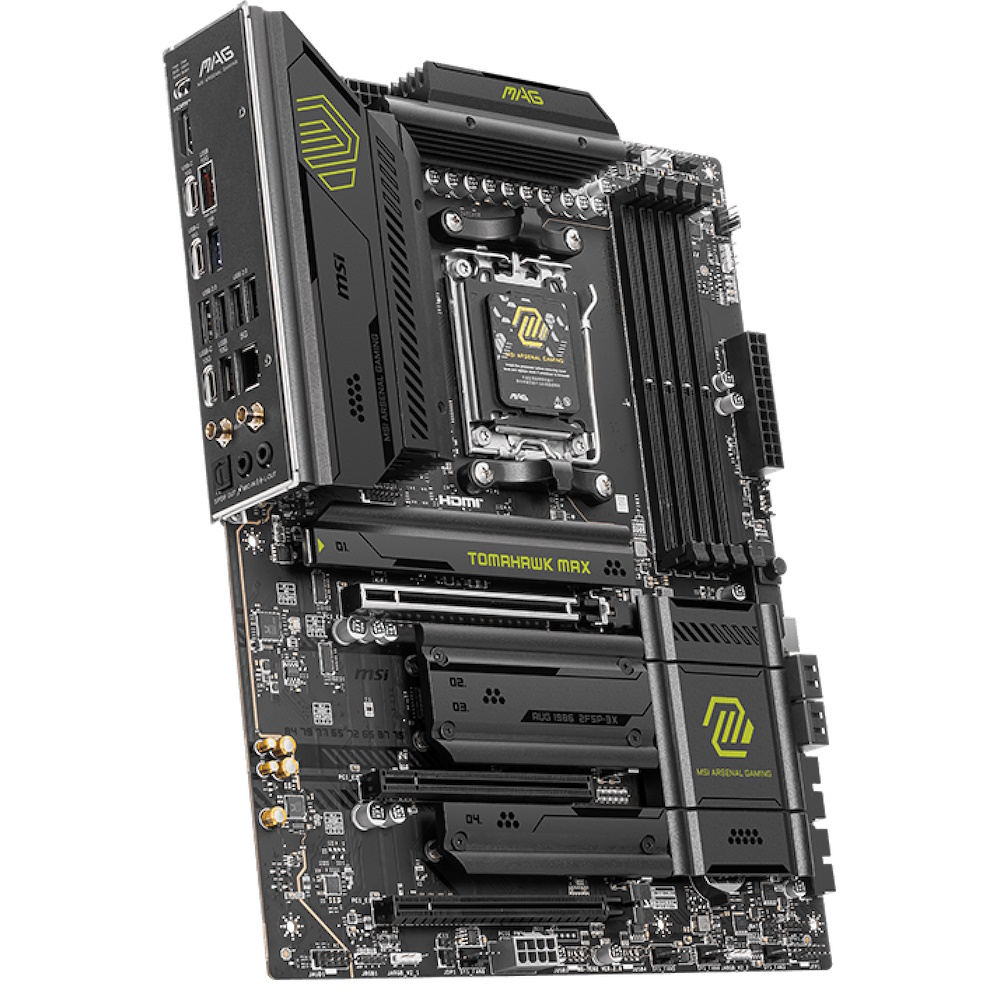

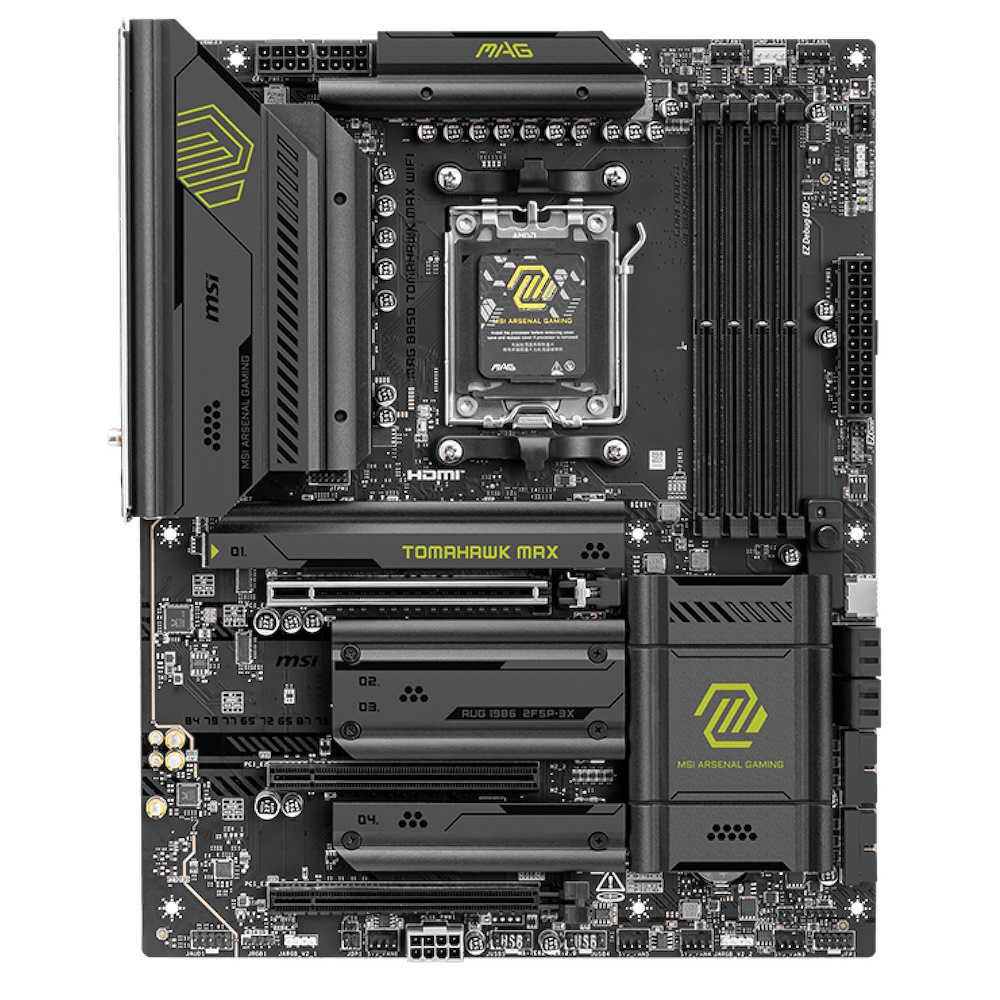

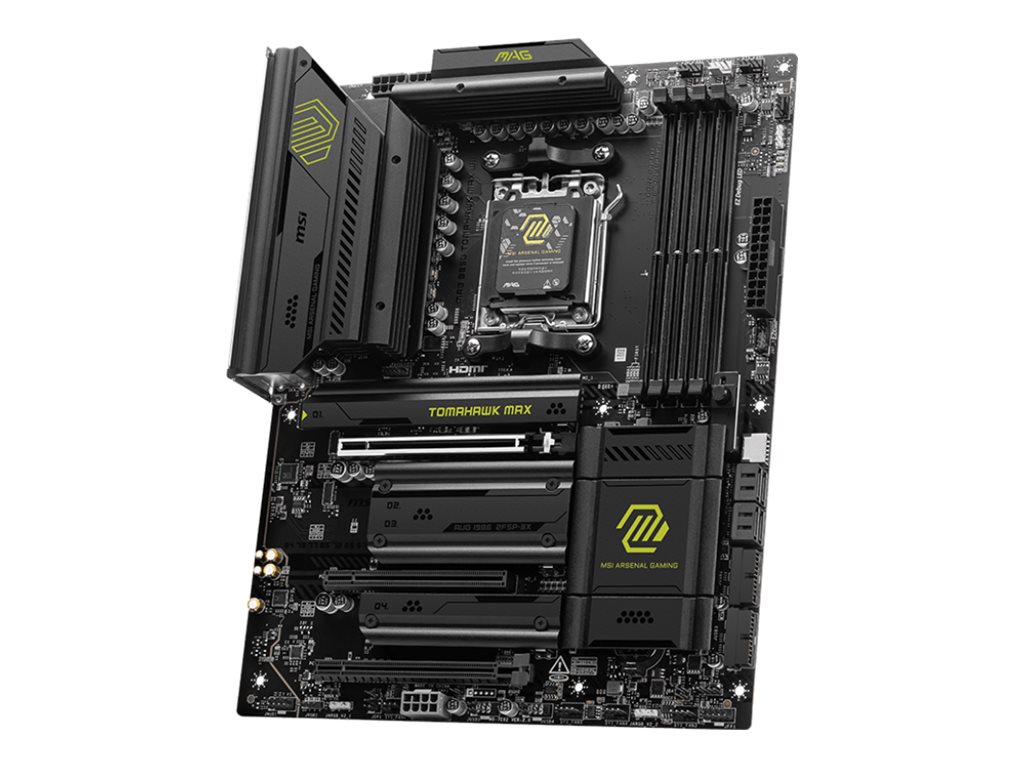

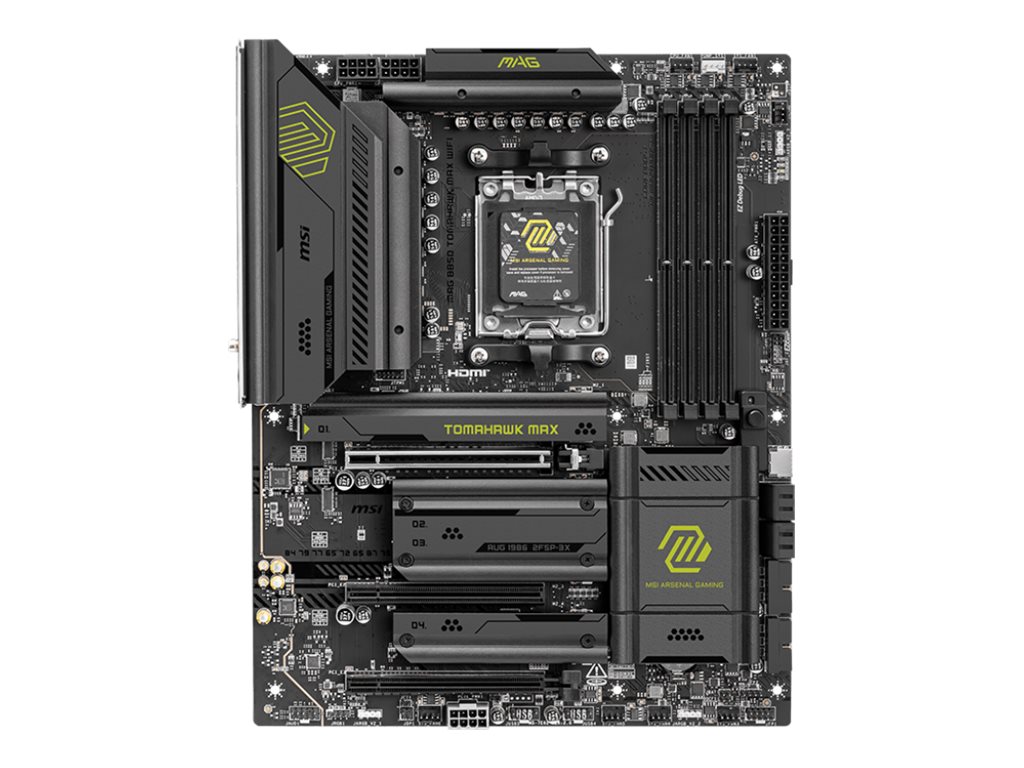

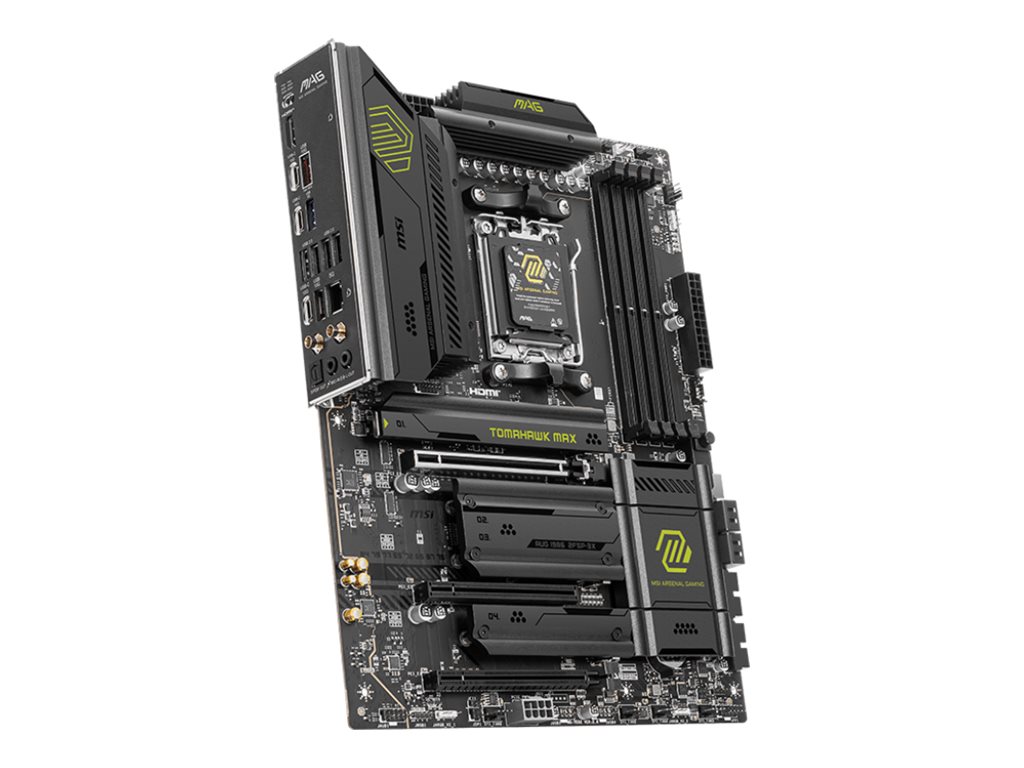

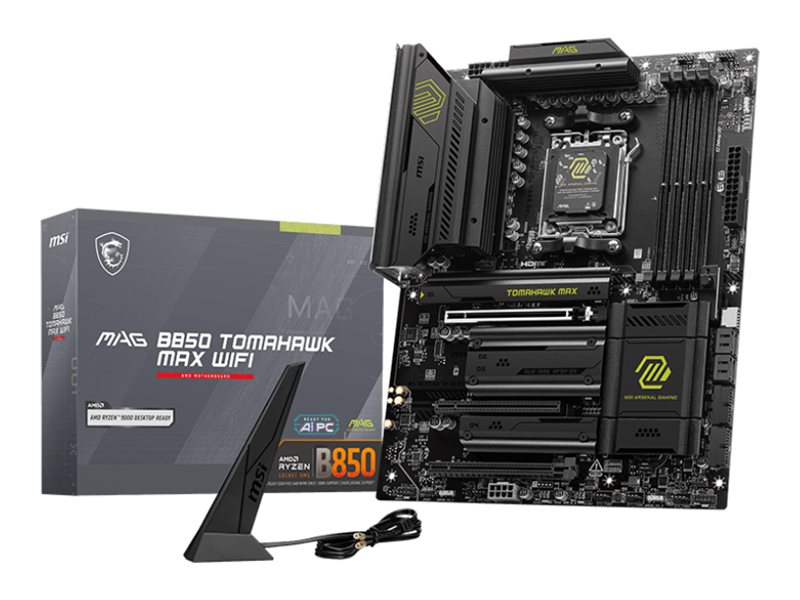

MSI Mag B850 Tomahawk Max WIFI ATX Socket AM5

MSI Mag B850 Tomahawk Max WIFI - ATX - Socket AM5 - Wi-Fi 7 - Realtek 5G Lan - 4x DDR5 slots

  • Product no 1002938643

    Model MAG B850 TOMAHAWK MA

    Brand
    Go to brand's website

    EAN 4711377290623

    Weight 2.05 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM supports DDR5 8400 - 5600, Max 256GB
Onboard Graphics 1x HDMI 2.1
Slot 3x PCI-E x16 slot (1x PCIe 5.0 in 16x, 1x PCIe 4.0 in 4x, 1x PCIe 3.0 in 1x
Audio Realtek® ALC4080 Codec
Storage 4x M.2 (2x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G
USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 1x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 2x USB 10Gbps Type A (Rear), 3x USB 10Gbps Type C (Rear), 1x USB 20Gbps Type C (Front)
LAN Realtek® 8126VB 5G LAN
Wireless Wi-Fi 7 (pre-installed in the M.2 (Key-E) slot), Bluetooth® 5.4

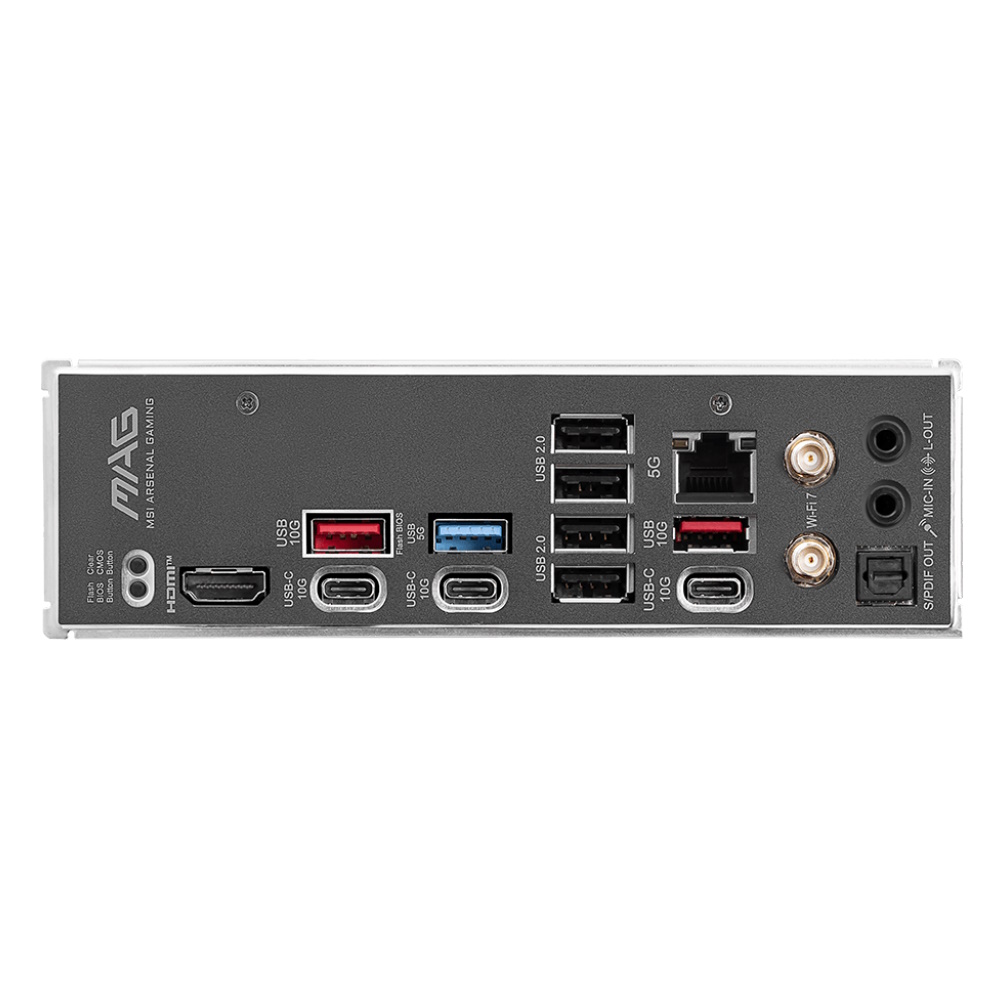

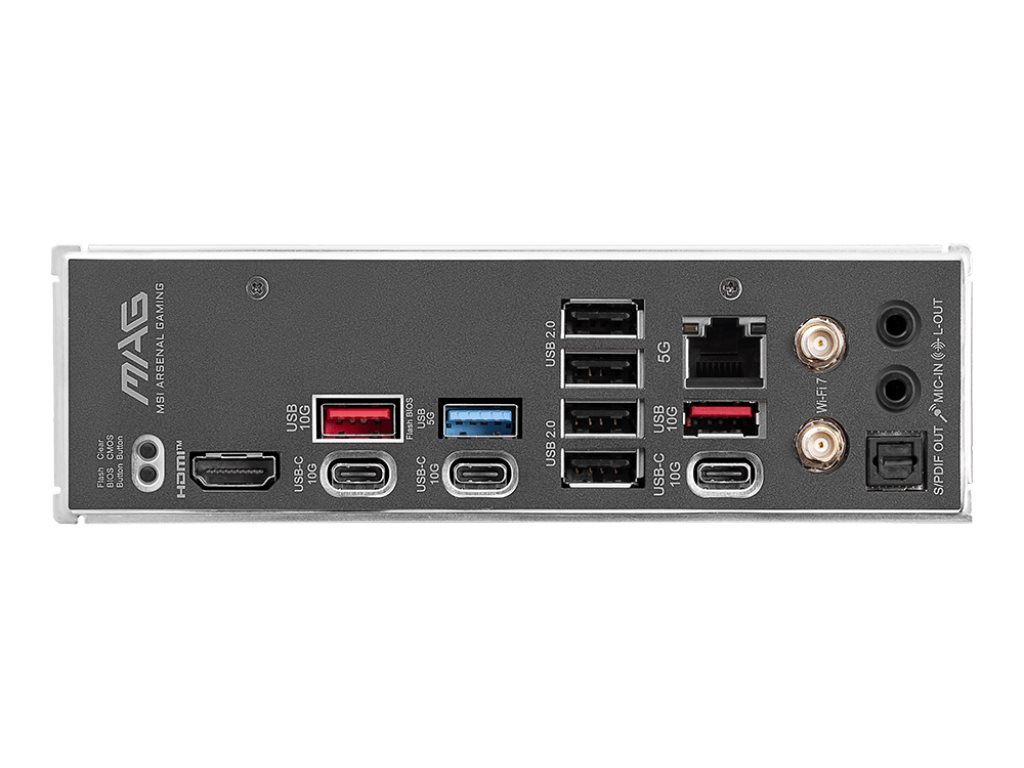

Back panel ports Clear CMOS Button, 2x USB 10Gbps Type-A, USB 5Gbps Type-A, 4x USB 2.0, 5G LAN, Wi-Fi / Bluetooth Antenna connectors, S/PDIF output, Mic-in, Line out, Flash BIOS Button, 1x HDMI, 2x USB 10Gbps Type-C
Box contents 1x SATA cable, Quick installation guide, EU regulatory notice, Shout-out flyer, EZ M.2 Clips II, EZ M.2 Clip II Remover, Cable stickers, EZ Wi-Fi Antenna, 1 to 3 EZ Conn-Cable (V2), EZ front panel cable
PCB Info ATX, 243.84 x 304.8mm
