StarTech.com PCI-X USB-adapter
Startech 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - Quad Port PCI USB 3 Controller Card (PCIUSB3S4) - USB-adapter - PCI-X lavprofil - USB 3.0 x 4 - rød - for P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS
-
Product no 988493164
Model PCIUSB3S4
Brand StarTech.com
EAN 0065030849517
Weight 0.16 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Startech 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - Quad Port PCI USB 3 Controller Card (PCIUSB3S4) - USB-adapter - PCI-X - USB 3.0 x 4 |
| Enhedstype | USB-adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI-X |
| Bus-spænding | Universal (3,3 V & 5,0 V) |
| Porte | USB 3.0 x 4 |
| Dimensioner (B x D x H) | 2 cm x 13.3 cm x 6.5 cm |
| Vægt | 80 g |
| Dataforbindelsesprotokol | USB, USB 2.0, USB 3.0 |
| Dataoverførselshastighed | 5 Gbps |
| Processor | NEC uPD720202 |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0 |
| Farve | Rød |
| Systemkrav | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), Windows 10 (32/64 bits) |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS |
| General | |
|---|---|
| Bus Voltage | Universal (3.3 V & 5.0 V) |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI-X |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Ports | USB 3.0 x 4 |
| Processor / Memory | |
| Processor | NEC uPD720202 |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI-X |
| Interfaces | 4 x USB 3.0 - 9 pin USB Type A |
| Miscellaneous | |
| Color | Red |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Low-profile bracket |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | |
| Depth | 13.3 cm |
| Height | 6.5 cm |
| Weight | 80 g |
| Width | 2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 90% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Compatibility Information | |
| Designed For | P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS |

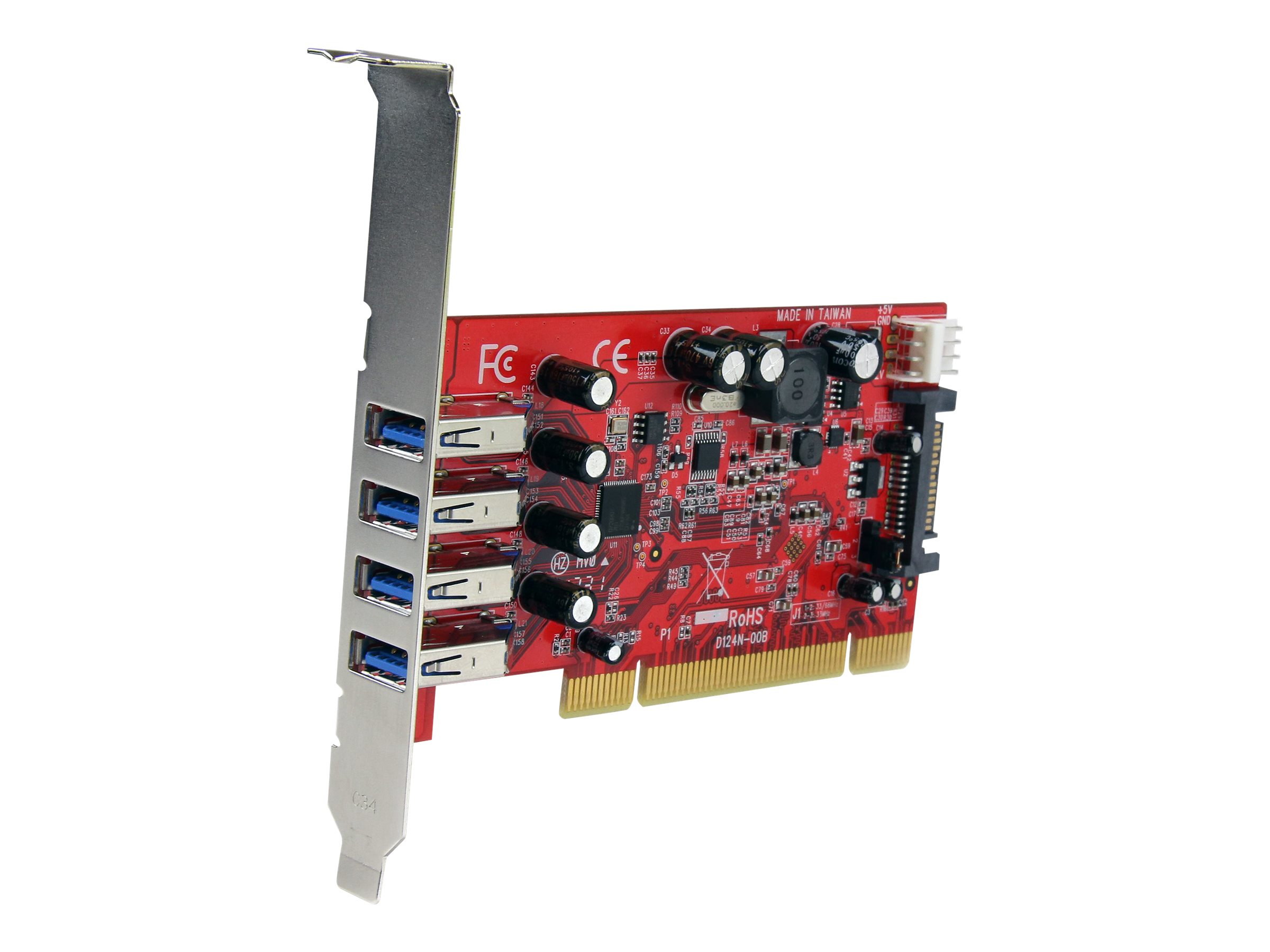

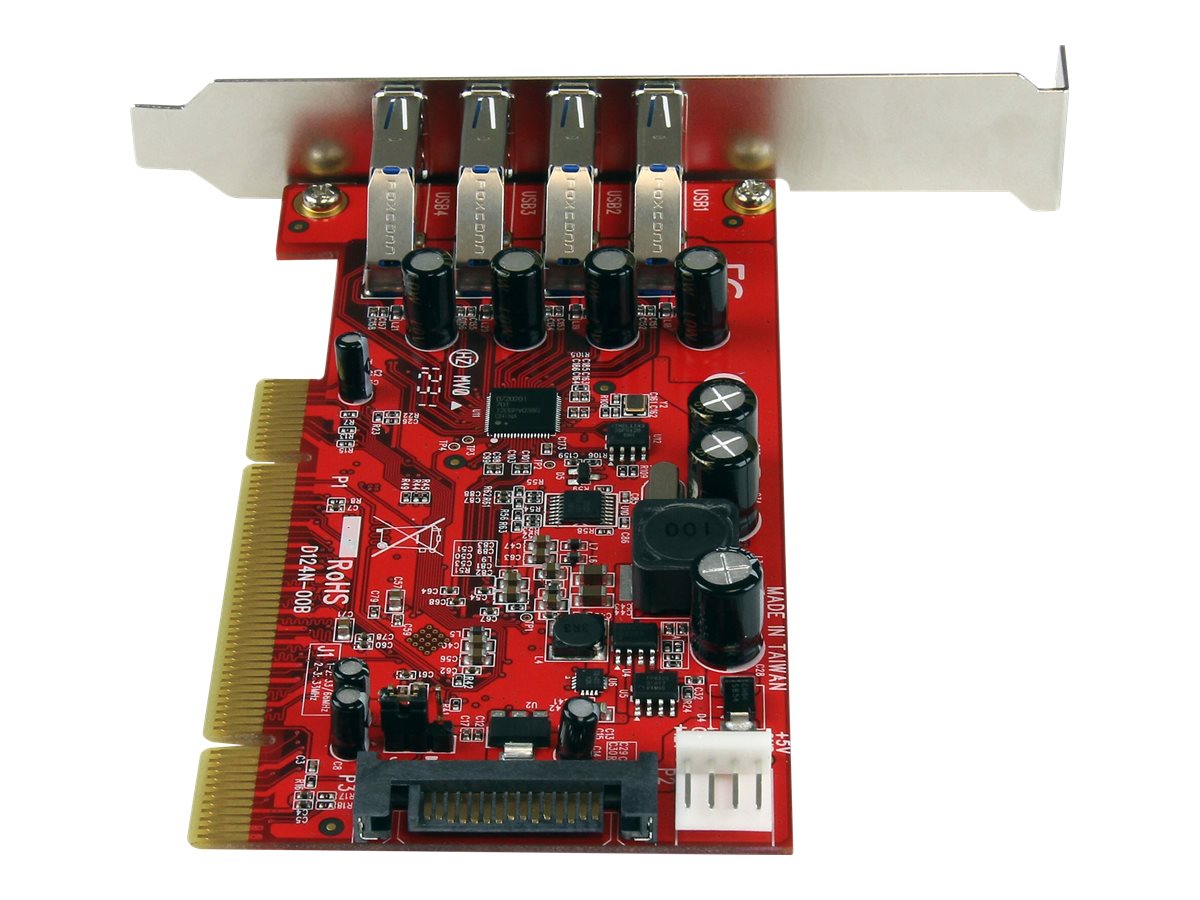

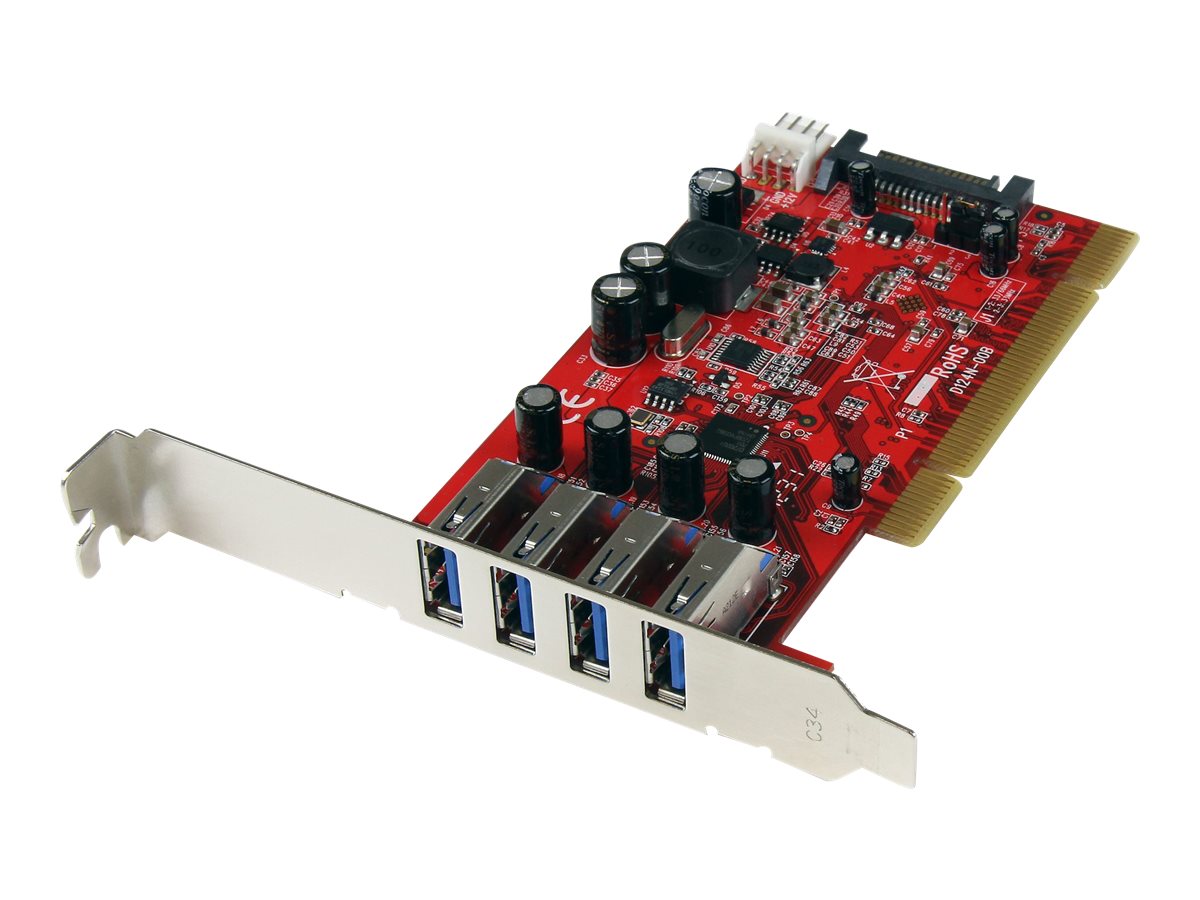

StarTech.com 4 Port PCI USB 3.0 Adapter Card with SATA / SP4 Power
Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot.
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

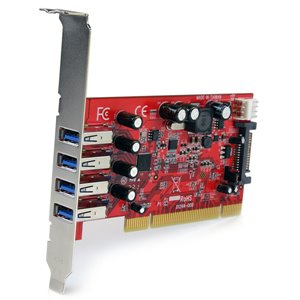

StarTech.com Advantage
- Increased data transfer rates (up to 1.3 Gbps PCI bus limit) with USB 3.0 compatible devices
- Suitable for installation in standard-sized and Small Form Factor computers
- Supports bus-powered USB 3.0 devices
.jpg)
Product Features

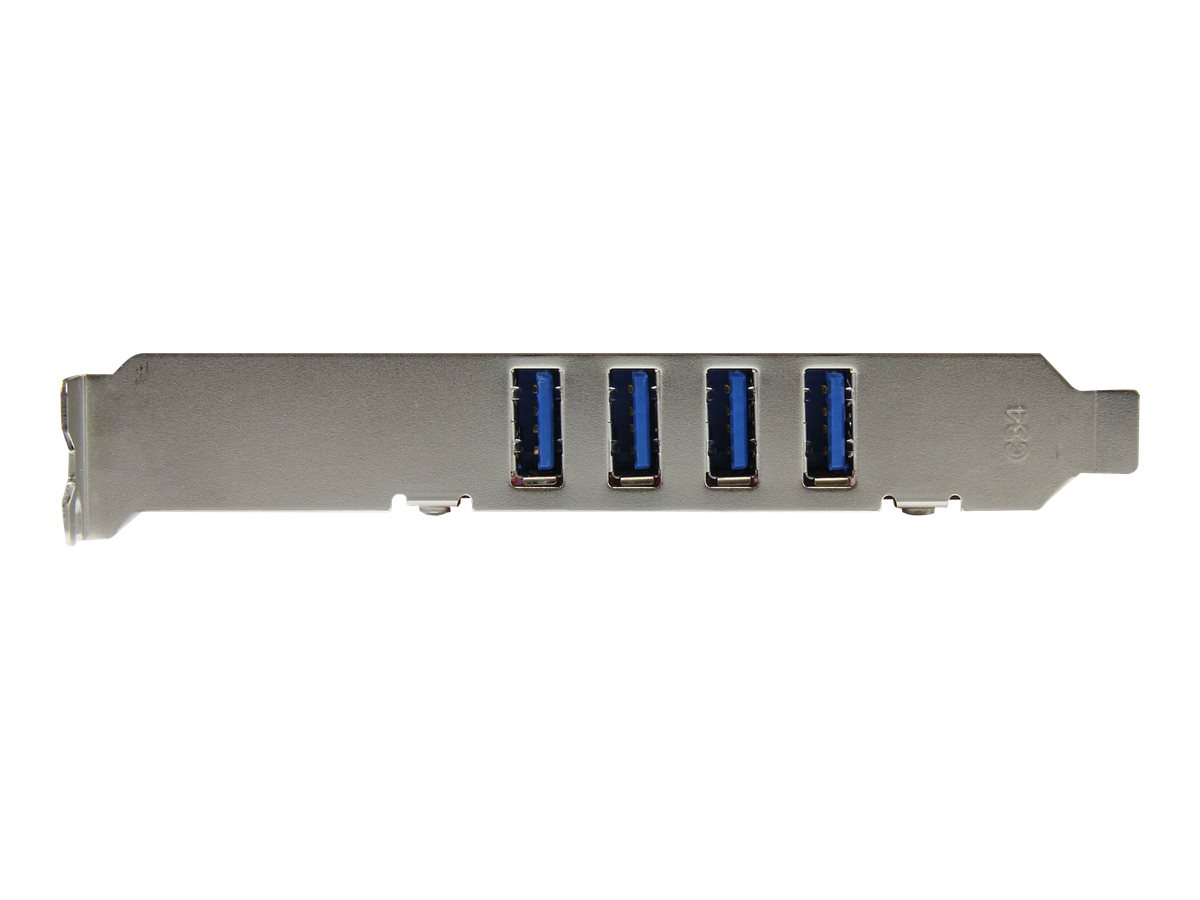

- 4 external SuperSpeed USB 3.0 ports
- Provides up to 900mA of power over USB 3.0
- Built-in optional SATA power connector for bus-powered USB devices
- Backward compatible with USB 2.0/1.x devices
- Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
- Compliant with PCI Specification 3.0

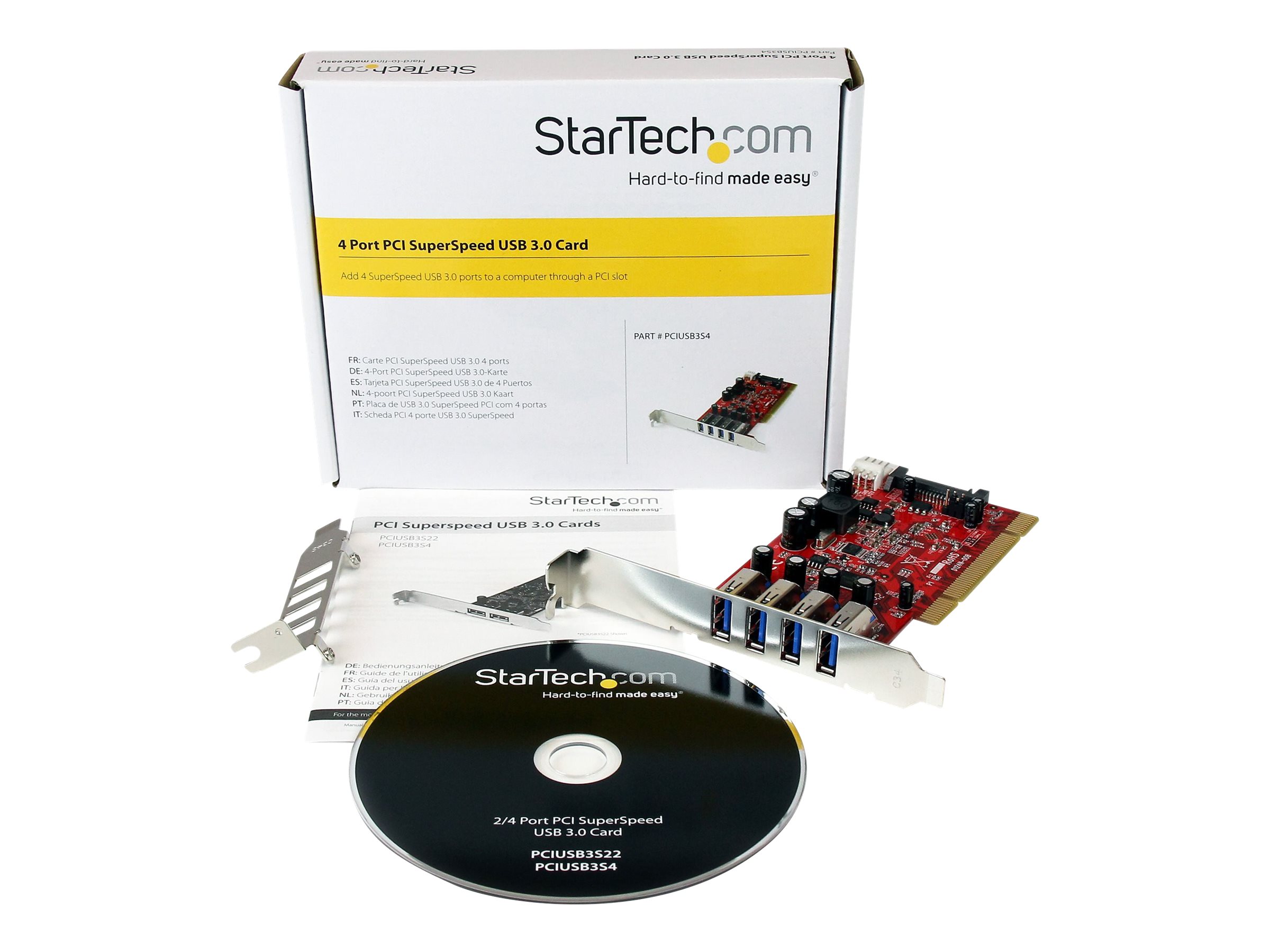

- Includes a low profile/half-height installation bracket
.jpg)

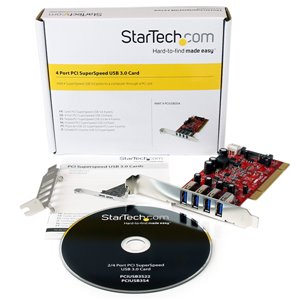

Product Applications
- Add USB 3.0 capabilities to an older PCI-based system
- Expand system capabilities by adding external USB ports
- Enable Super Speed USB 3.0 data communication for external storage devices and audio/video devices
.jpg)
