StarTech.com Lagrings mobil rack 2.5" Sort

4 BAY 3.5IN SATA / SAS HDD

  • Product no 989488607

    Model HSB4SATSASBA

    Brand StarTech.com

    EAN 0065030859547

    Weight 1.59 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 4-Bay Mobile Rack Backplane - Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD (HSB4SATSASBA) - lagrings mobil rack
Enhedstype Lagrings mobil rack
Farve Sort
Udvidelses-båse 4 x hot-swap - 3.5"
Kompatibel bås 3 5.25"
Harddiskens formfaktorkompatibilitet 2.5"
Understøttet grænseflade SATA-600
Drev connector 29 pin internal SAS (SFF-8482)
Egenskaber Dataindikator, strømindikator, køleventilator
Produktmateriale Aluminium
Dimensioner (B x D x H) 14.5 cm x 19.8 cm x 12.5 cm
Vægt 120 g
Producentgaranti 2 års garanti
General
Color Black
Device Type Storage mobile rack
Features Data indicator, power indicator, cooling fan
Hard Drive Form Factor Compatibility 2.5"
Product Material Aluminum
Supported Interface SATA-600
Storage Controller
Processor No CPU
Expansion / Connectivity
Bays 4 x hot-swap - 3.5"
Compatible Bay 3 x external 5.25"
Connections 4 - 7 pin Serial ATA | 2 - 15 pin Serial ATA power
Interfaces 4 x SATA 6Gb/s - 29 pin internal SAS (SFF-8482)
Miscellaneous
Cables Included 4 x Serial ATA cable
Compliant Standards FCC, RoHS
Included Accessories 2 security keys, 8 x screws
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 19.8 cm
Height 12.5 cm
Weight 120 g
Width 14.5 cm
Environmental Parameters
Humidity Range Operating 5 - 85%
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C

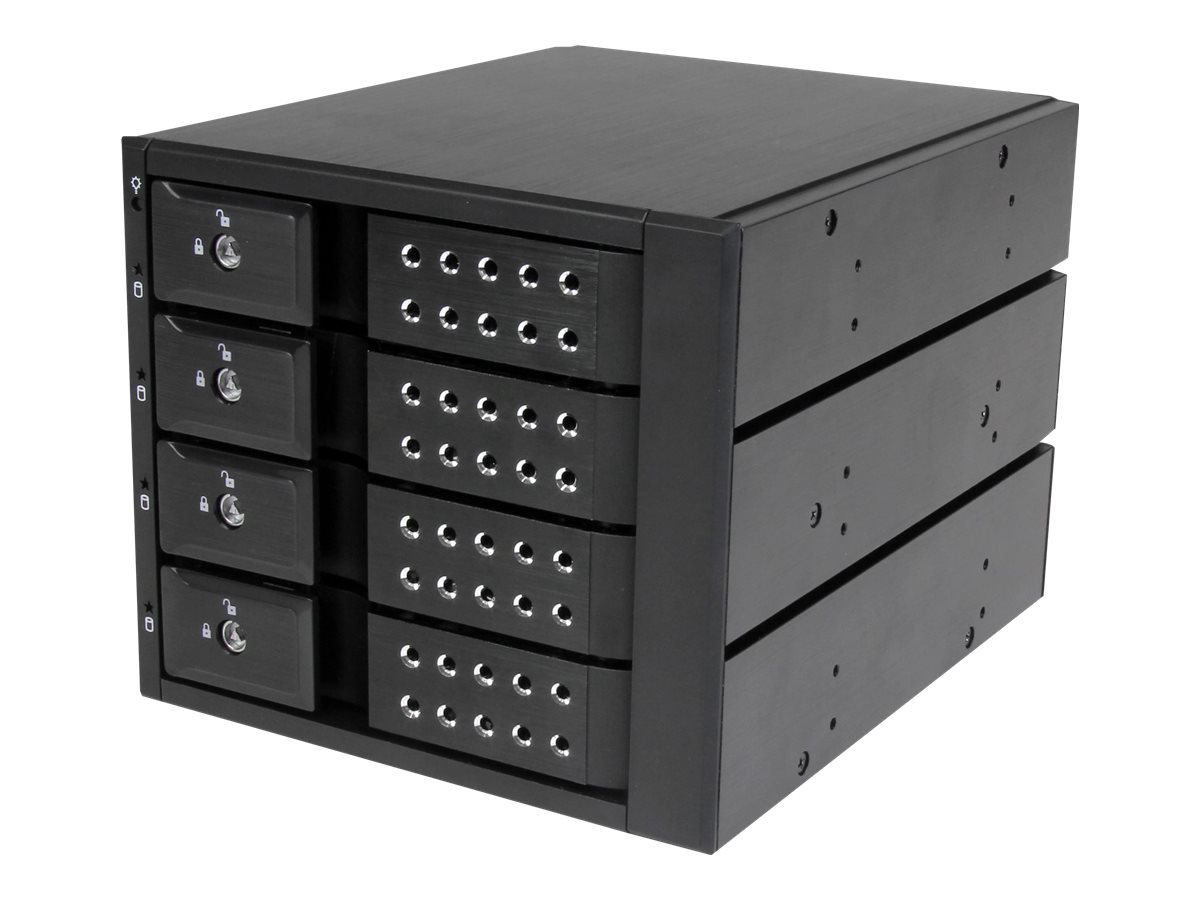

Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

  • Solid aluminum construction
  • Key lock design
  • Built-in fan
  • 4 drive bay design
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
slide {0} of {1}, zoom in, Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
Flexible drive options with support for both SATA and SAS drive interfaces

Flexible drive options with support for both SATA and SAS drive interfaces

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

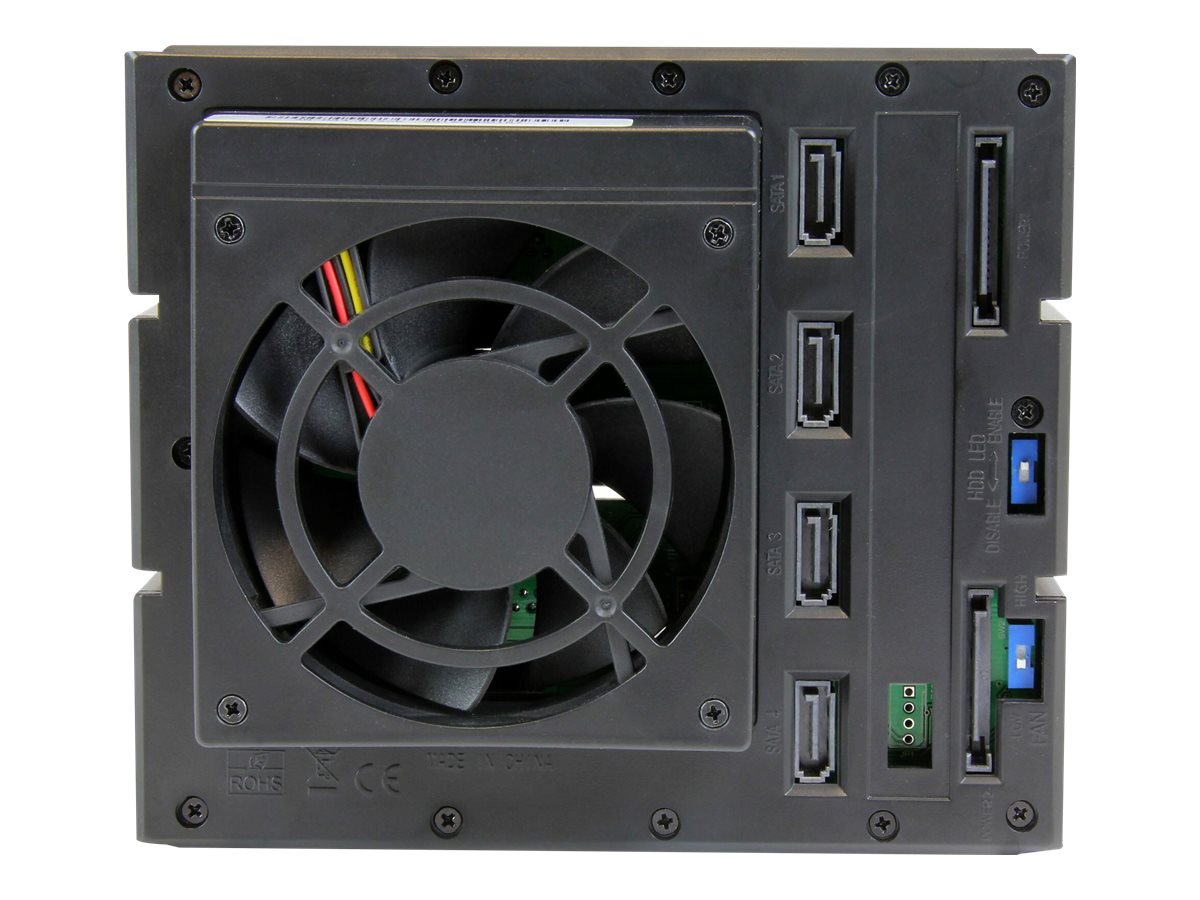

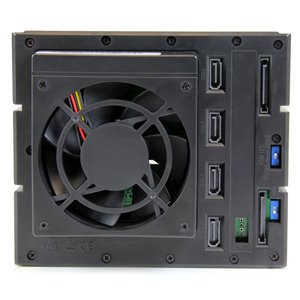

Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan

Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan

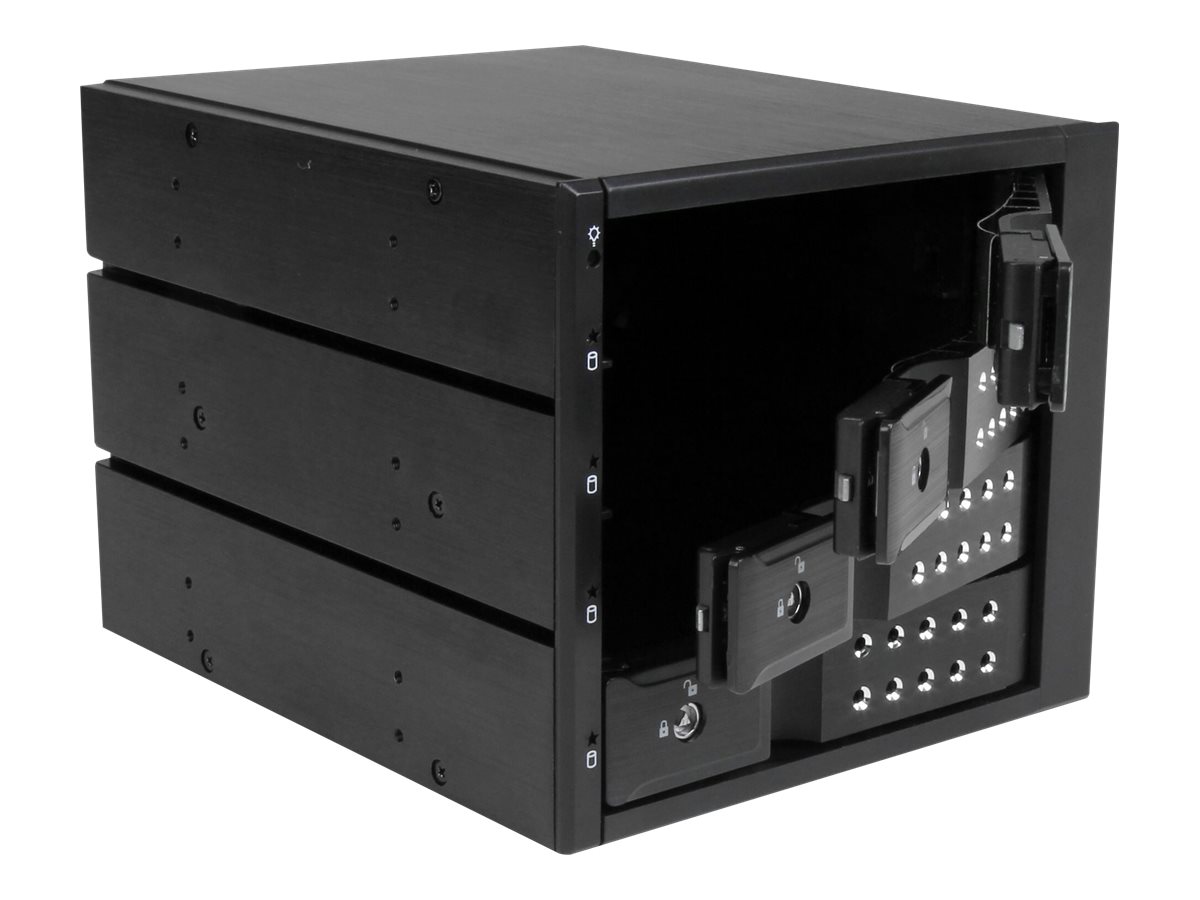

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

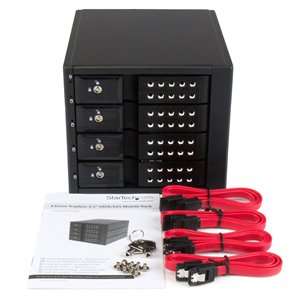

Guaranteed Reliability

Guaranteed Reliability

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Imaging - for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives
  • Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution
  • IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required
  • Onsite data backup as a secure alternative to cloud storage
