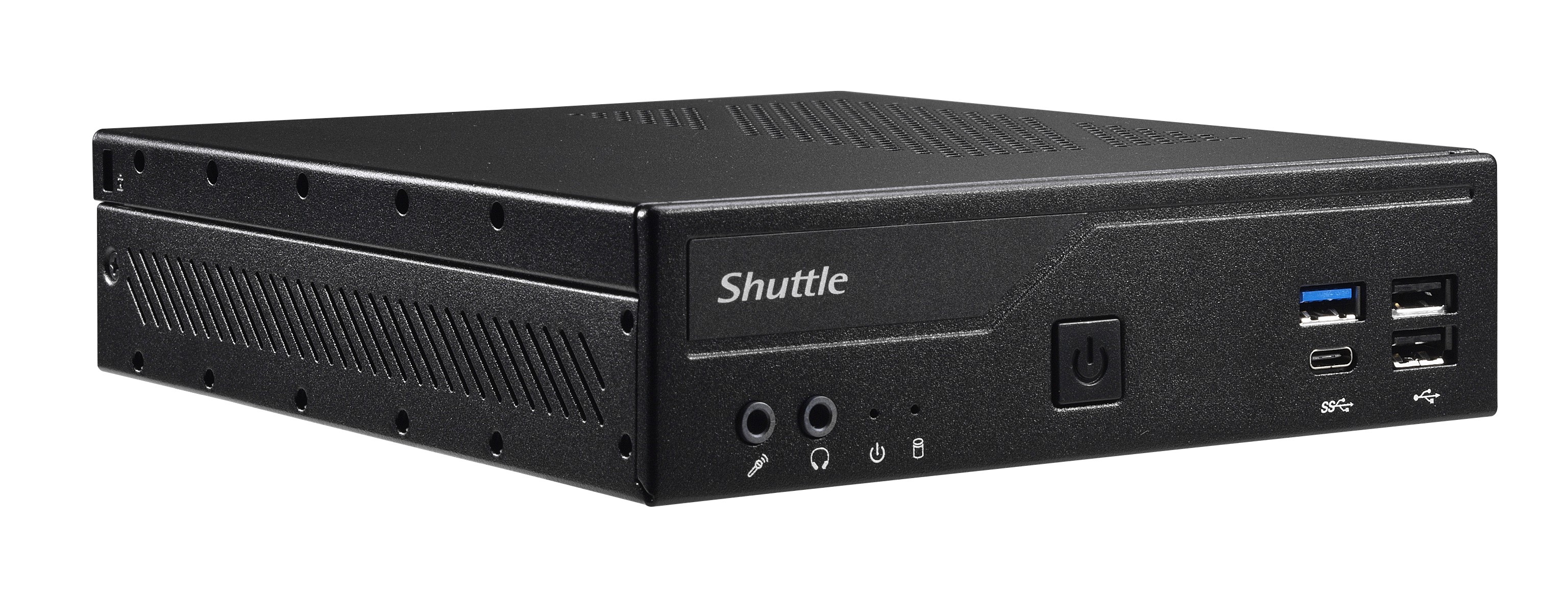

Shuttle XPC slim DH610 Slim-PC Uden CPU 0GB 0GB Uden grafik No-OS
Shuttle XPC slim DH610 - Barebone - Slim-PC LGA1700 sokkel - Intel H610 - uden CPU - RAM 0 GB - Gigabit Ethernet, 2.5 Gigabit Ethernet - sort
-
Product no 1000740529
Model DH610
Brand
Go to brand's websiteEAN 887993005119
Weight 2.52 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Shuttle XPC slim DH610 - Slim-PC uden CPU - 0 GB - ingen HDD |
| Type | PC barebone - Slim-PC |
| Processor | Uden CPU |
| Processor-socket | LGA1700 sokkel |
| RAM | 0 GB (installeret) / 64 GB (maks.) - DDR4 SDRAM |
| Controller for lagring | SATA (SATA 6Gb/s) |
| Harddisk | Ingen HDD |
| Optisk lagring | Intet optisk drev |
| Grafik controller | Uden grafik |
| Lydudgang | Stereo |
| Netværk | 1GbE, 2.5GbE |
| Effekt | (50/60 Hz) |
| Med OS | Intet operativt system |
| Farve | Sort |
| Dimensioner (B x D x H) | 19 cm x 16.5 cm x 4.3 cm |
| Vægt | 1.3 kg |
| Miljømæssige standarder | ENERGY STAR kvalificeret |
| General | |
|---|---|
| Built-in Devices | LED panel |
| Color | Black |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Slim-PC |
| Type | PC barebone |
| Processor / Chipset | |
| Chipset Type | Intel H610 |
| CPU | No CPU |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB / 64 GB (max) |
| Rated Memory Speed | 3200 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | Stereo |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), Teaming support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces | 1 x microphone (1 in front) | 1 x audio line-out/headphones (1 in front) | 2 x DisplayPort | 1 x HDMI | 1 x LAN (Gigabit Ethernet) | 3 x USB 3.2 Gen 1 (1 front, 2 rear) | 1 x USB-C 3.2 Gen 1 (1 in front) | 4 x USB 2.0 (2 front, 2 rear) | 1 x serial ( |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 | 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ERP, EMI, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC |
| Included Accessories | VESA mounting kit, mount screw, CPU thermal grease |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Operating System / Software | |
| OS Provided | No operating system |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 4.3 cm |
| Weight | 1.3 kg |
| Width | 19 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.1 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
