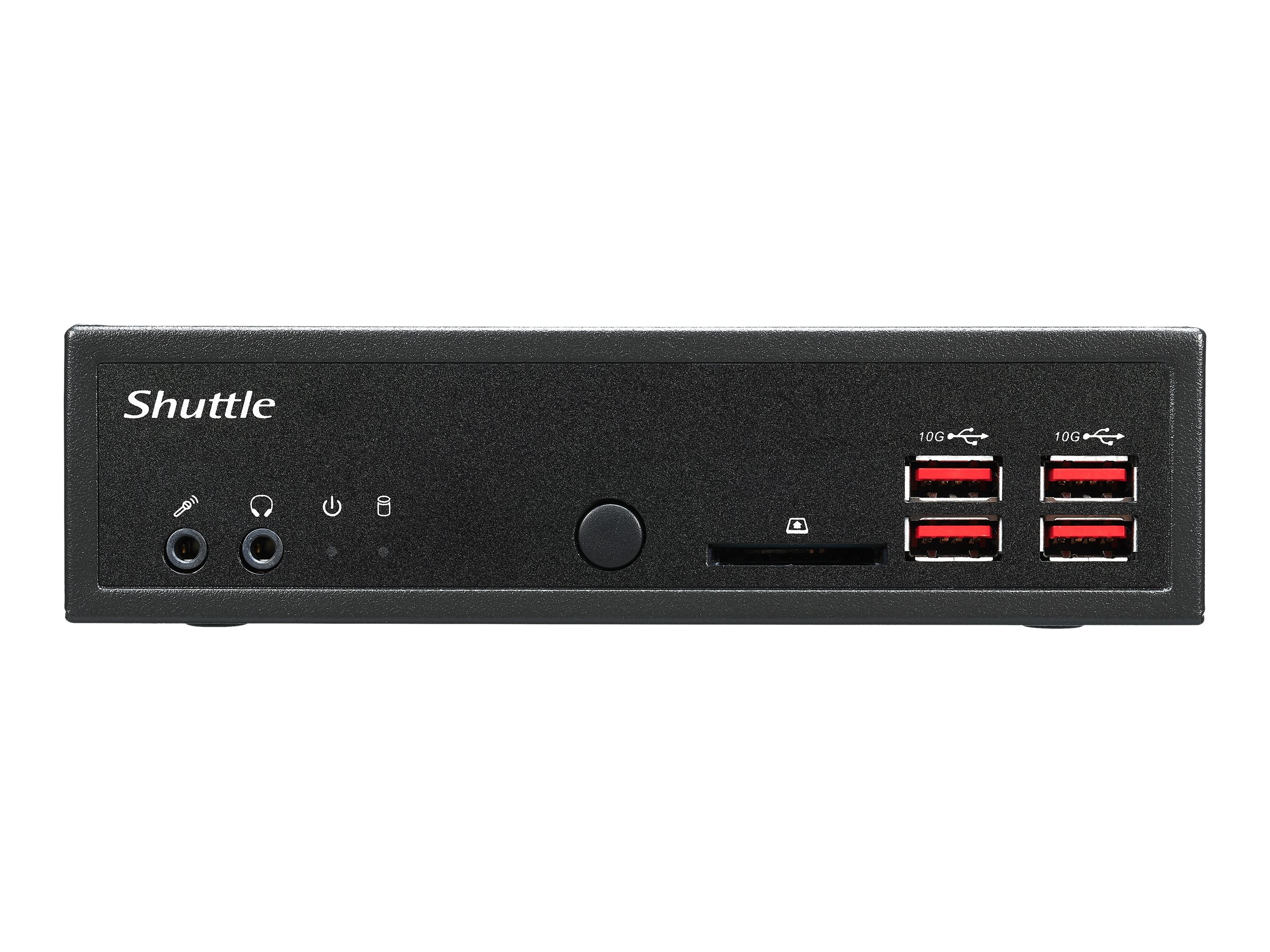

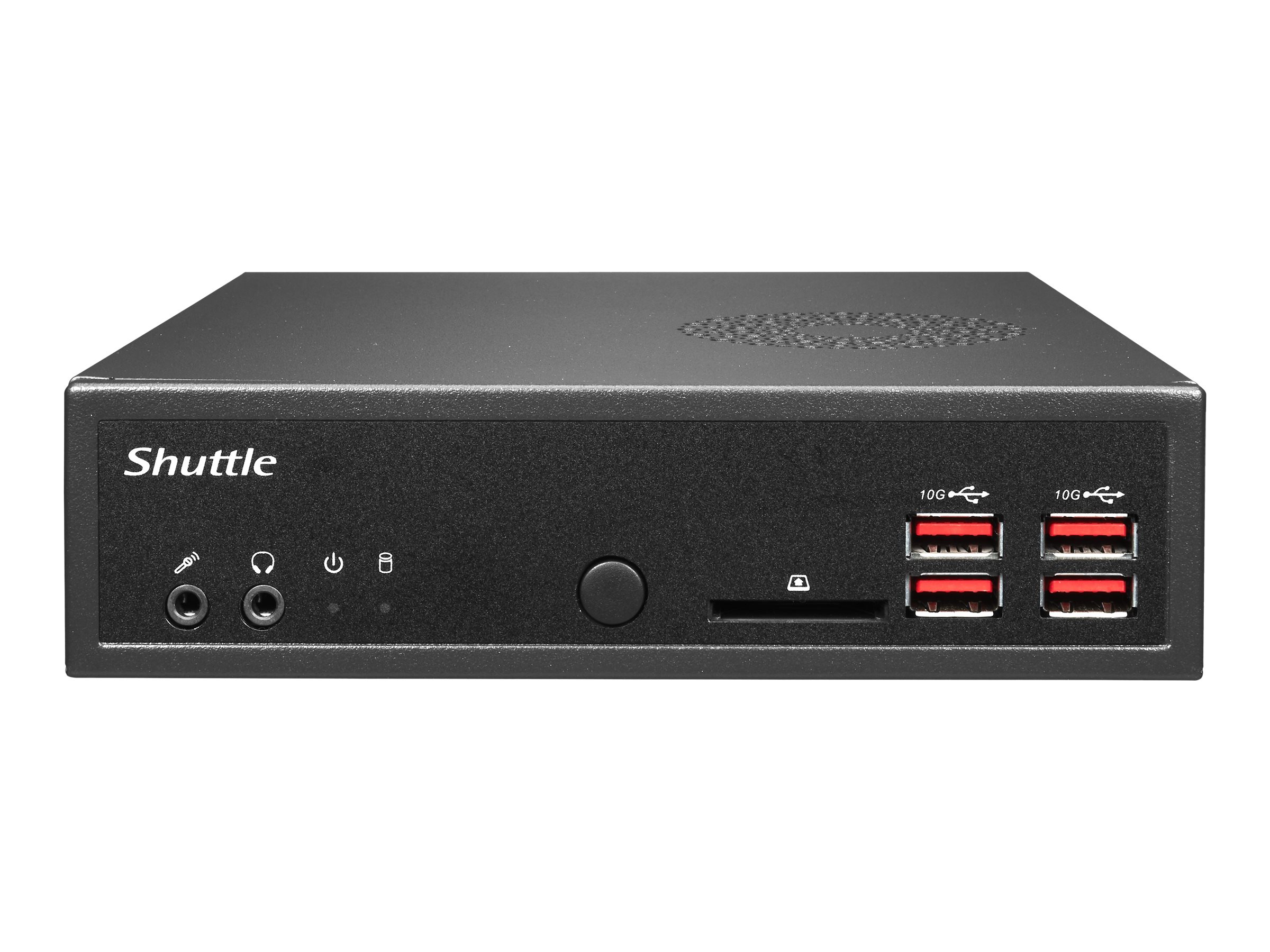

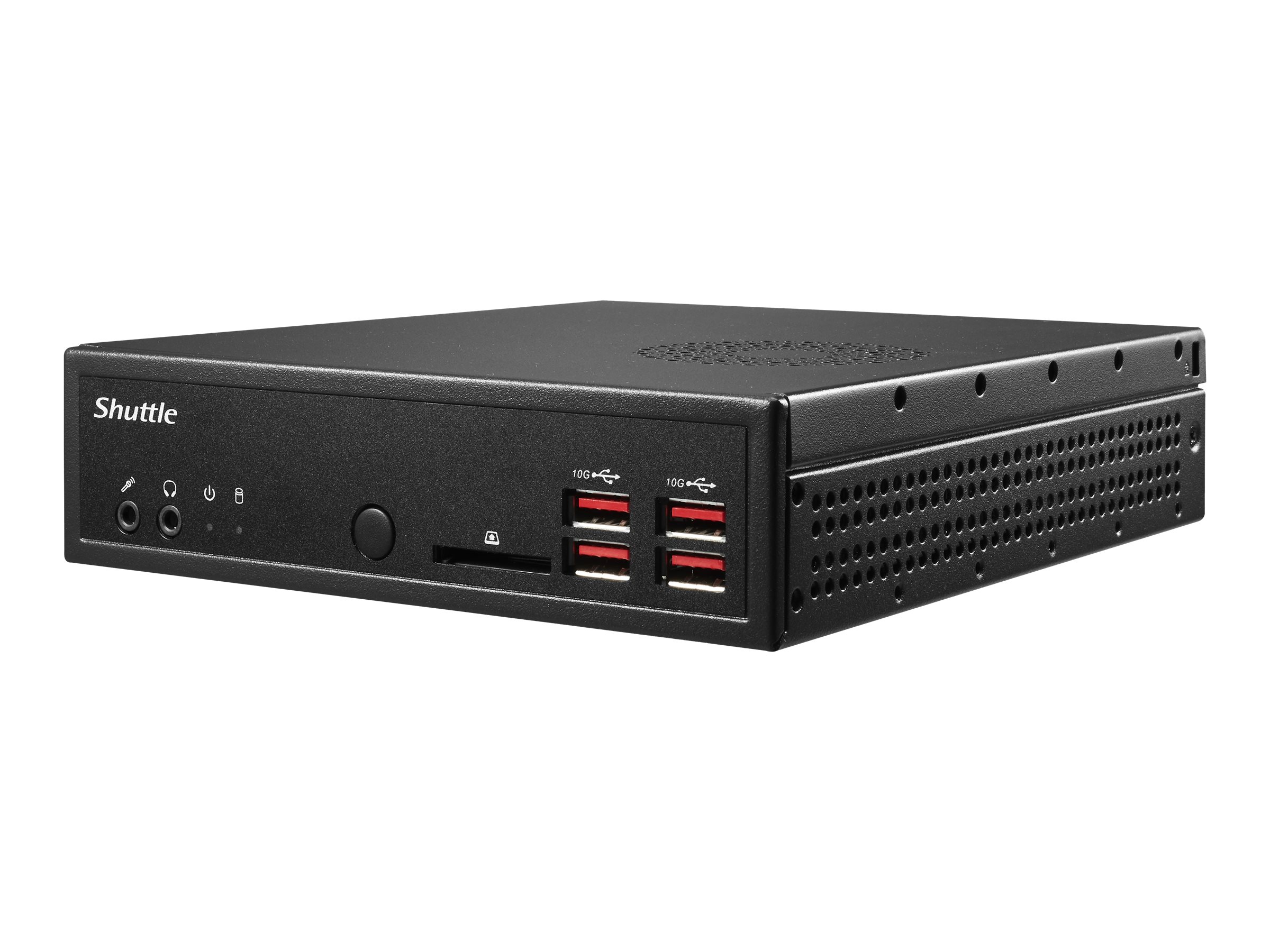

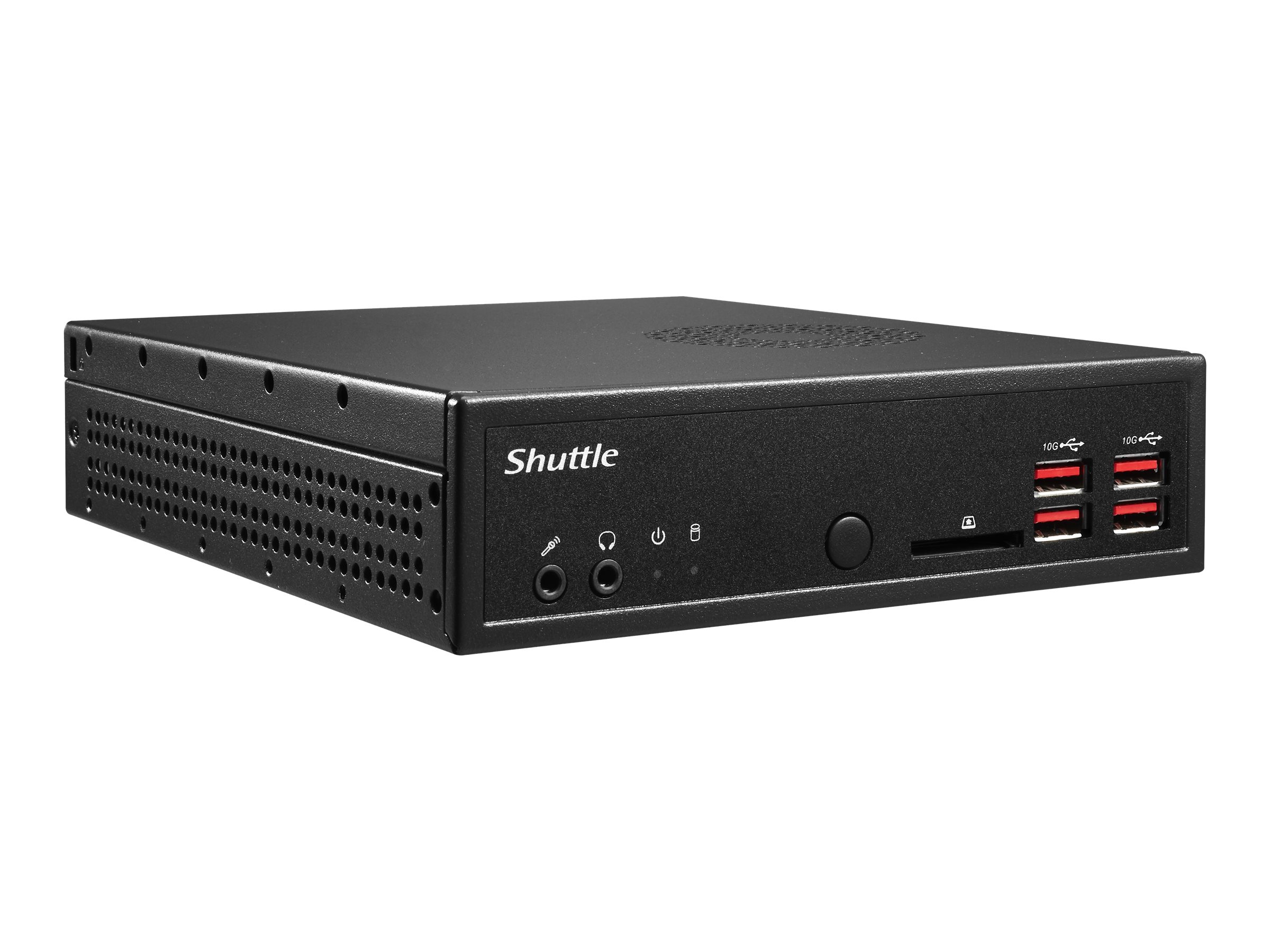

Shuttle XPC slim DH32U Slim-PC Pentium Gold 7505 0GB 0GB Intel UHD Graphics No-OS
Shuttle XPC slim DH32U - Barebone - Slim-PC 1 x Pentium Gold 7505 / op til 3.5 GHz ULV - RAM 0 GB - UHD Graphics - Gigabit Ethernet - sort
-
Product no 1000908154
Model DH32U
Brand
Go to brand's websiteEAN 887993004440
Weight 2.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Shuttle XPC slim DH32U - Slim-PC Pentium Gold 7505 2 GHz - 0 GB - ingen HDD |
| Type | PC barebone - Slim-PC |
| Processor | 1 x Intel Pentium Gold 7505 / 2 GHz (op til 3.5 GHz, ULV (Dual-Core) |
| Cachehukommelse | 4 MB |
| Cache pr. processor | 4 MB |
| RAM | 0 GB (installeret) / 64 GB (maks.) - DDR4 SDRAM |
| Controller for lagring | SATA (SATA 6Gb/s) |
| Harddisk | Ingen HDD |
| Optisk lagring | Intet optisk drev |
| Kortlæser | Ja |
| Grafik controller | Intel UHD Graphics |
| Lydudgang | Stereo |
| Netværk | 1GbE |
| Effekt | (50/60 Hz) |
| Med OS | Intet operativt system |
| Med software | Drivers & Utilities |
| Farve | Sort |
| Dimensioner (B x D x H) | 19 cm x 16.5 cm x 4.3 cm |
| Vægt | 1.3 kg |
| Miljømæssige standarder | ENERGY STAR kvalificeret |
| General | |
|---|---|
| Color | Black |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Slim-PC |
| Type | PC barebone |
| Processor / Chipset | |
| Clock Speed | 2 GHz |
| CPU | Intel Pentium Gold 7505 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | Dual-Core |
| Power Efficiency | Ultra Low Voltage (ULV) |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | 4 MB |
| RAM | |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB / 64 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Type | Card reader |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I211 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, Teaming support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |

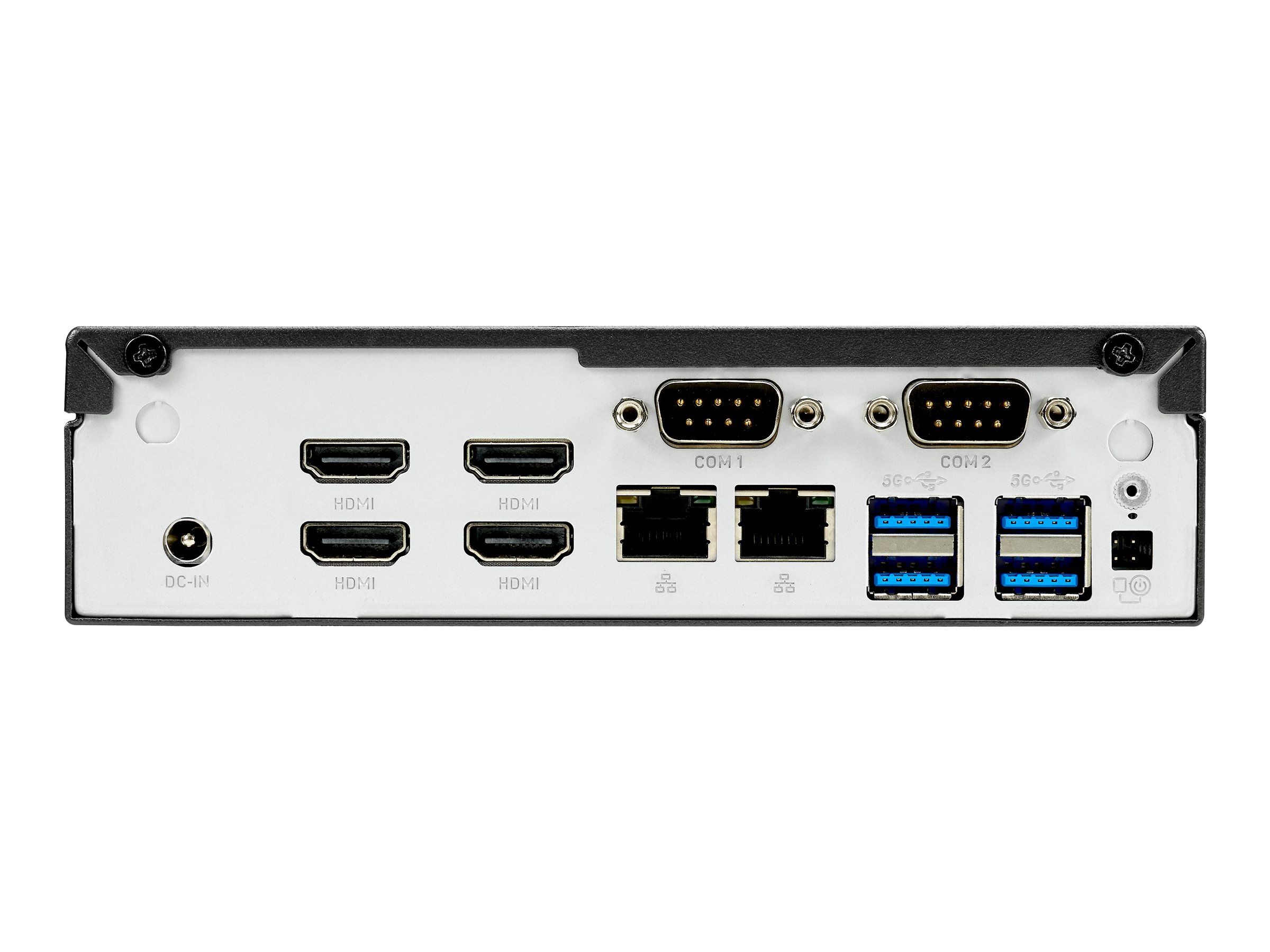

| Interfaces | 1 x microphone (1 in front) | 1 x audio line-out/headphones (1 in front) | 4 x HDMI | 2 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 4 x USB 3.2 Gen 2 (4 in front) | 2 x serial |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key M) | 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Miscellaneous | |
| Cables Included | Serial ATA cable |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, cTUVus, ErP Ready, EMI, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC |
| Included Accessories | VESA mounting kit |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 4.3 cm |
| Weight | 1.3 kg |
| Width | 19 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.1 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
